| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G07_076T04_9000001172_08385cztM0_level2.evt | modeM0/AS1G07_076T04_9000001172_08385cztM0_level2_quad_clean.evt |
| Size (bytes) | 543,692,160 | 96,045,120 |
| Size | 518.5 MB | 91.6 MB |
| Events in quadrant A | 3,867,756 | 594,409 |
| Events in quadrant B | 4,202,097 | 599,884 |
| Events in quadrant C | 3,874,363 | 585,918 |
| Events in quadrant D | 3,976,931 | 571,446 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 162 | 0 |
| B | 0 | 162 | 0 |
| C | 0 | 162 | 0 |
| D | 0 | 162 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16963 | 2 |
| B | 0 | 17739 | 1 |
| C | 0 | 17014 | 1 |
| D | 0 | 17468 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 1 | 0 |
| B | 0 | 1 | 0 |
| C | 0 | 1 | 0 |
| D | 0 | 1 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 8014 | 373 | 4.654355% |
| B | 8014 | 386 | 4.816571% |
| C | 8014 | 271 | 3.381582% |
| D | 8014 | 277 | 3.456451% |

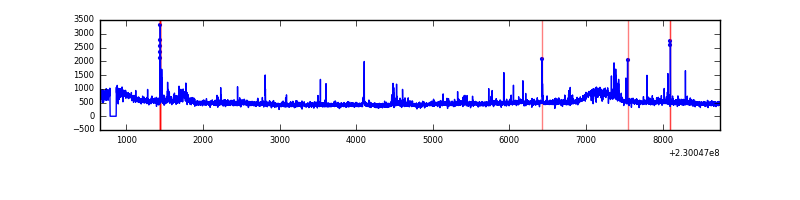

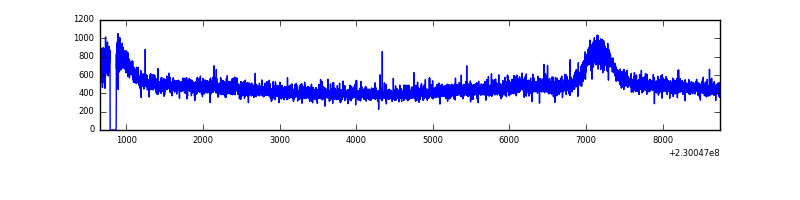

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8094 | 8014 | 0 | 0 | 0.00% | 0.00% |  |
| B | 8094 | 8015 | 9 | 9 | 0.11% | 0.11% |  |
| C | 8094 | 8015 | 4 | 4 | 0.05% | 0.05% |  |
| D | 8094 | 8015 | 18 | 18 | 0.22% | 0.22% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 226 | 9371 | 40.69 | 1005 | 981 | 206.2 |
| A | 12 | 194 | 9011 | 38.95 | 1005 | 981 | 206.2 |
| A | 15 | 236 | 4263 | 15.92 | 1005 | 981 | 206.2 |
| B | 4 | 48 | 153433 | 775.14 | 1003 | 974 | 196.7 |
| B | 0 | 214 | 65924 | 330.22 | 1003 | 974 | 196.7 |
| B | 4 | 81 | 44229 | 219.92 | 1003 | 974 | 196.7 |
| C | 1 | 16 | 23701 | 98.99 | 979 | 981 | 229.5 |
| C | 8 | 128 | 19105 | 78.97 | 979 | 981 | 229.5 |
| C | 8 | 112 | 8984 | 34.87 | 979 | 981 | 229.5 |
| D | 2 | 14 | 67435 | 257.51 | 979 | 950 | 258.2 |
| D | 12 | 233 | 57878 | 220.49 | 979 | 950 | 258.2 |
| D | 1 | 52 | 43989 | 166.7 | 979 | 950 | 258.2 |

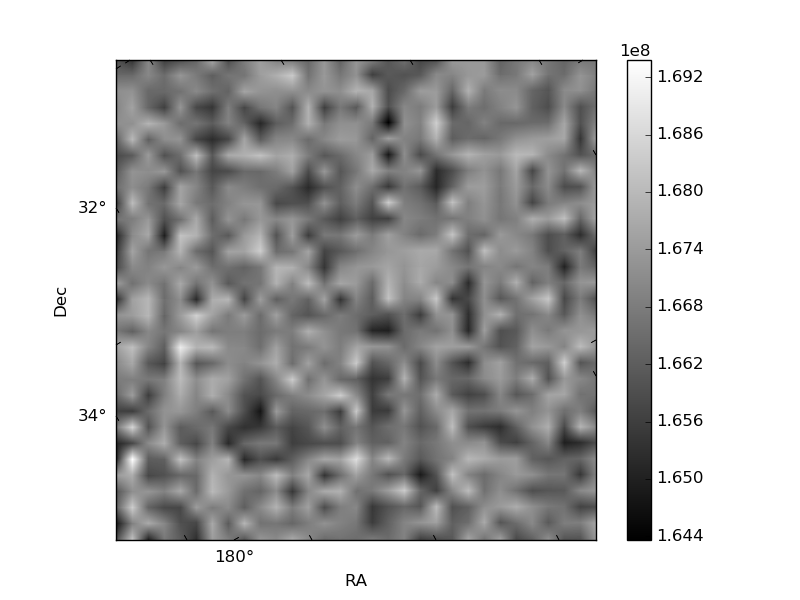

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

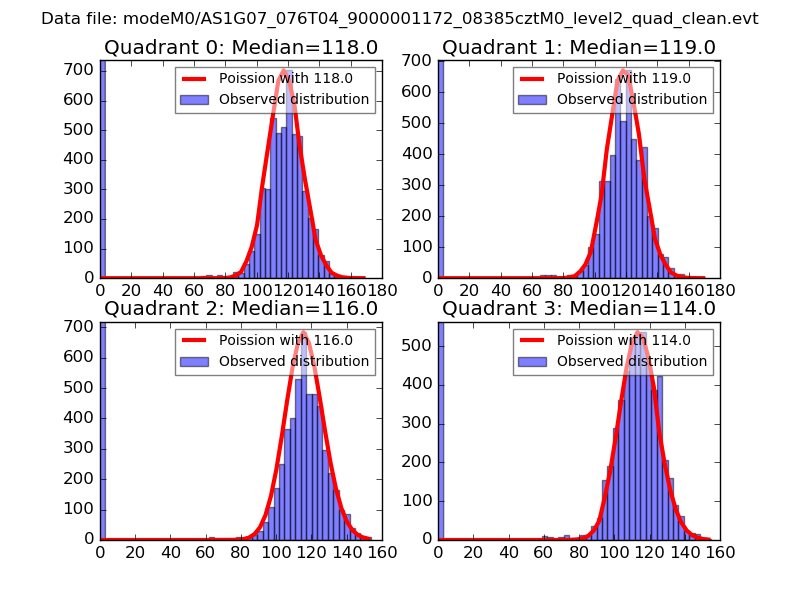

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |

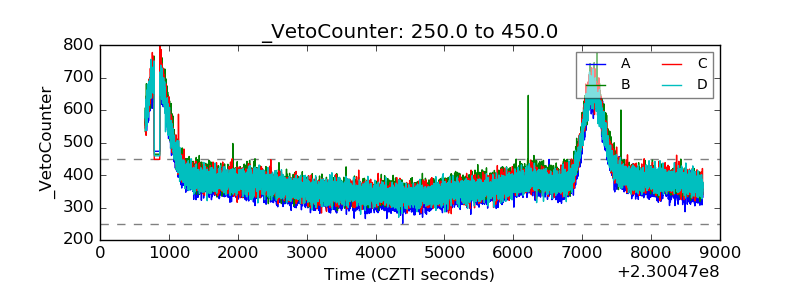

| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

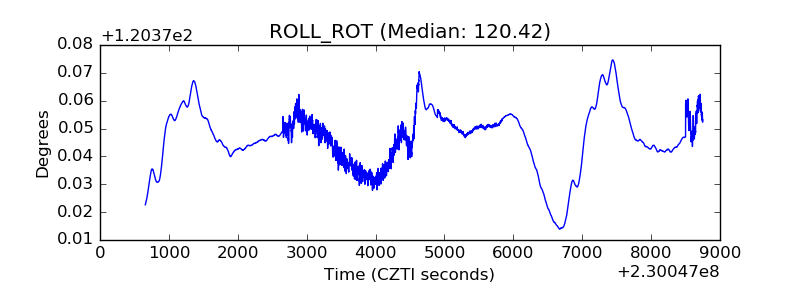

| _ROLL_ROT |  |

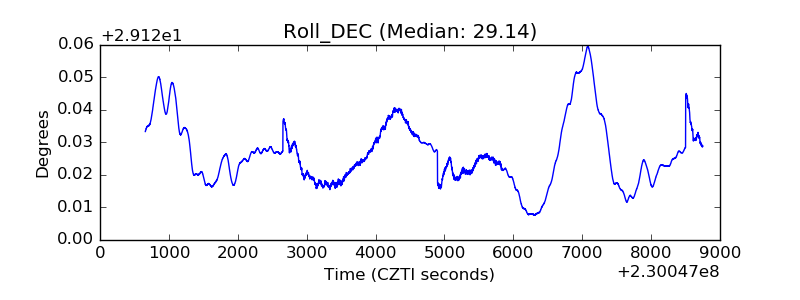

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
