| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G07_084T03_9000001174_08389cztM0_level2.evt | modeM0/AS1G07_084T03_9000001174_08389cztM0_level2_quad_clean.evt |
| Size (bytes) | 561,024,000 | 159,929,280 |
| Size | 535.0 MB | 152.5 MB |
| Events in quadrant A | 4,069,685 | 1,048,426 |
| Events in quadrant B | 4,135,670 | 1,072,531 |
| Events in quadrant C | 3,928,728 | 1,072,514 |
| Events in quadrant D | 4,254,913 | 1,035,672 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 180 | 0 |
| B | 0 | 180 | 0 |
| C | 0 | 180 | 0 |
| D | 0 | 180 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 18351 | 2 |
| B | 0 | 18368 | 2 |
| C | 0 | 18029 | 2 |
| D | 0 | 19211 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16 | 0 |
| B | 0 | 16 | 0 |
| C | 0 | 16 | 0 |
| D | 0 | 16 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 8867 | 83 | 0.936055% |
| B | 8867 | 56 | 0.631555% |
| C | 8867 | 28 | 0.315778% |
| D | 8867 | 63 | 0.710500% |

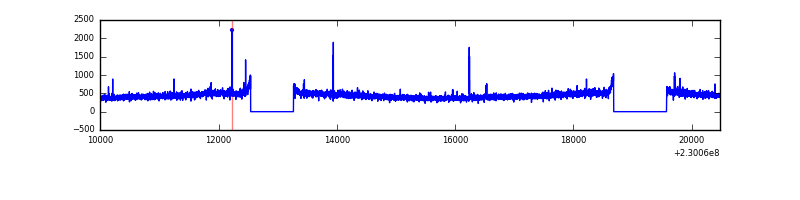

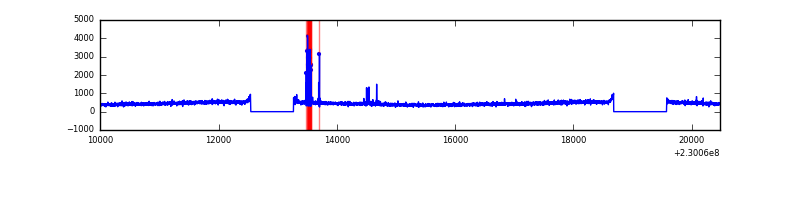

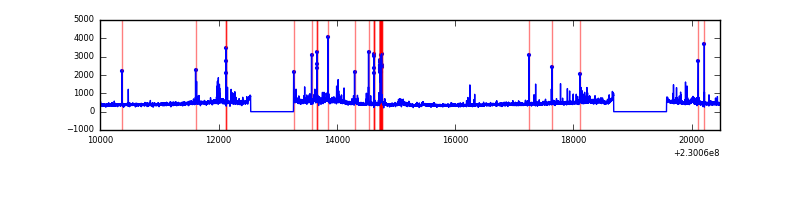

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 10487 | 8869 | 34 | 34 | 0.32% | 0.38% |  |
| B | 10487 | 8869 | 0 | 0 | 0.00% | 0.00% |  |
| C | 10487 | 8869 | 1 | 1 | 0.01% | 0.01% |  |
| D | 10487 | 8869 | 41 | 41 | 0.39% | 0.46% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 236 | 123130 | 581.67 | 1022 | 996 | 210.0 |
| A | 13 | 248 | 14877 | 66.11 | 1022 | 996 | 210.0 |
| A | 0 | 226 | 9593 | 40.94 | 1022 | 996 | 210.0 |
| B | 0 | 214 | 51869 | 258.27 | 1031 | 1005 | 196.9 |
| B | 5 | 255 | 28468 | 139.45 | 1031 | 1005 | 196.9 |
| B | 12 | 111 | 21239 | 102.74 | 1031 | 1005 | 196.9 |
| C | 1 | 16 | 23273 | 96.21 | 1001 | 1004 | 231.5 |
| C | 13 | 61 | 7803 | 29.37 | 1001 | 1004 | 231.5 |
| C | 3 | 202 | 2583 | 6.82 | 1001 | 1004 | 231.5 |
| D | 12 | 221 | 122008 | 463.23 | 990 | 964 | 261.3 |
| D | 7 | 71 | 116013 | 440.29 | 990 | 964 | 261.3 |
| D | 14 | 34 | 78753 | 297.69 | 990 | 964 | 261.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

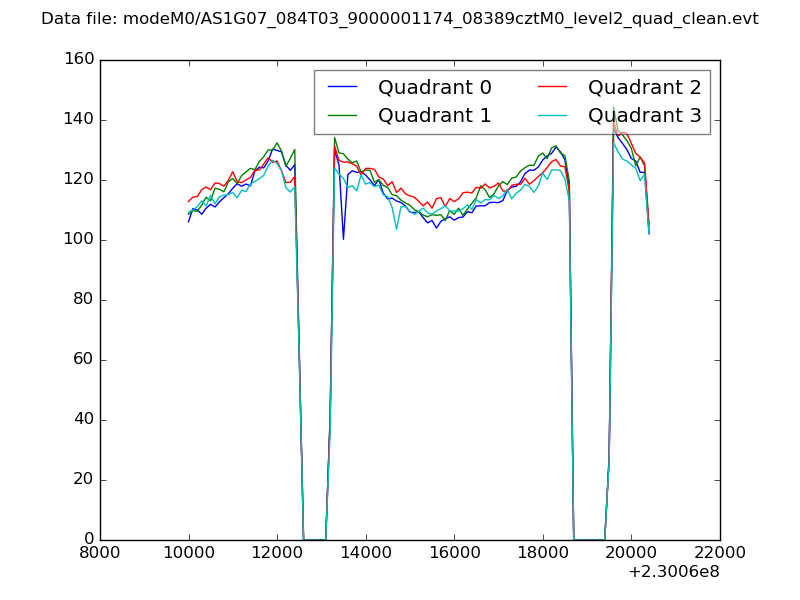

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

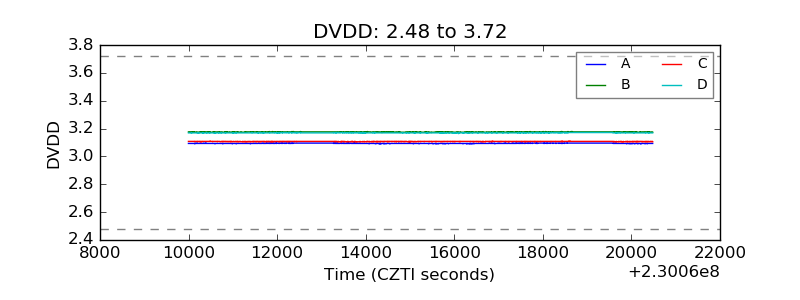

| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

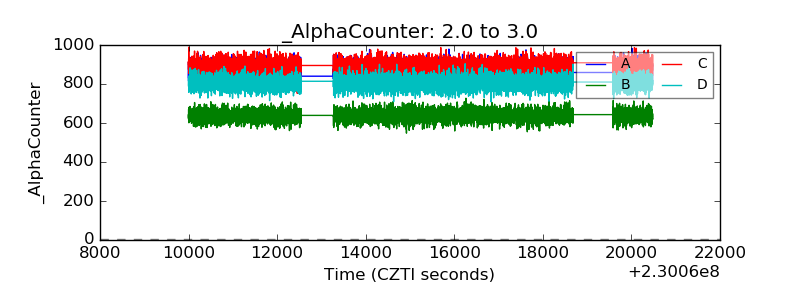

| Alpha Counter |  |
| _CPM_Rate |  |

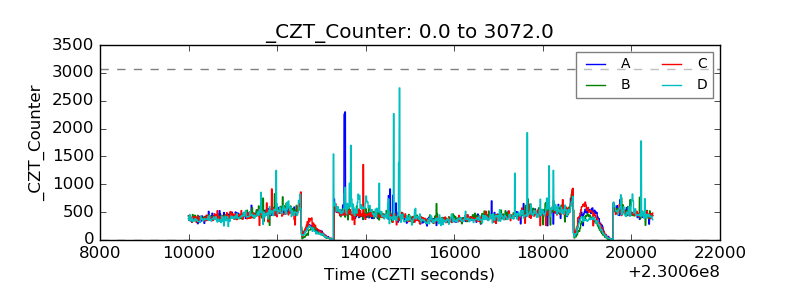

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

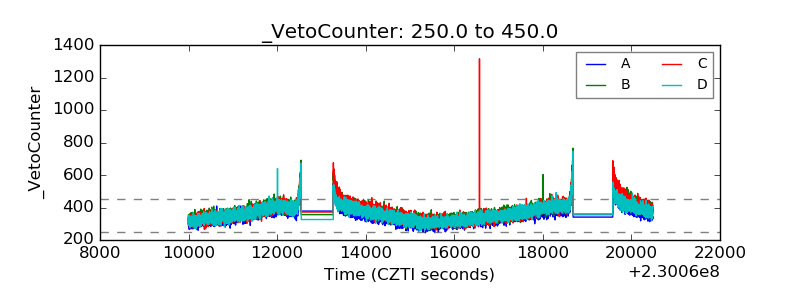

| Veto Counter |  |
