| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A03_025T07_9000001182_08408cztM0_level2.evt | modeM0/AS1A03_025T07_9000001182_08408cztM0_level2_quad_clean.evt |
| Size (bytes) | 429,240,960 | 82,630,080 |
| Size | 409.4 MB | 78.8 MB |
| Events in quadrant A | 2,984,157 | 527,929 |
| Events in quadrant B | 3,146,244 | 538,382 |
| Events in quadrant C | 2,916,717 | 515,163 |
| Events in quadrant D | 3,531,886 | 488,858 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 0 |
| C | 0 | 126 | 0 |
| D | 0 | 126 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12679 | 3 |
| B | 0 | 13115 | 2 |
| C | 0 | 12643 | 2 |
| D | 0 | 14653 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6185 | 9 | 0.145513% |
| B | 6185 | 16 | 0.258690% |
| C | 6185 | 6 | 0.097009% |
| D | 6185 | 151 | 2.441390% |

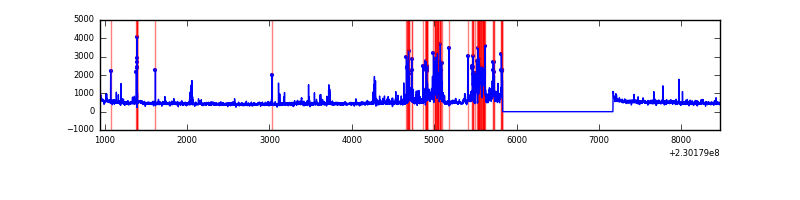

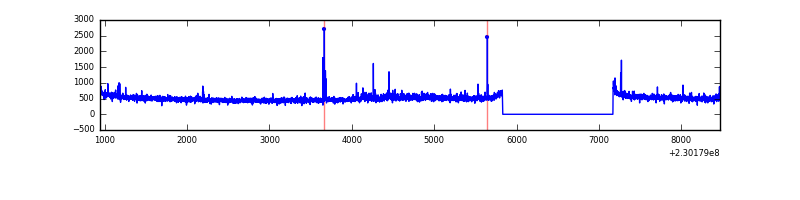

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

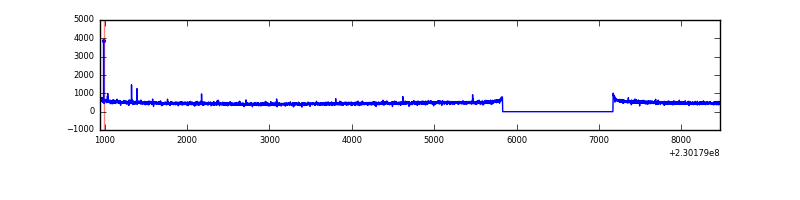

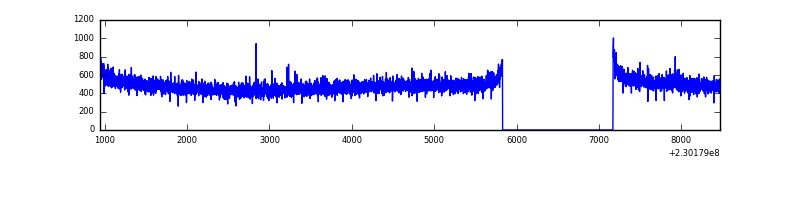

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7525 | 6186 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7525 | 6186 | 2 | 2 | 0.03% | 0.03% |  |
| C | 7525 | 6186 | 1 | 1 | 0.01% | 0.02% |  |
| D | 7525 | 6186 | 103 | 103 | 1.37% | 1.67% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 226 | 7276 | 41.5 | 773 | 759 | 157.1 |
| A | 12 | 194 | 6831 | 38.66 | 773 | 759 | 157.1 |
| A | 4 | 2 | 6192 | 34.59 | 773 | 759 | 157.1 |
| B | 0 | 214 | 91313 | 618.35 | 777 | 759 | 146.4 |
| B | 4 | 81 | 18107 | 118.46 | 777 | 759 | 146.4 |
| B | 12 | 111 | 15402 | 99.99 | 777 | 759 | 146.4 |
| C | 1 | 16 | 11398 | 62.75 | 741 | 746 | 169.8 |
| C | 13 | 61 | 5608 | 28.64 | 741 | 746 | 169.8 |
| C | 8 | 222 | 4742 | 23.54 | 741 | 746 | 169.8 |
| D | 7 | 71 | 522463 | 2802.03 | 726 | 710 | 186.2 |
| D | 1 | 52 | 118249 | 631.23 | 726 | 710 | 186.2 |
| D | 12 | 221 | 42894 | 226.55 | 726 | 710 | 186.2 |

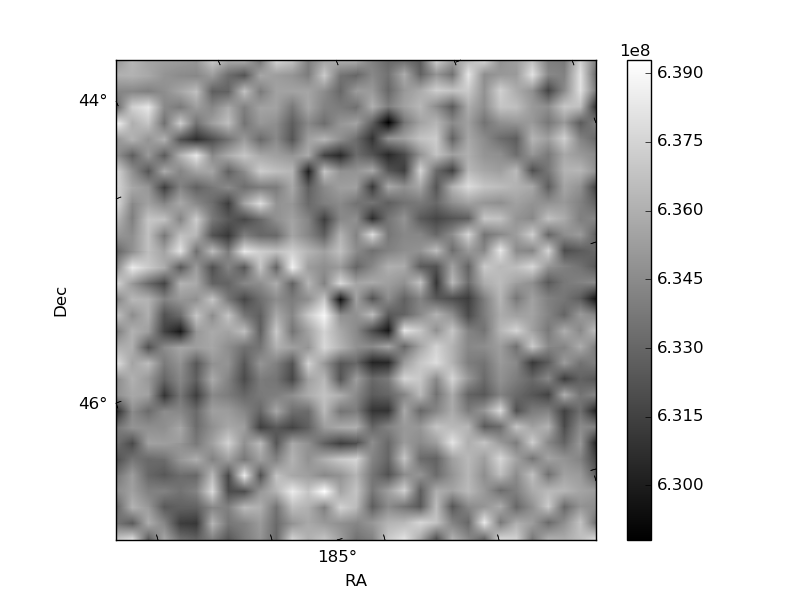

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

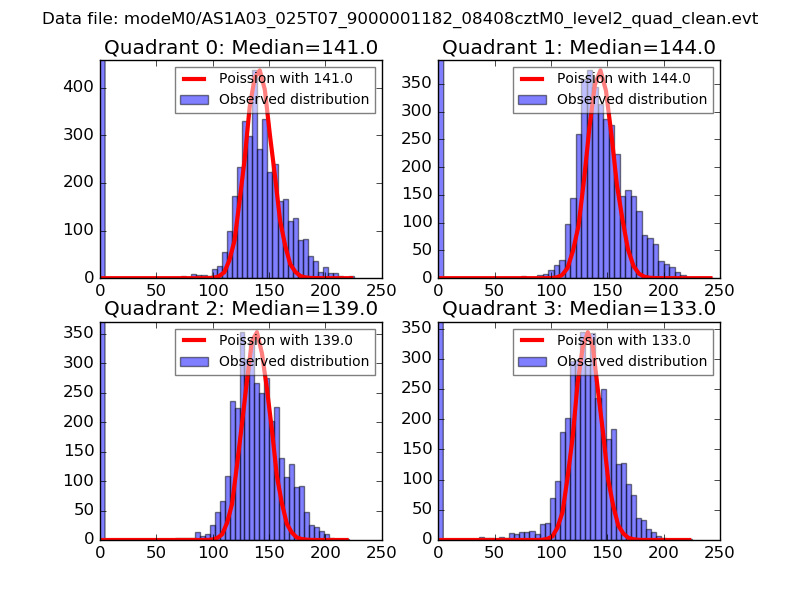

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

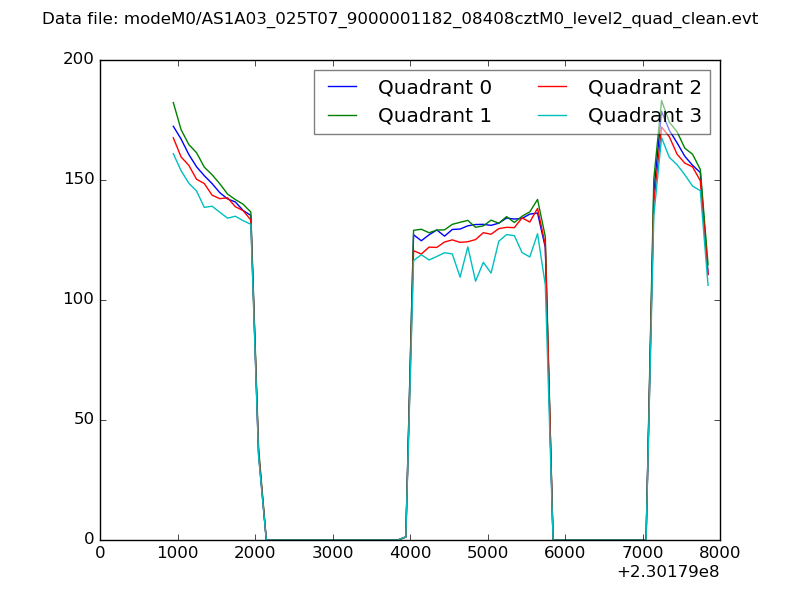

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

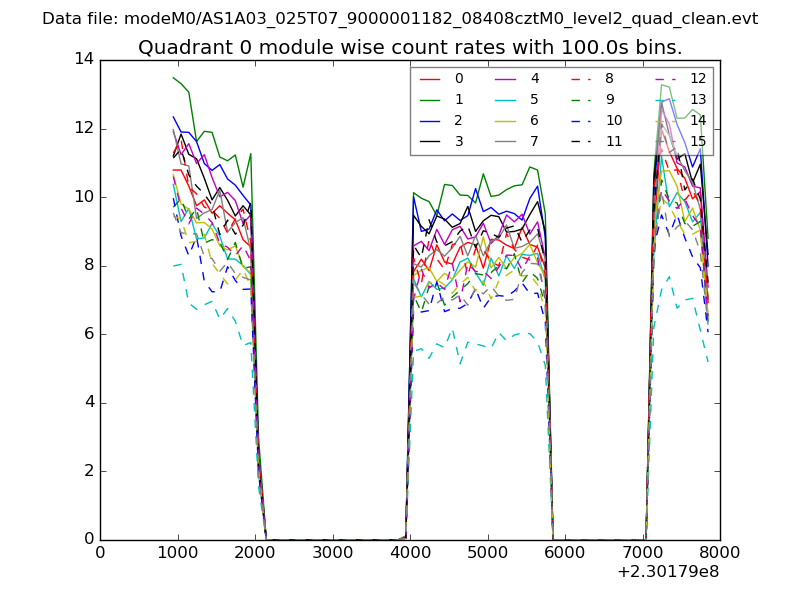

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

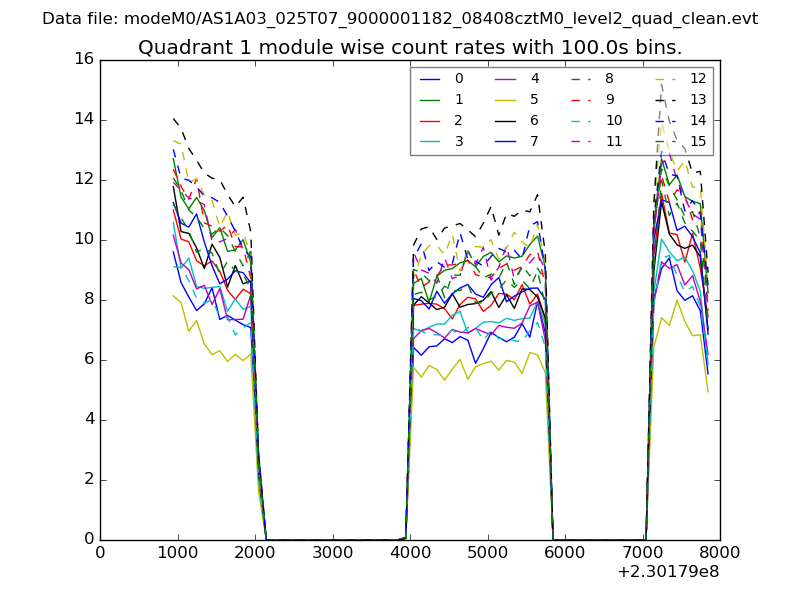

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

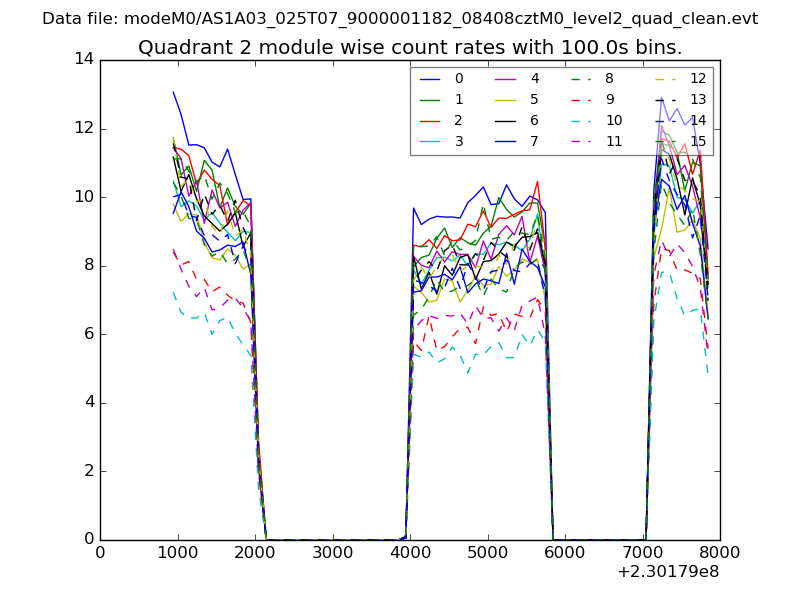

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

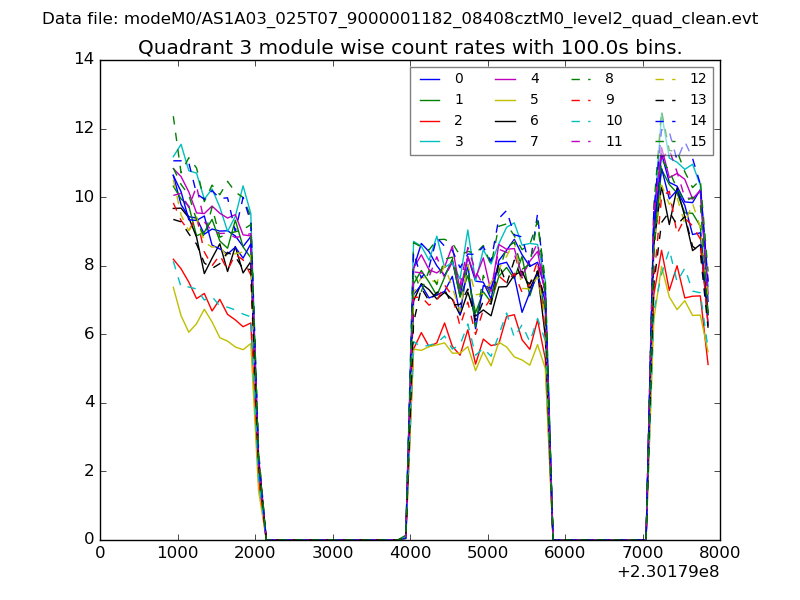

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

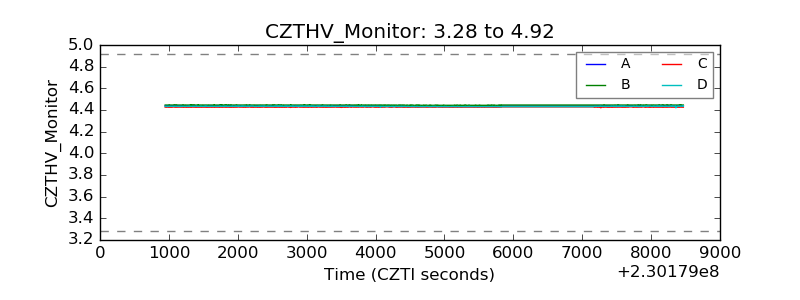

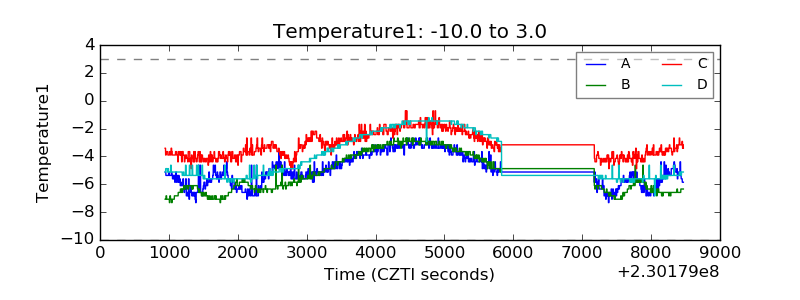

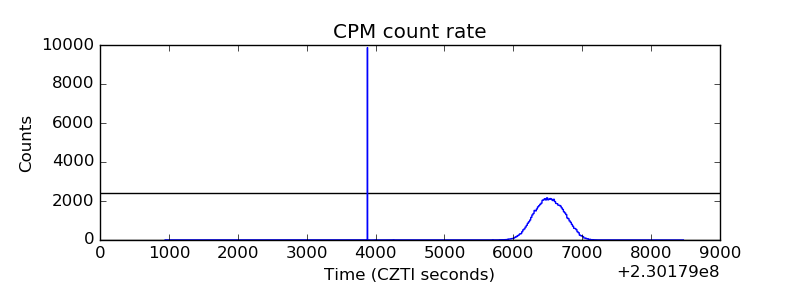

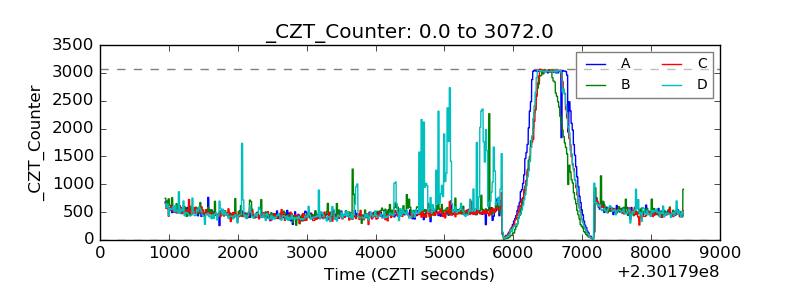

| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

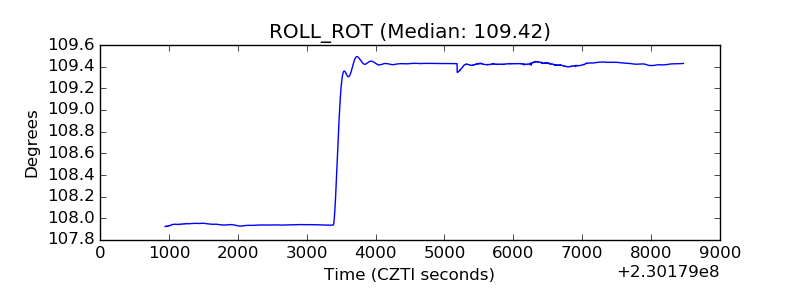

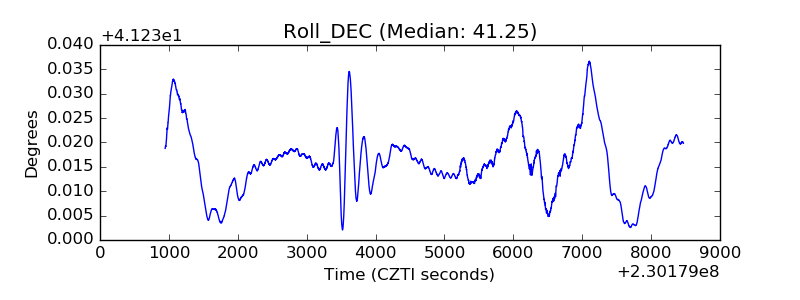

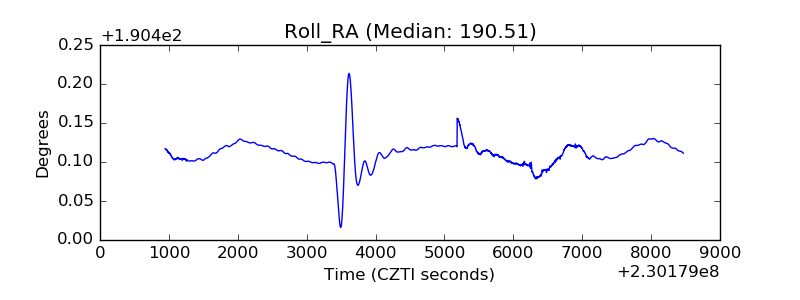

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

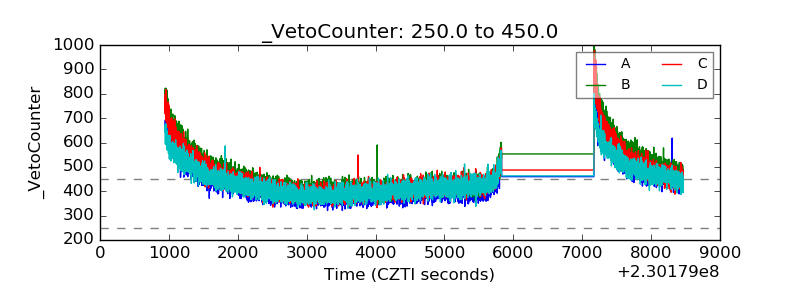

| Veto Counter |  |
