| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C02_033T01_9000001178_08398cztM0_level2.evt | modeM0/AS1C02_033T01_9000001178_08398cztM0_level2_quad_clean.evt |
| Size (bytes) | 269,740,800 | 36,250,560 |
| Size | 257.2 MB | 34.6 MB |
| Events in quadrant A | 1,948,161 | 206,197 |
| Events in quadrant B | 2,043,036 | 213,653 |
| Events in quadrant C | 1,929,099 | 208,969 |
| Events in quadrant D | 1,988,867 | 199,709 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 4 | 0 |
| B | 0 | 4 | 0 |
| C | 0 | 4 | 0 |
| D | 0 | 4 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 8177 | 2 |
| B | 0 | 8316 | 1 |
| C | 0 | 8176 | 1 |
| D | 0 | 8446 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 78 | 0 |
| B | 0 | 78 | 0 |
| C | 0 | 78 | 0 |
| D | 0 | 78 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 3800 | 150 | 3.947368% |
| B | 3800 | 155 | 4.078947% |
| C | 3800 | 77 | 2.026316% |
| D | 3800 | 119 | 3.131579% |

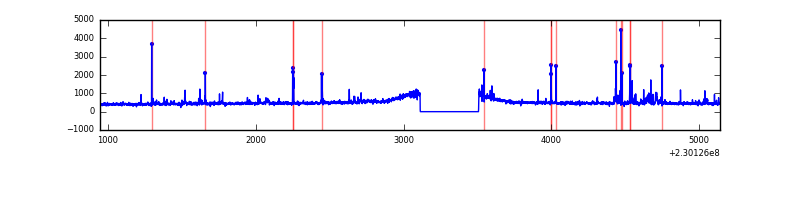

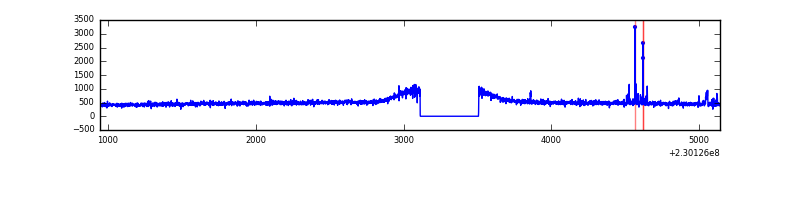

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 4195 | 3801 | 3 | 3 | 0.07% | 0.08% |  |
| B | 4195 | 3801 | 0 | 0 | 0.00% | 0.00% |  |
| C | 4195 | 3801 | 3 | 3 | 0.07% | 0.08% |  |
| D | 4195 | 3801 | 15 | 15 | 0.36% | 0.39% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 5 | 16 | 16387 | 150.73 | 498 | 485 | 105.5 |
| A | 14 | 111 | 14729 | 135.01 | 498 | 485 | 105.5 |
| A | 0 | 226 | 4623 | 39.22 | 498 | 485 | 105.5 |
| B | 0 | 214 | 25097 | 247.29 | 500 | 487 | 99.5 |
| B | 4 | 48 | 17203 | 167.97 | 500 | 487 | 99.5 |
| B | 0 | 219 | 13544 | 131.2 | 500 | 487 | 99.5 |
| C | 1 | 16 | 30681 | 261.76 | 483 | 484 | 115.4 |
| C | 8 | 128 | 5059 | 39.66 | 483 | 484 | 115.4 |
| C | 13 | 61 | 3684 | 27.74 | 483 | 484 | 115.4 |
| D | 2 | 14 | 50665 | 419.43 | 484 | 471 | 119.7 |
| D | 7 | 71 | 50259 | 416.03 | 484 | 471 | 119.7 |
| D | 7 | 55 | 14152 | 114.32 | 484 | 471 | 119.7 |

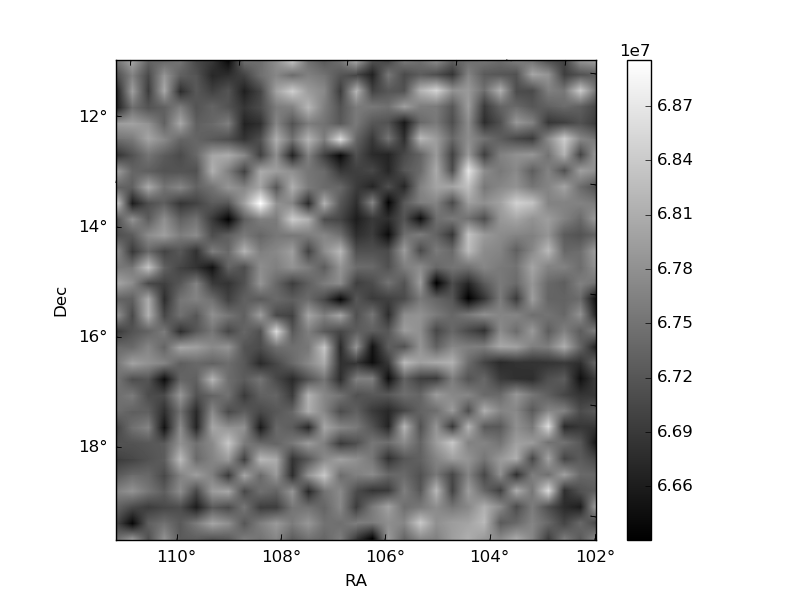

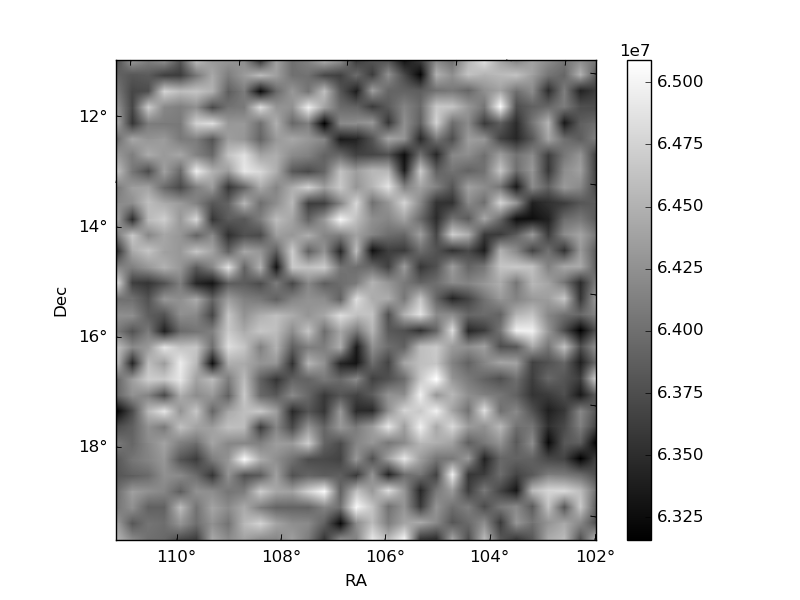

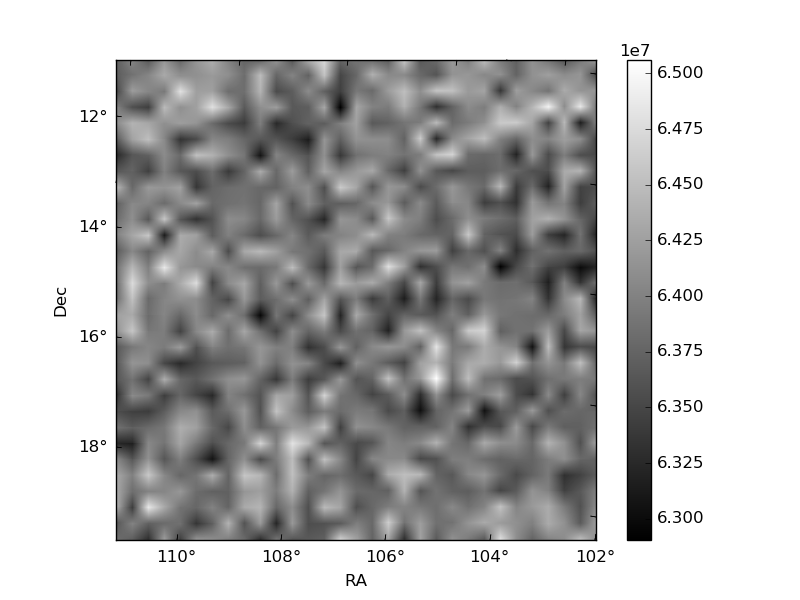

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

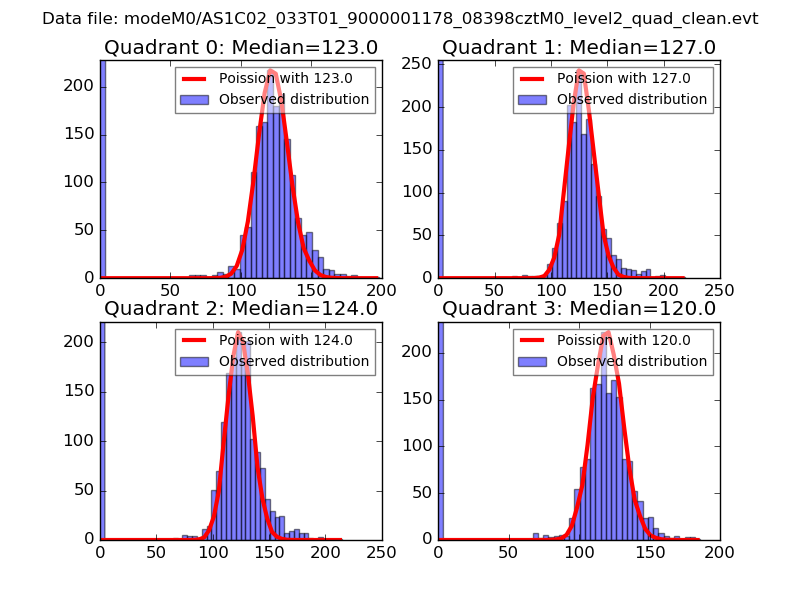

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

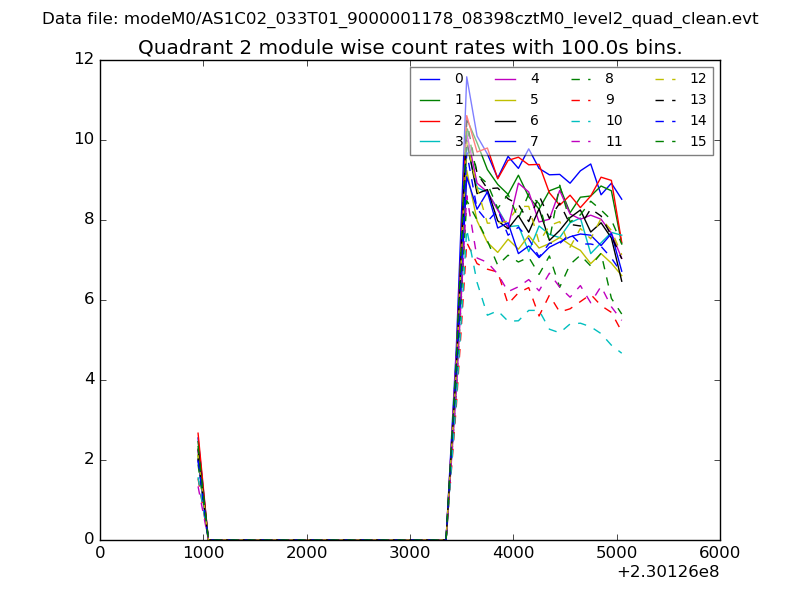

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

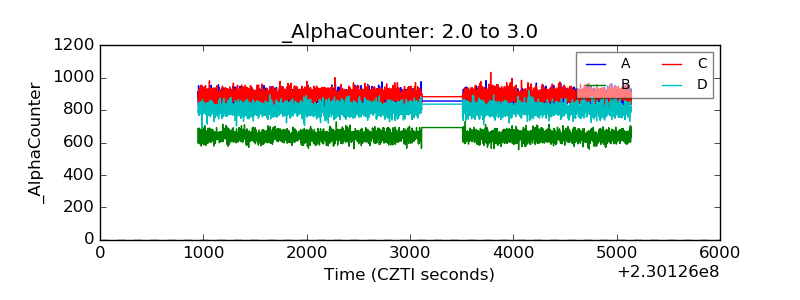

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
