| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G07_053T01_9000001186_08424cztM0_level2.evt | modeM0/AS1G07_053T01_9000001186_08424cztM0_level2_quad_clean.evt |
| Size (bytes) | 473,811,840 | 93,968,640 |
| Size | 451.9 MB | 89.6 MB |
| Events in quadrant A | 3,344,501 | 608,066 |
| Events in quadrant B | 3,345,625 | 619,264 |
| Events in quadrant C | 3,131,147 | 607,260 |
| Events in quadrant D | 4,105,216 | 576,355 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 0 |
| C | 0 | 126 | 0 |
| D | 0 | 126 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 18 | 0 |
| B | 0 | 18 | 0 |
| C | 0 | 18 | 0 |
| D | 0 | 19 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13571 | 3 |
| B | 0 | 13472 | 2 |
| C | 0 | 13071 | 2 |
| D | 0 | 16127 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6232 | 152 | 2.439024% |
| B | 6232 | 93 | 1.492298% |
| C | 6232 | 64 | 1.026958% |
| D | 6232 | 245 | 3.931322% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|

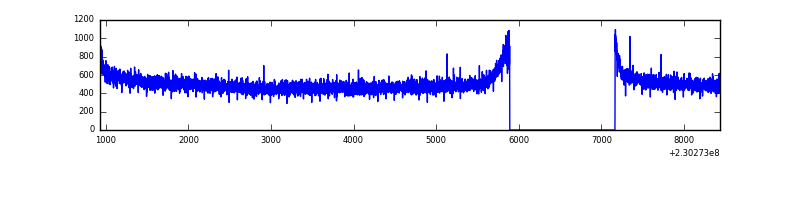

| A | 7507 | 6233 | 34 | 34 | 0.45% | 0.55% |  |

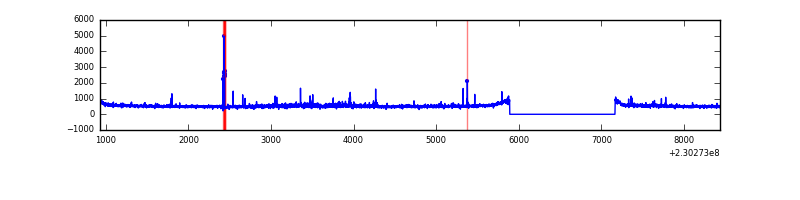

| B | 7507 | 6233 | 9 | 9 | 0.12% | 0.14% |  |
| C | 7507 | 6233 | 0 | 0 | 0.00% | 0.00% |  |

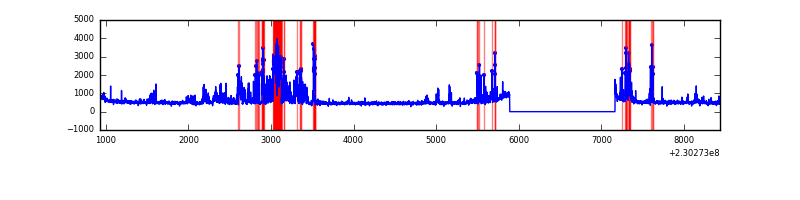

| D | 7507 | 6233 | 151 | 151 | 2.01% | 2.42% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 14 | 111 | 178040 | 1070.55 | 812 | 794 | 165.6 |
| A | 15 | 236 | 25192 | 147.36 | 812 | 794 | 165.6 |
| A | 5 | 16 | 8974 | 49.4 | 812 | 794 | 165.6 |
| B | 0 | 214 | 105134 | 678.22 | 812 | 794 | 153.8 |
| B | 4 | 81 | 28031 | 177.04 | 812 | 794 | 153.8 |
| B | 10 | 16 | 23011 | 144.41 | 812 | 794 | 153.8 |
| C | 13 | 61 | 5937 | 27.66 | 800 | 805 | 185.5 |
| C | 14 | 67 | 5132 | 23.32 | 800 | 805 | 185.5 |
| C | 9 | 160 | 4656 | 20.76 | 800 | 805 | 185.5 |
| D | 1 | 52 | 927692 | 4399.63 | 786 | 769 | 210.7 |
| D | 4 | 95 | 124228 | 586.0 | 786 | 769 | 210.7 |
| D | 2 | 234 | 18842 | 85.78 | 786 | 769 | 210.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

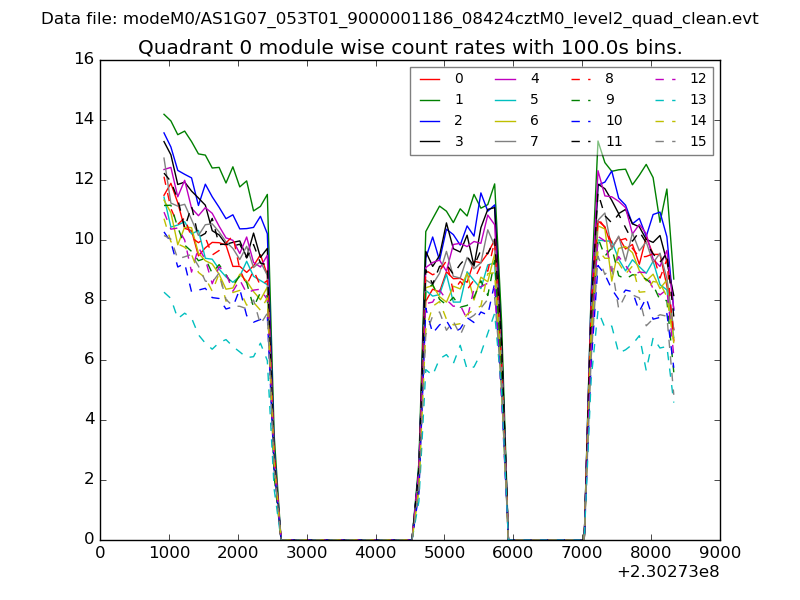

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

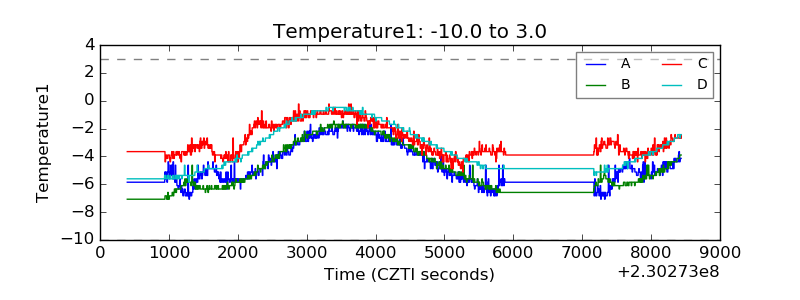

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

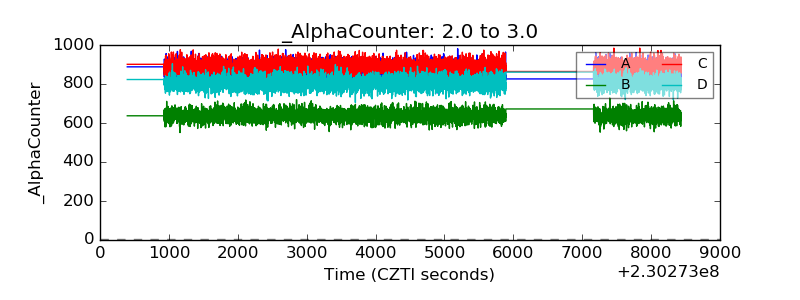

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

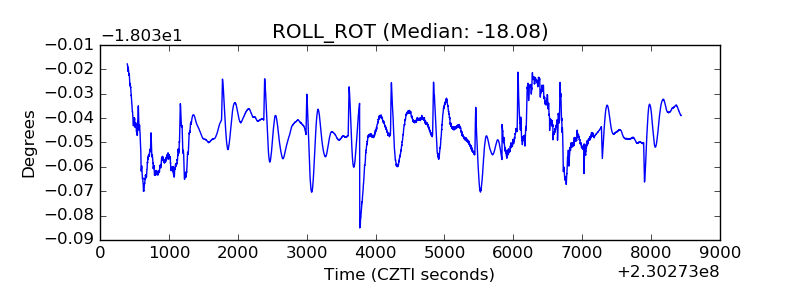

| _ROLL_ROT |  |
| _Roll_DEC |  |

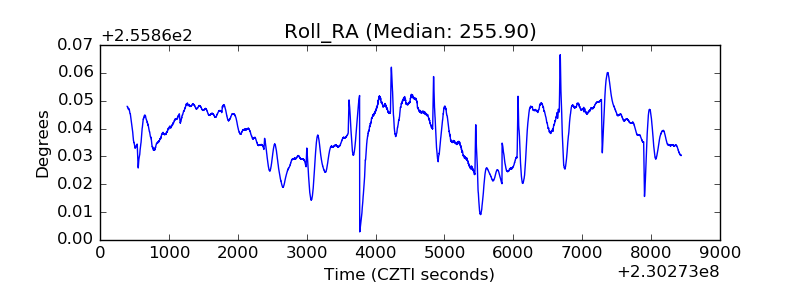

| _Roll_RA |  |
| Veto Counter |  |
