| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A03_084T01_9000001188_08428cztM0_level2.evt | modeM0/AS1A03_084T01_9000001188_08428cztM0_level2_quad_clean.evt |
| Size (bytes) | 539,737,920 | 79,741,440 |
| Size | 514.7 MB | 76.0 MB |
| Events in quadrant A | 3,951,629 | 468,986 |
| Events in quadrant B | 4,110,302 | 476,684 |
| Events in quadrant C | 3,839,842 | 470,420 |
| Events in quadrant D | 3,911,266 | 452,832 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 3 | 0 |
| B | 0 | 3 | 0 |
| C | 0 | 3 | 0 |
| D | 0 | 4 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 158 | 0 |
| B | 0 | 158 | 0 |
| C | 0 | 158 | 0 |
| D | 0 | 158 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17041 | 3 |
| B | 0 | 17272 | 2 |
| C | 0 | 16790 | 6 |
| D | 0 | 17178 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7851 | 267 | 3.400841% |
| B | 7851 | 269 | 3.426315% |
| C | 7849 | 123 | 1.567079% |
| D | 7851 | 134 | 1.706789% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7961 | 7853 | 10 | 10 | 0.13% | 0.13% |  |
| B | 7961 | 7853 | 17 | 17 | 0.21% | 0.22% |  |
| C | 7961 | 7853 | 2 | 2 | 0.03% | 0.03% |  |
| D | 7961 | 7853 | 7 | 7 | 0.09% | 0.09% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 236 | 130274 | 642.69 | 973 | 949 | 201.2 |
| A | 15 | 174 | 29174 | 140.26 | 973 | 949 | 201.2 |
| A | 14 | 111 | 20380 | 96.56 | 973 | 949 | 201.2 |
| B | 0 | 214 | 155343 | 812.71 | 972 | 947 | 190.0 |
| B | 10 | 16 | 65754 | 341.13 | 972 | 947 | 190.0 |
| B | 11 | 51 | 37619 | 193.03 | 972 | 947 | 190.0 |
| C | 9 | 68 | 127809 | 573.05 | 948 | 953 | 221.4 |
| C | 13 | 61 | 7138 | 27.94 | 948 | 953 | 221.4 |
| C | 8 | 128 | 4741 | 17.11 | 948 | 953 | 221.4 |
| D | 6 | 225 | 209930 | 889.83 | 952 | 921 | 234.9 |
| D | 12 | 233 | 38523 | 160.09 | 952 | 921 | 234.9 |
| D | 2 | 234 | 28411 | 117.04 | 952 | 921 | 234.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

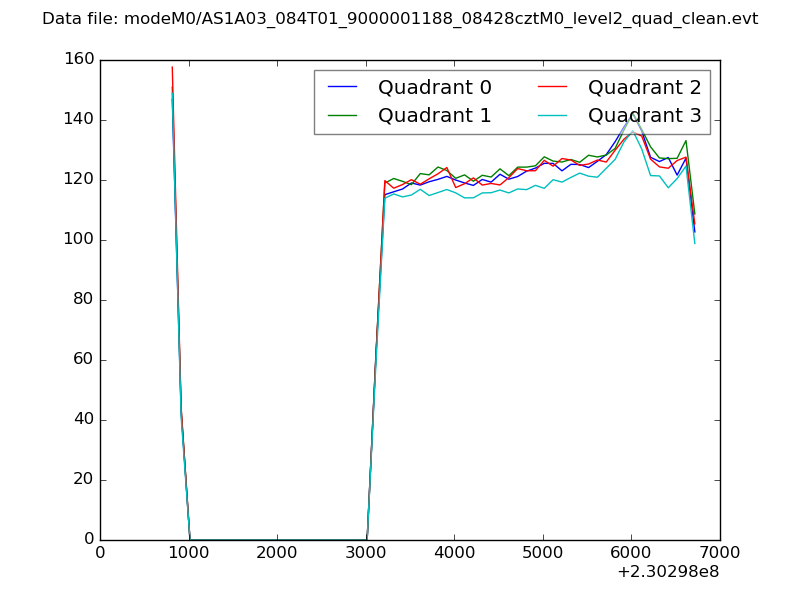

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

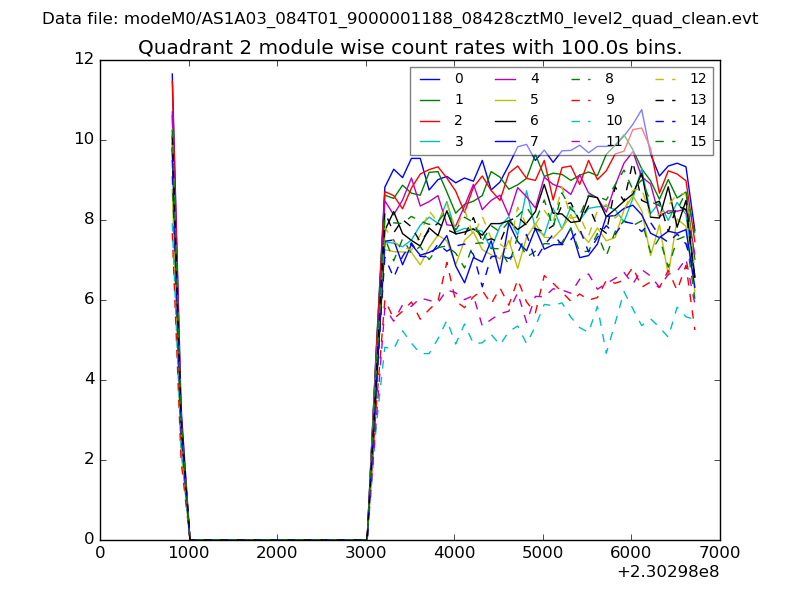

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

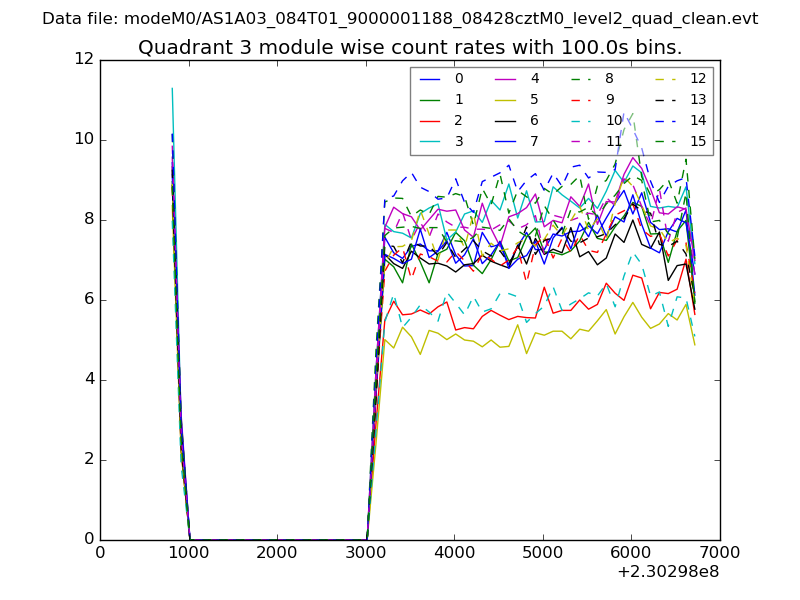

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

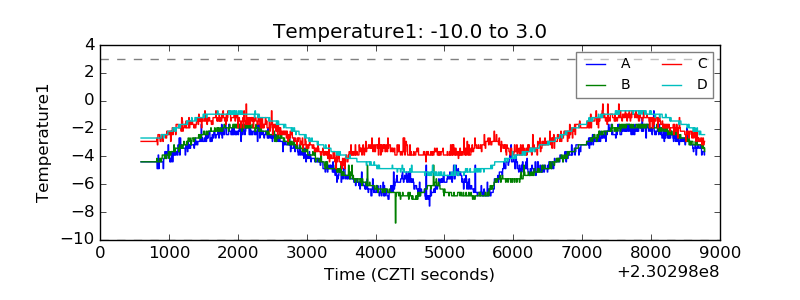

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

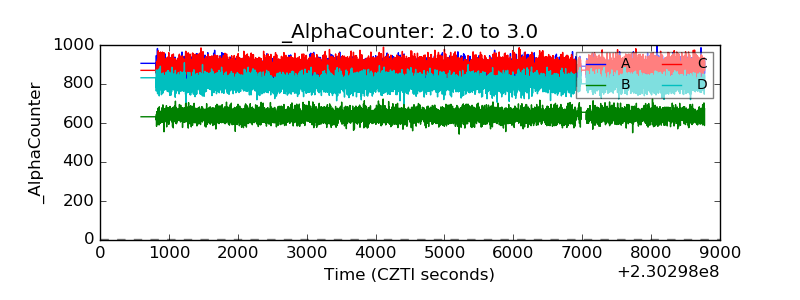

| Alpha Counter |  |
| _CPM_Rate |  |

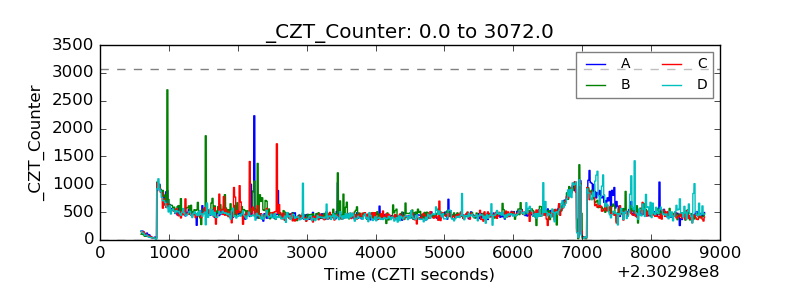

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

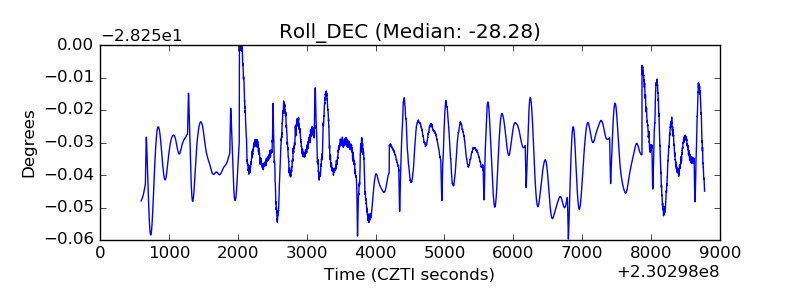

| _Roll_DEC |  |

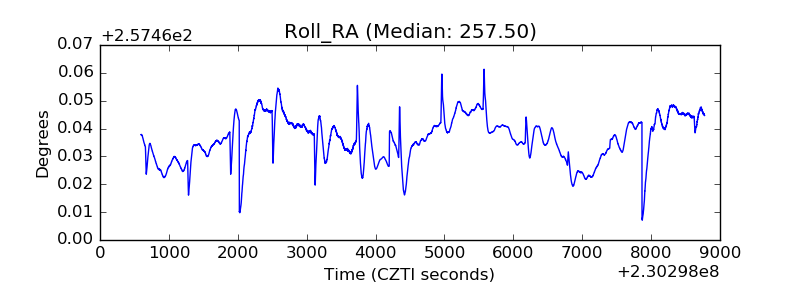

| _Roll_RA |  |
| Veto Counter |  |
