| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A03_106T01_9000001190_08435cztM0_level2.evt | modeM0/AS1A03_106T01_9000001190_08435cztM0_level2_quad_clean.evt |
| Size (bytes) | 441,282,240 | 97,035,840 |
| Size | 420.8 MB | 92.5 MB |
| Events in quadrant A | 3,262,439 | 621,480 |
| Events in quadrant B | 3,326,952 | 633,553 |
| Events in quadrant C | 2,954,406 | 623,453 |
| Events in quadrant D | 3,371,029 | 599,347 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 20 | 0 |
| B | 0 | 20 | 0 |
| C | 0 | 20 | 0 |
| D | 0 | 20 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14181 | 10 |
| B | 0 | 14196 | 2 |
| C | 0 | 13407 | 2 |
| D | 0 | 14788 | 6 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 138 | 0 |
| B | 0 | 138 | 0 |
| C | 0 | 138 | 0 |
| D | 0 | 138 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6601 | 51 | 0.772610% |
| B | 6604 | 78 | 1.181102% |
| C | 6604 | 18 | 0.272562% |
| D | 6602 | 38 | 0.575583% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8694 | 6606 | 4 | 4 | 0.05% | 0.06% |  |
| B | 8694 | 6606 | 25 | 25 | 0.29% | 0.38% |  |
| C | 8694 | 6606 | 0 | 0 | 0.00% | 0.00% |  |
| D | 8694 | 6606 | 12 | 12 | 0.14% | 0.18% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 236 | 237673 | 1519.84 | 772 | 757 | 155.9 |
| A | 15 | 223 | 16675 | 102.12 | 772 | 757 | 155.9 |
| A | 13 | 251 | 13042 | 78.81 | 772 | 757 | 155.9 |
| B | 0 | 214 | 103914 | 694.35 | 782 | 762 | 148.6 |
| B | 10 | 16 | 94575 | 631.49 | 782 | 762 | 148.6 |
| B | 4 | 81 | 56651 | 376.21 | 782 | 762 | 148.6 |
| C | 13 | 61 | 6955 | 35.69 | 753 | 756 | 173.7 |
| C | 13 | 255 | 6738 | 34.44 | 753 | 756 | 173.7 |
| C | 8 | 128 | 4801 | 23.29 | 753 | 756 | 173.7 |
| D | 7 | 71 | 270259 | 1479.11 | 750 | 727 | 182.2 |
| D | 2 | 14 | 57468 | 311.38 | 750 | 727 | 182.2 |
| D | 9 | 2 | 52308 | 283.06 | 750 | 727 | 182.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

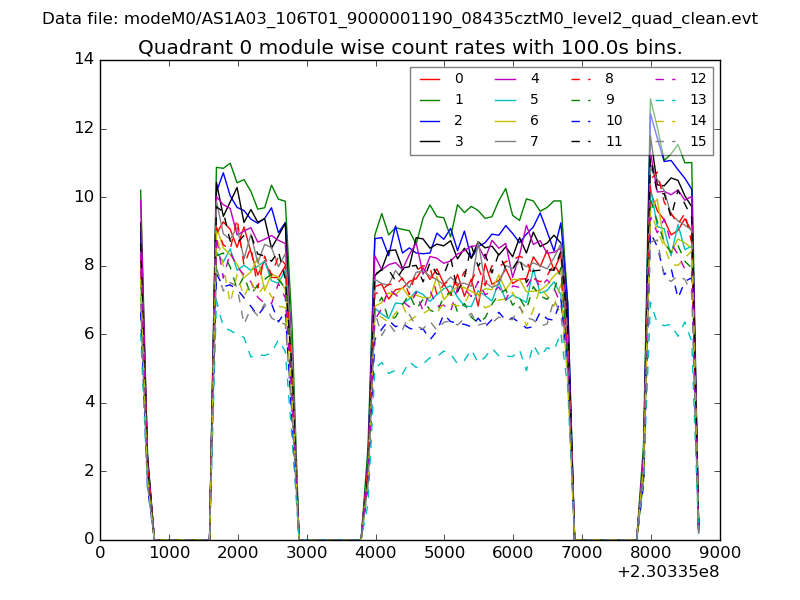

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

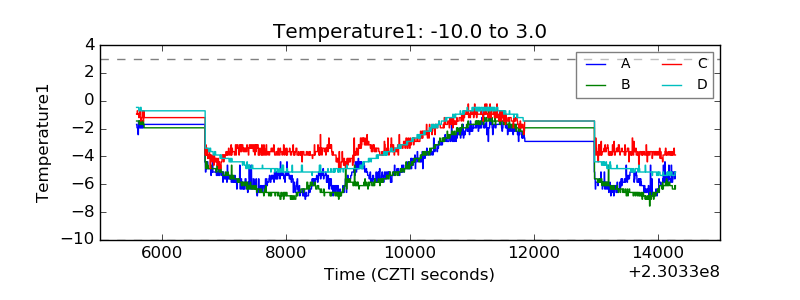

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

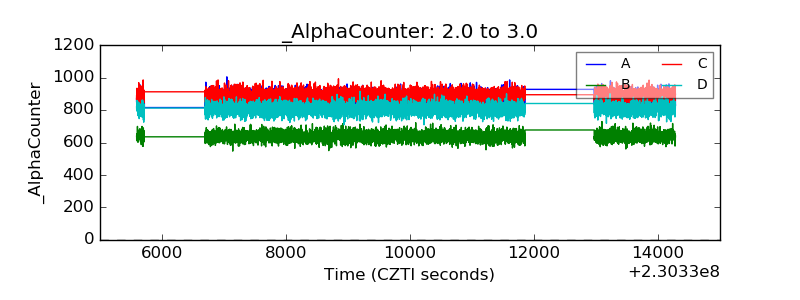

| Alpha Counter |  |
| _CPM_Rate |  |

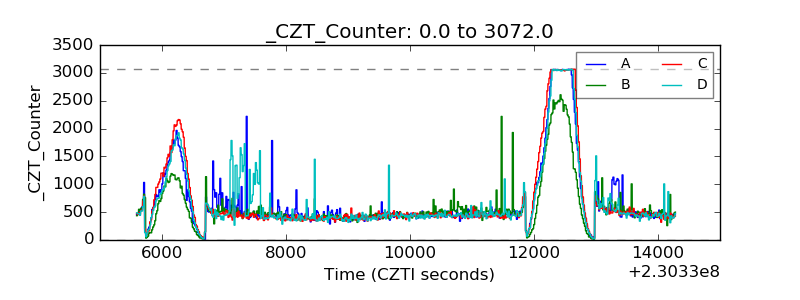

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

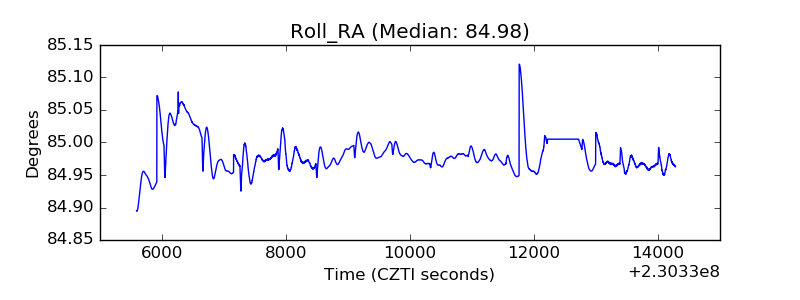

| _Roll_RA |  |

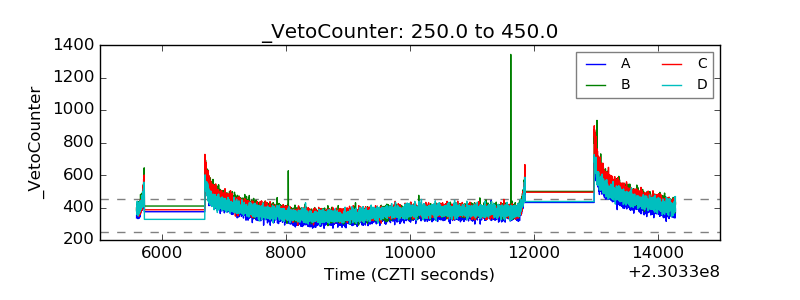

| Veto Counter |  |
