| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A03_074T01_9000001192_08455cztM0_level2.evt | modeM0/AS1A03_074T01_9000001192_08455cztM0_level2_quad_clean.evt |
| Size (bytes) | 504,889,920 | 79,689,600 |
| Size | 481.5 MB | 76.0 MB |
| Events in quadrant A | 3,219,679 | 478,997 |
| Events in quadrant B | 3,601,253 | 485,186 |
| Events in quadrant C | 3,156,984 | 498,195 |
| Events in quadrant D | 4,850,000 | 475,561 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 140 | 0 |
| B | 0 | 140 | 0 |
| C | 0 | 140 | 0 |
| D | 0 | 140 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 8 | 0 |
| B | 0 | 8 | 0 |
| C | 0 | 8 | 0 |
| D | 0 | 8 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14046 | 3 |
| B | 0 | 15020 | 2 |
| C | 0 | 14027 | 2 |
| D | 0 | 18930 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6809 | 142 | 2.085475% |
| B | 6809 | 172 | 2.526068% |
| C | 6809 | 95 | 1.395212% |
| D | 6809 | 326 | 4.787781% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7639 | 6809 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7639 | 6809 | 11 | 11 | 0.14% | 0.16% |  |
| C | 7639 | 6809 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7639 | 6809 | 176 | 176 | 2.30% | 2.58% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 223 | 9516 | 51.34 | 832 | 813 | 169.5 |
| A | 0 | 226 | 7808 | 41.26 | 832 | 813 | 169.5 |
| A | 12 | 194 | 7367 | 38.66 | 832 | 813 | 169.5 |
| B | 5 | 255 | 88913 | 547.84 | 829 | 807 | 160.8 |
| B | 4 | 80 | 88424 | 544.8 | 829 | 807 | 160.8 |
| B | 4 | 81 | 79341 | 488.32 | 829 | 807 | 160.8 |
| C | 13 | 61 | 6080 | 28.18 | 807 | 810 | 187.0 |
| C | 12 | 4 | 5503 | 25.1 | 807 | 810 | 187.0 |
| C | 8 | 222 | 4261 | 18.45 | 807 | 810 | 187.0 |
| D | 1 | 52 | 1587927 | 8260.13 | 803 | 781 | 192.1 |
| D | 7 | 71 | 101273 | 523.0 | 803 | 781 | 192.1 |
| D | 2 | 152 | 50656 | 259.57 | 803 | 781 | 192.1 |

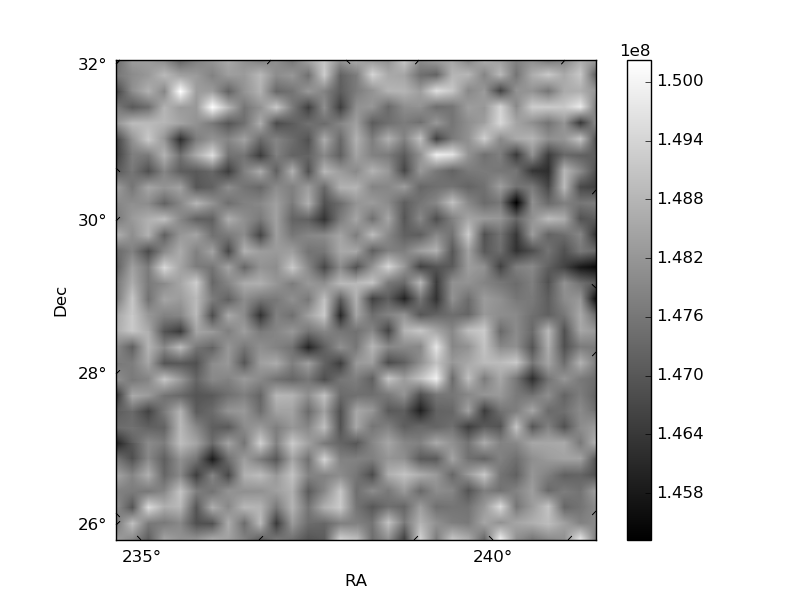

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

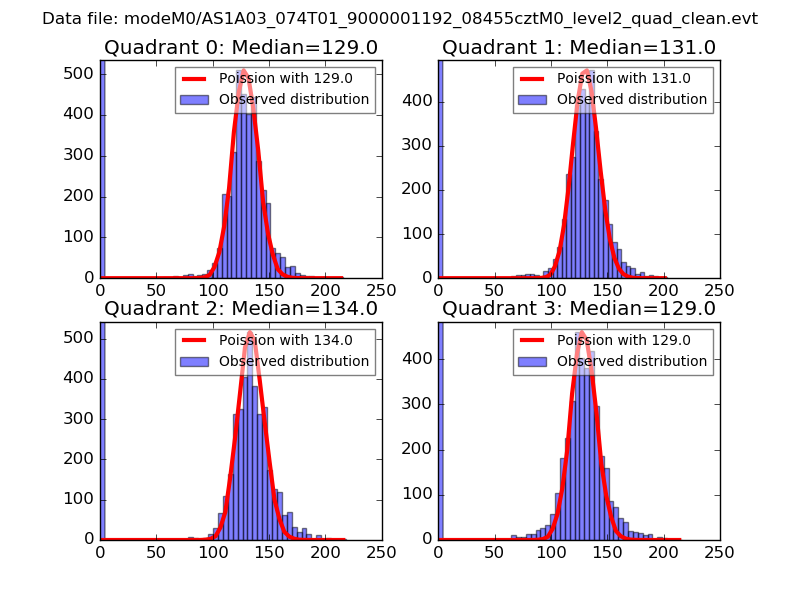

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

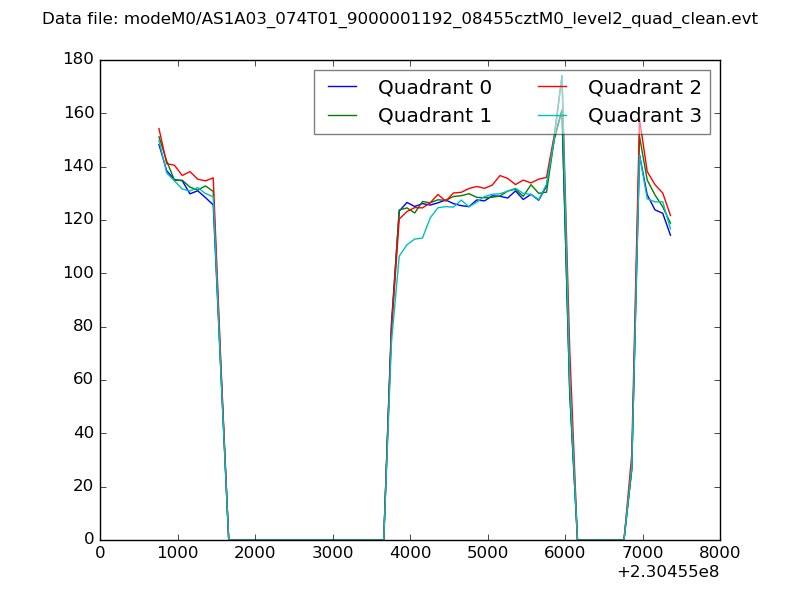

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

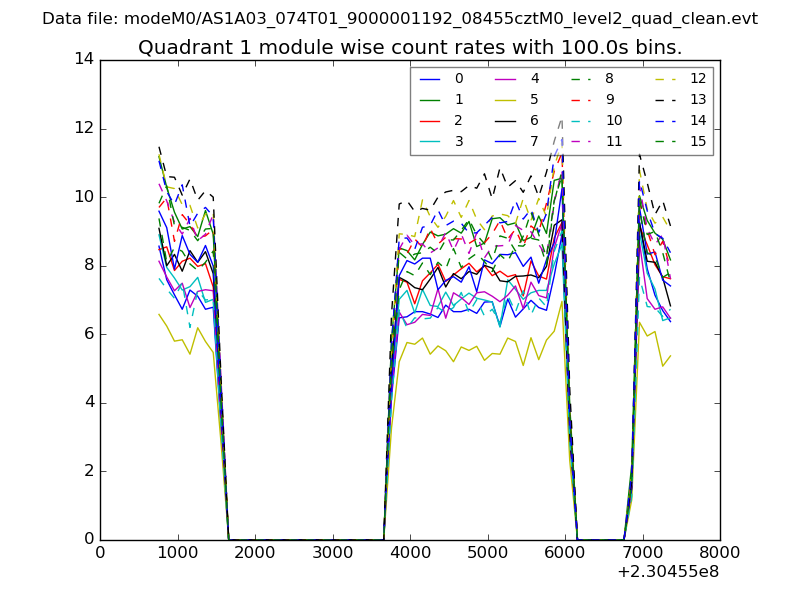

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

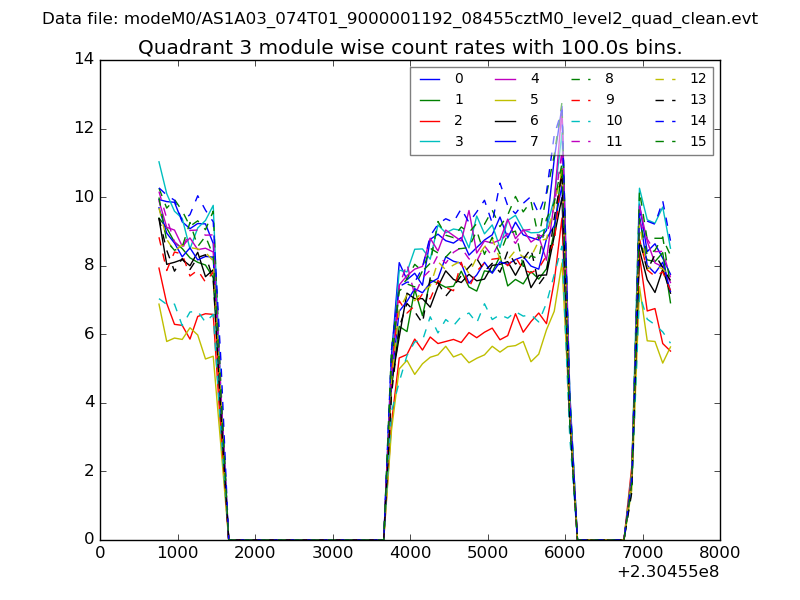

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

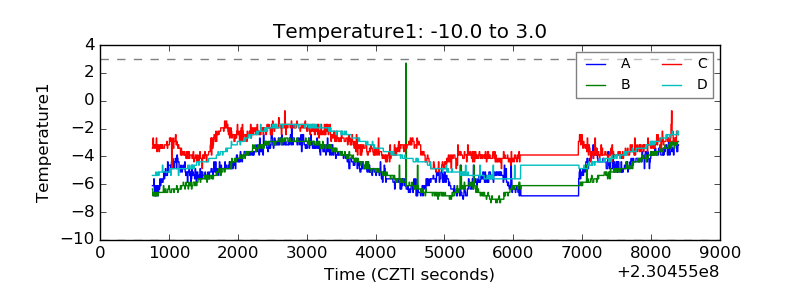

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

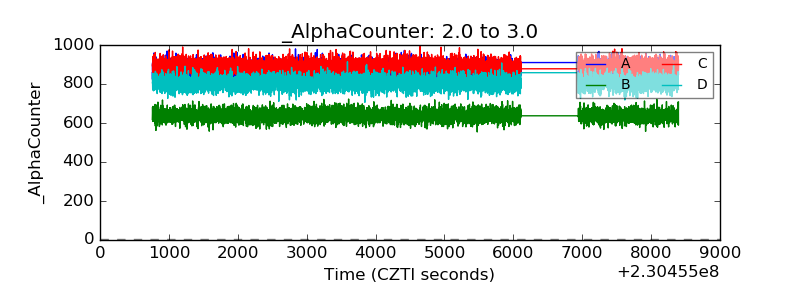

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

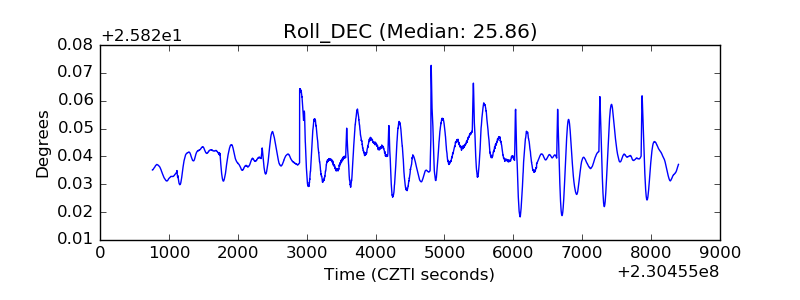

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
