| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A03_074T01_9000001192_08464cztM0_level2.evt | modeM0/AS1A03_074T01_9000001192_08464cztM0_level2_quad_clean.evt |
| Size (bytes) | 448,159,680 | 91,128,960 |
| Size | 427.4 MB | 86.9 MB |
| Events in quadrant A | 3,142,767 | 560,892 |
| Events in quadrant B | 3,358,745 | 572,948 |
| Events in quadrant C | 3,158,802 | 587,974 |
| Events in quadrant D | 3,446,666 | 560,555 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 142 | 0 |
| B | 0 | 142 | 0 |
| C | 0 | 142 | 0 |
| D | 0 | 142 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 21 | 0 |
| B | 0 | 21 | 0 |
| C | 0 | 21 | 0 |
| D | 0 | 21 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14078 | 7 |
| B | 0 | 14677 | 6 |
| C | 0 | 14106 | 8 |
| D | 0 | 14900 | 4 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6846 | 29 | 0.423605% |
| B | 6846 | 62 | 0.905638% |
| C | 6845 | 21 | 0.306793% |
| D | 6847 | 32 | 0.467358% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8918 | 6849 | 0 | 0 | 0.00% | 0.00% |  |
| B | 8918 | 6850 | 5 | 5 | 0.06% | 0.07% |  |
| C | 8918 | 6850 | 0 | 0 | 0.00% | 0.00% |  |
| D | 8918 | 6850 | 11 | 11 | 0.12% | 0.16% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 226 | 7434 | 40.05 | 815 | 797 | 165.7 |
| A | 12 | 194 | 7236 | 38.85 | 815 | 797 | 165.7 |
| A | 13 | 251 | 6804 | 36.25 | 815 | 797 | 165.7 |
| B | 0 | 214 | 61780 | 385.28 | 823 | 801 | 158.3 |
| B | 11 | 51 | 57370 | 357.42 | 823 | 801 | 158.3 |
| B | 4 | 81 | 40186 | 248.85 | 823 | 801 | 158.3 |
| C | 13 | 61 | 6057 | 27.89 | 807 | 811 | 188.1 |
| C | 8 | 128 | 5284 | 23.78 | 807 | 811 | 188.1 |
| C | 8 | 222 | 4447 | 19.33 | 807 | 811 | 188.1 |
| D | 2 | 152 | 158832 | 826.25 | 797 | 777 | 191.3 |
| D | 12 | 221 | 86526 | 448.26 | 797 | 777 | 191.3 |
| D | 2 | 14 | 60258 | 310.94 | 797 | 777 | 191.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

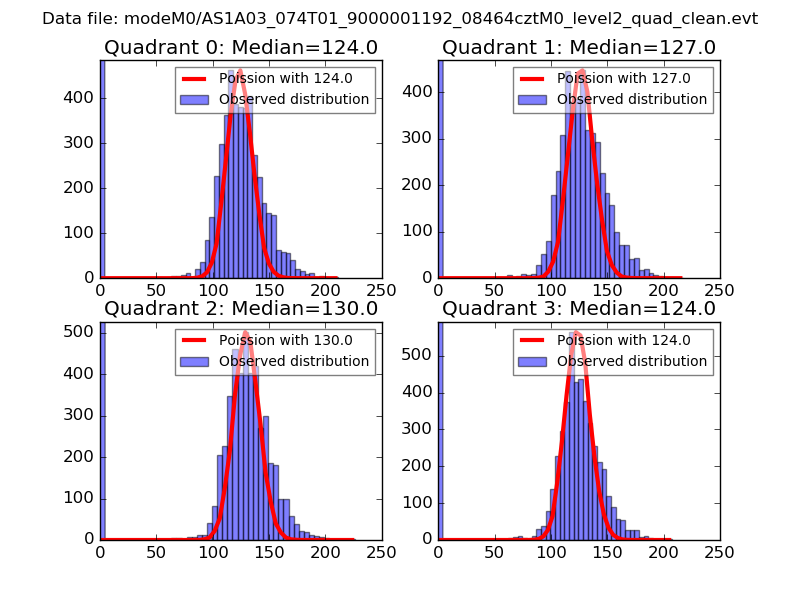

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

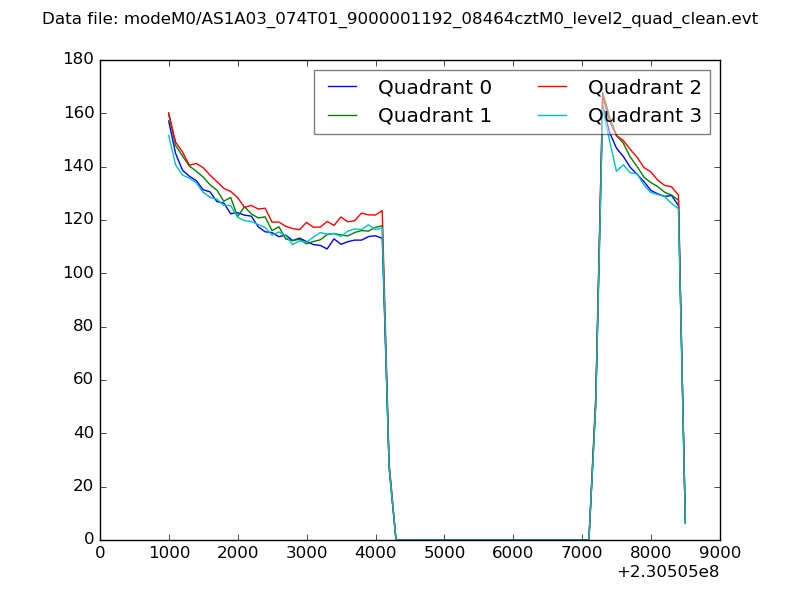

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

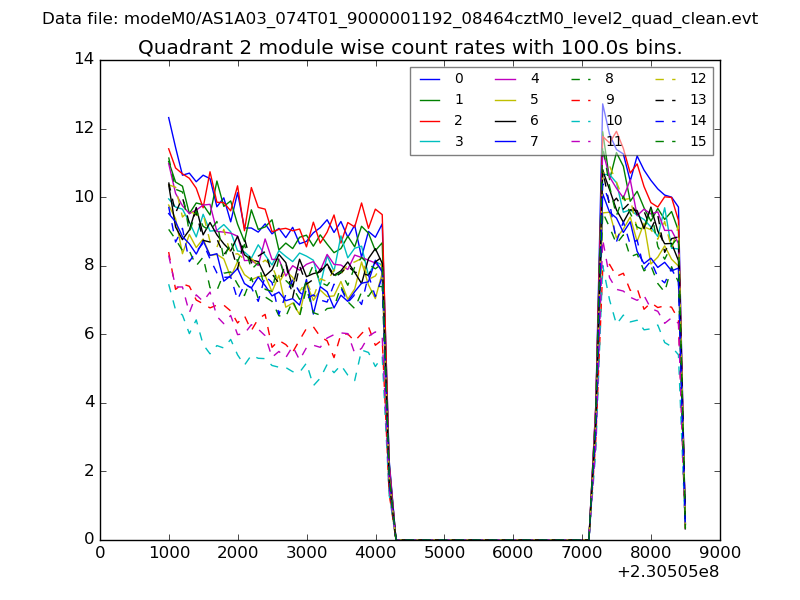

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

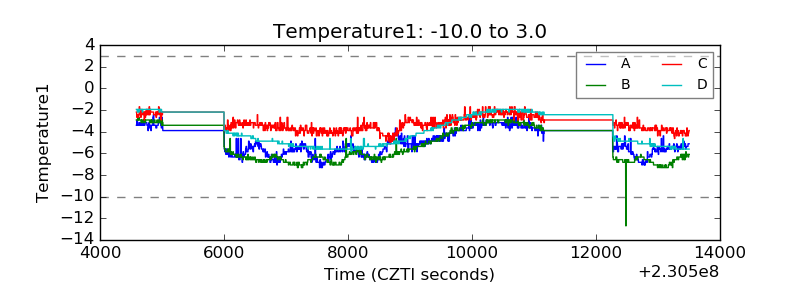

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

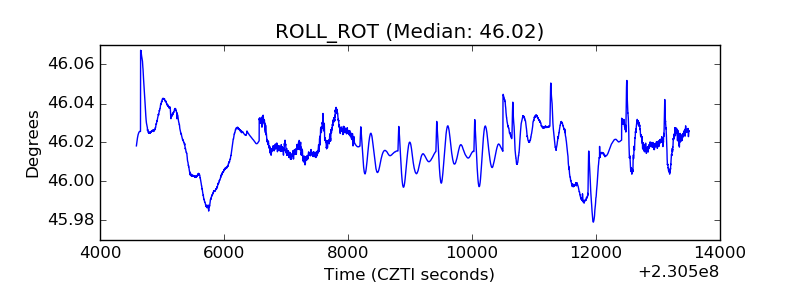

| _ROLL_ROT |  |

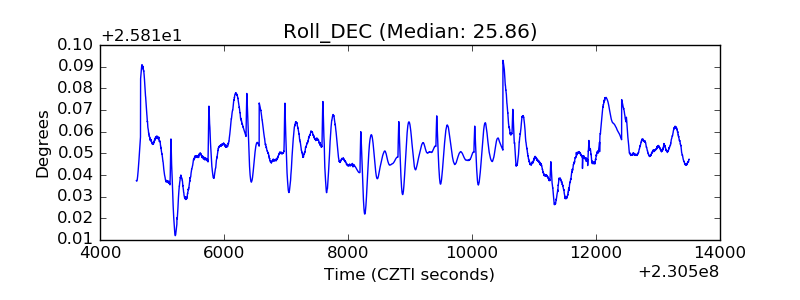

| _Roll_DEC |  |

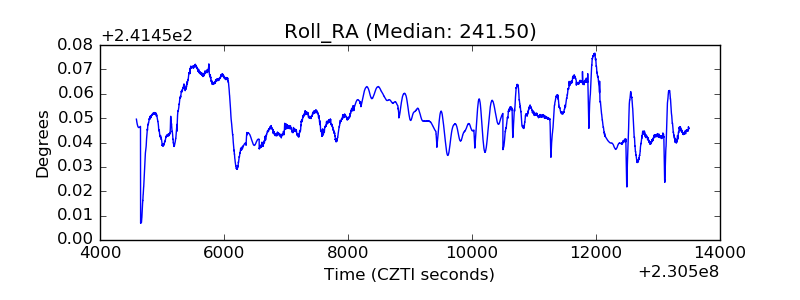

| _Roll_RA |  |
| Veto Counter |  |
