| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A03_074T01_9000001192_08468cztM0_level2.evt | modeM0/AS1A03_074T01_9000001192_08468cztM0_level2_quad_clean.evt |
| Size (bytes) | 732,136,320 | 140,636,160 |
| Size | 698.2 MB | 134.1 MB |
| Events in quadrant A | 5,305,082 | 865,380 |
| Events in quadrant B | 5,609,579 | 884,210 |
| Events in quadrant C | 5,168,820 | 888,214 |
| Events in quadrant D | 5,337,170 | 853,548 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 228 | 0 |
| B | 0 | 228 | 0 |
| C | 0 | 228 | 0 |
| D | 0 | 228 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 24 | 0 |
| B | 0 | 24 | 0 |
| C | 0 | 24 | 0 |
| D | 0 | 24 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 22822 | 3 |
| B | 0 | 23748 | 2 |
| C | 0 | 22822 | 2 |
| D | 0 | 23488 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 11087 | 123 | 1.109407% |
| B | 11087 | 164 | 1.479210% |
| C | 11087 | 71 | 0.640390% |
| D | 11087 | 119 | 1.073329% |

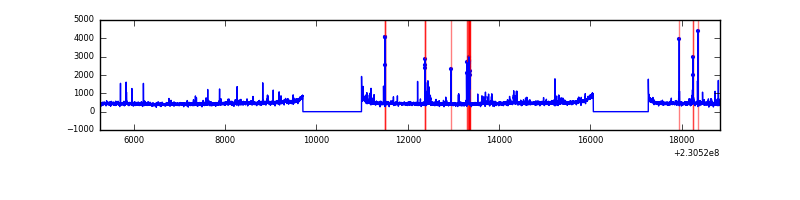

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 13577 | 11088 | 1 | 1 | 0.01% | 0.01% |  |
| B | 13577 | 11088 | 9 | 9 | 0.07% | 0.08% |  |
| C | 13577 | 11089 | 0 | 0 | 0.00% | 0.00% |  |
| D | 13577 | 11089 | 29 | 29 | 0.21% | 0.26% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 14 | 22819 | 77.99 | 1371 | 1347 | 275.3 |
| A | 4 | 2 | 16092 | 53.56 | 1371 | 1347 | 275.3 |
| A | 0 | 226 | 13113 | 42.74 | 1371 | 1347 | 275.3 |
| B | 11 | 51 | 116306 | 445.44 | 1367 | 1336 | 258.1 |
| B | 0 | 214 | 58357 | 220.92 | 1367 | 1336 | 258.1 |
| B | 4 | 81 | 54720 | 206.83 | 1367 | 1336 | 258.1 |
| C | 9 | 54 | 12549 | 37.11 | 1321 | 1331 | 302.3 |
| C | 13 | 61 | 10051 | 28.85 | 1321 | 1331 | 302.3 |
| C | 5 | 128 | 5353 | 13.31 | 1321 | 1331 | 302.3 |
| D | 13 | 105 | 113233 | 354.49 | 1323 | 1293 | 315.8 |
| D | 9 | 68 | 52059 | 160.76 | 1323 | 1293 | 315.8 |
| D | 2 | 14 | 44938 | 138.21 | 1323 | 1293 | 315.8 |

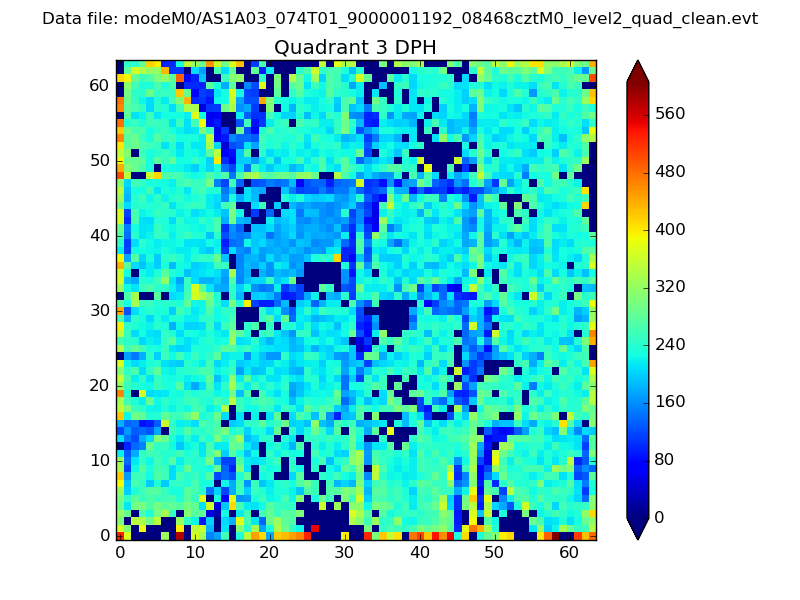

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

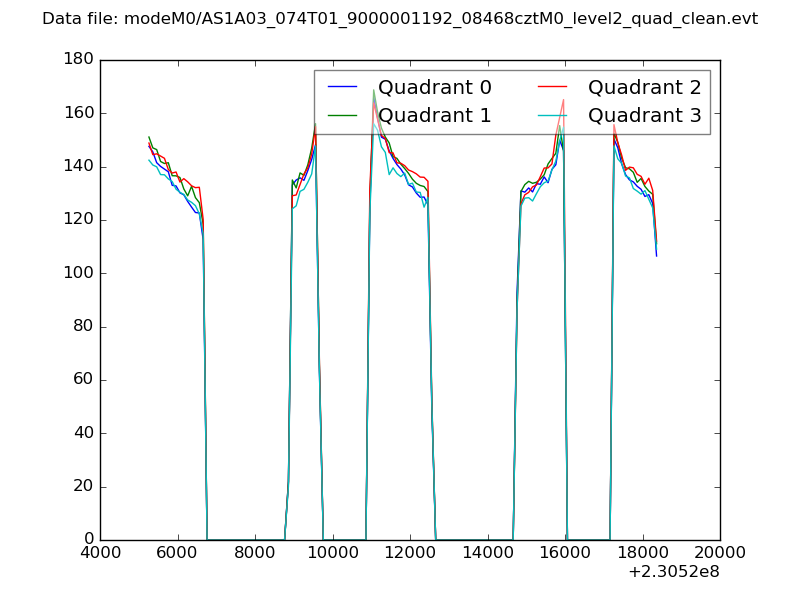

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

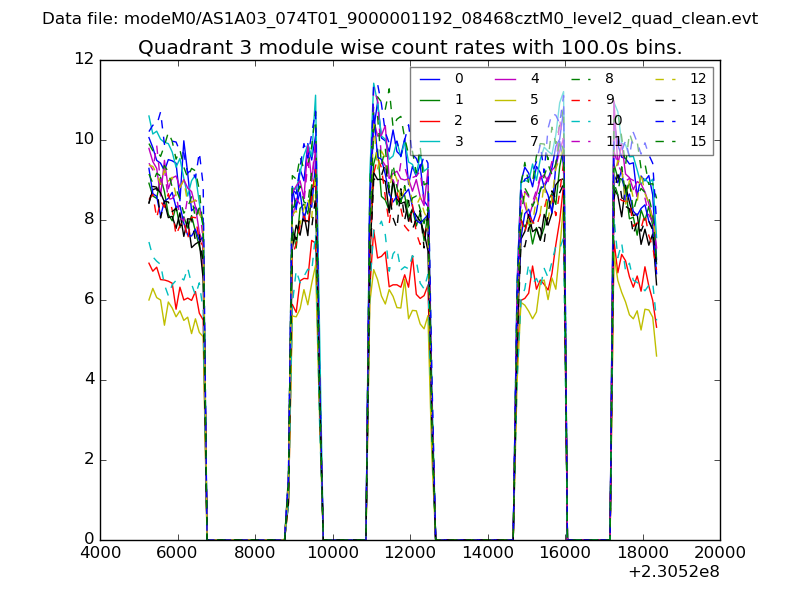

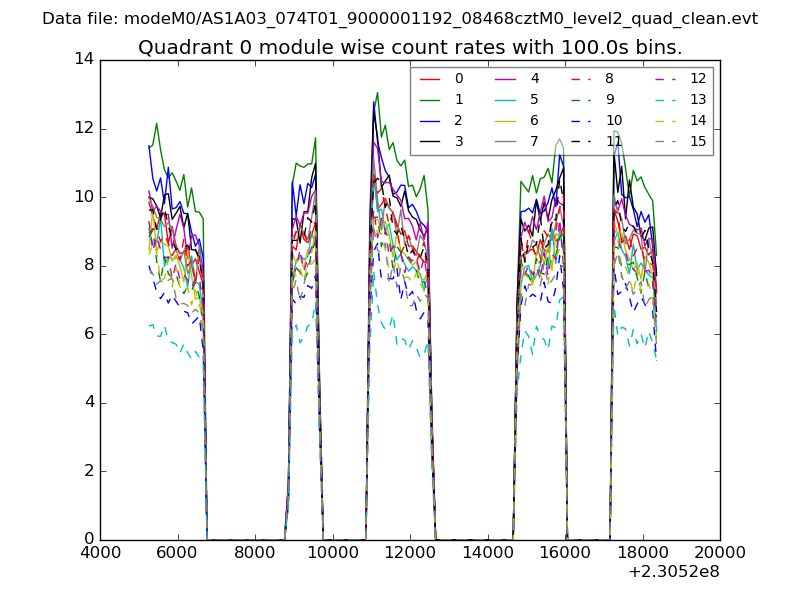

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

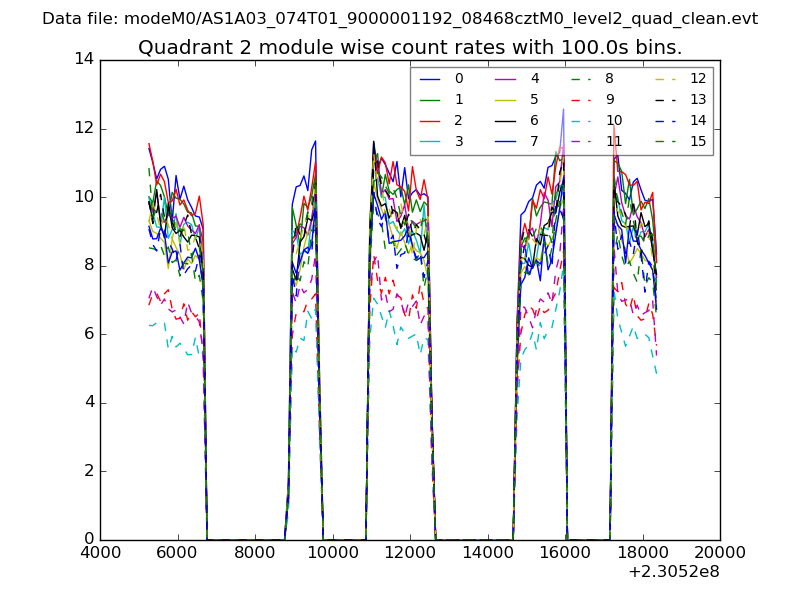

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

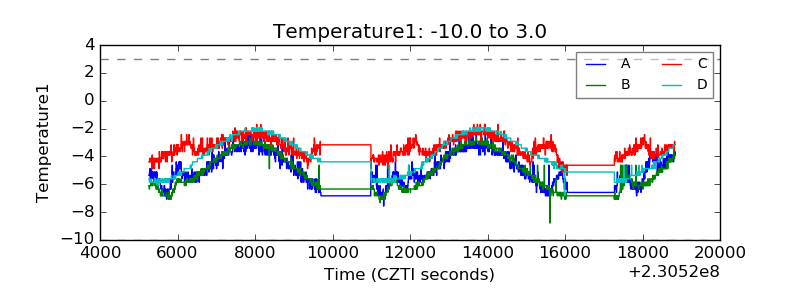

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

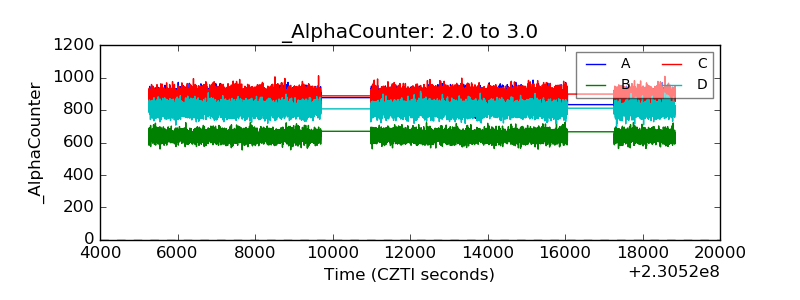

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
