| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A03_074T01_9000001192_08472cztM0_level2.evt | modeM0/AS1A03_074T01_9000001192_08472cztM0_level2_quad_clean.evt |
| Size (bytes) | 257,549,760 | 34,485,120 |
| Size | 245.6 MB | 32.9 MB |
| Events in quadrant A | 1,796,171 | 192,723 |
| Events in quadrant B | 1,920,452 | 193,338 |
| Events in quadrant C | 1,763,043 | 197,909 |
| Events in quadrant D | 2,059,284 | 190,124 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 78 | 0 |
| B | 0 | 78 | 0 |
| C | 0 | 78 | 0 |
| D | 0 | 78 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 1 | 0 |
| B | 0 | 1 | 0 |
| C | 0 | 1 | 0 |
| D | 0 | 1 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 7993 | 1 |
| B | 0 | 8191 | 1 |
| C | 0 | 7956 | 1 |
| D | 0 | 8818 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 3815 | 126 | 3.302752% |
| B | 3815 | 138 | 3.617300% |
| C | 3815 | 103 | 2.699869% |
| D | 3815 | 134 | 3.512451% |

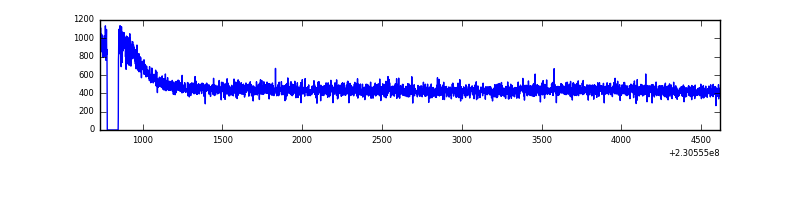

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 3885 | 3816 | 0 | 0 | 0.00% | 0.00% |  |
| B | 3885 | 3816 | 4 | 4 | 0.10% | 0.10% |  |
| C | 3885 | 3816 | 0 | 0 | 0.00% | 0.00% |  |
| D | 3885 | 3816 | 28 | 28 | 0.72% | 0.73% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 4 | 2 | 15737 | 159.69 | 459 | 448 | 95.7 |
| A | 13 | 248 | 7516 | 73.82 | 459 | 448 | 95.7 |
| A | 15 | 174 | 5830 | 56.21 | 459 | 448 | 95.7 |
| B | 11 | 51 | 49184 | 533.12 | 457 | 444 | 91.4 |
| B | 4 | 81 | 42405 | 458.97 | 457 | 444 | 91.4 |
| B | 0 | 214 | 37733 | 407.86 | 457 | 444 | 91.4 |
| C | 8 | 128 | 11098 | 101.1 | 447 | 448 | 105.3 |
| C | 8 | 144 | 4281 | 36.39 | 447 | 448 | 105.3 |
| C | 8 | 112 | 4221 | 35.82 | 447 | 448 | 105.3 |
| D | 13 | 105 | 254405 | 2326.36 | 447 | 435 | 109.2 |
| D | 1 | 52 | 60357 | 548.88 | 447 | 435 | 109.2 |
| D | 2 | 136 | 14735 | 130.98 | 447 | 435 | 109.2 |

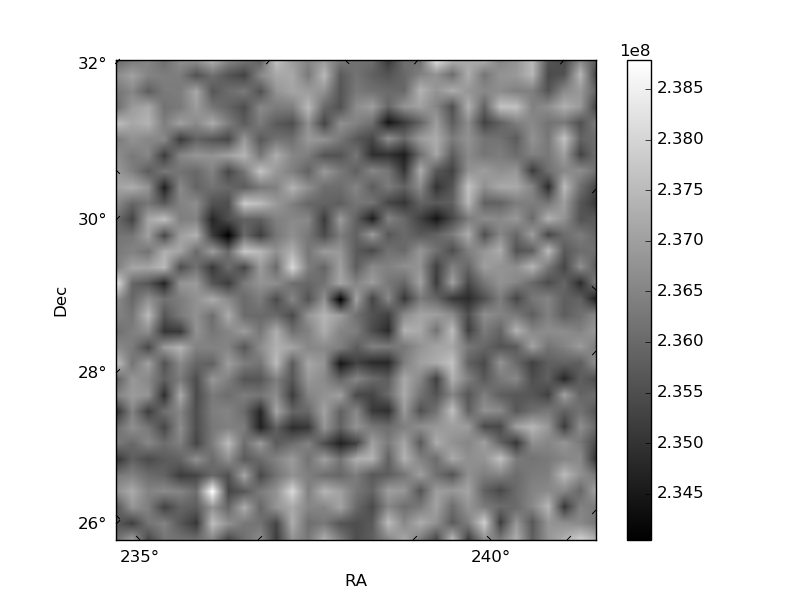

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|

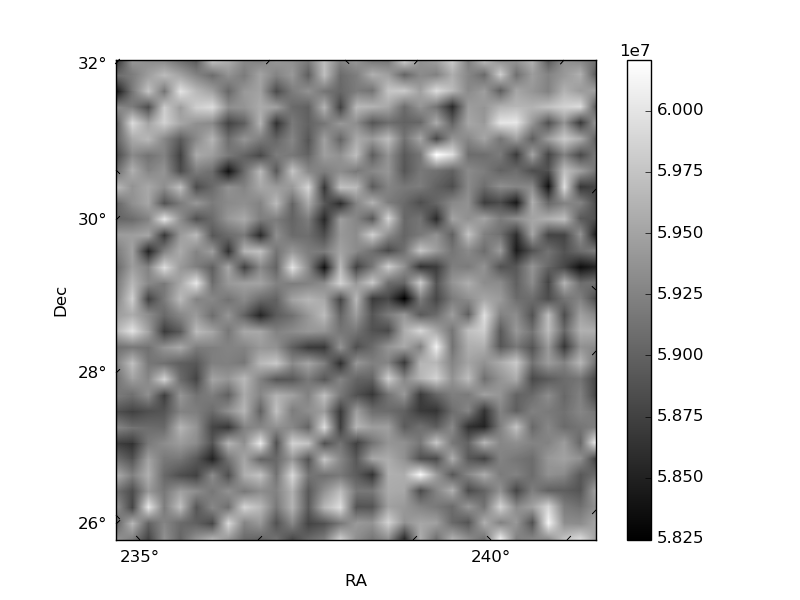

| Quadrant D |  |
 |

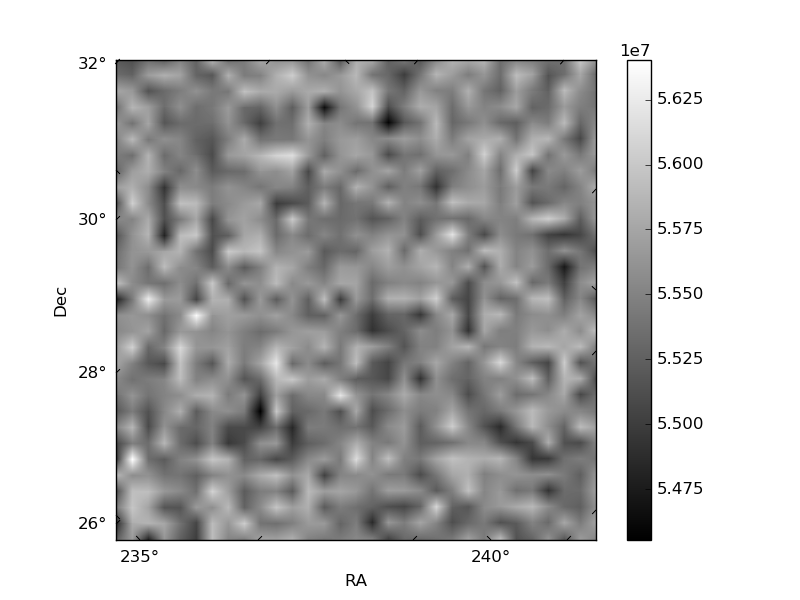

Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

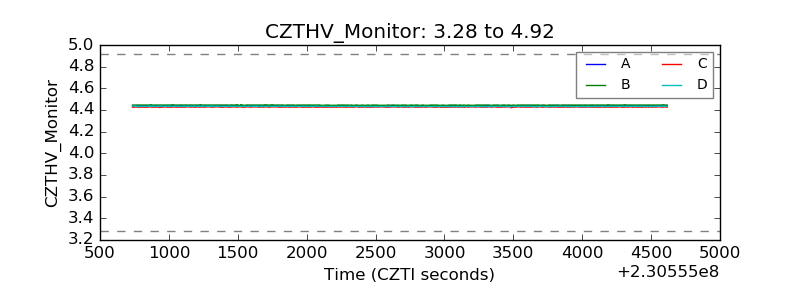

| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

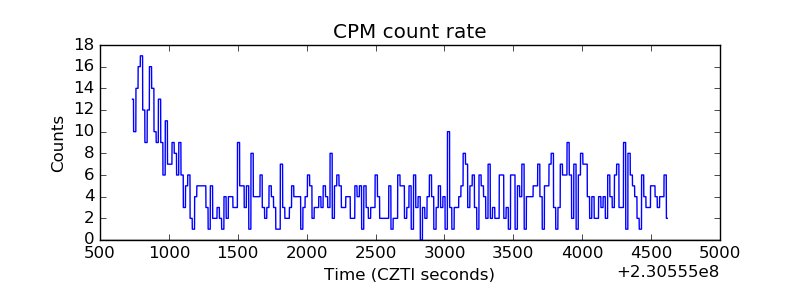

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

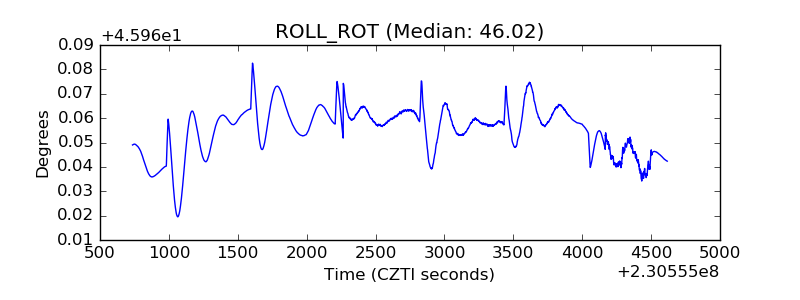

| _ROLL_ROT |  |
| _Roll_DEC |  |

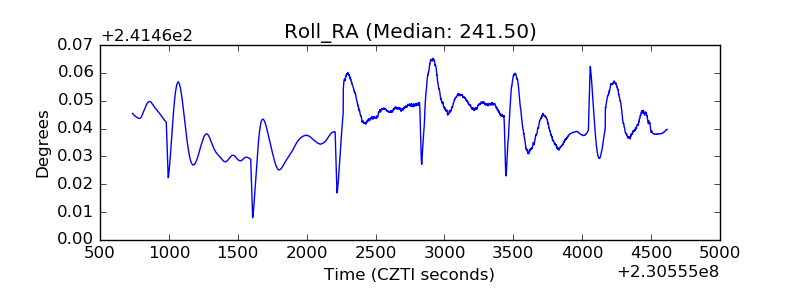

| _Roll_RA |  |
| Veto Counter |  |
