| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A03_030T01_9000001194_08475cztM0_level2.evt | modeM0/AS1A03_030T01_9000001194_08475cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,071,878,400 | 156,971,520 |
| Size | 1022.2 MB | 149.7 MB |
| Events in quadrant A | 5,702,279 | 1,015,579 |
| Events in quadrant B | 5,899,396 | 1,018,729 |
| Events in quadrant C | 5,594,537 | 1,004,457 |
| Events in quadrant D | 14,422,509 | 852,549 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 252 | 0 |
| B | 0 | 252 | 0 |
| C | 0 | 252 | 0 |
| D | 0 | 252 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 25558 | 9 |
| B | 0 | 25770 | 4 |
| C | 0 | 25472 | 8 |
| D | 0 | 51311 | 24 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 12473 | 128 | 1.026217% |
| B | 12475 | 146 | 1.170341% |
| C | 12473 | 96 | 0.769662% |
| D | 12472 | 3263 | 26.162604% |

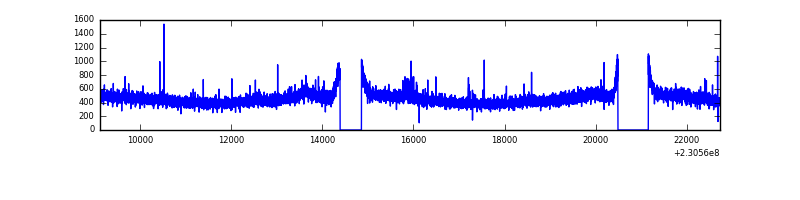

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 13616 | 12477 | 0 | 0 | 0.00% | 0.00% |  |
| B | 13616 | 12477 | 2 | 2 | 0.01% | 0.02% |  |
| C | 13616 | 12477 | 3 | 3 | 0.02% | 0.02% |  |
| D | 13616 | 12475 | 2847 | 2847 | 20.91% | 22.82% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 4 | 2 | 29593 | 93.8 | 1468 | 1435 | 300.2 |
| A | 13 | 251 | 19535 | 60.3 | 1468 | 1435 | 300.2 |
| A | 0 | 226 | 13567 | 40.41 | 1468 | 1435 | 300.2 |
| B | 0 | 214 | 87683 | 303.69 | 1466 | 1429 | 284.0 |
| B | 11 | 51 | 76696 | 265.0 | 1466 | 1429 | 284.0 |
| B | 12 | 111 | 31649 | 106.4 | 1466 | 1429 | 284.0 |
| C | 9 | 54 | 14173 | 38.21 | 1428 | 1433 | 333.4 |
| C | 13 | 61 | 10880 | 28.34 | 1428 | 1433 | 333.4 |
| C | 14 | 234 | 10269 | 26.5 | 1428 | 1433 | 333.4 |
| D | 13 | 105 | 4936605 | 16823.63 | 1198 | 1170 | 293.4 |
| D | 12 | 221 | 3968917 | 13525.03 | 1198 | 1170 | 293.4 |
| D | 1 | 52 | 725346 | 2468.53 | 1198 | 1170 | 293.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

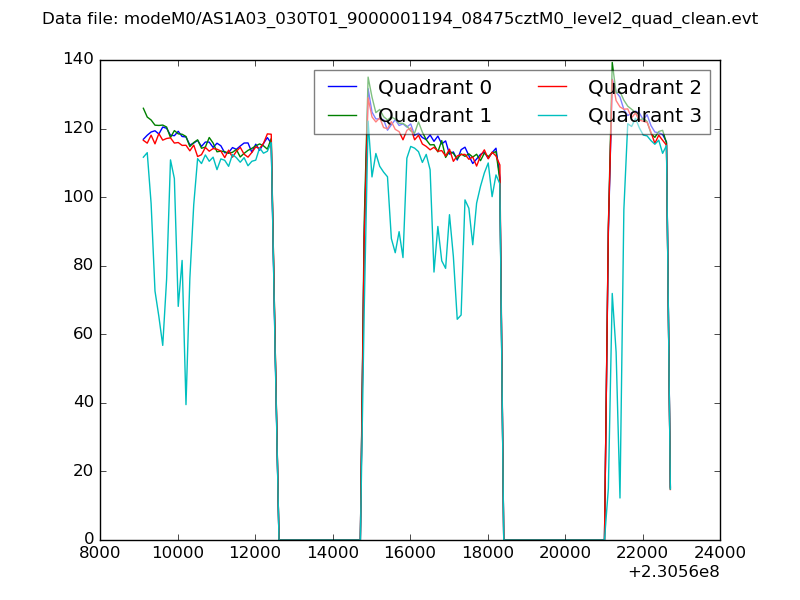

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

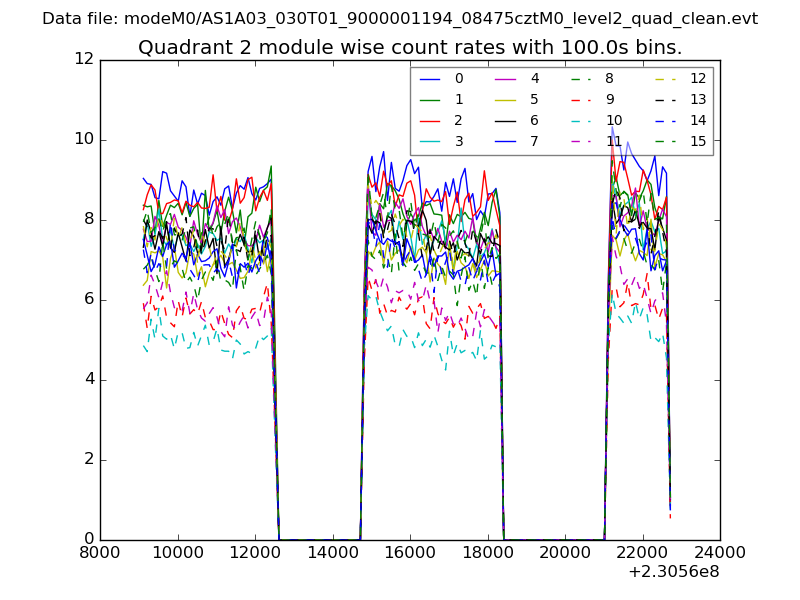

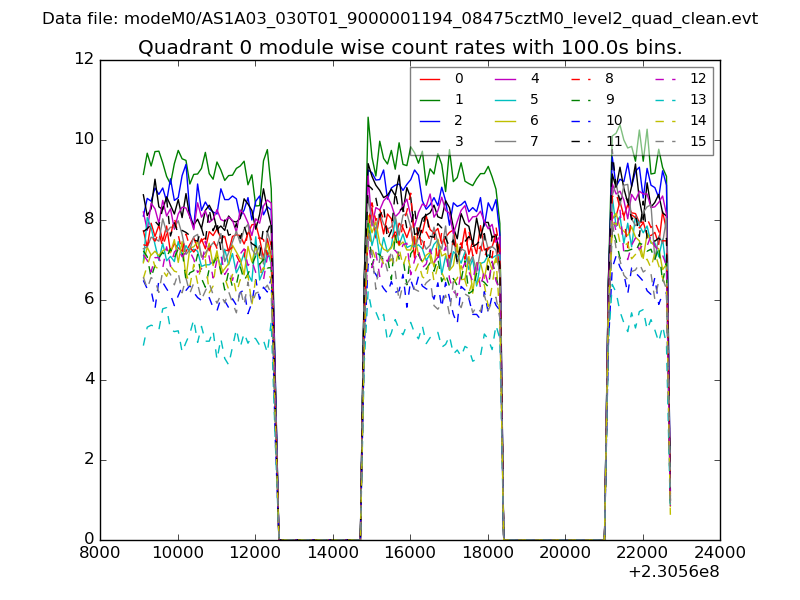

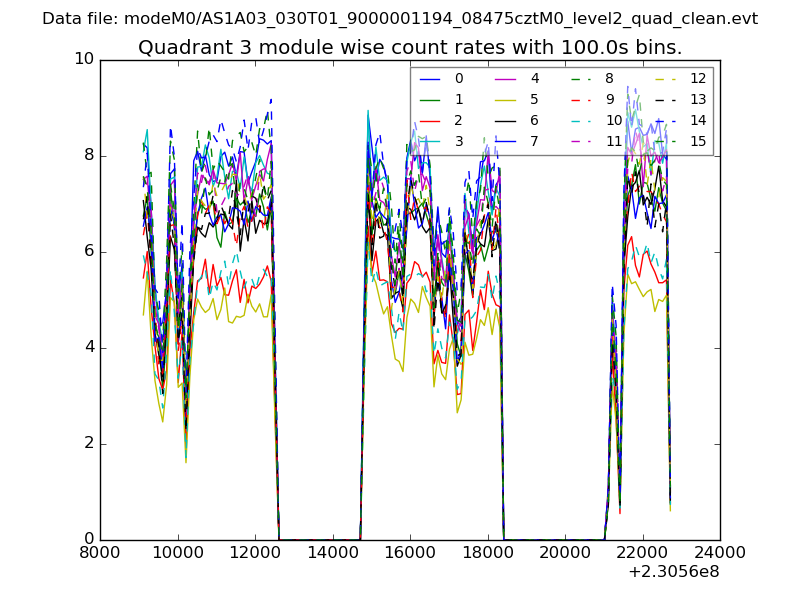

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

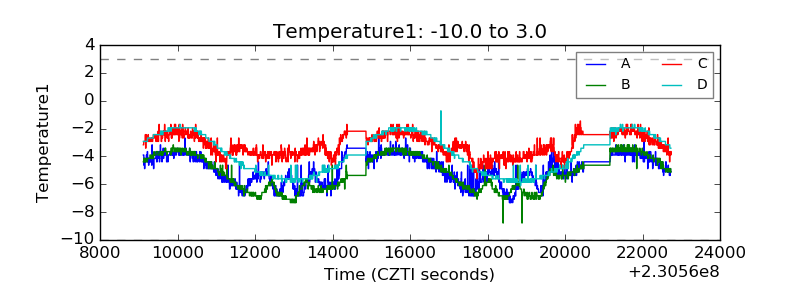

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

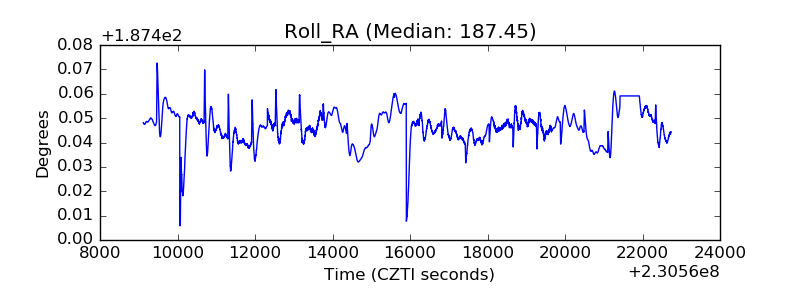

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

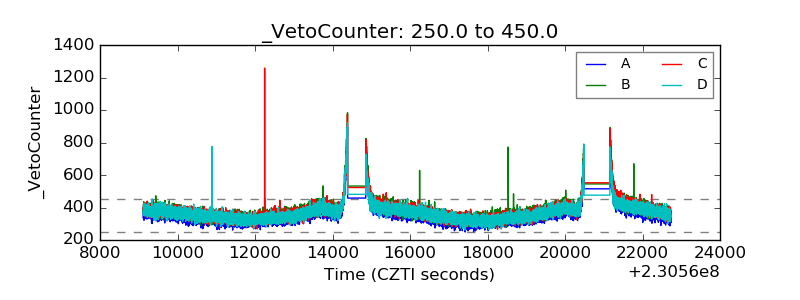

| Veto Counter |  |
