| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A03_030T01_9000001194_08477cztM0_level2.evt | modeM0/AS1A03_030T01_9000001194_08477cztM0_level2_quad_clean.evt |
| Size (bytes) | 448,416,000 | 85,014,720 |
| Size | 427.6 MB | 81.1 MB |
| Events in quadrant A | 2,968,185 | 541,638 |
| Events in quadrant B | 3,094,571 | 541,025 |
| Events in quadrant C | 2,904,503 | 533,351 |
| Events in quadrant D | 4,172,063 | 505,808 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13309 | 3 |
| B | 0 | 13584 | 2 |
| C | 0 | 13247 | 2 |
| D | 0 | 17129 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14 | 0 |
| B | 0 | 14 | 0 |
| C | 0 | 14 | 0 |
| D | 0 | 15 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6492 | 40 | 0.616143% |
| B | 6492 | 59 | 0.908811% |
| C | 6492 | 34 | 0.523722% |
| D | 6492 | 353 | 5.437461% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7517 | 6493 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7517 | 6492 | 11 | 11 | 0.15% | 0.17% |  |
| C | 7517 | 6493 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7517 | 6492 | 262 | 262 | 3.49% | 4.04% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 251 | 30460 | 190.62 | 762 | 747 | 155.9 |
| A | 12 | 194 | 6996 | 40.09 | 762 | 747 | 155.9 |
| A | 0 | 226 | 6951 | 39.8 | 762 | 747 | 155.9 |
| B | 0 | 214 | 48040 | 322.69 | 764 | 746 | 146.6 |
| B | 0 | 245 | 34951 | 233.38 | 764 | 746 | 146.6 |
| B | 12 | 111 | 16460 | 107.22 | 764 | 746 | 146.6 |
| C | 13 | 61 | 5629 | 28.03 | 743 | 747 | 174.2 |
| C | 8 | 222 | 3630 | 16.55 | 743 | 747 | 174.2 |
| C | 9 | 54 | 2663 | 11.0 | 743 | 747 | 174.2 |
| D | 1 | 52 | 1297753 | 7203.48 | 728 | 709 | 180.1 |
| D | 12 | 221 | 35301 | 192.12 | 728 | 709 | 180.1 |
| D | 2 | 14 | 24708 | 133.28 | 728 | 709 | 180.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

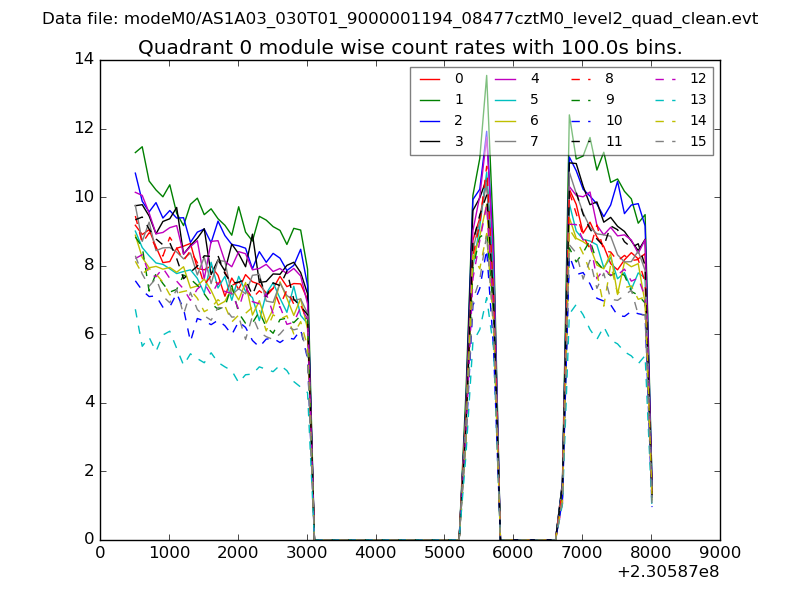

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

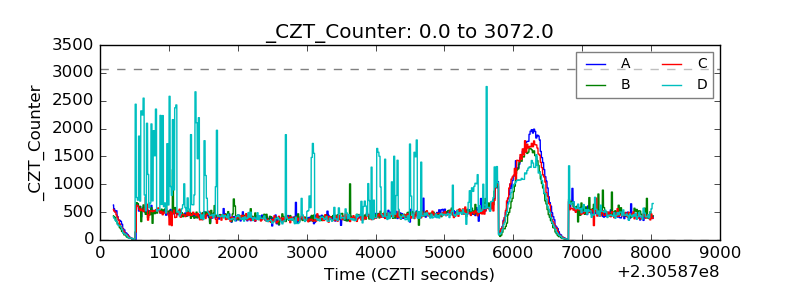

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

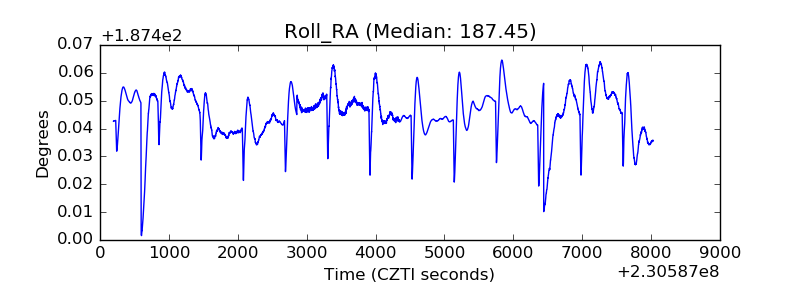

| _Roll_RA |  |

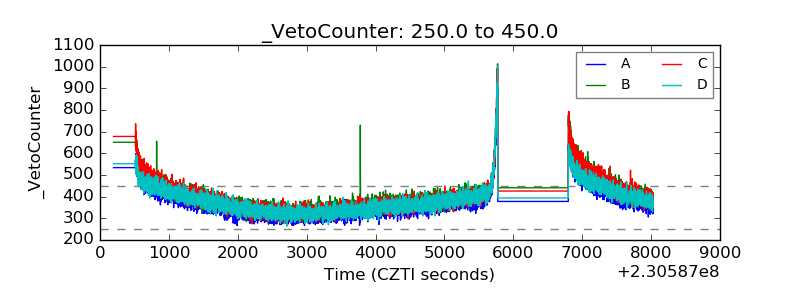

| Veto Counter |  |
