| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G07_007T01_9000001196_08490cztM0_level2.evt | modeM0/AS1G07_007T01_9000001196_08490cztM0_level2_quad_clean.evt |
| Size (bytes) | 573,269,760 | 111,052,800 |
| Size | 546.7 MB | 105.9 MB |
| Events in quadrant A | 4,638,495 | 690,969 |
| Events in quadrant B | 4,186,044 | 714,507 |
| Events in quadrant C | 3,713,305 | 705,359 |
| Events in quadrant D | 4,261,244 | 676,646 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 168 | 0 |
| B | 0 | 168 | 0 |
| C | 0 | 168 | 0 |
| D | 0 | 168 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 4 | 0 |
| B | 0 | 4 | 0 |
| C | 0 | 4 | 0 |
| D | 0 | 4 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 19714 | 15 |
| B | 0 | 17929 | 1 |
| C | 0 | 17040 | 1 |
| D | 0 | 18650 | 3 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 8282 | 409 | 4.938421% |
| B | 8284 | 132 | 1.593433% |
| C | 8284 | 42 | 0.507001% |
| D | 8283 | 103 | 1.243511% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

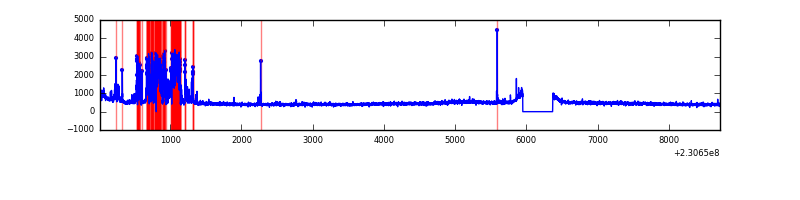

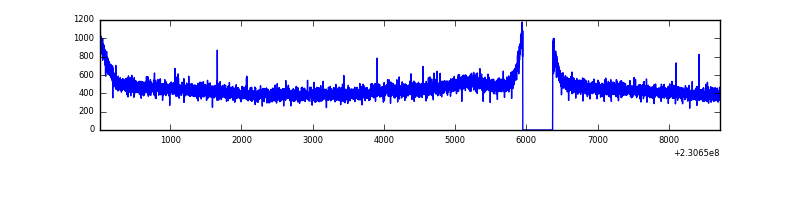

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8704 | 8284 | 238 | 238 | 2.73% | 2.87% |  |
| B | 8704 | 8285 | 19 | 19 | 0.22% | 0.23% |  |
| C | 8704 | 8285 | 0 | 0 | 0.00% | 0.00% |  |
| D | 8704 | 8285 | 55 | 55 | 0.63% | 0.66% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 5 | 16 | 907108 | 4561.18 | 963 | 942 | 198.7 |
| A | 15 | 174 | 14499 | 68.24 | 963 | 942 | 198.7 |
| A | 0 | 226 | 9163 | 41.38 | 963 | 942 | 198.7 |
| B | 0 | 214 | 177076 | 930.37 | 976 | 955 | 189.3 |
| B | 11 | 51 | 102082 | 534.21 | 976 | 955 | 189.3 |
| B | 4 | 81 | 52018 | 269.74 | 976 | 955 | 189.3 |
| C | 13 | 61 | 7290 | 28.37 | 948 | 953 | 223.4 |
| C | 8 | 128 | 6289 | 23.88 | 948 | 953 | 223.4 |
| C | 8 | 222 | 5838 | 21.87 | 948 | 953 | 223.4 |
| D | 1 | 52 | 406408 | 1725.83 | 952 | 924 | 235.0 |
| D | 12 | 233 | 122536 | 517.61 | 952 | 924 | 235.0 |
| D | 9 | 64 | 42348 | 176.31 | 952 | 924 | 235.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

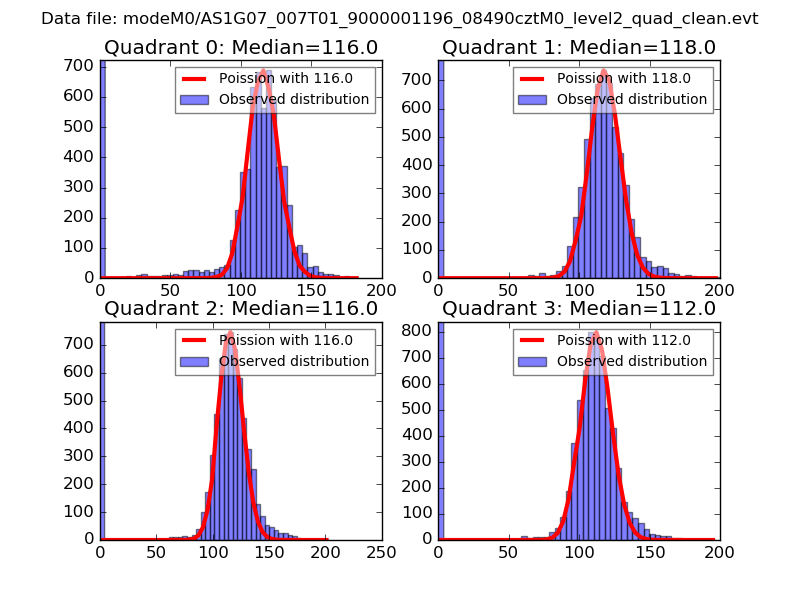

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

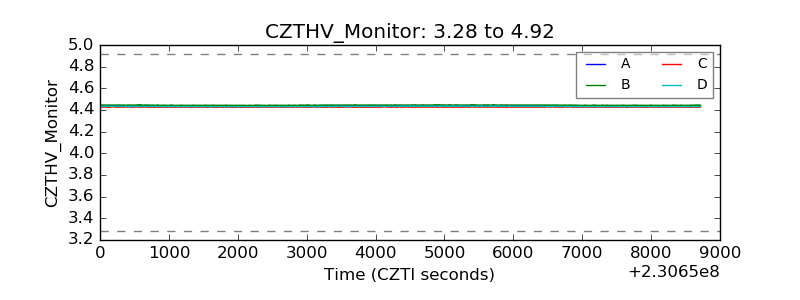

| CZT HV Monitor |  |

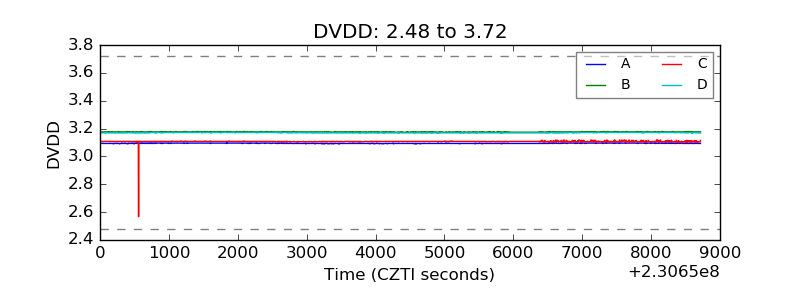

| D_VDD |  |

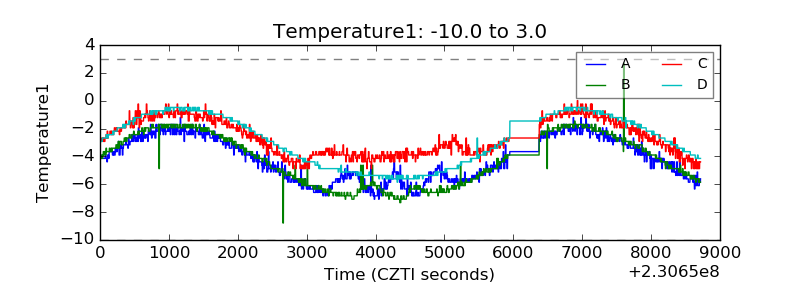

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

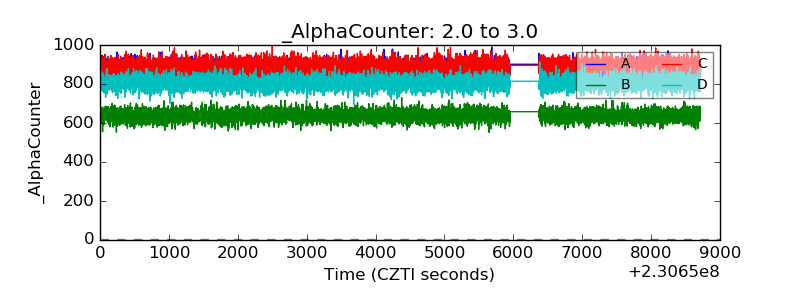

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
