| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C02_033T02_9000001198_08493cztM0_level2.evt | modeM0/AS1C02_033T02_9000001198_08493cztM0_level2_quad_clean.evt |
| Size (bytes) | 438,923,520 | 94,775,040 |
| Size | 418.6 MB | 90.4 MB |
| Events in quadrant A | 3,191,114 | 609,573 |
| Events in quadrant B | 3,364,508 | 611,512 |
| Events in quadrant C | 3,101,662 | 593,211 |
| Events in quadrant D | 3,170,606 | 579,322 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 21 | 0 |
| B | 0 | 21 | 0 |
| C | 0 | 21 | 0 |
| D | 0 | 21 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14177 | 3 |
| B | 0 | 14580 | 2 |
| C | 0 | 14034 | 2 |
| D | 0 | 14376 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 140 | 0 |
| B | 0 | 140 | 0 |
| C | 0 | 140 | 0 |
| D | 0 | 140 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6841 | 47 | 0.687034% |
| B | 6841 | 63 | 0.920918% |
| C | 6841 | 32 | 0.467768% |
| D | 6841 | 46 | 0.672416% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8891 | 6843 | 0 | 0 | 0.00% | 0.00% |  |
| B | 8891 | 6843 | 7 | 7 | 0.08% | 0.10% |  |
| C | 8891 | 6843 | 0 | 0 | 0.00% | 0.00% |  |
| D | 8891 | 6843 | 6 | 6 | 0.07% | 0.09% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 251 | 17051 | 96.86 | 821 | 805 | 167.7 |
| A | 5 | 16 | 16949 | 96.25 | 821 | 805 | 167.7 |
| A | 0 | 226 | 7656 | 40.84 | 821 | 805 | 167.7 |
| B | 0 | 214 | 79561 | 498.81 | 824 | 805 | 157.9 |
| B | 4 | 81 | 46780 | 291.19 | 824 | 805 | 157.9 |
| B | 12 | 111 | 16932 | 102.14 | 824 | 805 | 157.9 |
| C | 13 | 61 | 6112 | 28.55 | 794 | 798 | 186.1 |
| C | 8 | 222 | 2915 | 11.37 | 794 | 798 | 186.1 |
| C | 14 | 82 | 2063 | 6.8 | 794 | 798 | 186.1 |
| D | 1 | 52 | 53728 | 262.14 | 789 | 770 | 202.0 |
| D | 14 | 34 | 30774 | 148.52 | 789 | 770 | 202.0 |
| D | 13 | 105 | 27180 | 130.73 | 789 | 770 | 202.0 |

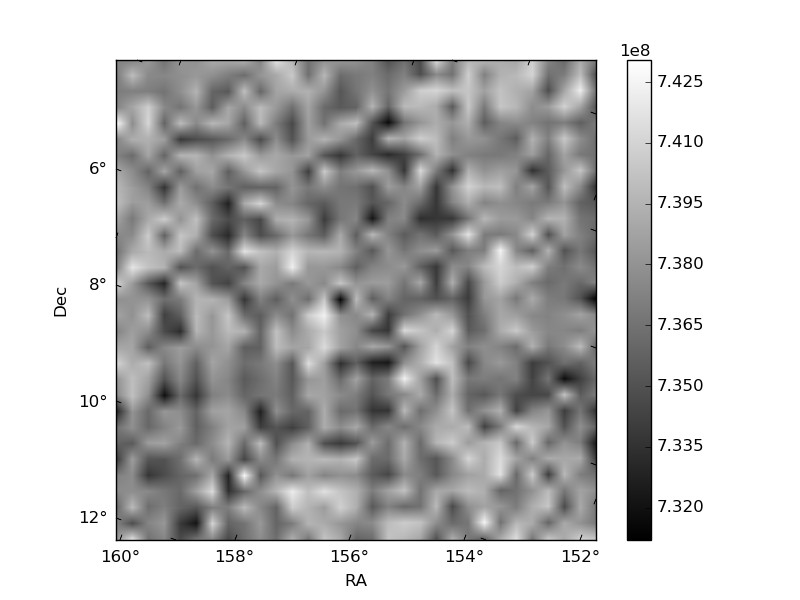

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

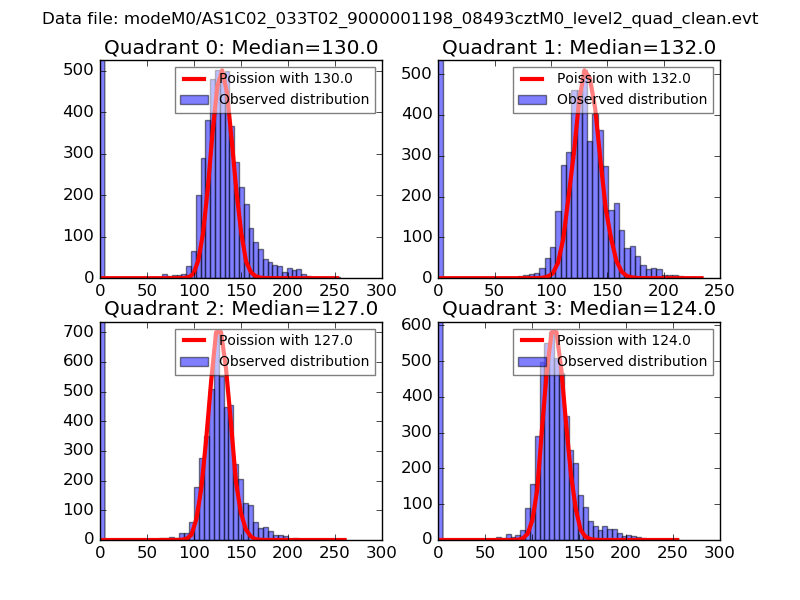

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

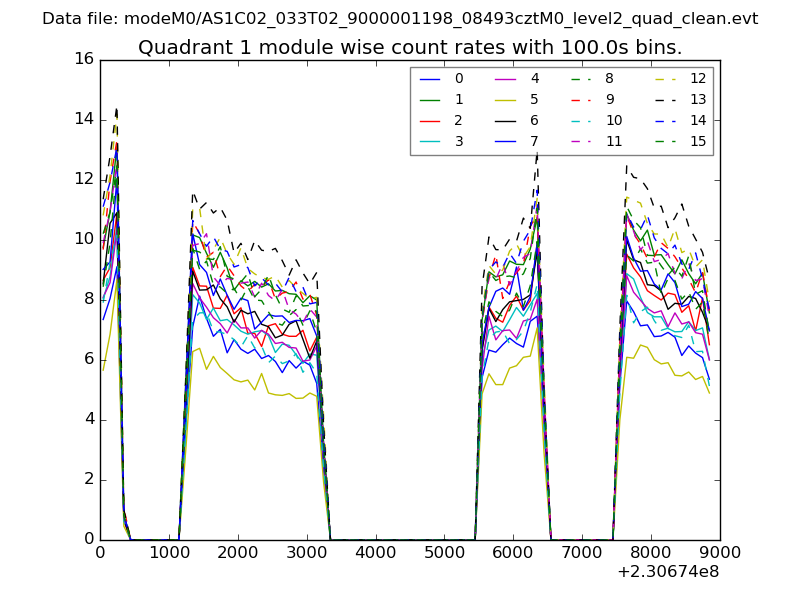

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

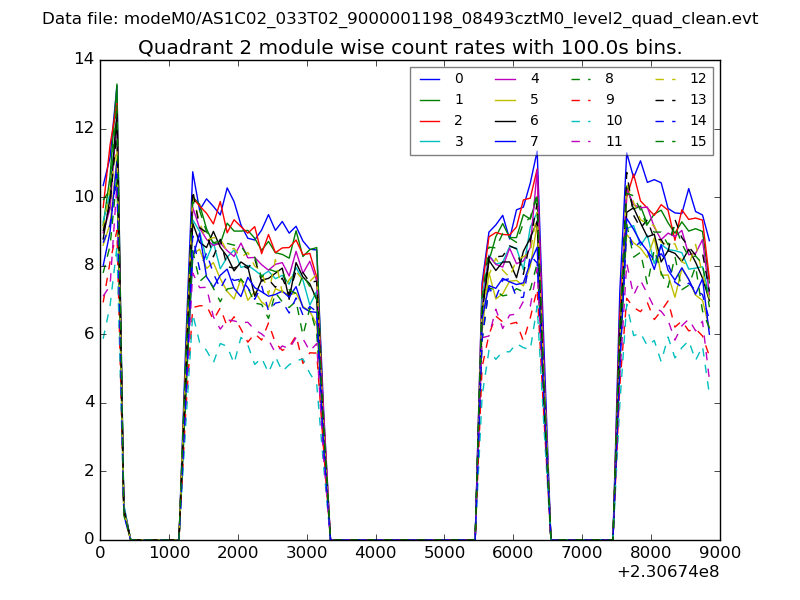

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

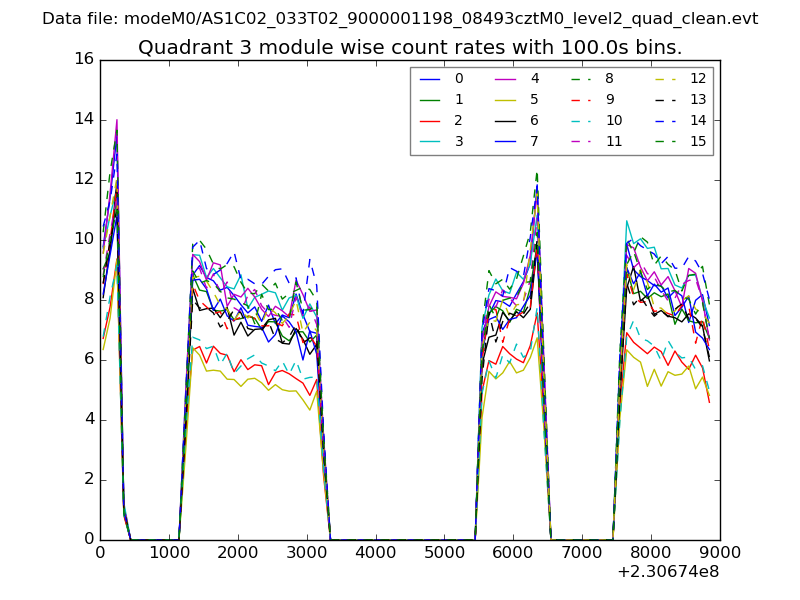

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

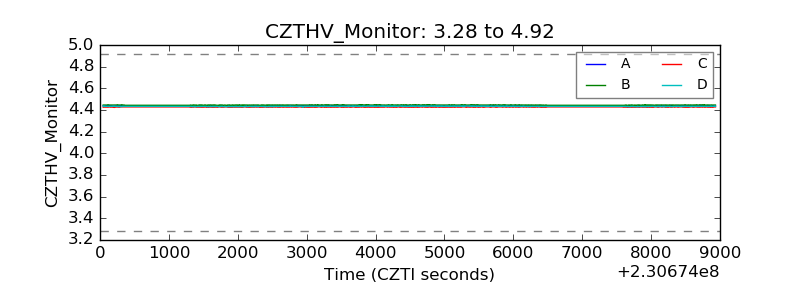

| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

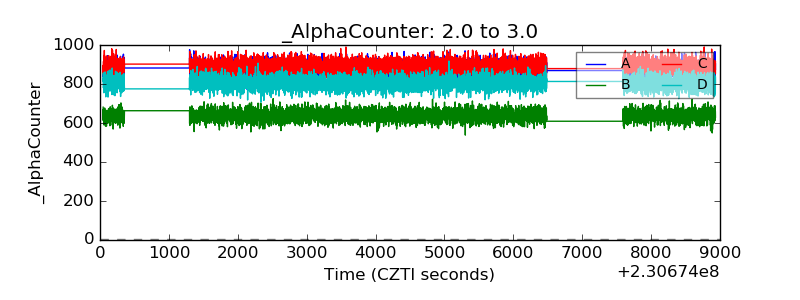

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

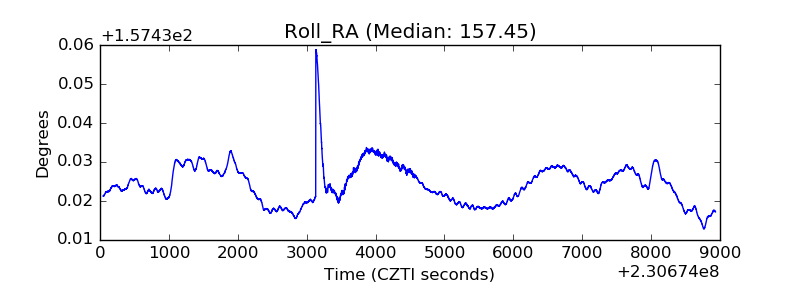

| _Roll_RA |  |
| Veto Counter |  |
