| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G07_060T01_9000001200_08505cztM0_level2.evt | modeM0/AS1G07_060T01_9000001200_08505cztM0_level2_quad_clean.evt |
| Size (bytes) | 492,059,520 | 90,103,680 |
| Size | 469.3 MB | 85.9 MB |
| Events in quadrant A | 3,441,171 | 560,511 |
| Events in quadrant B | 3,776,615 | 560,156 |
| Events in quadrant C | 3,336,853 | 556,484 |
| Events in quadrant D | 3,847,009 | 538,868 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 150 | 0 |
| B | 0 | 150 | 0 |
| C | 0 | 150 | 0 |
| D | 0 | 150 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15343 | 3 |
| B | 0 | 16061 | 2 |
| C | 0 | 15143 | 4 |
| D | 0 | 16473 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16 | 0 |
| B | 0 | 16 | 0 |
| C | 0 | 16 | 0 |
| D | 0 | 16 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7368 | 102 | 1.384365% |
| B | 7368 | 140 | 1.900109% |
| C | 7367 | 68 | 0.923035% |
| D | 7368 | 140 | 1.900109% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8913 | 7368 | 15 | 15 | 0.17% | 0.20% |  |
| B | 8913 | 7369 | 24 | 24 | 0.27% | 0.33% |  |
| C | 8913 | 7369 | 0 | 0 | 0.00% | 0.00% |  |
| D | 8913 | 7369 | 47 | 47 | 0.53% | 0.64% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 174 | 34921 | 188.8 | 874 | 854 | 180.4 |
| A | 5 | 16 | 31734 | 171.14 | 874 | 854 | 180.4 |
| A | 13 | 251 | 12991 | 67.26 | 874 | 854 | 180.4 |
| B | 10 | 16 | 152988 | 897.39 | 873 | 850 | 169.5 |
| B | 4 | 81 | 89966 | 525.65 | 873 | 850 | 169.5 |
| B | 0 | 214 | 40677 | 234.92 | 873 | 850 | 169.5 |
| C | 13 | 61 | 6406 | 27.63 | 855 | 857 | 200.8 |
| C | 8 | 222 | 3025 | 10.8 | 855 | 857 | 200.8 |
| C | 3 | 202 | 2170 | 6.54 | 855 | 857 | 200.8 |
| D | 1 | 52 | 313586 | 1515.62 | 849 | 830 | 206.4 |
| D | 9 | 64 | 197539 | 953.25 | 849 | 830 | 206.4 |
| D | 13 | 122 | 71647 | 343.18 | 849 | 830 | 206.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

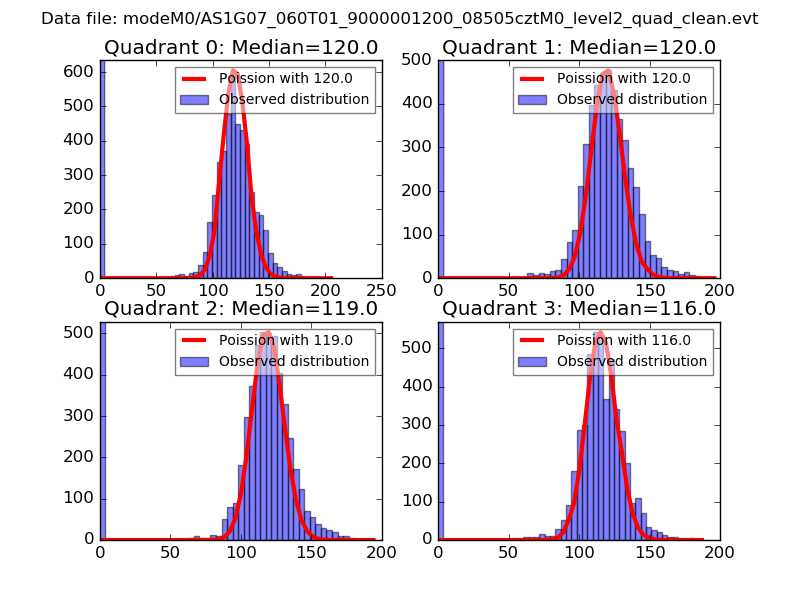

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

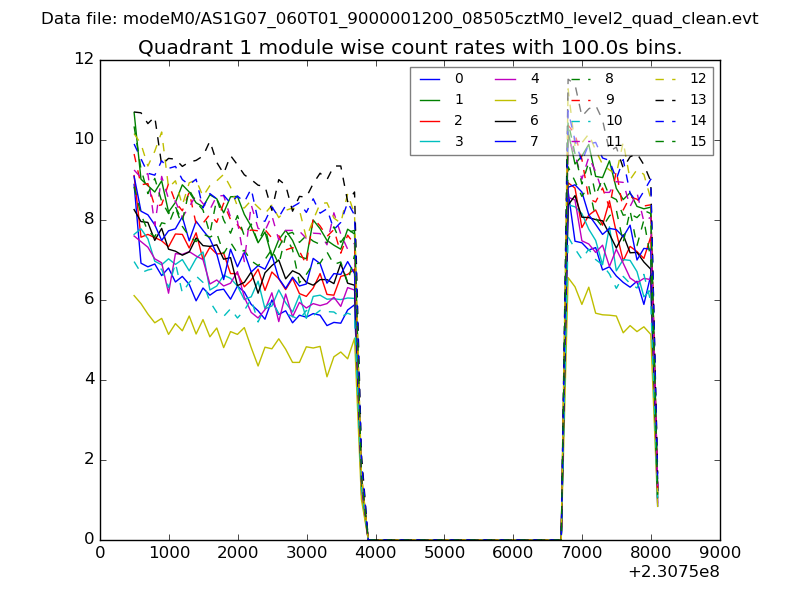

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

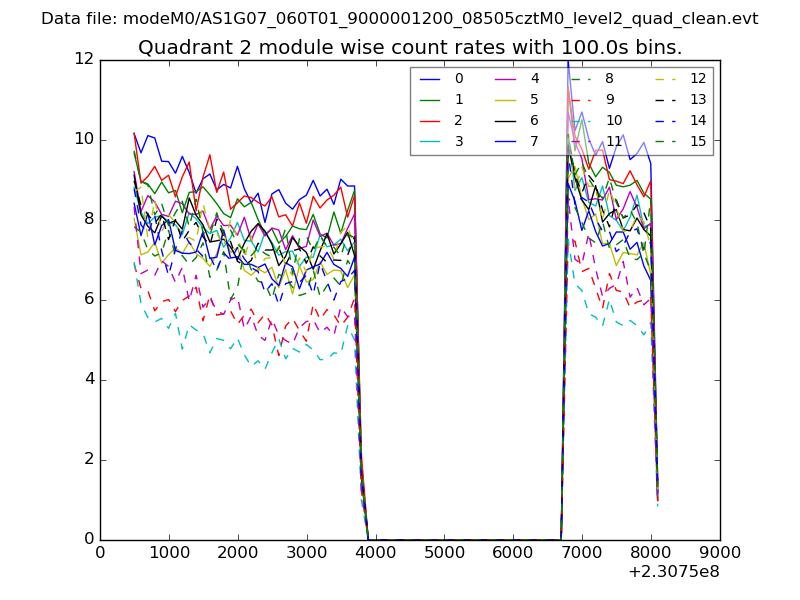

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

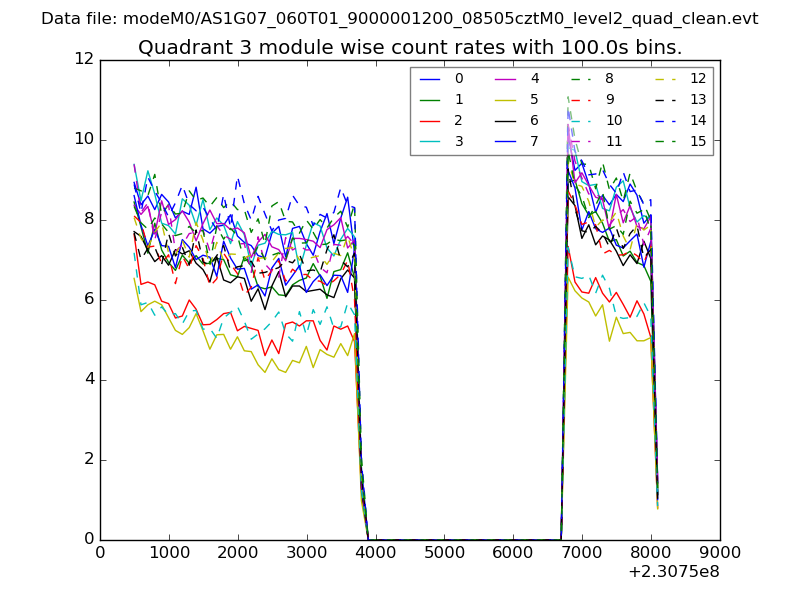

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

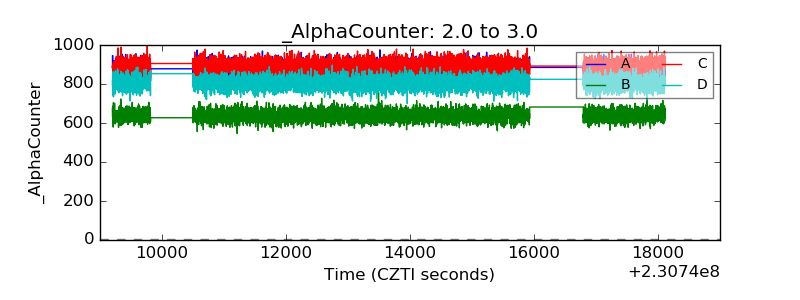

| Alpha Counter |  |
| _CPM_Rate |  |

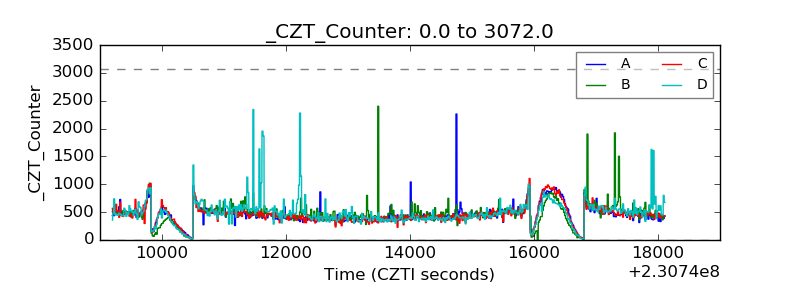

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

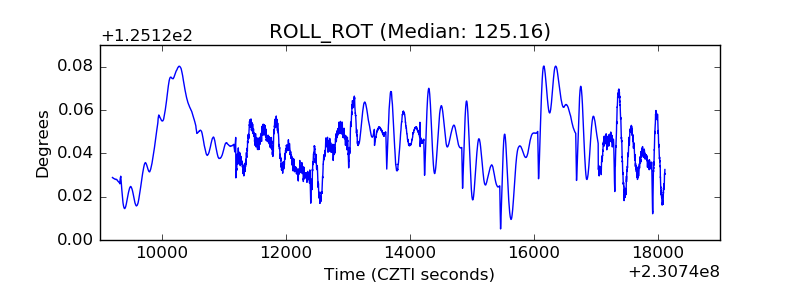

| _ROLL_ROT |  |

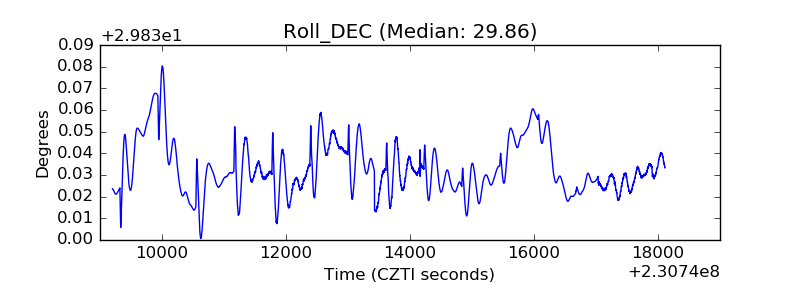

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
