| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G07_060T01_9000001200_08510cztM0_level2.evt | modeM0/AS1G07_060T01_9000001200_08510cztM0_level2_quad_clean.evt |
| Size (bytes) | 412,859,520 | 66,093,120 |
| Size | 393.7 MB | 63.0 MB |
| Events in quadrant A | 2,578,585 | 418,116 |
| Events in quadrant B | 2,635,339 | 426,128 |
| Events in quadrant C | 2,434,011 | 413,664 |
| Events in quadrant D | 4,489,927 | 367,022 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 110 | 0 |
| B | 0 | 110 | 0 |
| C | 0 | 110 | 2 |
| D | 0 | 110 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11270 | 10 |
| B | 0 | 11293 | 13 |
| C | 0 | 10979 | 23 |
| D | 0 | 17268 | 92 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5379 | 38 | 0.706451% |
| B | 5377 | 43 | 0.799702% |
| C | 5372 | 12 | 0.223380% |
| D | 5365 | 633 | 11.798695% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

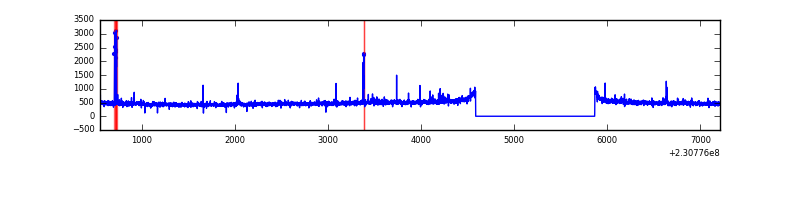

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 6663 | 5384 | 18 | 18 | 0.27% | 0.33% |  |
| B | 6663 | 5384 | 10 | 10 | 0.15% | 0.19% |  |
| C | 6663 | 5384 | 0 | 0 | 0.00% | 0.00% |  |
| D | 6662 | 5380 | 608 | 608 | 9.13% | 11.30% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 5 | 16 | 60061 | 451.84 | 642 | 629 | 131.5 |
| A | 15 | 236 | 48040 | 360.45 | 642 | 629 | 131.5 |
| A | 0 | 226 | 5901 | 40.08 | 642 | 629 | 131.5 |
| B | 4 | 173 | 39698 | 314.91 | 649 | 635 | 124.0 |
| B | 10 | 16 | 25313 | 198.95 | 649 | 635 | 124.0 |
| B | 0 | 214 | 22116 | 173.17 | 649 | 635 | 124.0 |
| C | 13 | 61 | 4705 | 28.22 | 623 | 627 | 144.5 |
| C | 8 | 222 | 3049 | 16.76 | 623 | 627 | 144.5 |
| C | 3 | 202 | 1578 | 6.58 | 623 | 627 | 144.5 |
| D | 13 | 105 | 2178886 | 15384.33 | 586 | 573 | 141.6 |
| D | 7 | 71 | 34393 | 238.85 | 586 | 573 | 141.6 |
| D | 8 | 195 | 16732 | 114.12 | 586 | 573 | 141.6 |

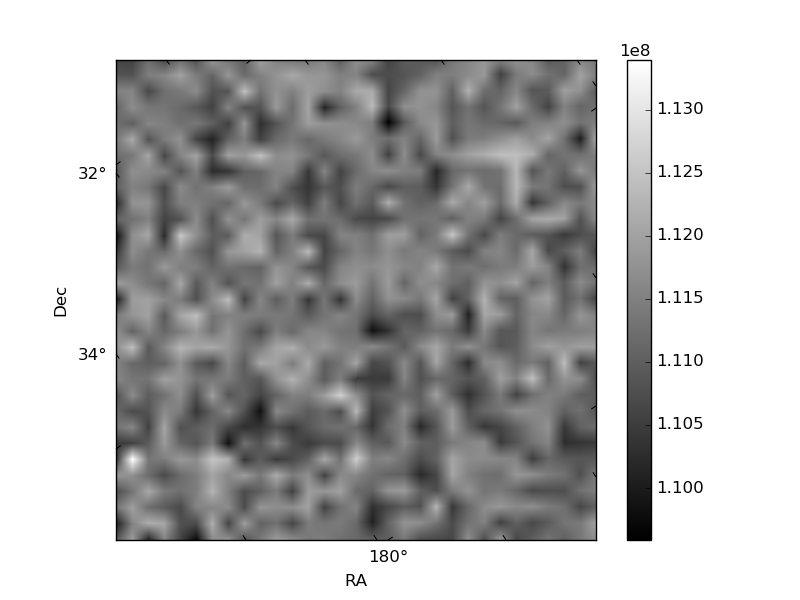

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

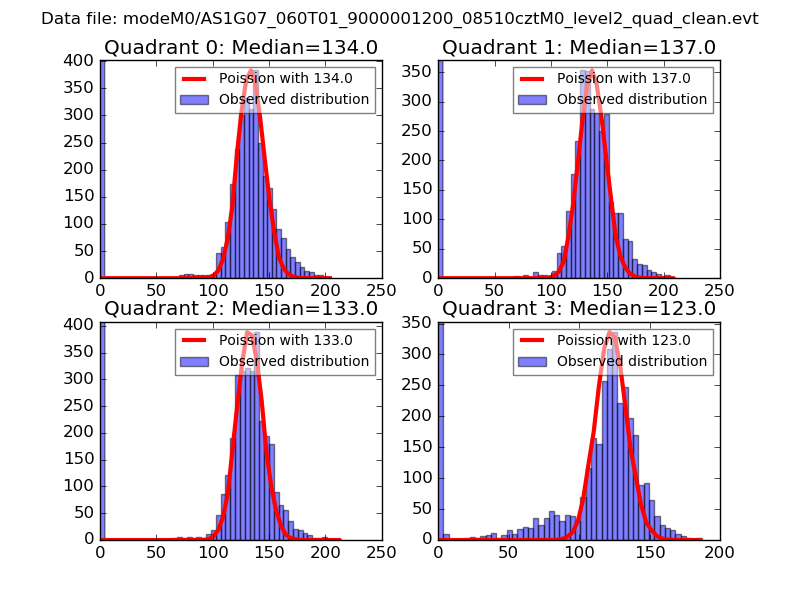

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

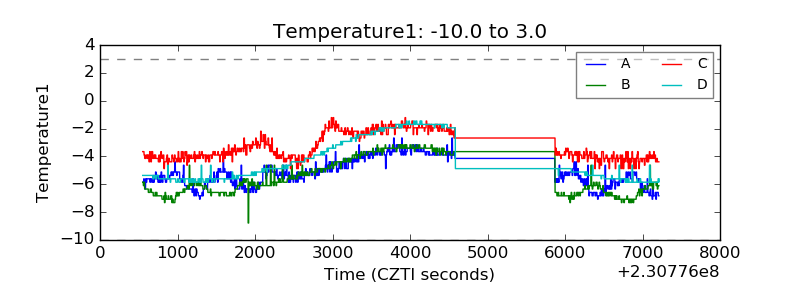

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

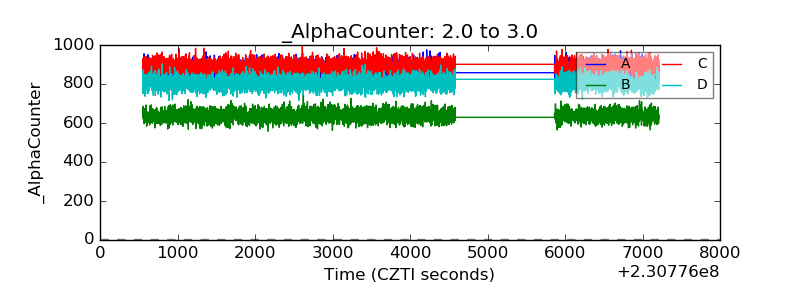

| Alpha Counter |  |

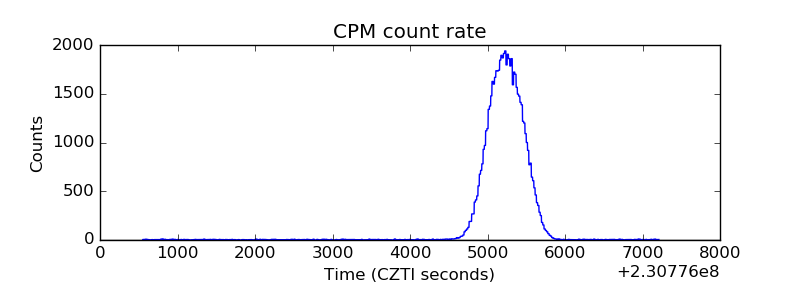

| _CPM_Rate |  |

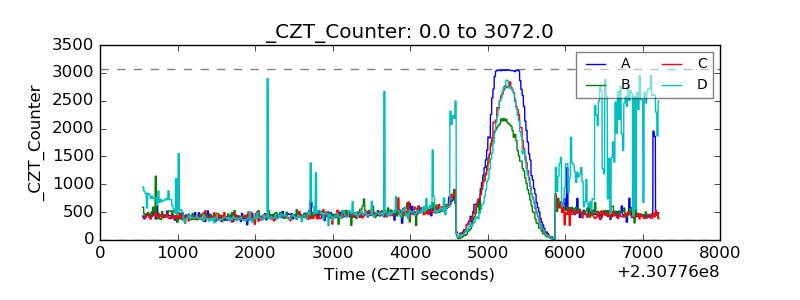

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

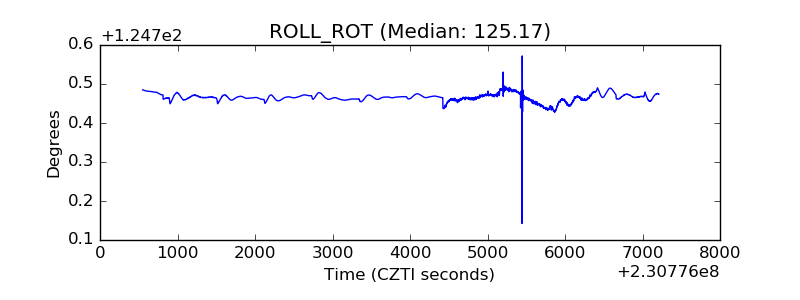

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
