| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G07_060T01_9000001200_08529cztM0_level2.evt | modeM0/AS1G07_060T01_9000001200_08529cztM0_level2_quad_clean.evt |
| Size (bytes) | 526,449,600 | 75,044,160 |
| Size | 502.1 MB | 71.6 MB |
| Events in quadrant A | 3,752,127 | 440,121 |
| Events in quadrant B | 4,134,544 | 439,706 |
| Events in quadrant C | 3,513,062 | 436,454 |
| Events in quadrant D | 4,023,225 | 423,093 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 154 | 0 |
| B | 0 | 154 | 0 |
| C | 0 | 154 | 0 |
| D | 0 | 154 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16517 | 3 |
| B | 0 | 17365 | 10 |
| C | 0 | 15977 | 2 |
| D | 0 | 17479 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 6 | 0 |
| B | 0 | 6 | 0 |
| C | 0 | 6 | 0 |
| D | 0 | 6 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7664 | 385 | 5.023486% |
| B | 7663 | 458 | 5.976771% |
| C | 7664 | 282 | 3.679541% |
| D | 7664 | 368 | 4.801670% |

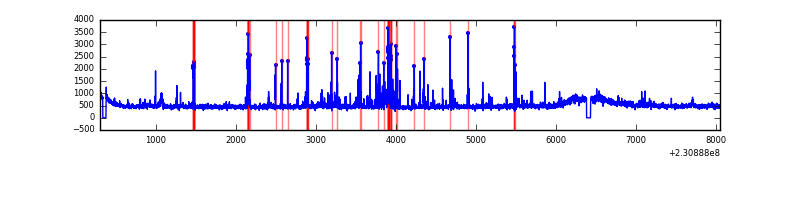

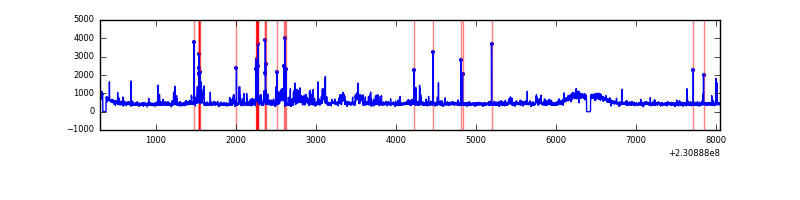

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7754 | 7665 | 14 | 14 | 0.18% | 0.18% |  |
| B | 7754 | 7665 | 66 | 66 | 0.85% | 0.86% |  |
| C | 7754 | 7666 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7754 | 7665 | 35 | 35 | 0.45% | 0.46% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 223 | 130717 | 687.9 | 919 | 896 | 188.7 |
| A | 15 | 239 | 42111 | 218.39 | 919 | 896 | 188.7 |
| A | 13 | 251 | 21714 | 110.31 | 919 | 896 | 188.7 |
| B | 10 | 16 | 319712 | 1779.1 | 917 | 892 | 179.2 |
| B | 0 | 214 | 79489 | 438.59 | 917 | 892 | 179.2 |
| B | 15 | 255 | 70309 | 387.37 | 917 | 892 | 179.2 |
| C | 13 | 61 | 6939 | 28.62 | 897 | 897 | 211.1 |
| C | 8 | 222 | 6712 | 27.54 | 897 | 897 | 211.1 |
| C | 14 | 234 | 5837 | 23.4 | 897 | 897 | 211.1 |
| D | 1 | 52 | 527698 | 2342.33 | 889 | 861 | 224.9 |
| D | 12 | 233 | 31429 | 135.91 | 889 | 861 | 224.9 |
| D | 10 | 187 | 23454 | 100.45 | 889 | 861 | 224.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

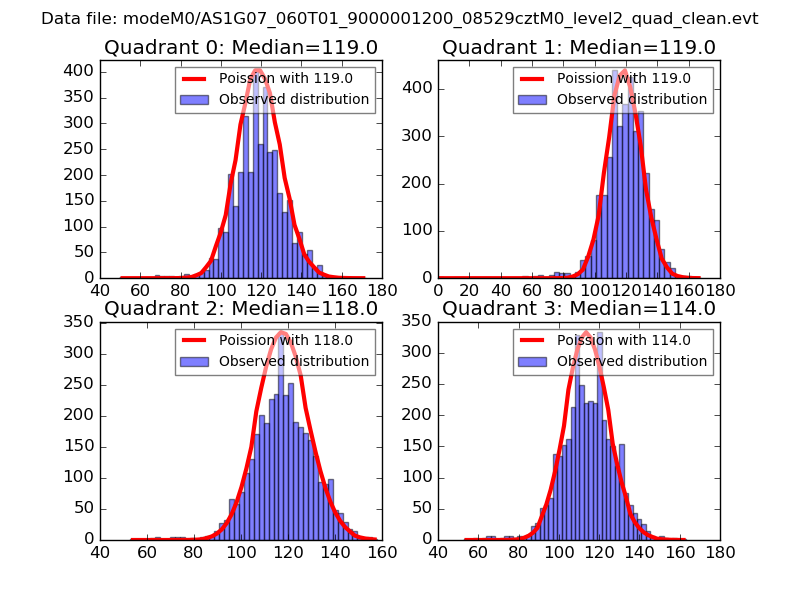

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

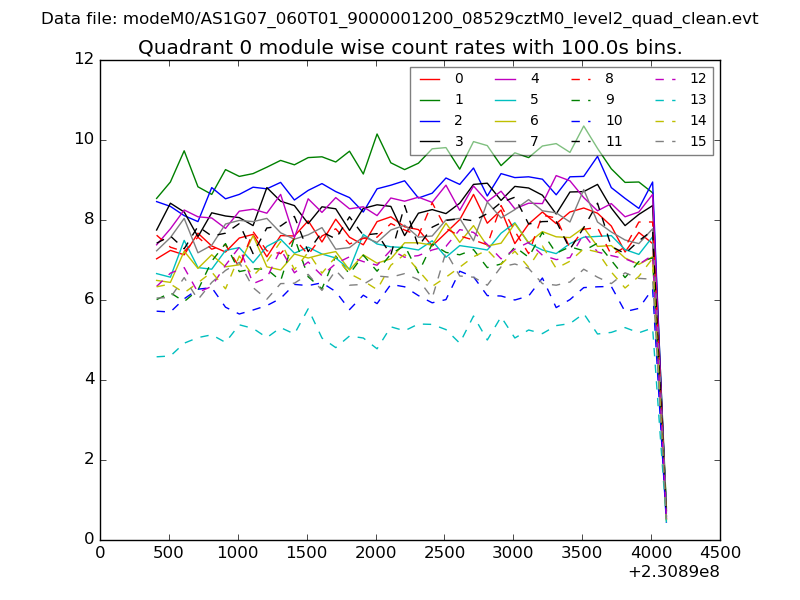

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

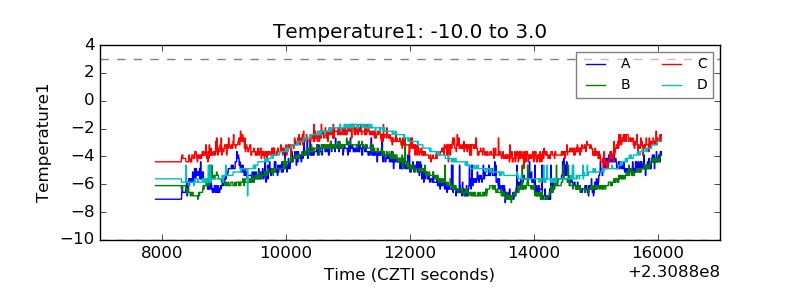

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

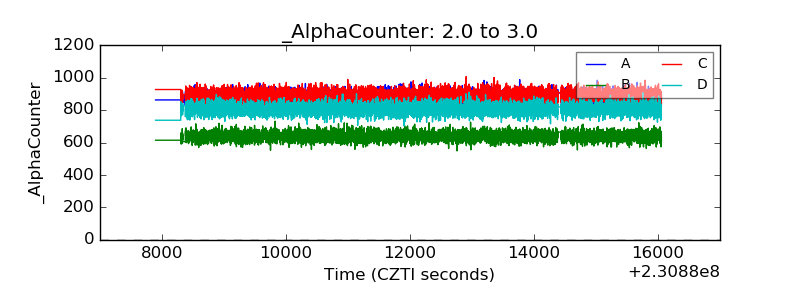

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

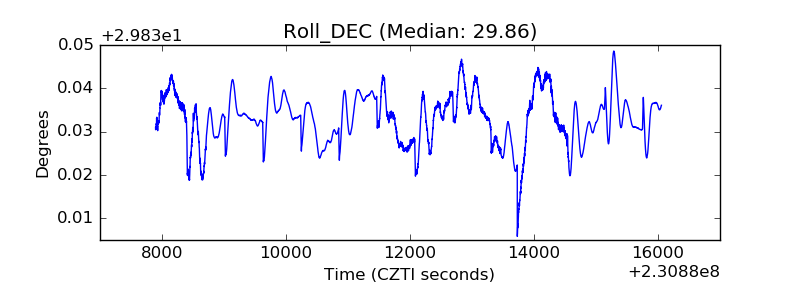

| _Roll_DEC |  |
| _Roll_RA |  |

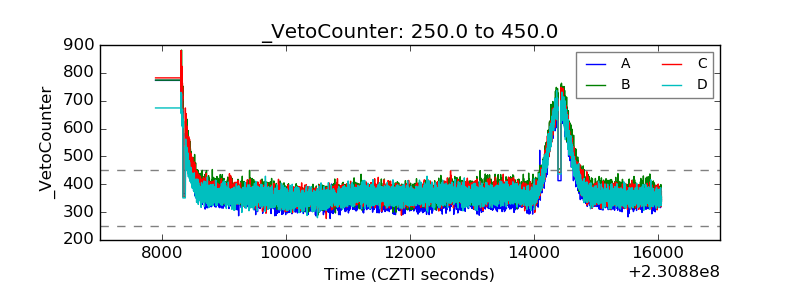

| Veto Counter |  |
