| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G07_060T01_9000001200_08538cztM0_level2.evt | modeM0/AS1G07_060T01_9000001200_08538cztM0_level2_quad_clean.evt |
| Size (bytes) | 427,596,480 | 87,220,800 |
| Size | 407.8 MB | 83.2 MB |
| Events in quadrant A | 3,219,768 | 555,061 |
| Events in quadrant B | 3,398,517 | 562,405 |
| Events in quadrant C | 2,845,198 | 554,378 |
| Events in quadrant D | 3,061,423 | 533,404 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 0 |
| C | 0 | 126 | 0 |
| D | 0 | 126 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13492 | 3 |
| B | 0 | 14186 | 2 |
| C | 0 | 12785 | 2 |
| D | 0 | 13533 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 19 | 0 |
| B | 0 | 19 | 0 |
| C | 0 | 19 | 0 |
| D | 0 | 20 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6250 | 41 | 0.656000% |
| B | 6250 | 162 | 2.592000% |
| C | 6250 | 19 | 0.304000% |
| D | 6250 | 23 | 0.368000% |

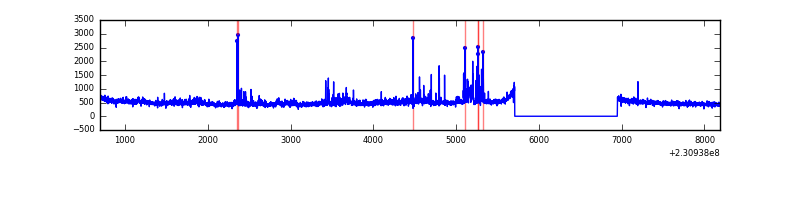

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7490 | 6251 | 7 | 7 | 0.09% | 0.11% |  |
| B | 7490 | 6251 | 102 | 102 | 1.36% | 1.63% |  |
| C | 7490 | 6251 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7490 | 6251 | 10 | 10 | 0.13% | 0.16% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 251 | 198602 | 1318.39 | 742 | 726 | 150.1 |
| A | 15 | 223 | 85724 | 566.32 | 742 | 726 | 150.1 |
| A | 15 | 239 | 35041 | 228.63 | 742 | 726 | 150.1 |
| B | 10 | 16 | 422775 | 2989.49 | 744 | 726 | 141.2 |
| B | 0 | 214 | 34926 | 242.25 | 744 | 726 | 141.2 |
| B | 11 | 51 | 16526 | 111.92 | 744 | 726 | 141.2 |
| C | 8 | 222 | 5948 | 30.77 | 728 | 733 | 169.5 |
| C | 13 | 61 | 5557 | 28.46 | 728 | 733 | 169.5 |
| C | 3 | 202 | 1818 | 6.4 | 728 | 733 | 169.5 |
| D | 1 | 52 | 161197 | 928.89 | 715 | 697 | 172.8 |
| D | 14 | 34 | 130898 | 753.54 | 715 | 697 | 172.8 |
| D | 2 | 234 | 20354 | 113.76 | 715 | 697 | 172.8 |

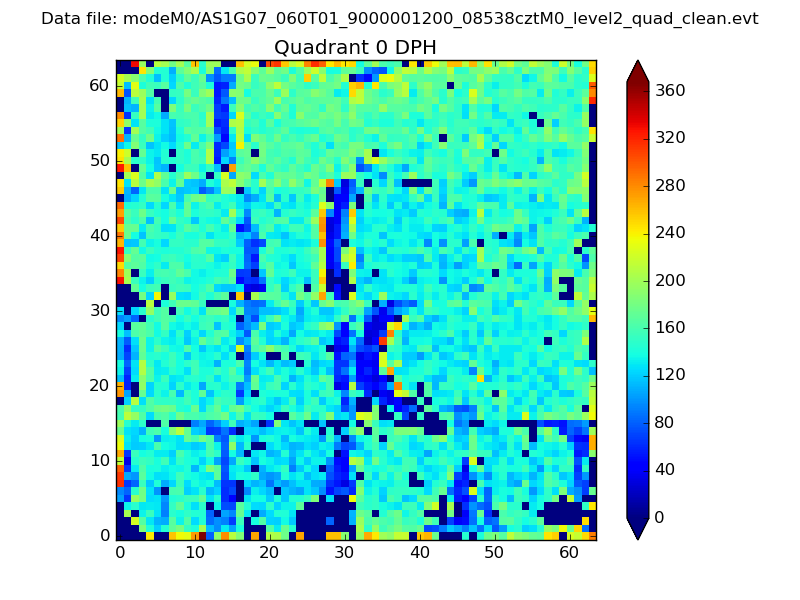

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |

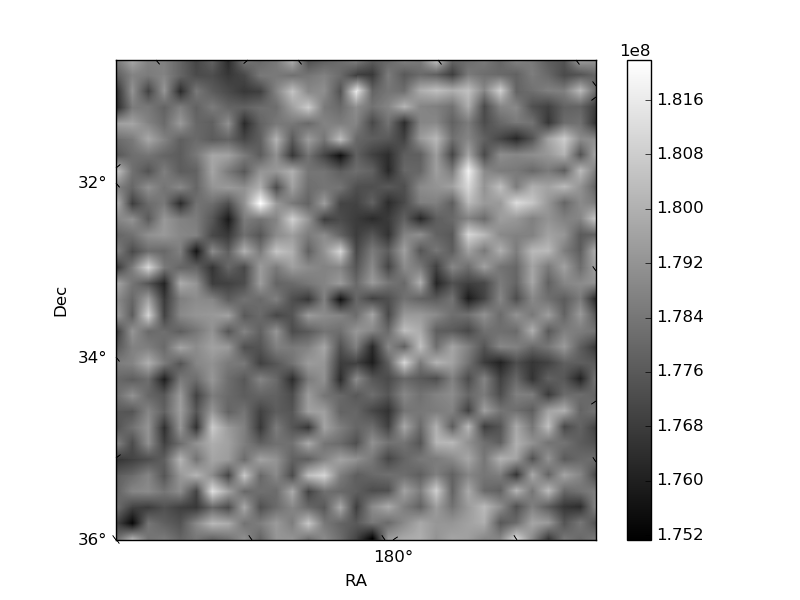

| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

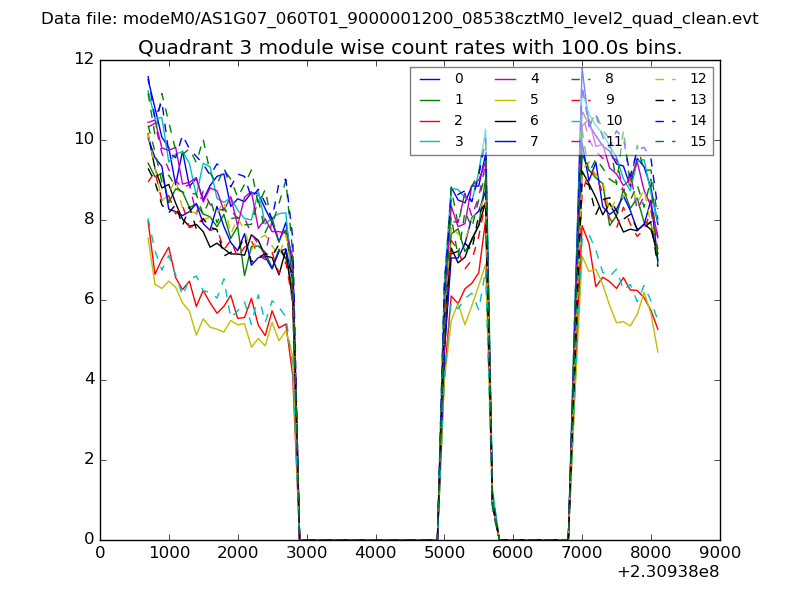

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

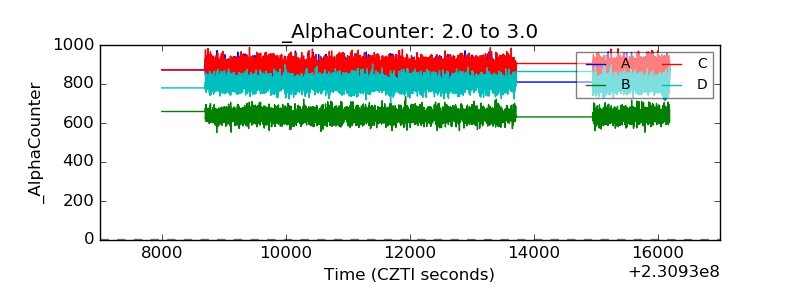

| Alpha Counter |  |

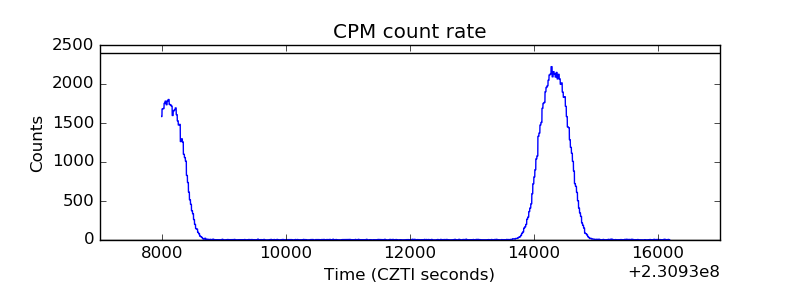

| _CPM_Rate |  |

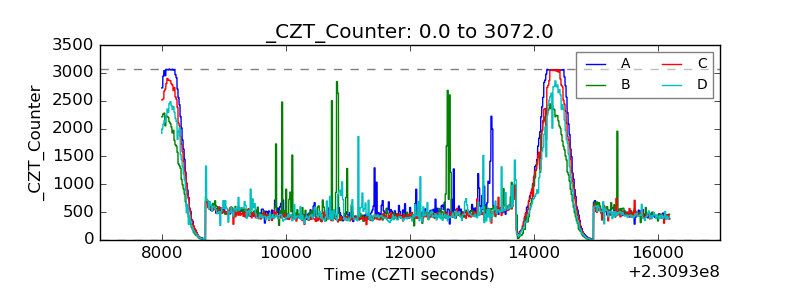

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

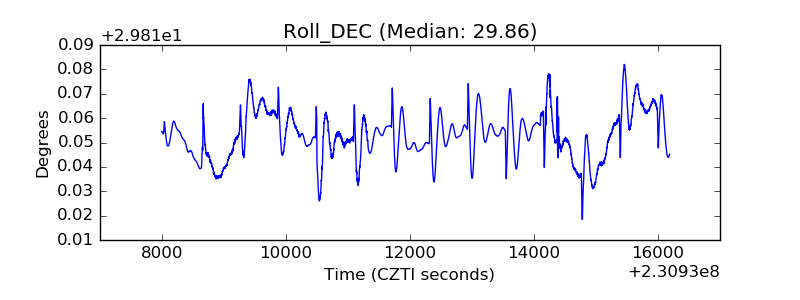

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
