| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G07_060T01_9000001200_08544cztM0_level2.evt | modeM0/AS1G07_060T01_9000001200_08544cztM0_level2_quad_clean.evt |
| Size (bytes) | 604,463,040 | 99,172,800 |
| Size | 576.5 MB | 94.6 MB |
| Events in quadrant A | 4,405,613 | 595,396 |
| Events in quadrant B | 4,448,739 | 602,291 |
| Events in quadrant C | 4,306,579 | 593,845 |
| Events in quadrant D | 4,521,495 | 574,658 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 186 | 0 |
| B | 0 | 186 | 0 |
| C | 0 | 186 | 0 |
| D | 0 | 186 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 19492 | 4 |
| B | 0 | 19387 | 3 |
| C | 0 | 19333 | 1 |
| D | 0 | 20223 | 3 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 3 | 0 |
| B | 0 | 3 | 0 |
| C | 0 | 3 | 0 |
| D | 0 | 3 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 9175 | 493 | 5.373297% |
| B | 9175 | 541 | 5.896458% |
| C | 9176 | 347 | 3.781604% |
| D | 9175 | 455 | 4.959128% |

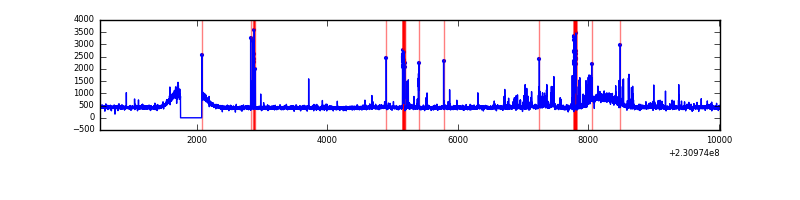

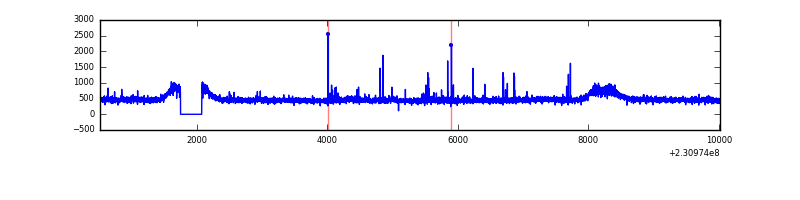

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 9501 | 9176 | 6 | 6 | 0.06% | 0.07% |  |
| B | 9501 | 9176 | 2 | 2 | 0.02% | 0.02% |  |
| C | 9501 | 9176 | 1 | 1 | 0.01% | 0.01% |  |
| D | 9501 | 9176 | 55 | 55 | 0.58% | 0.60% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 223 | 63009 | 267.33 | 1116 | 1088 | 231.6 |
| A | 8 | 5 | 24451 | 100.87 | 1116 | 1088 | 231.6 |
| A | 15 | 239 | 22371 | 91.89 | 1116 | 1088 | 231.6 |
| B | 0 | 214 | 30851 | 135.04 | 1119 | 1086 | 220.4 |
| B | 11 | 51 | 27786 | 121.14 | 1119 | 1086 | 220.4 |
| B | 12 | 111 | 25684 | 111.6 | 1119 | 1086 | 220.4 |
| C | 9 | 54 | 19522 | 72.19 | 1092 | 1091 | 255.3 |
| C | 14 | 234 | 9754 | 33.93 | 1092 | 1091 | 255.3 |
| C | 7 | 238 | 8588 | 29.36 | 1092 | 1091 | 255.3 |
| D | 4 | 95 | 242774 | 903.07 | 1079 | 1046 | 267.7 |
| D | 7 | 71 | 79330 | 292.46 | 1079 | 1046 | 267.7 |
| D | 1 | 52 | 60646 | 222.66 | 1079 | 1046 | 267.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

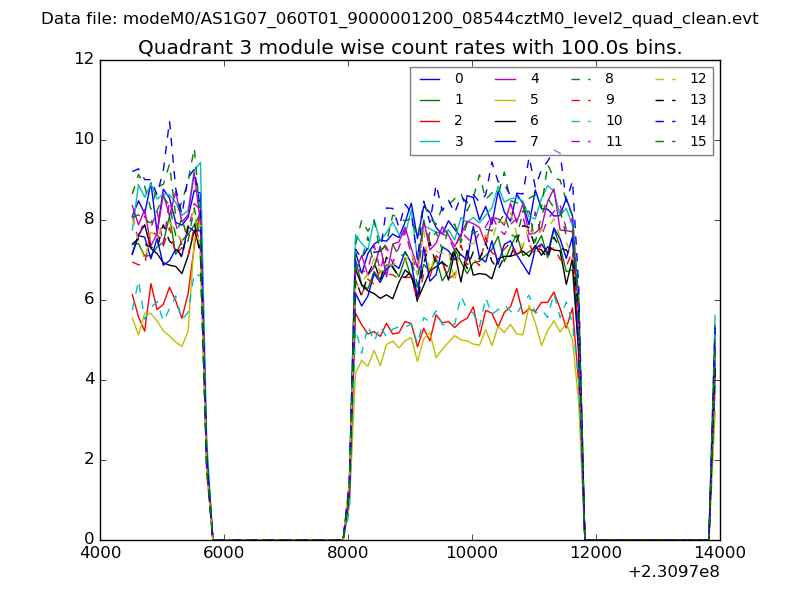

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

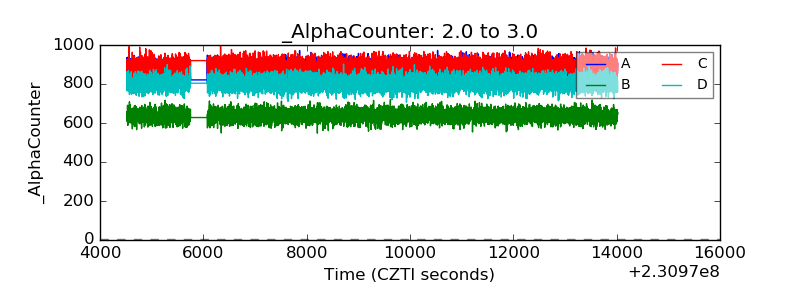

| Alpha Counter |  |
| _CPM_Rate |  |

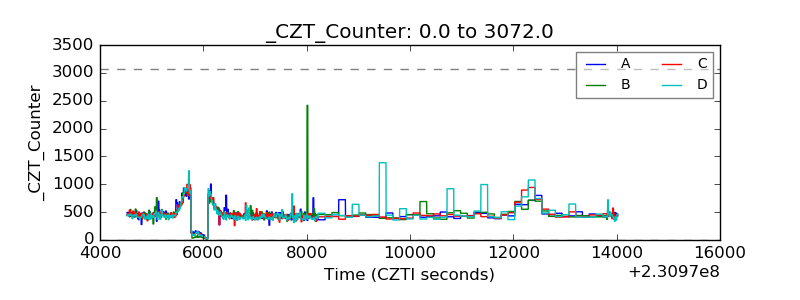

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

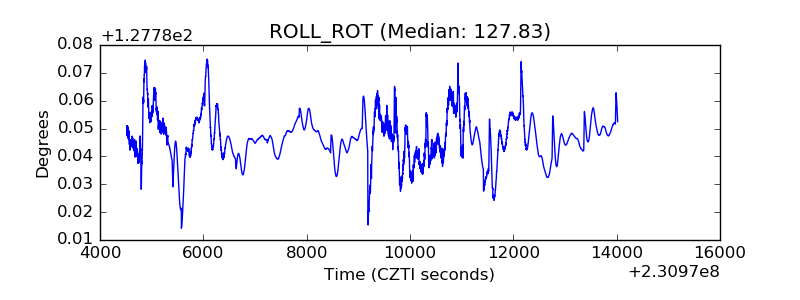

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
