| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G07_060T01_9000001200_08552cztM0_level2.evt | modeM0/AS1G07_060T01_9000001200_08552cztM0_level2_quad_clean.evt |
| Size (bytes) | 412,401,600 | 88,185,600 |
| Size | 393.3 MB | 84.1 MB |
| Events in quadrant A | 2,939,141 | 560,734 |
| Events in quadrant B | 3,176,512 | 570,630 |
| Events in quadrant C | 2,870,784 | 560,354 |
| Events in quadrant D | 3,072,229 | 536,828 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13205 | 3 |
| B | 0 | 13693 | 4 |
| C | 0 | 12981 | 2 |
| D | 0 | 13808 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 22 | 0 |
| B | 0 | 22 | 0 |
| C | 0 | 22 | 0 |
| D | 0 | 22 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6335 | 13 | 0.205209% |
| B | 6334 | 86 | 1.357752% |
| C | 6335 | 8 | 0.126283% |
| D | 6335 | 38 | 0.599842% |

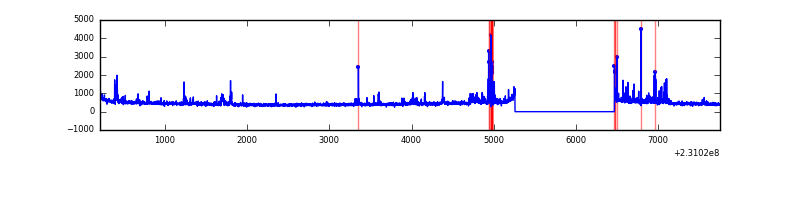

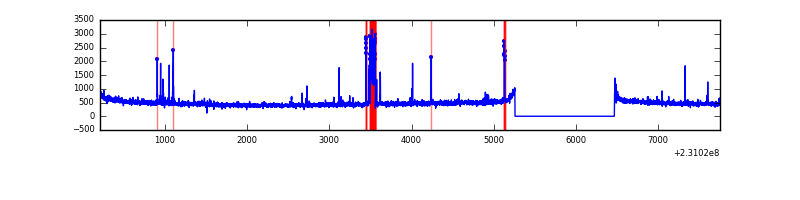

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7545 | 6336 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7545 | 6336 | 57 | 57 | 0.76% | 0.90% |  |
| C | 7545 | 6336 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7545 | 6336 | 22 | 22 | 0.29% | 0.35% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 223 | 32779 | 211.03 | 749 | 735 | 151.8 |
| A | 15 | 239 | 9400 | 57.07 | 749 | 735 | 151.8 |
| A | 0 | 226 | 6973 | 41.08 | 749 | 735 | 151.8 |
| B | 10 | 16 | 182878 | 1275.43 | 753 | 736 | 142.8 |
| B | 10 | 252 | 20456 | 138.09 | 753 | 736 | 142.8 |
| B | 0 | 214 | 19482 | 131.27 | 753 | 736 | 142.8 |
| C | 13 | 61 | 5514 | 28.05 | 734 | 737 | 170.3 |
| C | 9 | 54 | 4665 | 23.06 | 734 | 737 | 170.3 |
| C | 8 | 222 | 3786 | 17.9 | 734 | 737 | 170.3 |
| D | 1 | 52 | 141641 | 795.3 | 724 | 706 | 177.2 |
| D | 4 | 95 | 92762 | 519.47 | 724 | 706 | 177.2 |
| D | 7 | 71 | 41551 | 230.49 | 724 | 706 | 177.2 |

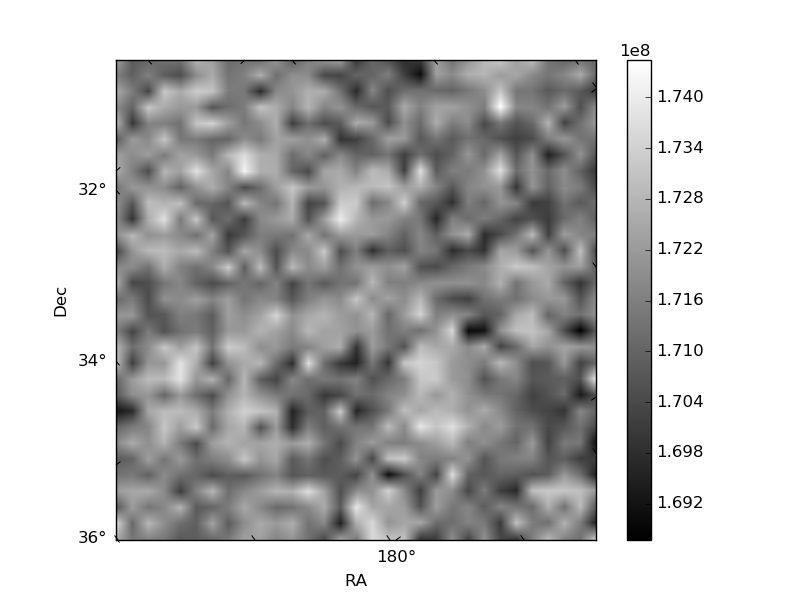

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

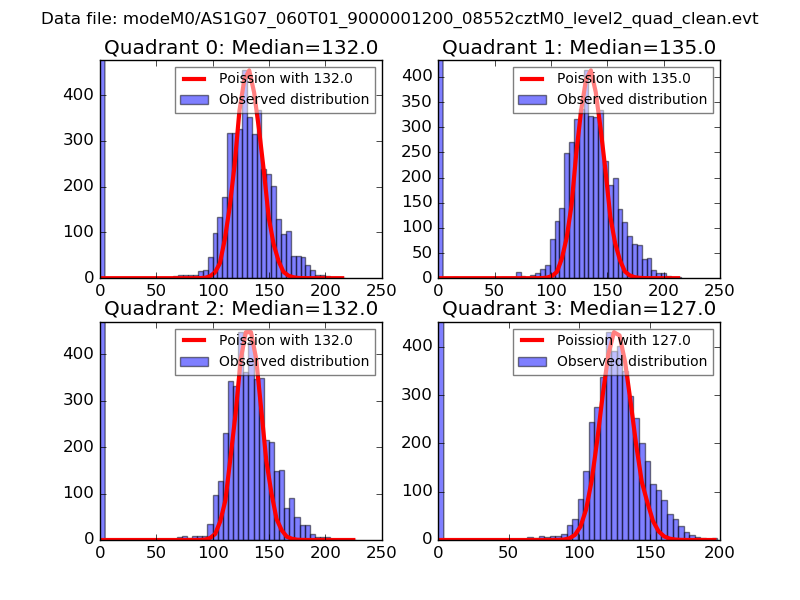

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

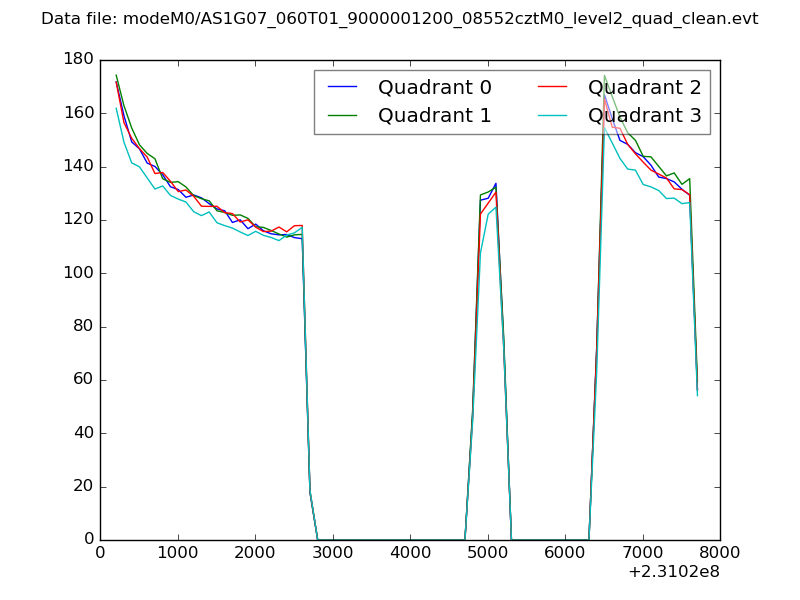

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

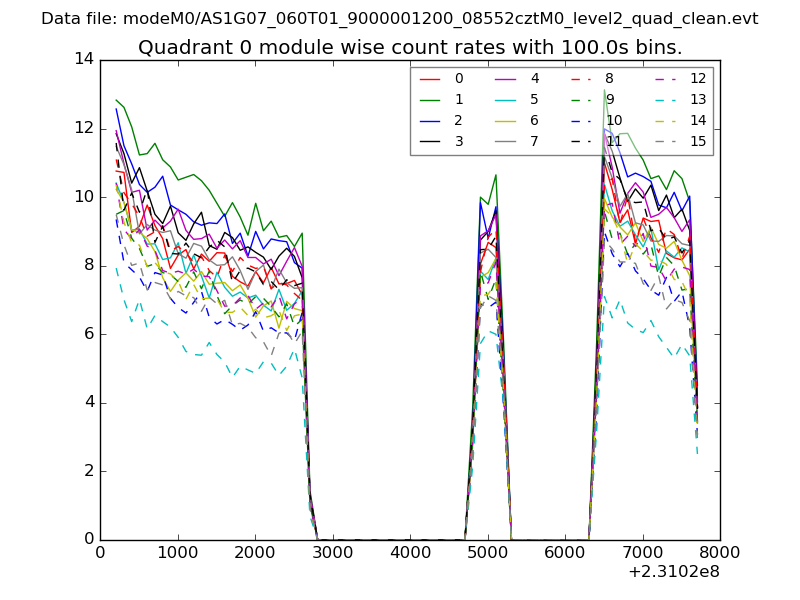

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

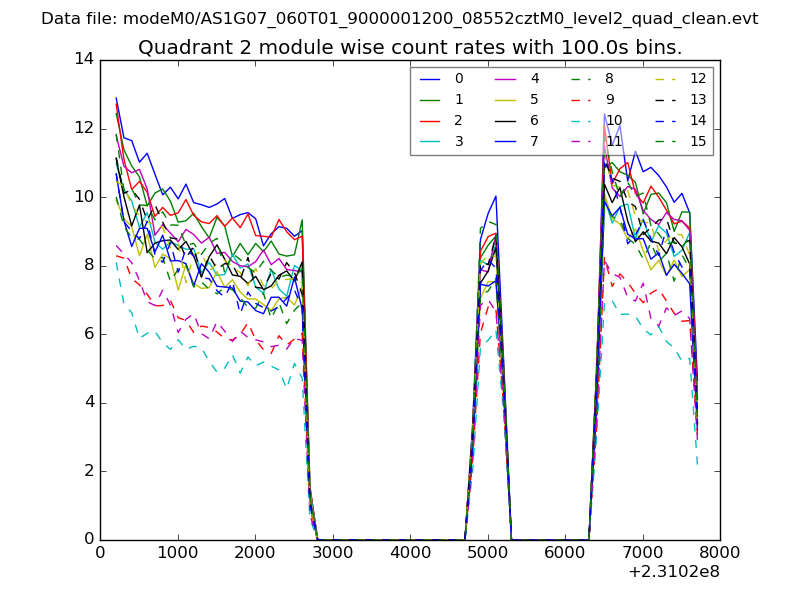

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

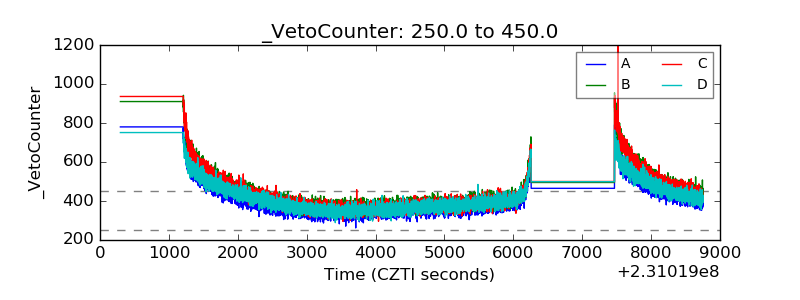

| Veto Counter |  |
