| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A03_102T01_9000001202_08583cztM0_level2.evt | modeM0/AS1A03_102T01_9000001202_08583cztM0_level2_quad_clean.evt |
| Size (bytes) | 425,502,720 | 113,207,040 |
| Size | 405.8 MB | 108.0 MB |
| Events in quadrant A | 3,086,325 | 737,125 |
| Events in quadrant B | 3,227,626 | 769,485 |
| Events in quadrant C | 2,963,538 | 751,249 |
| Events in quadrant D | 3,161,534 | 712,209 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 23 | 0 |
| B | 0 | 23 | 0 |
| C | 0 | 23 | 0 |
| D | 0 | 24 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 134 | 0 |
| B | 0 | 134 | 0 |
| C | 0 | 134 | 0 |
| D | 0 | 134 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13767 | 3 |
| B | 0 | 14124 | 2 |
| C | 0 | 13444 | 2 |
| D | 0 | 14188 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6575 | 39 | 0.593156% |
| B | 6575 | 40 | 0.608365% |
| C | 6575 | 16 | 0.243346% |
| D | 6575 | 38 | 0.577947% |

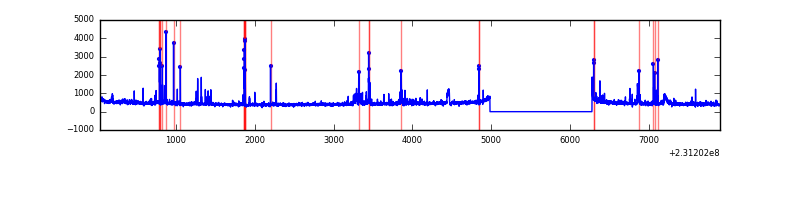

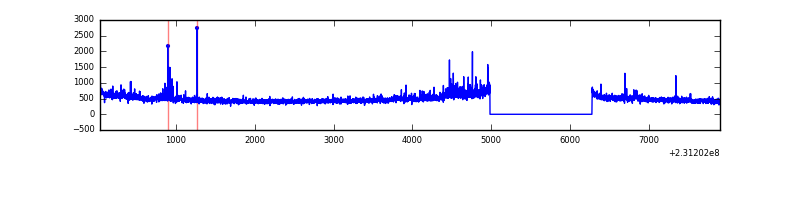

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7870 | 6576 | 19 | 19 | 0.24% | 0.29% |  |
| B | 7870 | 6575 | 2 | 2 | 0.03% | 0.03% |  |
| C | 7870 | 6576 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7870 | 6576 | 27 | 27 | 0.34% | 0.41% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 223 | 96156 | 626.61 | 759 | 744 | 152.3 |
| A | 15 | 239 | 35782 | 230.11 | 759 | 744 | 152.3 |
| A | 5 | 16 | 14849 | 92.63 | 759 | 744 | 152.3 |
| B | 11 | 51 | 78505 | 537.37 | 779 | 760 | 144.7 |
| B | 0 | 214 | 47093 | 320.25 | 779 | 760 | 144.7 |
| B | 0 | 219 | 24834 | 166.4 | 779 | 760 | 144.7 |
| C | 14 | 67 | 20558 | 114.05 | 752 | 755 | 173.6 |
| C | 14 | 234 | 10346 | 55.24 | 752 | 755 | 173.6 |
| C | 13 | 61 | 5787 | 28.98 | 752 | 755 | 173.6 |
| D | 7 | 71 | 106413 | 544.6 | 733 | 718 | 194.1 |
| D | 12 | 233 | 105106 | 537.86 | 733 | 718 | 194.1 |
| D | 1 | 52 | 94402 | 482.71 | 733 | 718 | 194.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

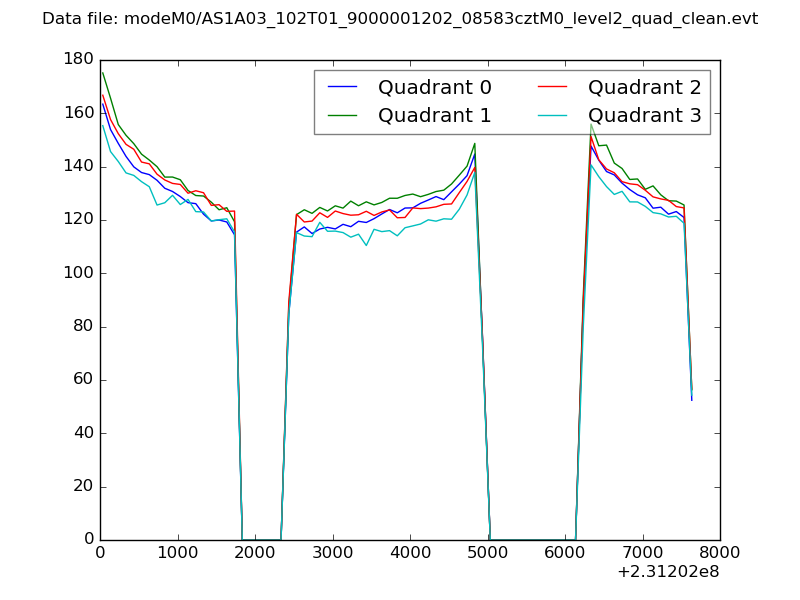

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

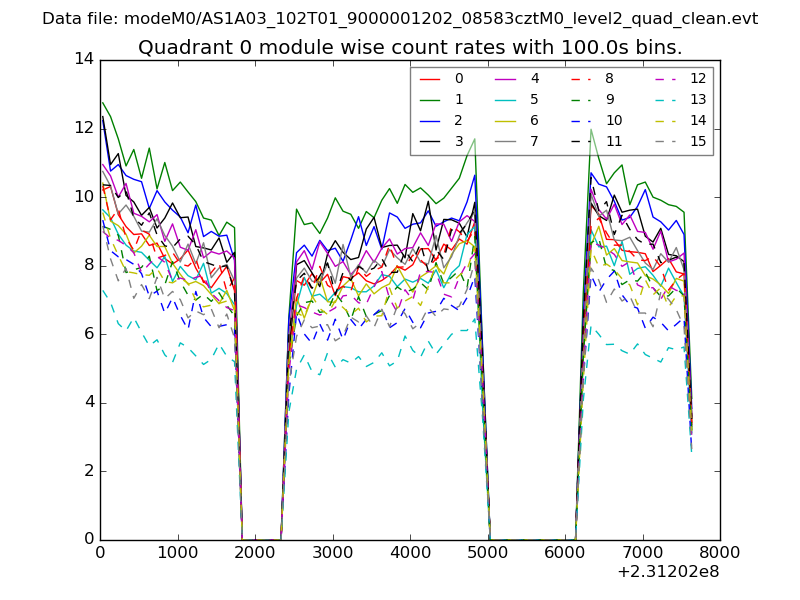

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

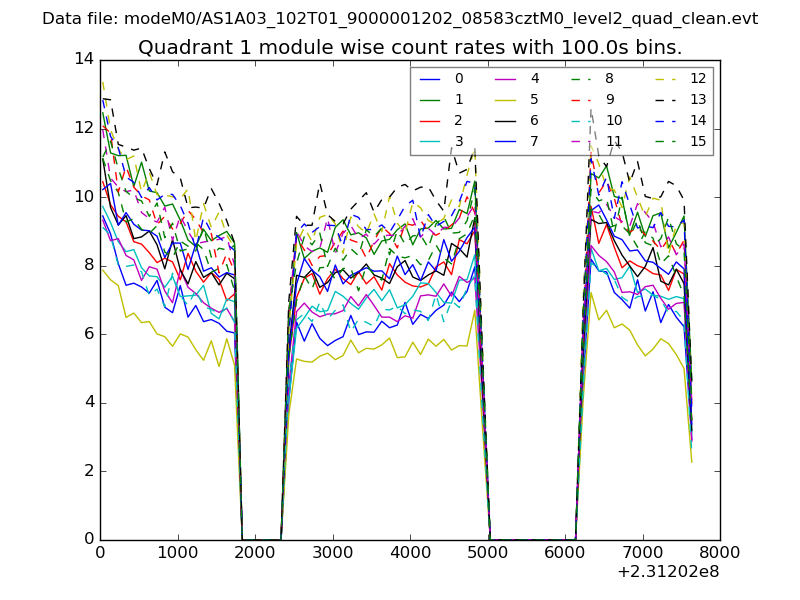

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

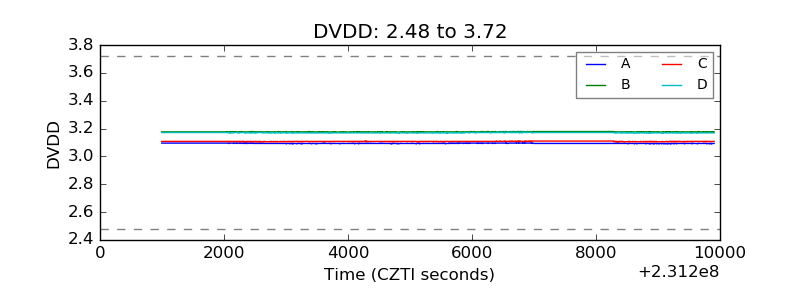

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

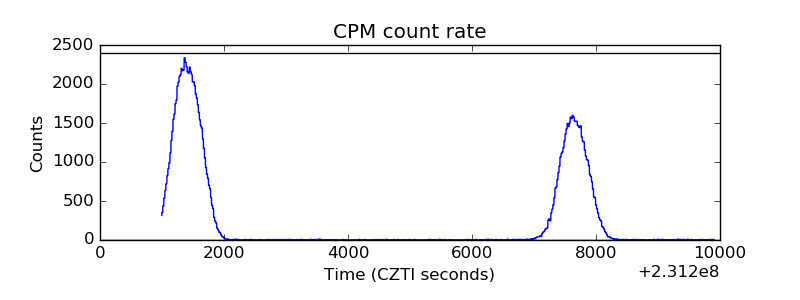

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

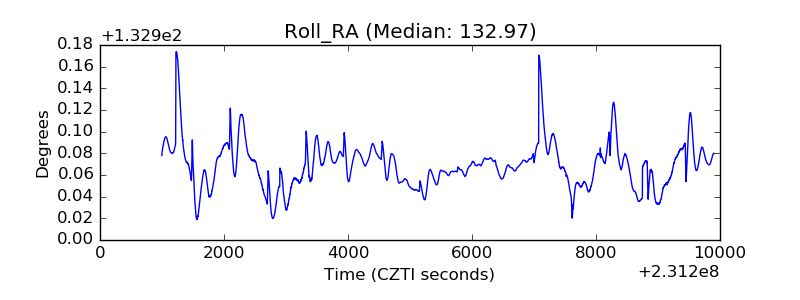

| _Roll_RA |  |
| Veto Counter |  |
