| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A03_102T01_9000001202_08586cztM0_level2.evt | modeM0/AS1A03_102T01_9000001202_08586cztM0_level2_quad_clean.evt |
| Size (bytes) | 452,753,280 | 106,724,160 |
| Size | 431.8 MB | 101.8 MB |
| Events in quadrant A | 3,587,201 | 676,324 |
| Events in quadrant B | 3,410,540 | 705,863 |
| Events in quadrant C | 3,084,014 | 690,083 |
| Events in quadrant D | 3,146,136 | 664,823 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 5 | 0 |
| B | 0 | 5 | 0 |
| C | 0 | 5 | 0 |
| D | 0 | 5 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 144 | 0 |
| B | 0 | 144 | 0 |
| C | 0 | 144 | 0 |
| D | 0 | 144 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15846 | 2 |
| B | 0 | 14979 | 1 |
| C | 0 | 14497 | 1 |
| D | 0 | 14781 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7108 | 273 | 3.840743% |
| B | 7108 | 173 | 2.433877% |
| C | 7108 | 113 | 1.589758% |
| D | 7108 | 110 | 1.547552% |

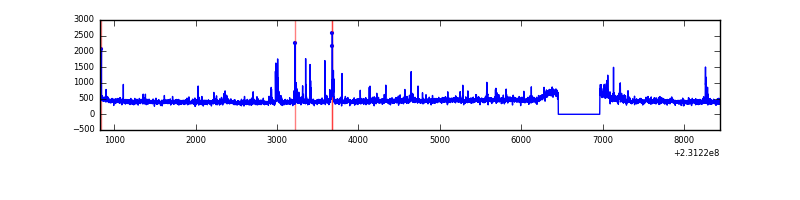

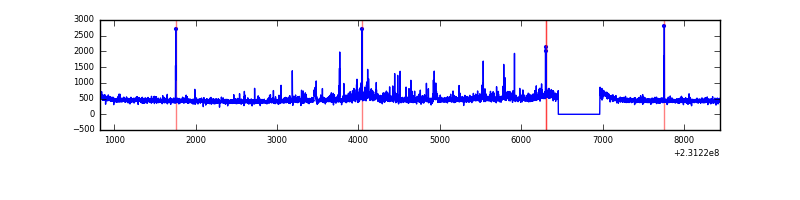

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7618 | 7108 | 99 | 99 | 1.30% | 1.39% |  |
| B | 7618 | 7108 | 5 | 5 | 0.07% | 0.07% |  |
| C | 7618 | 7108 | 1 | 1 | 0.01% | 0.01% |  |
| D | 7618 | 7108 | 4 | 4 | 0.05% | 0.06% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 223 | 327569 | 2014.35 | 794 | 777 | 162.2 |
| A | 15 | 239 | 162408 | 996.3 | 794 | 777 | 162.2 |
| A | 15 | 255 | 21760 | 129.34 | 794 | 777 | 162.2 |
| B | 0 | 214 | 84653 | 541.21 | 813 | 790 | 155.0 |
| B | 11 | 51 | 54736 | 348.14 | 813 | 790 | 155.0 |
| B | 0 | 230 | 20558 | 127.57 | 813 | 790 | 155.0 |
| C | 9 | 54 | 15240 | 79.73 | 786 | 786 | 181.3 |
| C | 13 | 61 | 6018 | 28.86 | 786 | 786 | 181.3 |
| C | 8 | 222 | 4020 | 17.84 | 786 | 786 | 181.3 |
| D | 7 | 71 | 51842 | 257.91 | 777 | 755 | 198.1 |
| D | 12 | 233 | 36544 | 180.68 | 777 | 755 | 198.1 |
| D | 1 | 52 | 34709 | 171.41 | 777 | 755 | 198.1 |

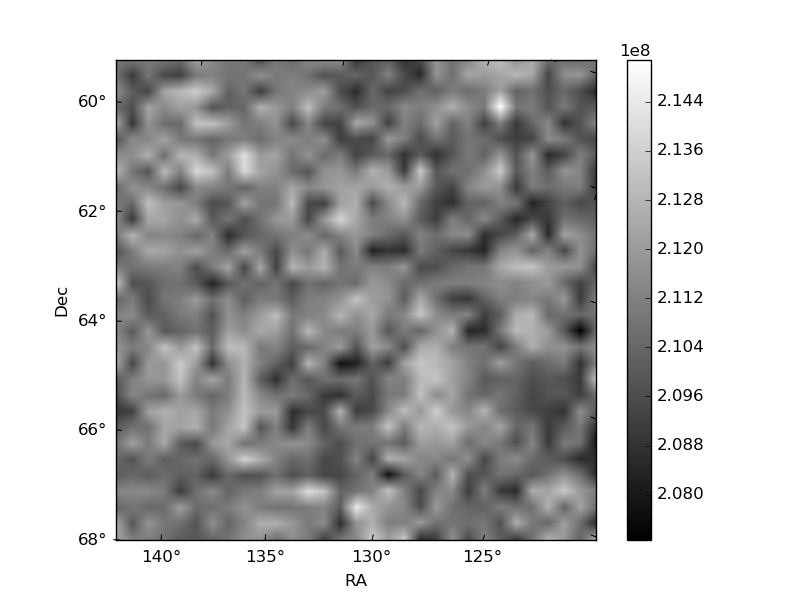

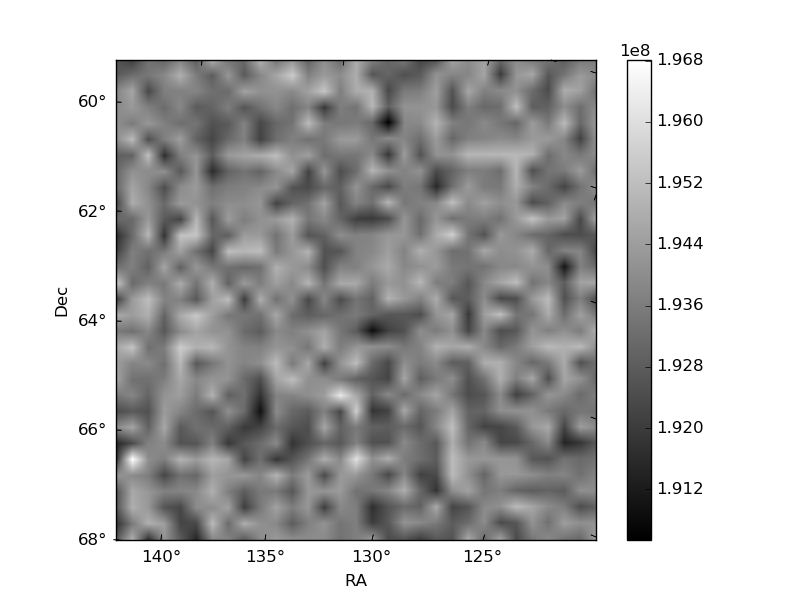

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

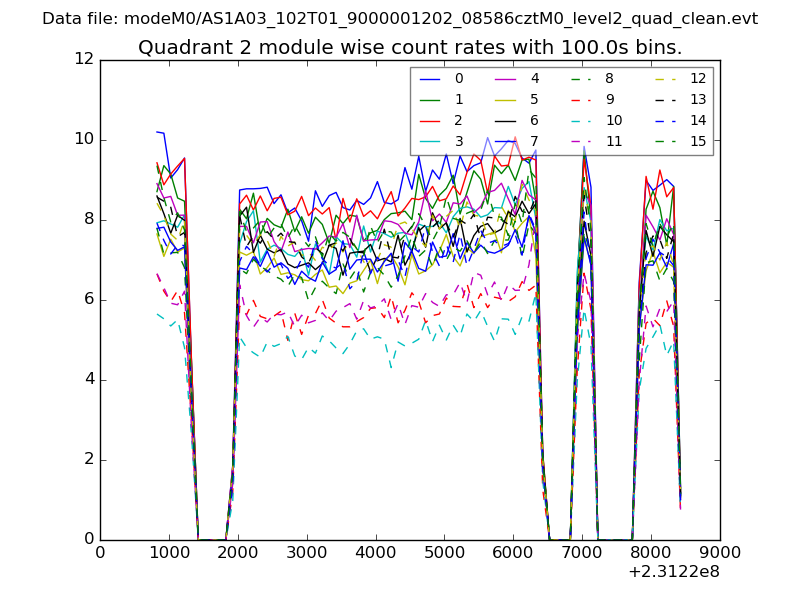

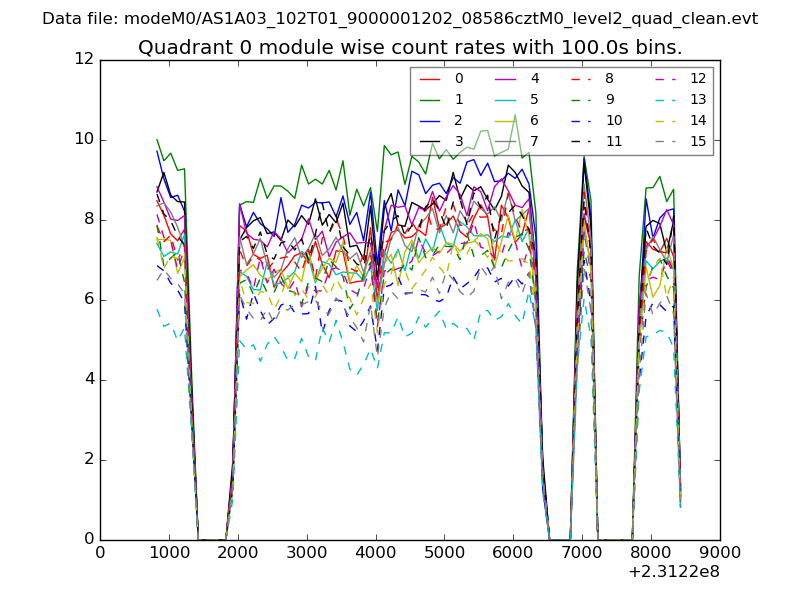

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

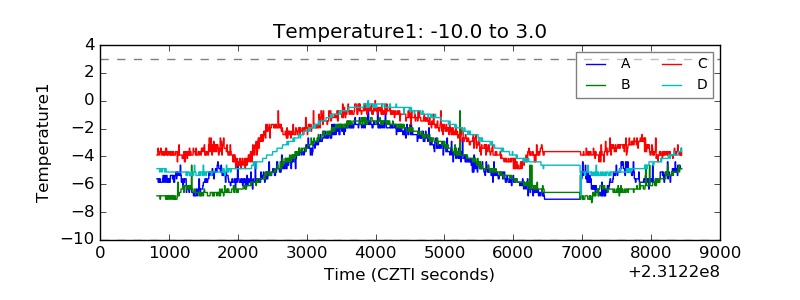

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

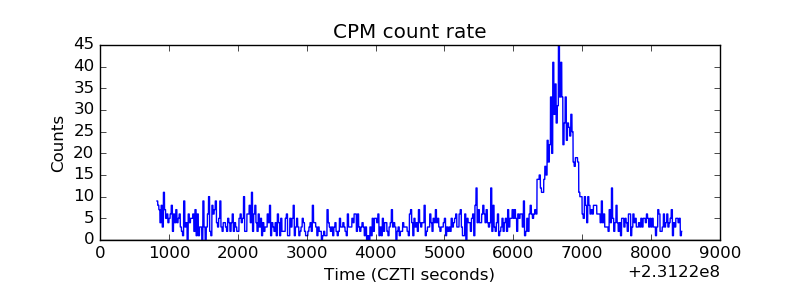

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
