| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A03_102T01_9000001202_08587cztM0_level2.evt | modeM0/AS1A03_102T01_9000001202_08587cztM0_level2_quad_clean.evt |
| Size (bytes) | 444,792,960 | 111,409,920 |
| Size | 424.2 MB | 106.2 MB |
| Events in quadrant A | 3,180,906 | 718,008 |
| Events in quadrant B | 3,437,050 | 743,433 |
| Events in quadrant C | 3,082,488 | 724,029 |
| Events in quadrant D | 3,287,386 | 694,622 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 2 | 0 |
| B | 0 | 2 | 0 |
| C | 0 | 2 | 0 |
| D | 0 | 2 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 144 | 0 |
| B | 0 | 144 | 0 |
| C | 0 | 144 | 0 |
| D | 0 | 144 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14636 | 2 |
| B | 0 | 15008 | 1 |
| C | 0 | 14505 | 1 |
| D | 0 | 15069 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7102 | 175 | 2.464095% |
| B | 7102 | 174 | 2.450014% |
| C | 7102 | 70 | 0.985638% |
| D | 7102 | 128 | 1.802309% |

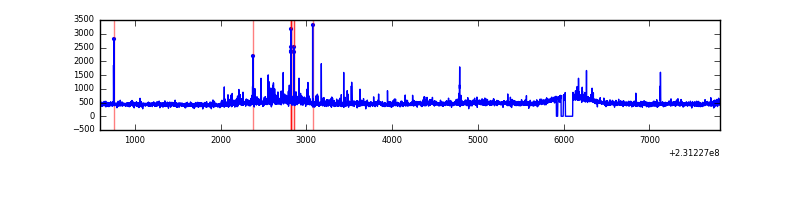

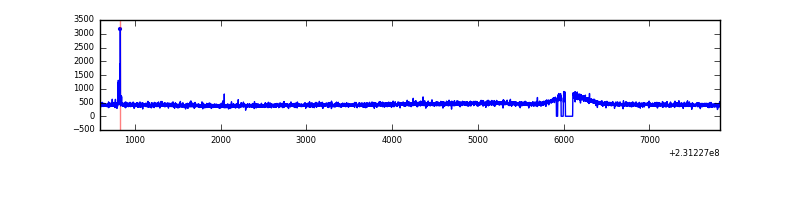

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7227 | 7105 | 3 | 3 | 0.04% | 0.04% |  |
| B | 7227 | 7104 | 9 | 9 | 0.12% | 0.13% |  |
| C | 7227 | 7105 | 1 | 1 | 0.01% | 0.01% |  |
| D | 7227 | 7104 | 19 | 19 | 0.26% | 0.27% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 223 | 36582 | 216.25 | 806 | 788 | 165.5 |
| A | 15 | 239 | 12734 | 72.17 | 806 | 788 | 165.5 |
| A | 15 | 174 | 12430 | 70.34 | 806 | 788 | 165.5 |
| B | 0 | 214 | 146869 | 940.36 | 814 | 791 | 155.3 |
| B | 4 | 173 | 53159 | 337.11 | 814 | 791 | 155.3 |
| B | 12 | 111 | 16460 | 100.87 | 814 | 791 | 155.3 |
| C | 9 | 54 | 15047 | 78.75 | 784 | 785 | 181.1 |
| C | 13 | 61 | 5945 | 28.49 | 784 | 785 | 181.1 |
| C | 8 | 222 | 4800 | 22.17 | 784 | 785 | 181.1 |
| D | 7 | 71 | 84428 | 435.47 | 781 | 755 | 192.1 |
| D | 12 | 233 | 75171 | 387.29 | 781 | 755 | 192.1 |
| D | 2 | 14 | 49966 | 256.12 | 781 | 755 | 192.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

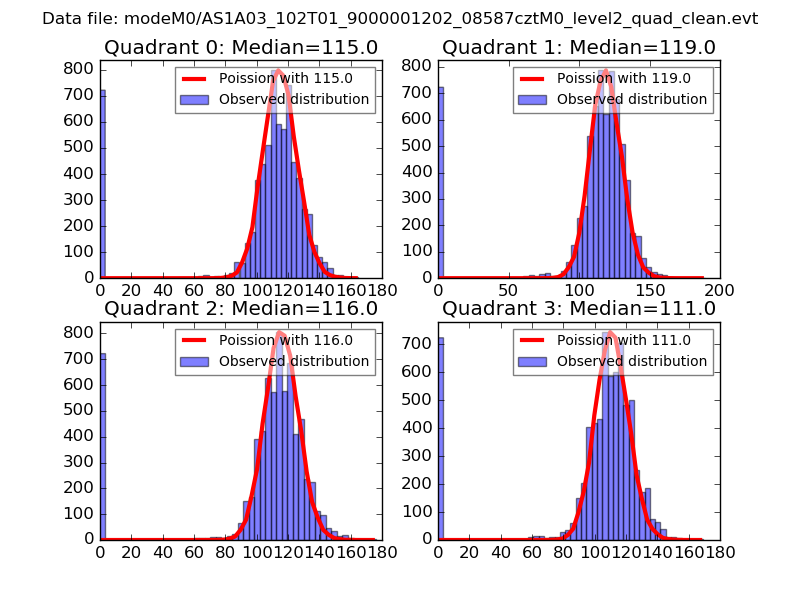

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

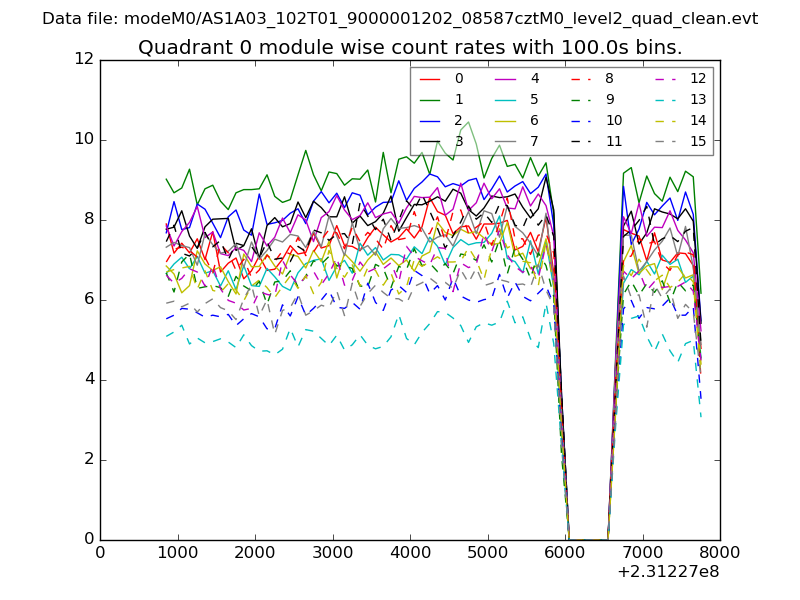

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

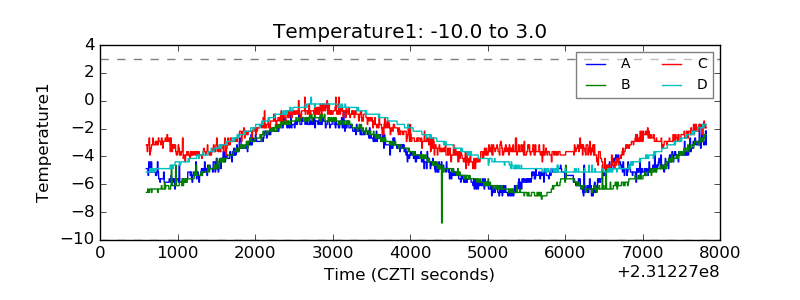

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

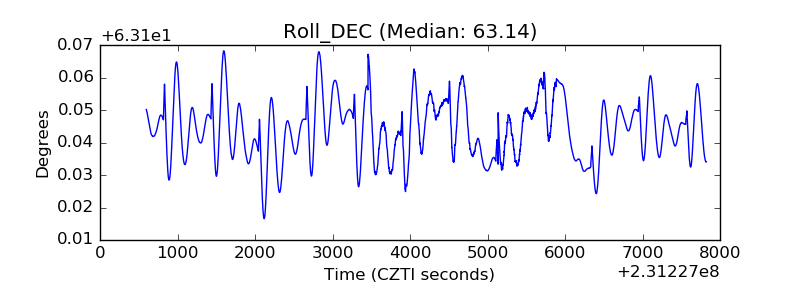

| _Roll_DEC |  |

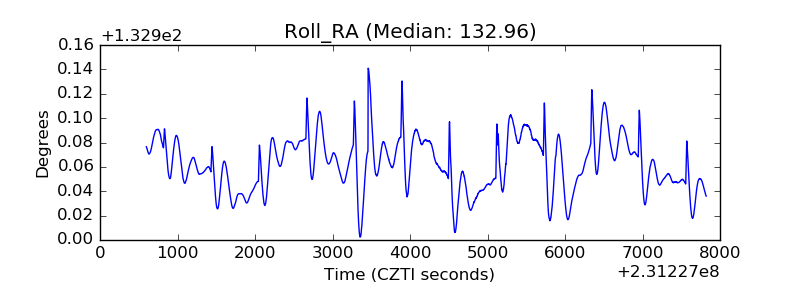

| _Roll_RA |  |

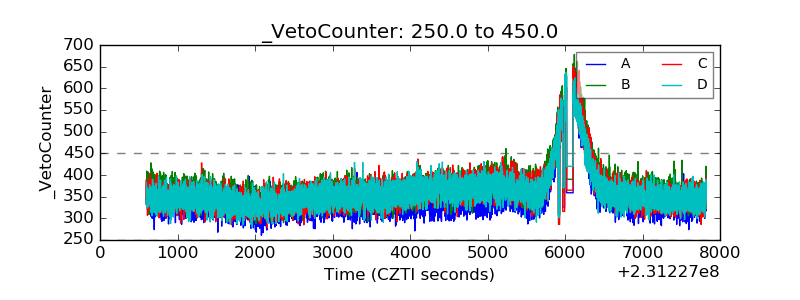

| Veto Counter |  |
