| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A03_102T01_9000001202_08603cztM0_level2.evt | modeM0/AS1A03_102T01_9000001202_08603cztM0_level2_quad_clean.evt |
| Size (bytes) | 374,777,280 | 94,417,920 |
| Size | 357.4 MB | 90.0 MB |
| Events in quadrant A | 2,657,479 | 614,074 |
| Events in quadrant B | 2,968,456 | 630,426 |
| Events in quadrant C | 2,525,668 | 620,295 |
| Events in quadrant D | 2,800,608 | 586,832 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 2 | 0 |
| B | 0 | 2 | 0 |
| C | 0 | 2 | 0 |
| D | 0 | 2 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 140 | 26 |
| B | 0 | 140 | 16 |
| C | 0 | 142 | 18 |
| D | 0 | 143 | 27 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14615 | 2474 |
| B | 0 | 15022 | 2325 |
| C | 0 | 14063 | 2142 |
| D | 0 | 15450 | 2793 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5825 | 169 | 2.901288% |
| B | 5799 | 151 | 2.603897% |
| C | 5841 | 82 | 1.403869% |
| D | 5822 | 162 | 2.782549% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|

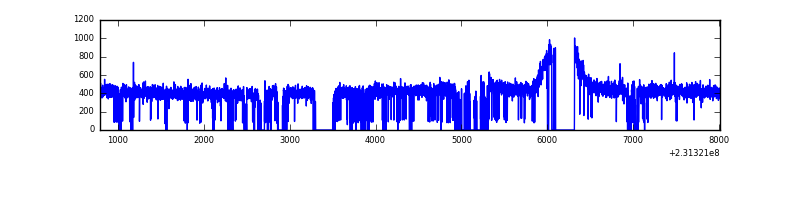

| A | 7221 | 6203 | 18 | 18 | 0.25% | 0.29% |  |

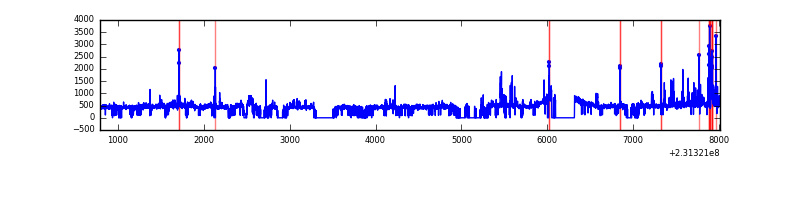

| B | 7221 | 6171 | 21 | 21 | 0.29% | 0.34% |  |
| C | 7221 | 6203 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7221 | 6210 | 37 | 37 | 0.51% | 0.60% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 248 | 47341 | 344.31 | 662 | 646 | 135.6 |
| A | 5 | 16 | 31558 | 227.94 | 662 | 646 | 135.6 |
| A | 15 | 174 | 12663 | 88.61 | 662 | 646 | 135.6 |
| B | 10 | 16 | 164091 | 1274.31 | 665 | 648 | 128.3 |
| B | 0 | 214 | 90516 | 700.67 | 665 | 648 | 128.3 |
| B | 11 | 51 | 37099 | 284.2 | 665 | 648 | 128.3 |
| C | 14 | 67 | 6073 | 36.37 | 643 | 643 | 149.3 |
| C | 13 | 61 | 5044 | 29.47 | 643 | 643 | 149.3 |
| C | 12 | 16 | 4020 | 22.62 | 643 | 643 | 149.3 |
| D | 12 | 233 | 143563 | 901.36 | 642 | 620 | 158.6 |
| D | 1 | 7 | 77214 | 482.98 | 642 | 620 | 158.6 |
| D | 12 | 221 | 48249 | 300.34 | 642 | 620 | 158.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

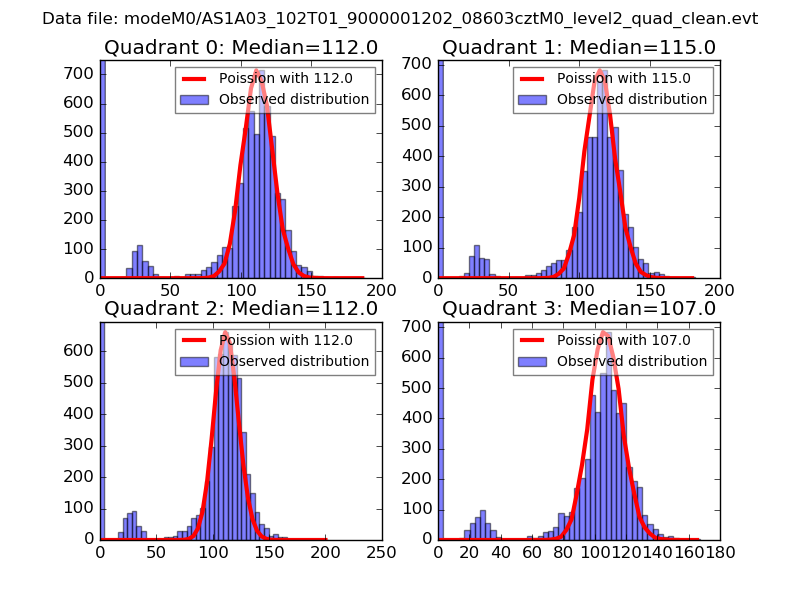

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

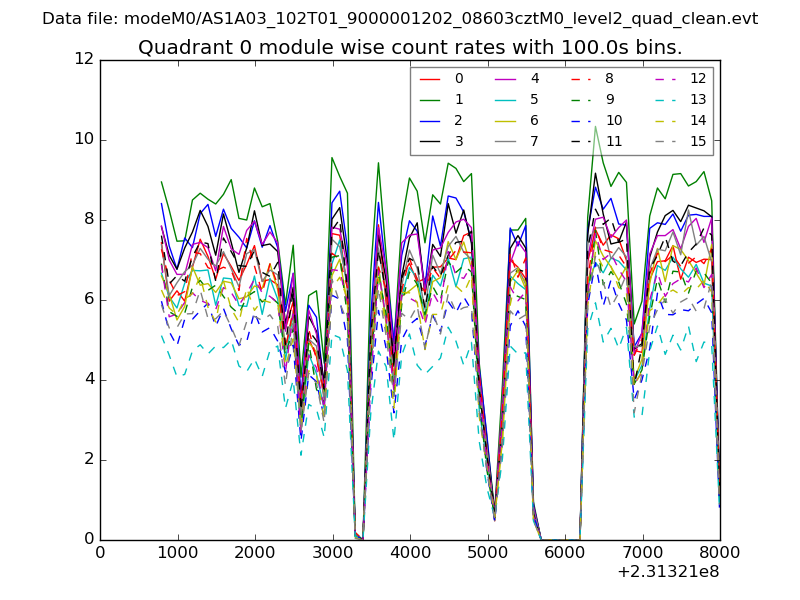

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

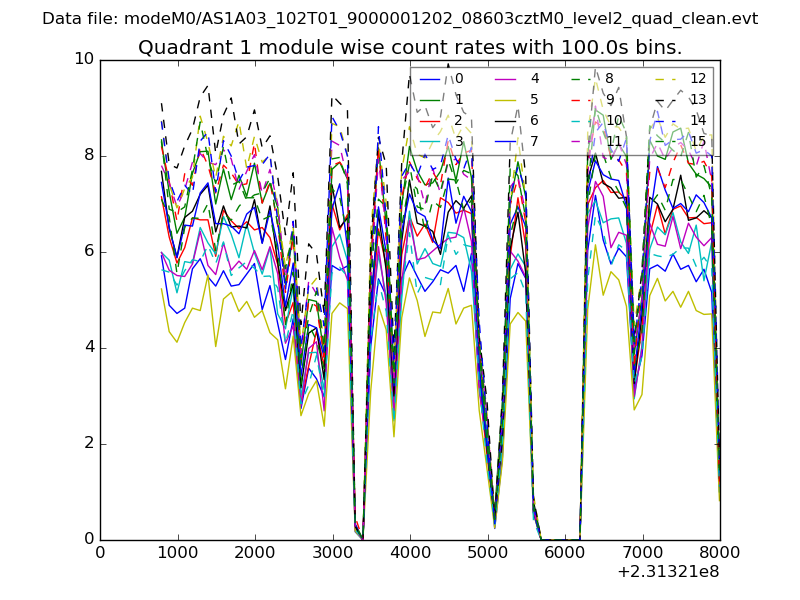

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

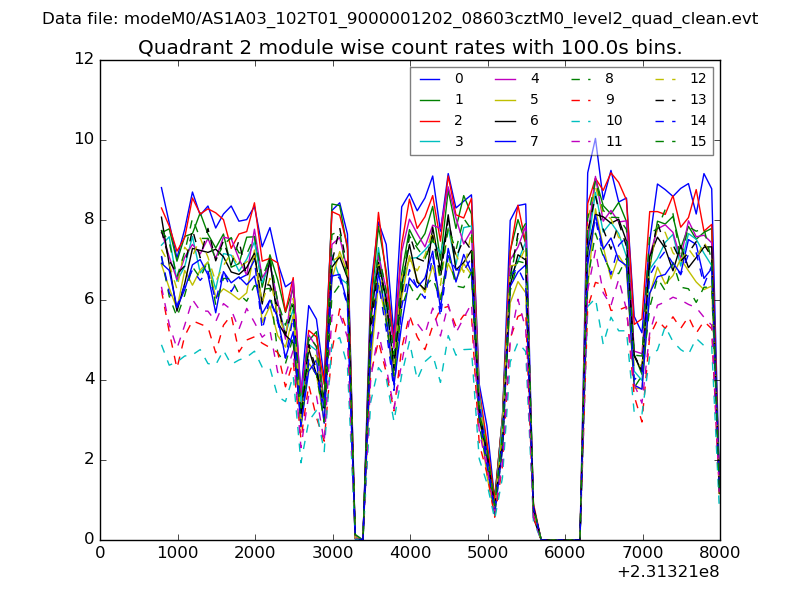

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

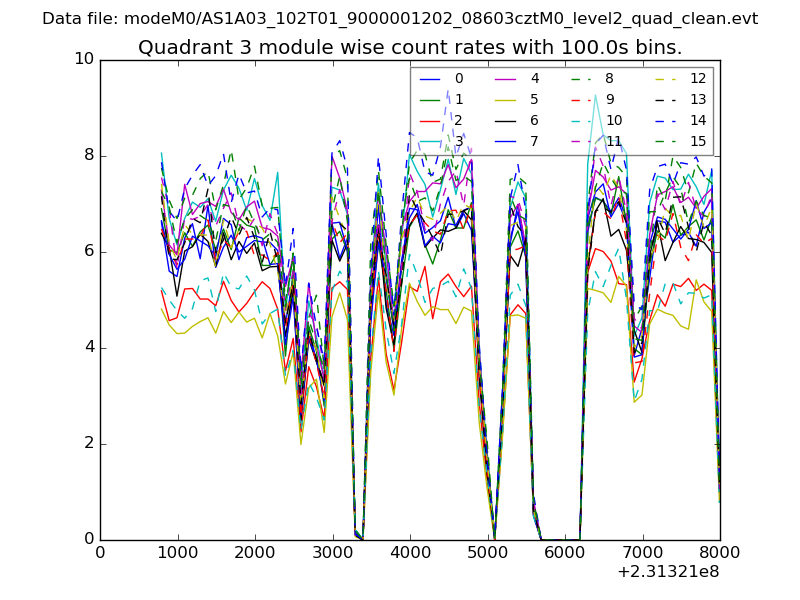

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

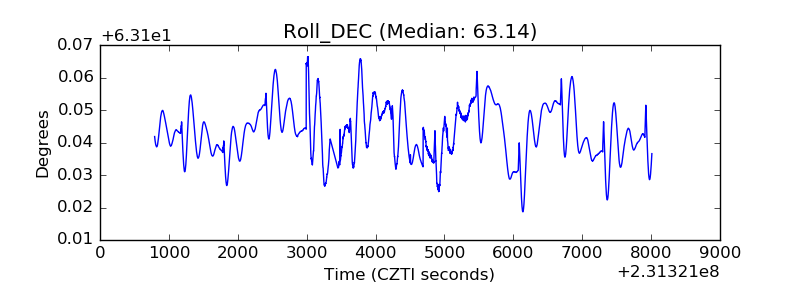

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
