| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A03_036T01_9000001204_08611cztM0_level2.evt | modeM0/AS1A03_036T01_9000001204_08611cztM0_level2_quad_clean.evt |
| Size (bytes) | 441,855,360 | 93,254,400 |
| Size | 421.4 MB | 88.9 MB |
| Events in quadrant A | 3,036,609 | 601,391 |
| Events in quadrant B | 3,349,063 | 621,133 |
| Events in quadrant C | 2,809,814 | 611,063 |
| Events in quadrant D | 3,769,497 | 562,642 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13150 | 3 |
| B | 0 | 14060 | 2 |
| C | 0 | 12552 | 2 |
| D | 0 | 15333 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 18 | 0 |
| B | 0 | 18 | 0 |
| C | 0 | 18 | 0 |
| D | 0 | 19 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 124 | 0 |
| B | 0 | 124 | 0 |
| C | 0 | 124 | 0 |
| D | 0 | 124 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6131 | 38 | 0.619801% |
| B | 6131 | 90 | 1.467950% |
| C | 6131 | 21 | 0.342522% |
| D | 6131 | 314 | 5.121514% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

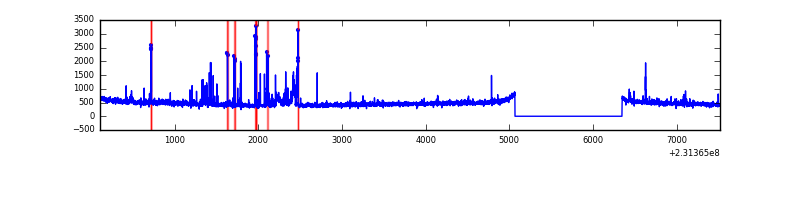

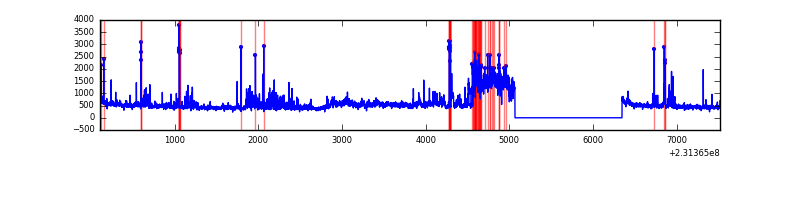

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7411 | 6132 | 22 | 22 | 0.30% | 0.36% |  |
| B | 7411 | 6131 | 25 | 25 | 0.34% | 0.41% |  |
| C | 7411 | 6132 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7411 | 6131 | 66 | 66 | 0.89% | 1.08% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 63 | 166371 | 1136.57 | 721 | 707 | 145.8 |
| A | 15 | 174 | 46046 | 311.06 | 721 | 707 | 145.8 |
| A | 5 | 16 | 28163 | 188.37 | 721 | 707 | 145.8 |
| B | 0 | 214 | 114917 | 833.63 | 737 | 721 | 137.0 |
| B | 10 | 16 | 86386 | 625.35 | 737 | 721 | 137.0 |
| B | 10 | 246 | 83833 | 606.72 | 737 | 721 | 137.0 |
| C | 13 | 61 | 5427 | 28.36 | 719 | 723 | 165.9 |
| C | 8 | 222 | 3390 | 16.08 | 719 | 723 | 165.9 |
| C | 14 | 67 | 2146 | 8.58 | 719 | 723 | 165.9 |
| D | 13 | 137 | 681426 | 4044.66 | 696 | 676 | 168.3 |
| D | 2 | 136 | 203365 | 1204.27 | 696 | 676 | 168.3 |
| D | 12 | 233 | 90999 | 536.65 | 696 | 676 | 168.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

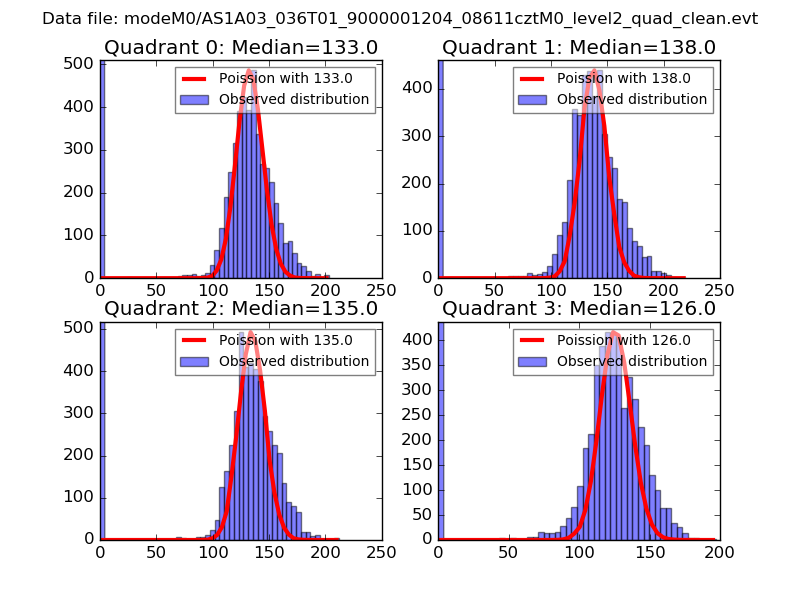

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

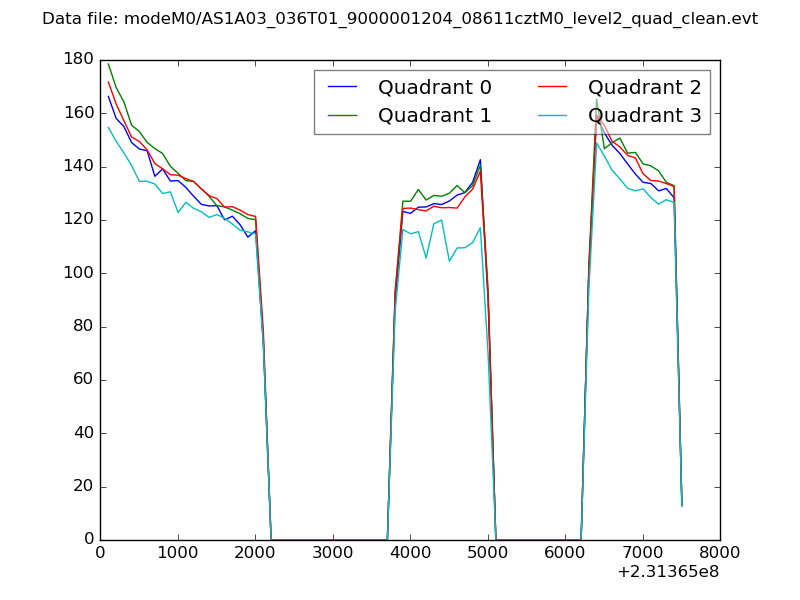

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

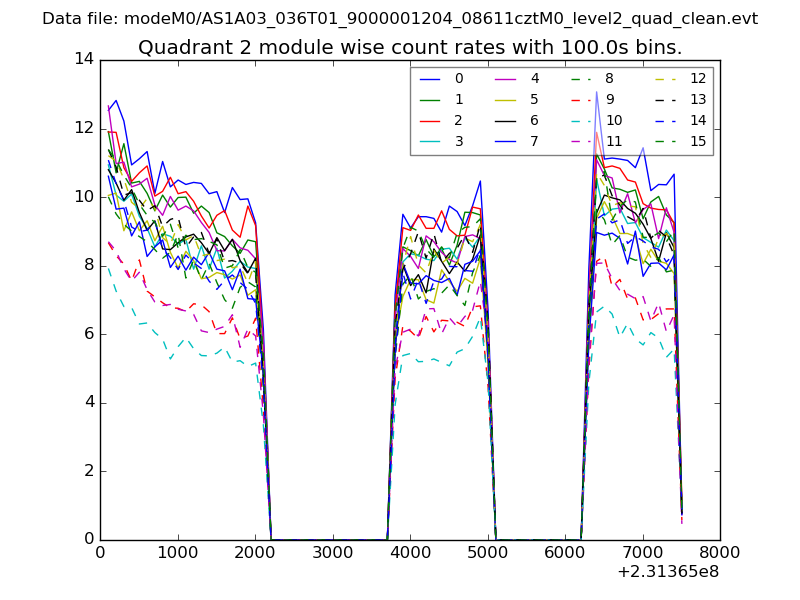

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

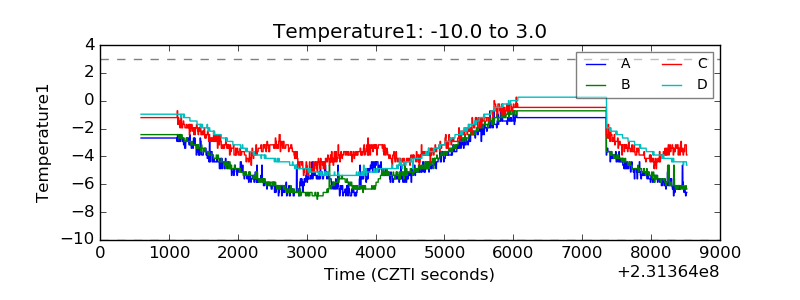

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

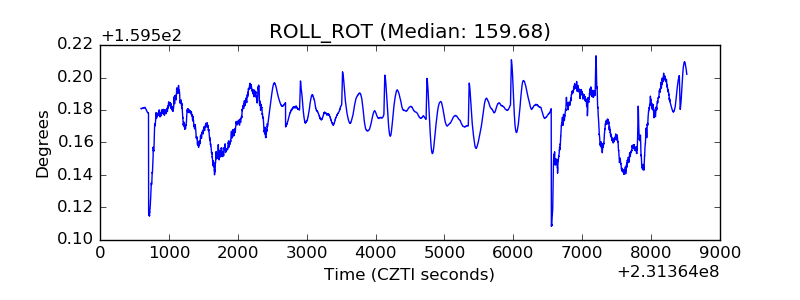

| _ROLL_ROT |  |
| _Roll_DEC |  |

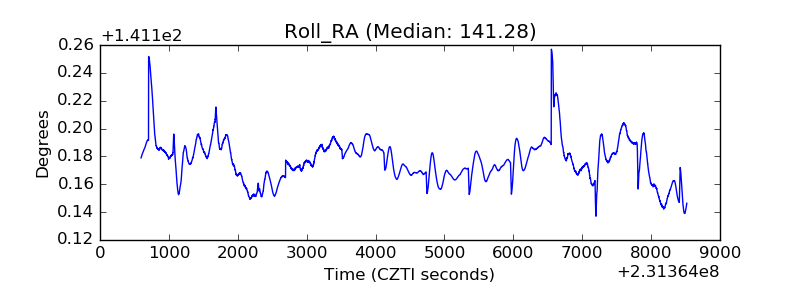

| _Roll_RA |  |
| Veto Counter |  |
