| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G07_024T01_9000001206_08623cztM0_level2.evt | modeM0/AS1G07_024T01_9000001206_08623cztM0_level2_quad_clean.evt |
| Size (bytes) | 410,454,720 | 117,573,120 |
| Size | 391.4 MB | 112.1 MB |
| Events in quadrant A | 2,848,484 | 780,654 |
| Events in quadrant B | 3,358,621 | 791,923 |
| Events in quadrant C | 2,817,924 | 788,670 |
| Events in quadrant D | 2,972,770 | 755,957 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13018 | 2 |
| B | 0 | 14143 | 1 |
| C | 0 | 12924 | 1 |
| D | 0 | 13558 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6364 | 24 | 0.377121% |
| B | 6364 | 140 | 2.199874% |
| C | 6364 | 20 | 0.314268% |
| D | 6364 | 47 | 0.738529% |

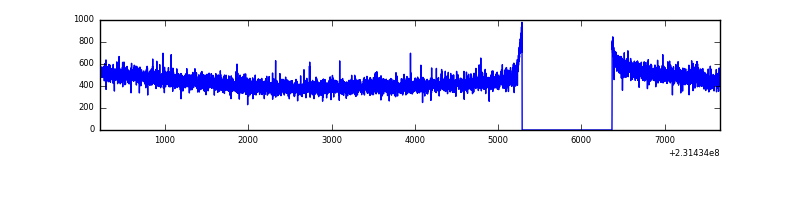

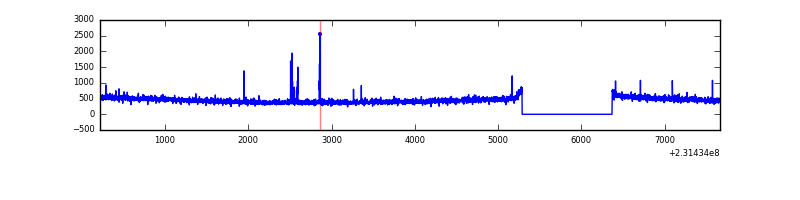

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

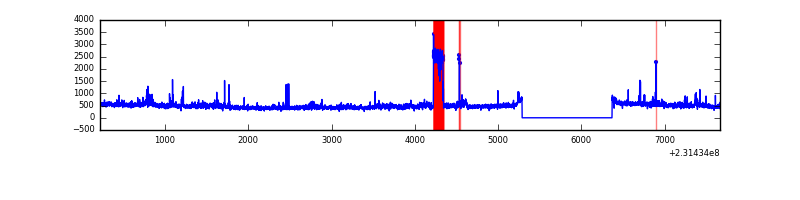

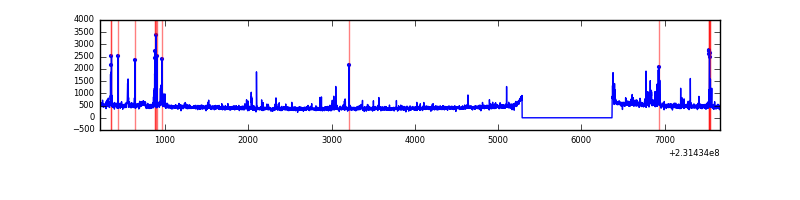

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7444 | 6365 | 1 | 1 | 0.01% | 0.02% |  |
| B | 7444 | 6365 | 113 | 113 | 1.52% | 1.78% |  |
| C | 7444 | 6365 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7444 | 6365 | 16 | 16 | 0.21% | 0.25% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 174 | 21507 | 139.77 | 729 | 713 | 148.8 |
| A | 5 | 16 | 17239 | 111.08 | 729 | 713 | 148.8 |
| A | 0 | 226 | 6954 | 41.95 | 729 | 713 | 148.8 |
| B | 10 | 252 | 287097 | 2096.15 | 730 | 713 | 136.6 |
| B | 0 | 219 | 105210 | 764.85 | 730 | 713 | 136.6 |
| B | 0 | 187 | 23326 | 165.51 | 730 | 713 | 136.6 |
| C | 14 | 67 | 6992 | 37.87 | 719 | 719 | 165.7 |
| C | 13 | 61 | 5543 | 29.12 | 719 | 719 | 165.7 |
| C | 8 | 222 | 3586 | 17.31 | 719 | 719 | 165.7 |
| D | 7 | 71 | 55812 | 315.14 | 717 | 695 | 174.9 |
| D | 13 | 122 | 33389 | 186.93 | 717 | 695 | 174.9 |
| D | 9 | 64 | 29512 | 164.76 | 717 | 695 | 174.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

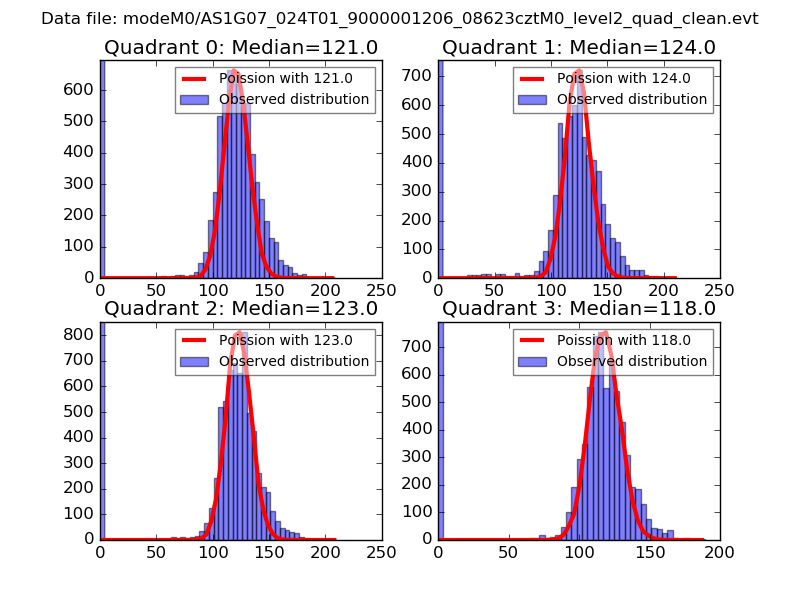

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

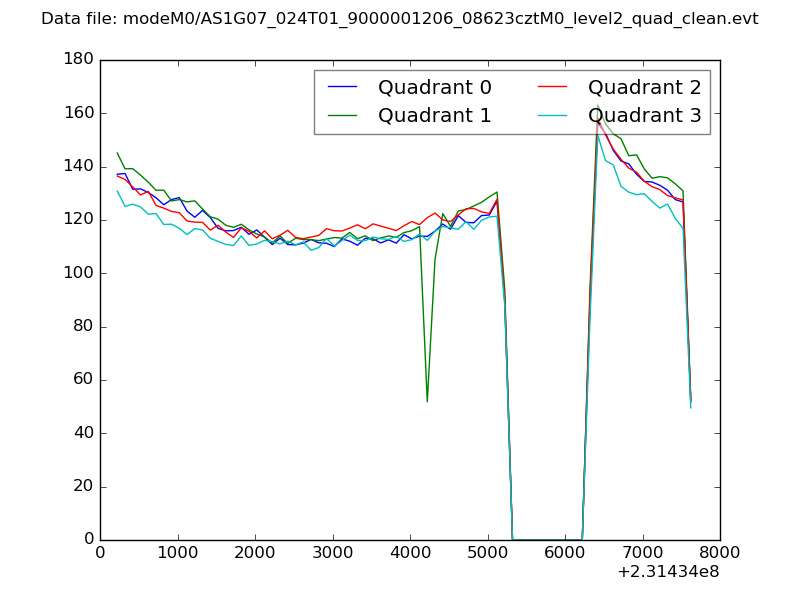

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

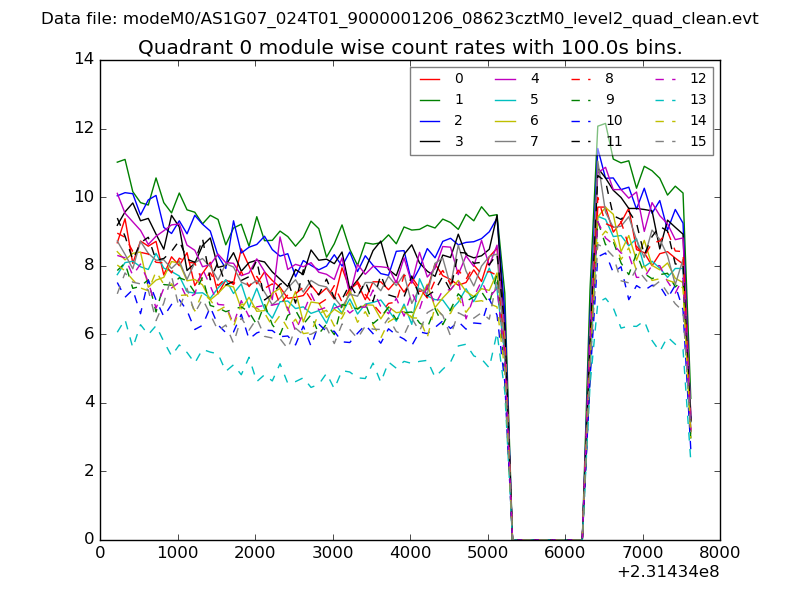

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

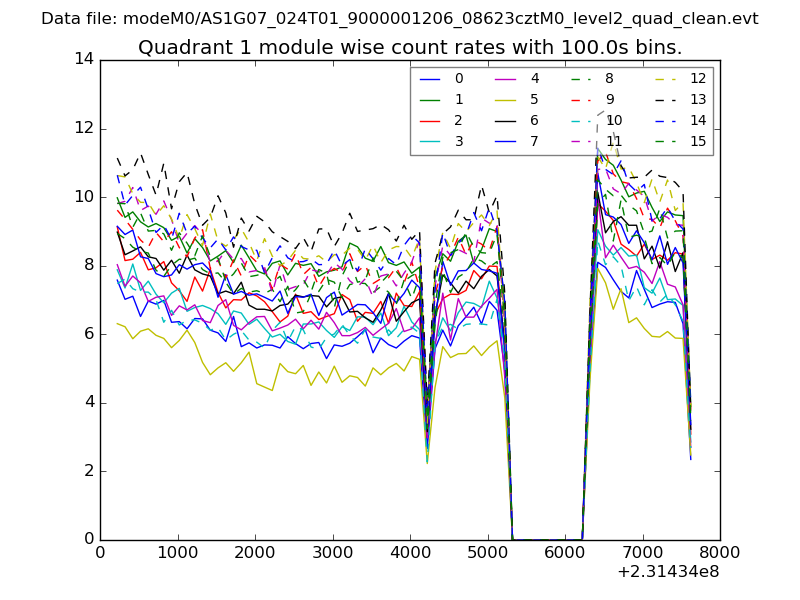

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

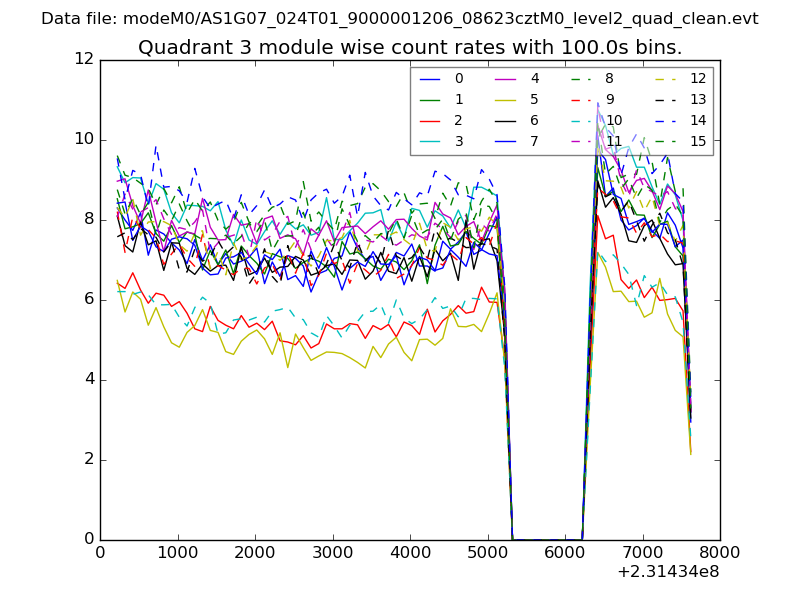

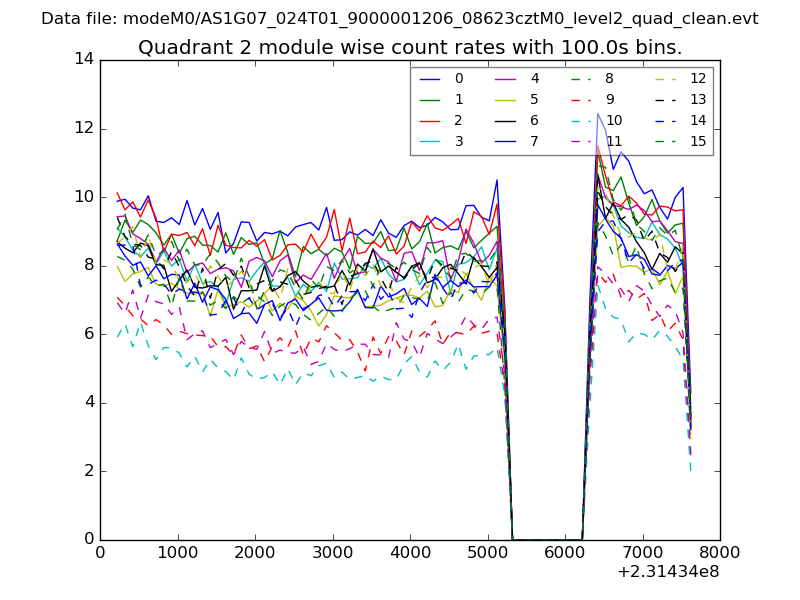

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |

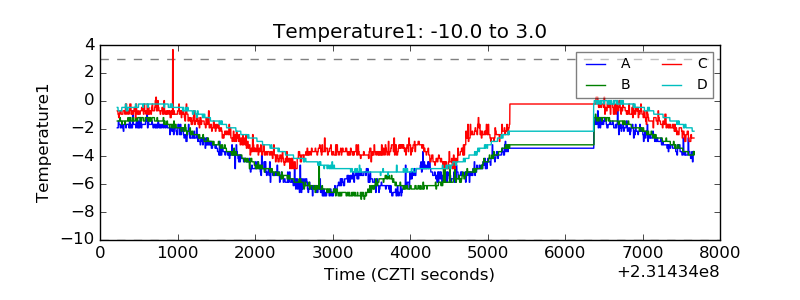

| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

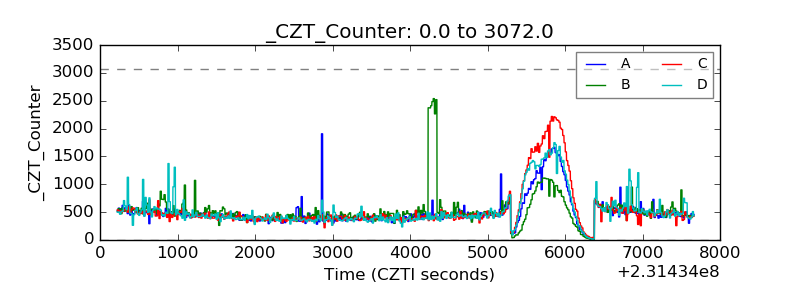

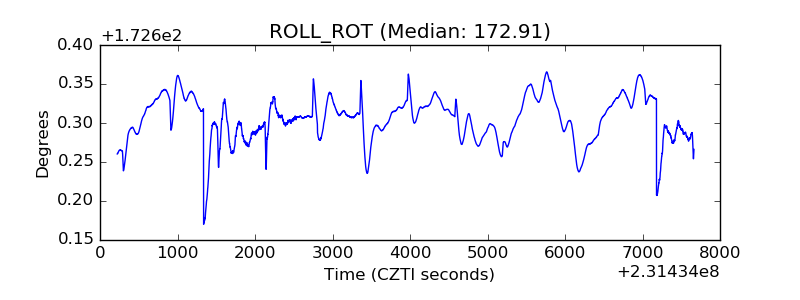

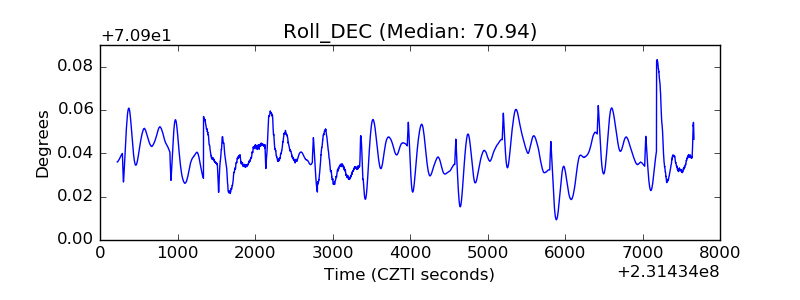

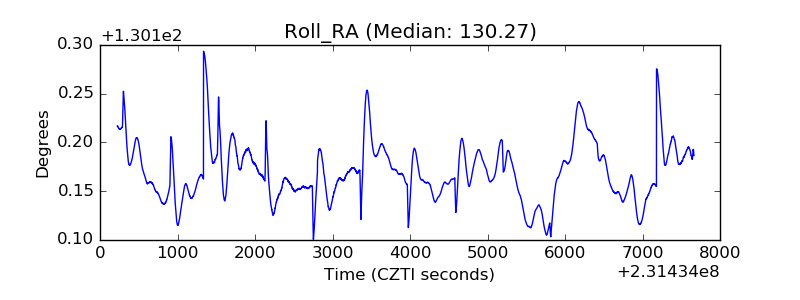

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

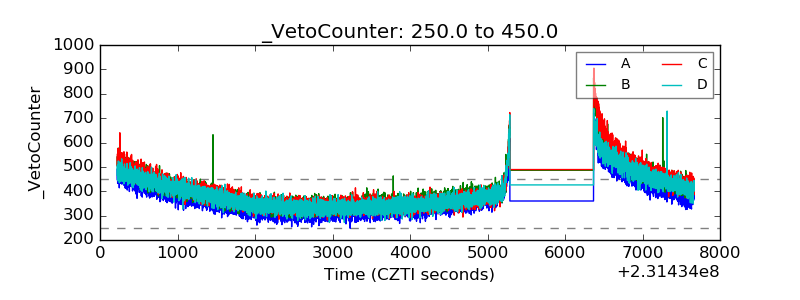

| Veto Counter |  |
