| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G07_024T01_9000001206_08624cztM0_level2.evt | modeM0/AS1G07_024T01_9000001206_08624cztM0_level2_quad_clean.evt |
| Size (bytes) | 407,013,120 | 120,571,200 |
| Size | 388.2 MB | 115.0 MB |
| Events in quadrant A | 2,822,304 | 796,860 |
| Events in quadrant B | 3,121,868 | 826,620 |
| Events in quadrant C | 2,855,623 | 816,869 |
| Events in quadrant D | 3,100,425 | 774,405 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12848 | 3 |
| B | 0 | 13472 | 2 |
| C | 0 | 12880 | 2 |
| D | 0 | 13693 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6261 | 15 | 0.239578% |
| B | 6261 | 22 | 0.351382% |
| C | 6261 | 6 | 0.095831% |
| D | 6262 | 50 | 0.798467% |

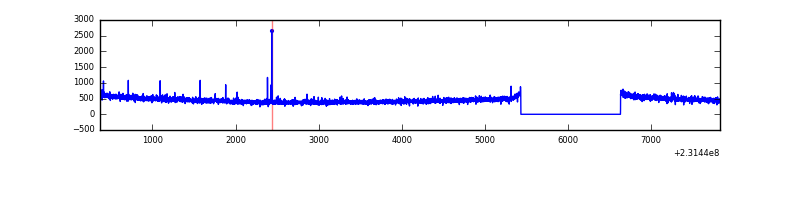

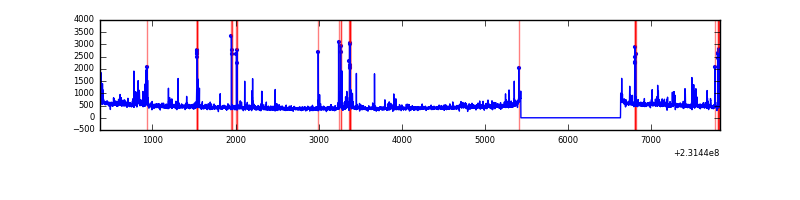

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7461 | 6262 | 1 | 1 | 0.01% | 0.02% |  |
| B | 7461 | 6262 | 6 | 6 | 0.08% | 0.10% |  |
| C | 7461 | 6262 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7462 | 6263 | 34 | 34 | 0.46% | 0.54% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 5 | 16 | 11494 | 73.03 | 727 | 712 | 147.6 |
| A | 0 | 226 | 7080 | 43.13 | 727 | 712 | 147.6 |
| A | 12 | 194 | 6513 | 39.29 | 727 | 712 | 147.6 |
| B | 0 | 214 | 53540 | 384.24 | 743 | 726 | 137.5 |
| B | 0 | 230 | 51536 | 369.66 | 743 | 726 | 137.5 |
| B | 0 | 168 | 27635 | 195.77 | 743 | 726 | 137.5 |
| C | 14 | 64 | 13363 | 75.37 | 726 | 729 | 167.6 |
| C | 13 | 61 | 5517 | 28.56 | 726 | 729 | 167.6 |
| C | 14 | 67 | 5082 | 25.96 | 726 | 729 | 167.6 |
| D | 12 | 233 | 85351 | 485.88 | 718 | 697 | 174.2 |
| D | 10 | 253 | 75454 | 429.07 | 718 | 697 | 174.2 |
| D | 7 | 71 | 56477 | 320.15 | 718 | 697 | 174.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

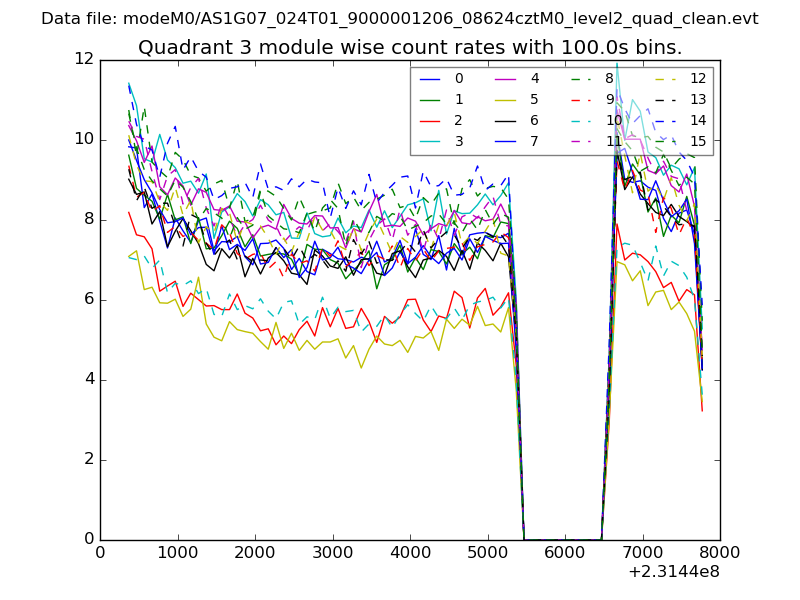

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

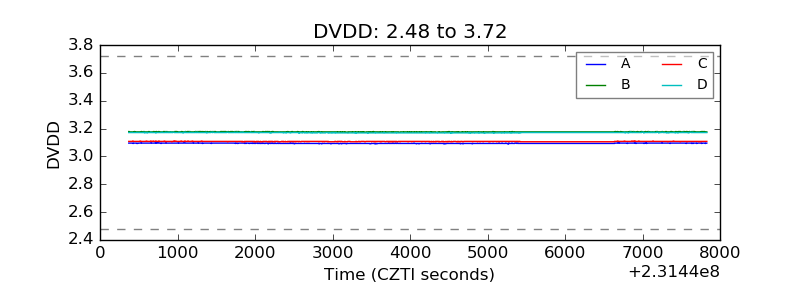

| D_VDD |  |

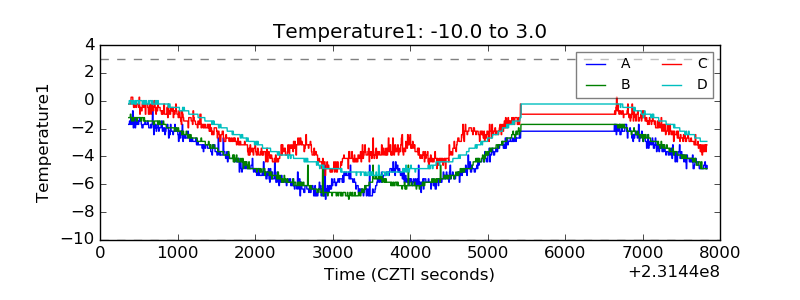

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

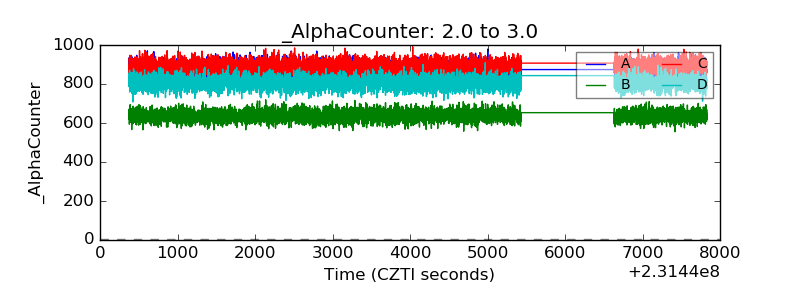

| Alpha Counter |  |

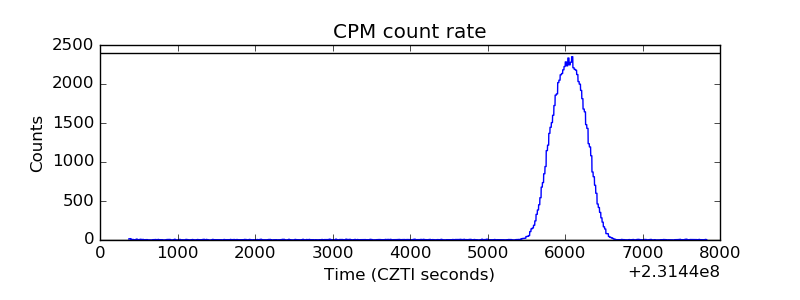

| _CPM_Rate |  |

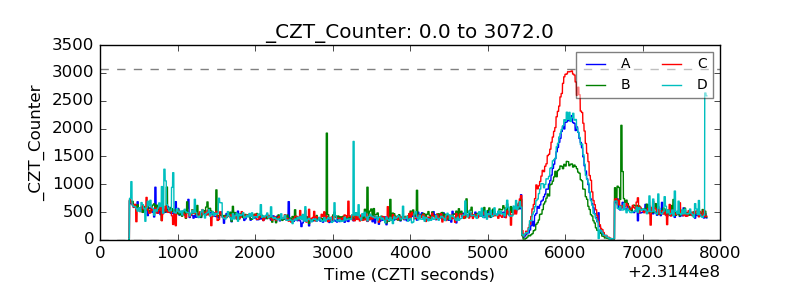

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
