| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G07_024T01_9000001206_08628cztM0_level2.evt | modeM0/AS1G07_024T01_9000001206_08628cztM0_level2_quad_clean.evt |
| Size (bytes) | 416,062,080 | 122,938,560 |
| Size | 396.8 MB | 117.2 MB |
| Events in quadrant A | 2,888,312 | 807,980 |
| Events in quadrant B | 3,217,225 | 838,158 |
| Events in quadrant C | 2,906,871 | 826,355 |
| Events in quadrant D | 3,131,590 | 783,599 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13623 | 3 |
| B | 0 | 14176 | 2 |
| C | 0 | 13667 | 2 |
| D | 0 | 14562 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16 | 0 |
| B | 0 | 16 | 0 |
| C | 0 | 16 | 0 |
| D | 0 | 17 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 136 | 0 |
| B | 0 | 136 | 0 |
| C | 0 | 136 | 0 |
| D | 0 | 136 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6708 | 20 | 0.298151% |
| B | 6708 | 34 | 0.506857% |
| C | 6708 | 11 | 0.163983% |
| D | 6708 | 50 | 0.745379% |

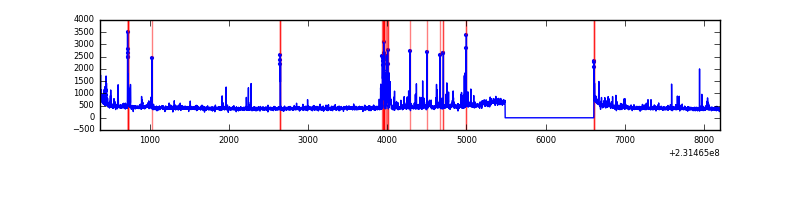

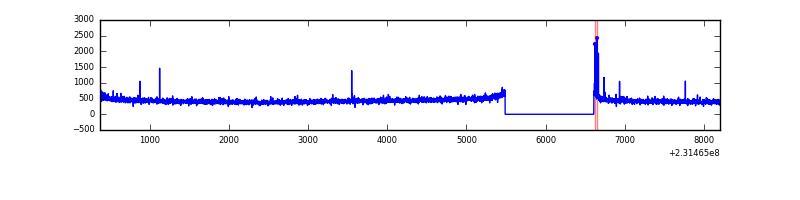

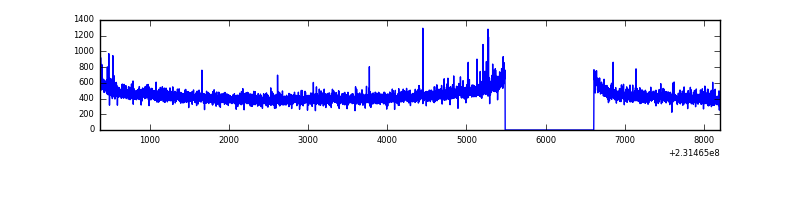

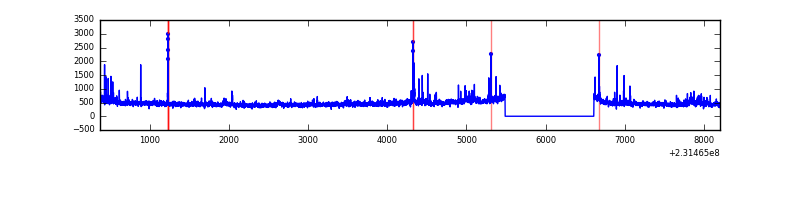

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7828 | 6709 | 2 | 2 | 0.03% | 0.03% |  |
| B | 7828 | 6709 | 8 | 8 | 0.10% | 0.12% |  |
| C | 7828 | 6709 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7828 | 6709 | 32 | 32 | 0.41% | 0.48% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 5 | 16 | 11250 | 69.36 | 745 | 727 | 151.7 |
| A | 15 | 174 | 7789 | 46.55 | 745 | 727 | 151.7 |
| A | 0 | 226 | 6939 | 40.94 | 745 | 727 | 151.7 |
| B | 0 | 214 | 66251 | 460.43 | 761 | 742 | 142.3 |
| B | 10 | 246 | 64428 | 447.61 | 761 | 742 | 142.3 |
| B | 0 | 219 | 59119 | 410.3 | 761 | 742 | 142.3 |
| C | 8 | 208 | 22645 | 129.86 | 735 | 738 | 168.7 |
| C | 14 | 64 | 6949 | 36.82 | 735 | 738 | 168.7 |
| C | 14 | 67 | 6493 | 34.11 | 735 | 738 | 168.7 |
| D | 10 | 253 | 147201 | 827.88 | 722 | 698 | 177.0 |
| D | 12 | 221 | 66763 | 373.33 | 722 | 698 | 177.0 |
| D | 7 | 71 | 51972 | 289.75 | 722 | 698 | 177.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

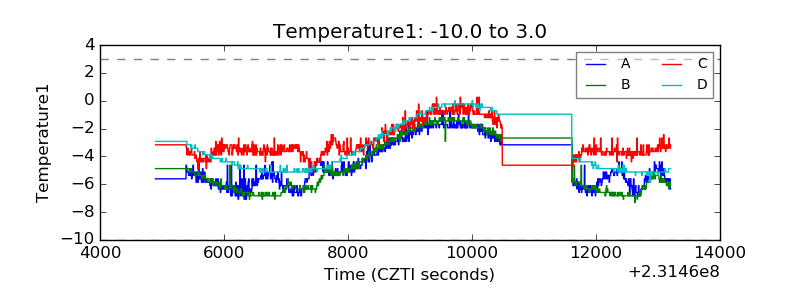

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |

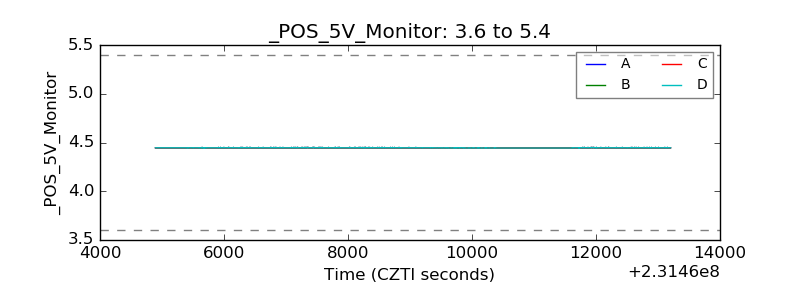

| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

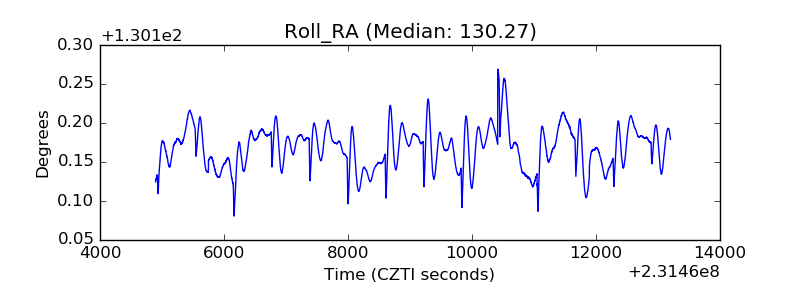

| _Roll_RA |  |
| Veto Counter |  |
