| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G07_024T01_9000001206_08650cztM0_level2.evt | modeM0/AS1G07_024T01_9000001206_08650cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,319,437,440 | 335,874,240 |
| Size | 1.2 GB | 320.3 MB |
| Events in quadrant A | 8,845,156 | 2,229,394 |
| Events in quadrant B | 9,682,048 | 2,281,105 |
| Events in quadrant C | 10,327,906 | 2,214,028 |
| Events in quadrant D | 9,817,207 | 2,137,765 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 39473 | 5 |
| B | 0 | 40998 | 4 |
| C | 0 | 43855 | 4 |
| D | 0 | 42757 | 4 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 29 | 0 |
| B | 0 | 29 | 0 |
| C | 0 | 29 | 0 |
| D | 0 | 29 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 386 | 0 |
| B | 0 | 386 | 0 |
| C | 0 | 386 | 0 |
| D | 0 | 386 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 19045 | 299 | 1.569966% |
| B | 19045 | 309 | 1.622473% |
| C | 19045 | 498 | 2.614860% |
| D | 19045 | 345 | 1.811499% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|

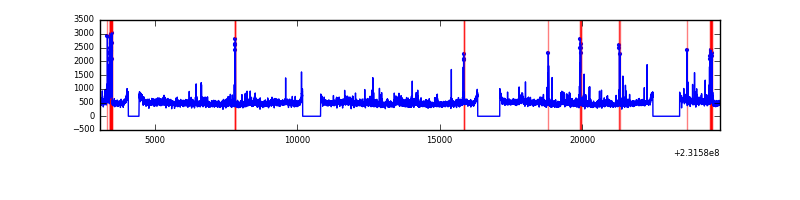

| A | 21765 | 19045 | 11 | 11 | 0.05% | 0.06% |  |

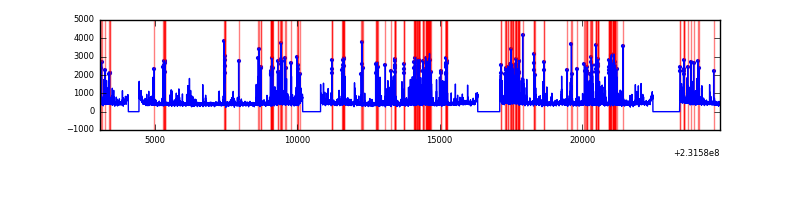

| B | 21765 | 19045 | 51 | 51 | 0.23% | 0.27% |  |

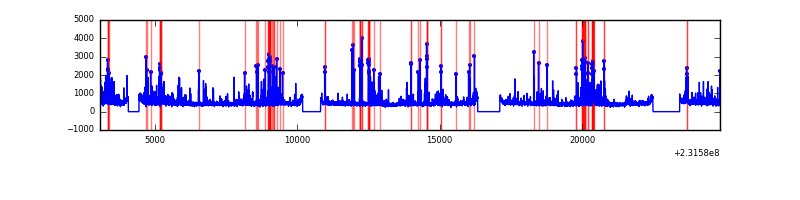

| C | 21765 | 19045 | 268 | 268 | 1.23% | 1.41% |  |
| D | 21765 | 19046 | 117 | 117 | 0.54% | 0.61% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 5 | 411066 | 927.59 | 2171 | 2118 | 440.9 |
| A | 15 | 174 | 43124 | 93.01 | 2171 | 2118 | 440.9 |
| A | 0 | 226 | 20414 | 41.5 | 2171 | 2118 | 440.9 |
| B | 0 | 219 | 520626 | 1243.2 | 2194 | 2139 | 417.1 |
| B | 4 | 48 | 174635 | 413.6 | 2194 | 2139 | 417.1 |
| B | 0 | 231 | 148591 | 351.15 | 2194 | 2139 | 417.1 |
| C | 4 | 254 | 1916682 | 3953.93 | 2105 | 2107 | 484.2 |
| C | 14 | 67 | 143280 | 291.55 | 2105 | 2107 | 484.2 |
| C | 4 | 238 | 16098 | 28.89 | 2105 | 2107 | 484.2 |
| D | 1 | 52 | 748031 | 1458.2 | 2112 | 2041 | 511.6 |
| D | 12 | 233 | 415123 | 807.46 | 2112 | 2041 | 511.6 |
| D | 10 | 253 | 156290 | 301.51 | 2112 | 2041 | 511.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

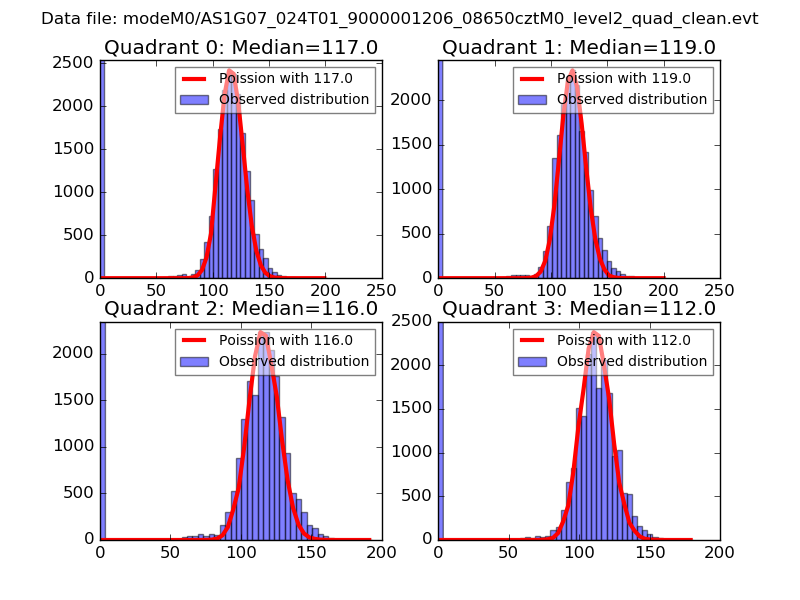

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

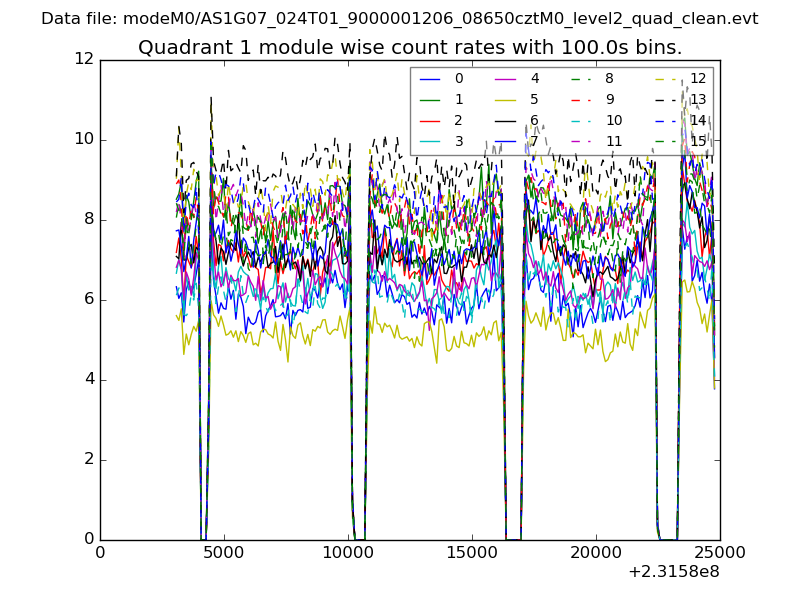

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

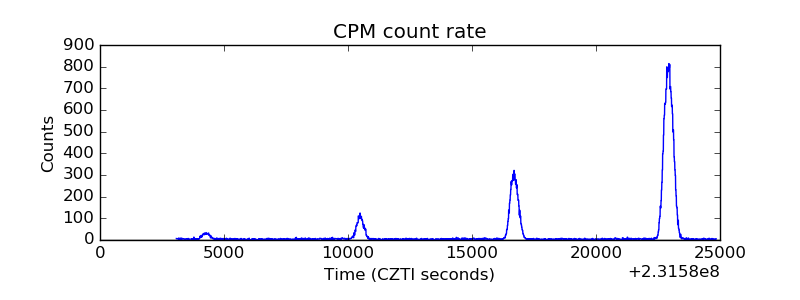

| _CPM_Rate |  |

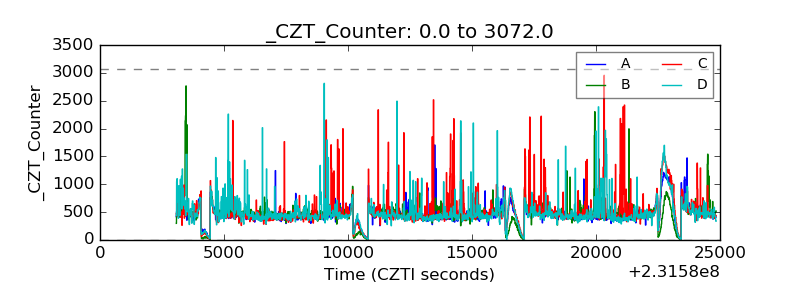

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

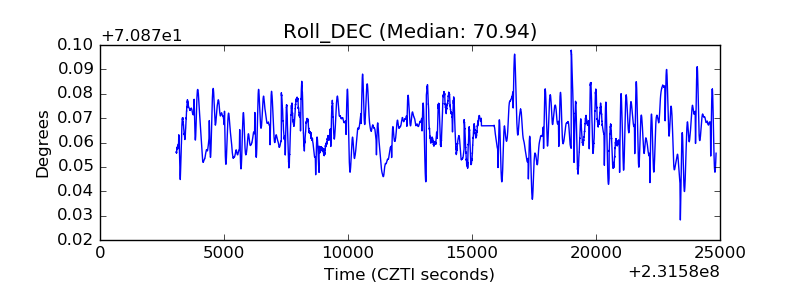

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
