| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G07_024T01_9000001206_08652cztM0_level2.evt | modeM0/AS1G07_024T01_9000001206_08652cztM0_level2_quad_clean.evt |
| Size (bytes) | 420,215,040 | 114,094,080 |
| Size | 400.7 MB | 108.8 MB |
| Events in quadrant A | 2,822,946 | 760,164 |
| Events in quadrant B | 3,028,344 | 776,072 |
| Events in quadrant C | 3,475,171 | 755,087 |
| Events in quadrant D | 2,979,438 | 732,818 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12771 | 12 |
| B | 0 | 13245 | 21 |
| C | 0 | 14584 | 18 |
| D | 0 | 13326 | 23 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 0 |
| C | 0 | 126 | 0 |
| D | 0 | 126 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6181 | 28 | 0.453001% |
| B | 6177 | 38 | 0.615185% |
| C | 6180 | 182 | 2.944984% |
| D | 6174 | 63 | 1.020408% |

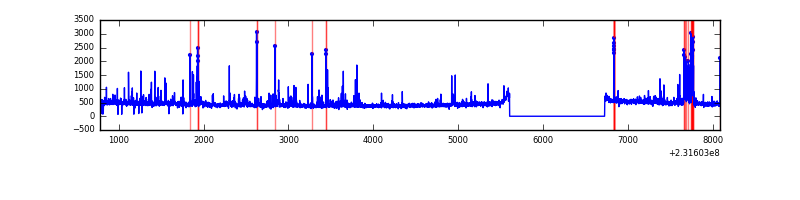

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7305 | 6185 | 1 | 1 | 0.01% | 0.02% |  |
| B | 7305 | 6185 | 11 | 11 | 0.15% | 0.18% |  |
| C | 7305 | 6185 | 149 | 149 | 2.04% | 2.41% |  |
| D | 7304 | 6184 | 32 | 32 | 0.44% | 0.52% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 5 | 53816 | 373.47 | 705 | 690 | 142.3 |
| A | 15 | 174 | 28761 | 197.34 | 705 | 690 | 142.3 |
| A | 15 | 236 | 21964 | 149.55 | 705 | 690 | 142.3 |
| B | 0 | 231 | 76453 | 562.89 | 713 | 696 | 134.6 |
| B | 0 | 168 | 59459 | 436.62 | 713 | 696 | 134.6 |
| B | 0 | 219 | 35242 | 256.68 | 713 | 696 | 134.6 |
| C | 4 | 254 | 746310 | 4739.89 | 689 | 692 | 157.3 |
| C | 14 | 67 | 10196 | 60.42 | 689 | 692 | 157.3 |
| C | 8 | 128 | 8286 | 48.27 | 689 | 692 | 157.3 |
| D | 12 | 233 | 147248 | 873.16 | 691 | 669 | 167.9 |
| D | 10 | 253 | 61234 | 360.78 | 691 | 669 | 167.9 |
| D | 7 | 71 | 46230 | 271.4 | 691 | 669 | 167.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

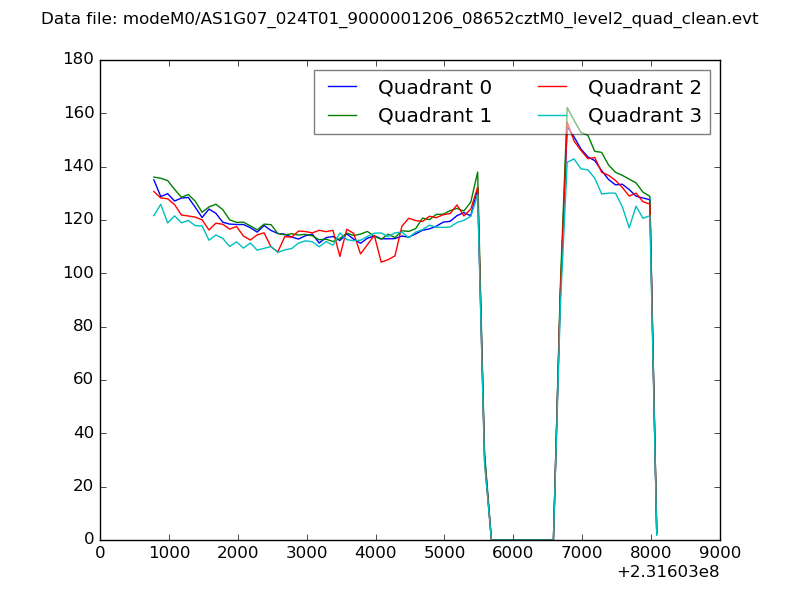

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

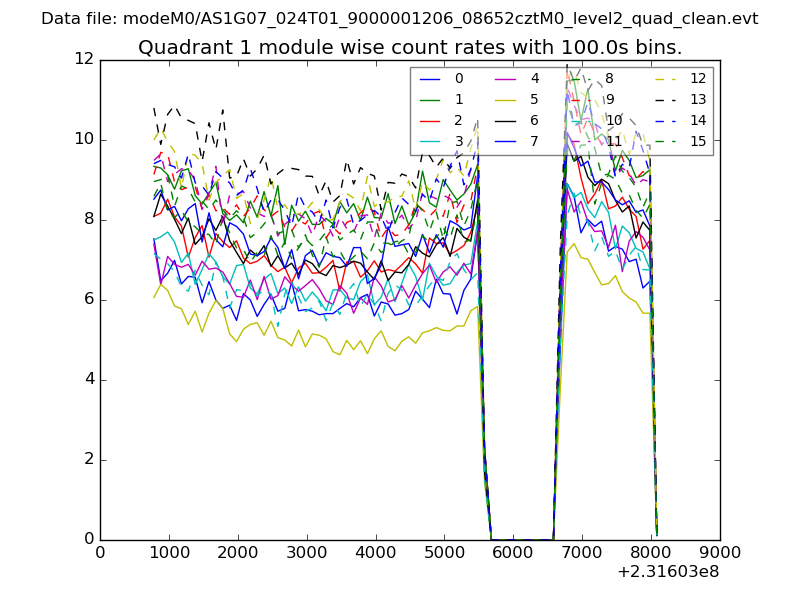

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

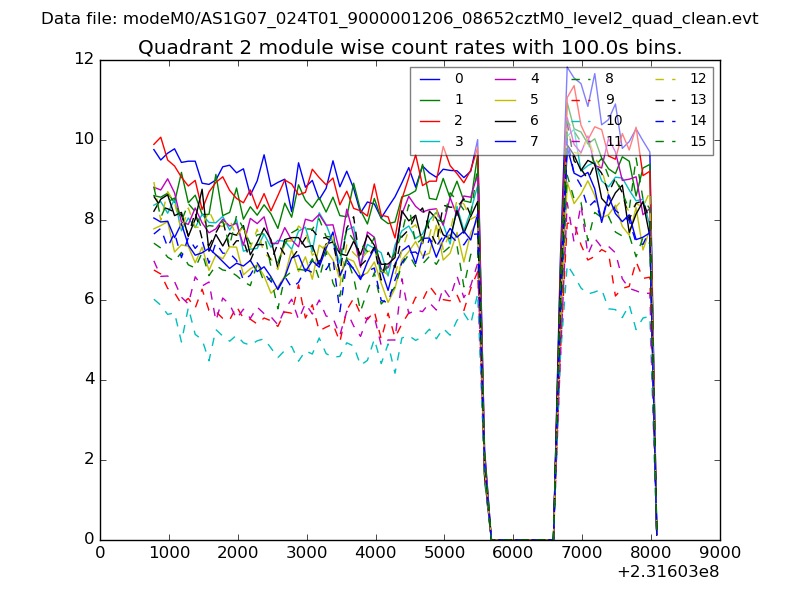

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

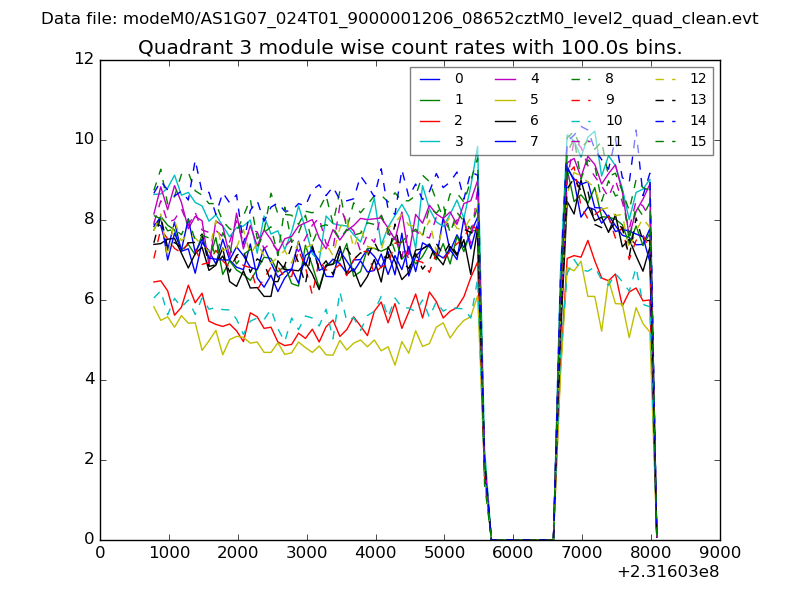

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

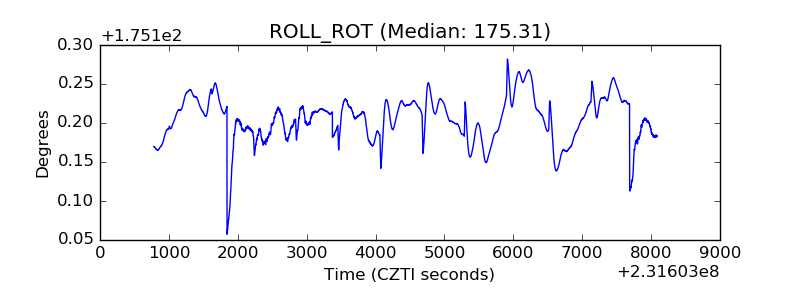

| _ROLL_ROT |  |

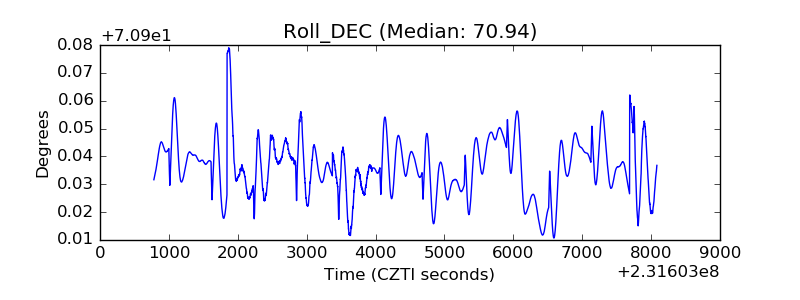

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
