| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G07_024T01_9000001206_08659cztM0_level2.evt | modeM0/AS1G07_024T01_9000001206_08659cztM0_level2_quad_clean.evt |
| Size (bytes) | 500,423,040 | 135,204,480 |
| Size | 477.2 MB | 128.9 MB |
| Events in quadrant A | 3,432,219 | 886,710 |
| Events in quadrant B | 3,966,583 | 910,979 |
| Events in quadrant C | 3,328,042 | 909,358 |
| Events in quadrant D | 3,907,779 | 855,074 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15790 | 4 |
| B | 0 | 17043 | 3 |
| C | 0 | 15687 | 3 |
| D | 0 | 17276 | 3 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 7 | 0 |
| B | 0 | 7 | 0 |
| C | 0 | 7 | 0 |
| D | 0 | 8 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 156 | 0 |
| B | 0 | 156 | 0 |
| C | 0 | 156 | 0 |
| D | 0 | 156 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7658 | 131 | 1.710629% |
| B | 7658 | 229 | 2.990337% |
| C | 7658 | 73 | 0.953252% |
| D | 7658 | 238 | 3.107861% |

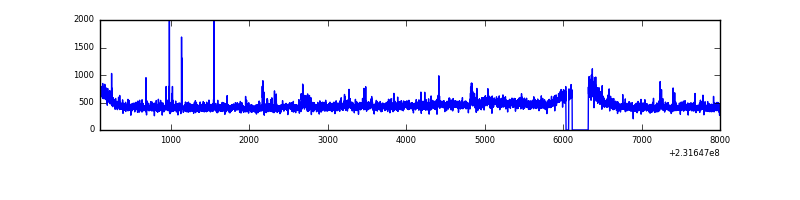

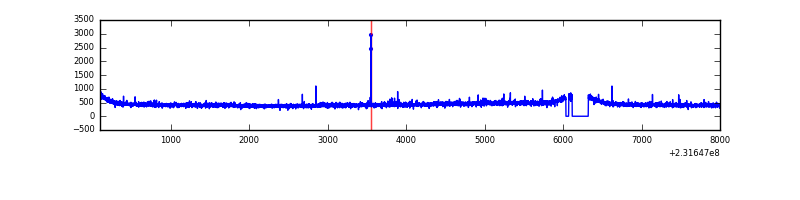

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7898 | 7659 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7898 | 7659 | 59 | 59 | 0.75% | 0.77% |  |
| C | 7898 | 7660 | 2 | 2 | 0.03% | 0.03% |  |
| D | 7898 | 7660 | 154 | 154 | 1.95% | 2.01% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 5 | 136117 | 774.77 | 852 | 829 | 174.6 |
| A | 13 | 251 | 9472 | 49.5 | 852 | 829 | 174.6 |
| A | 0 | 226 | 8053 | 41.37 | 852 | 829 | 174.6 |
| B | 10 | 16 | 273139 | 1661.29 | 867 | 844 | 163.9 |
| B | 4 | 48 | 173741 | 1054.85 | 867 | 844 | 163.9 |
| B | 0 | 219 | 39819 | 237.79 | 867 | 844 | 163.9 |
| C | 1 | 16 | 30465 | 151.69 | 843 | 843 | 195.3 |
| C | 14 | 67 | 6874 | 30.88 | 843 | 843 | 195.3 |
| C | 13 | 61 | 6530 | 29.12 | 843 | 843 | 195.3 |
| D | 7 | 71 | 353381 | 1749.61 | 823 | 797 | 201.5 |
| D | 13 | 137 | 185393 | 916.01 | 823 | 797 | 201.5 |
| D | 10 | 253 | 129438 | 638.35 | 823 | 797 | 201.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

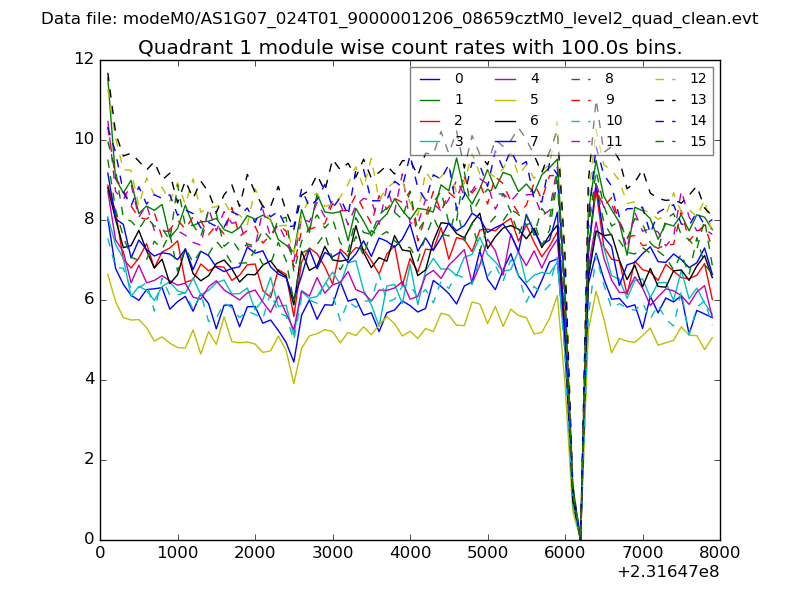

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

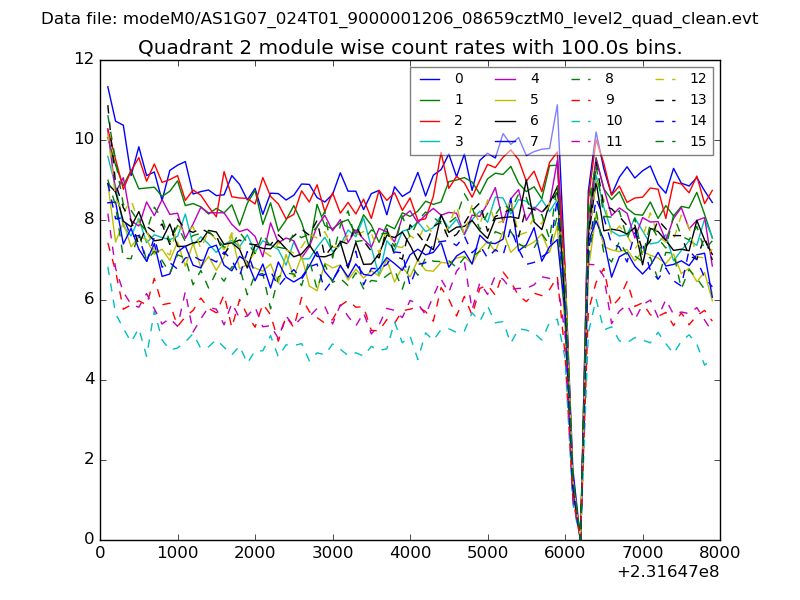

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

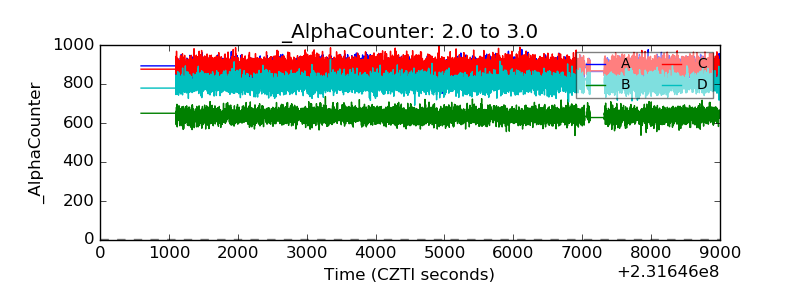

| Alpha Counter |  |
| _CPM_Rate |  |

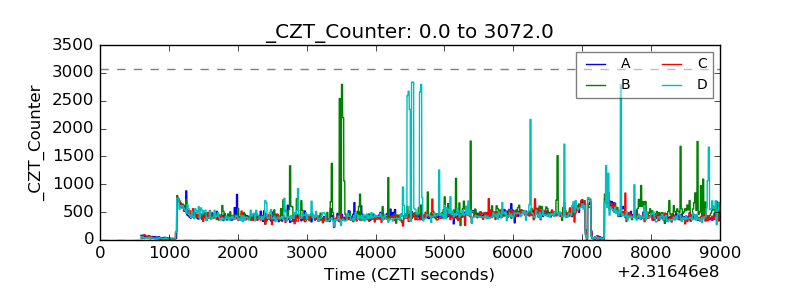

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

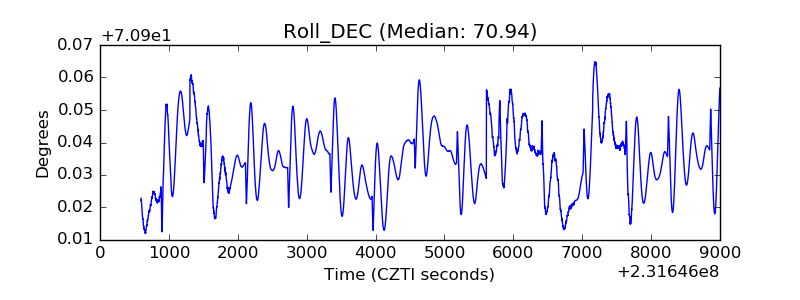

| _Roll_DEC |  |

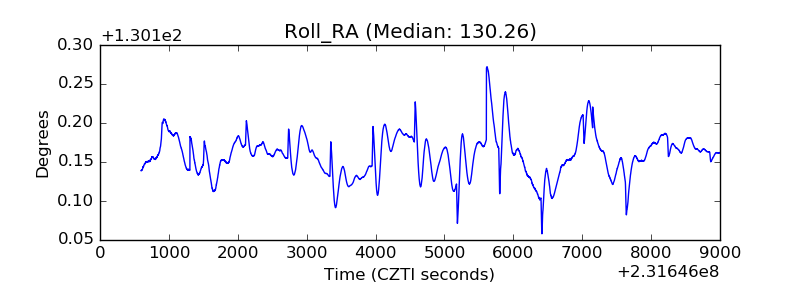

| _Roll_RA |  |
| Veto Counter |  |
