| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G07_024T01_9000001206_08660cztM0_level2.evt | modeM0/AS1G07_024T01_9000001206_08660cztM0_level2_quad_clean.evt |
| Size (bytes) | 501,863,040 | 122,077,440 |
| Size | 478.6 MB | 116.4 MB |
| Events in quadrant A | 3,393,707 | 799,471 |
| Events in quadrant B | 3,836,282 | 821,609 |
| Events in quadrant C | 3,023,039 | 817,686 |
| Events in quadrant D | 4,471,366 | 771,697 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15042 | 56 |
| B | 0 | 16168 | 79 |
| C | 0 | 14327 | 47 |
| D | 0 | 18033 | 64 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 1 | 0 |
| B | 0 | 1 | 0 |
| C | 0 | 1 | 0 |
| D | 0 | 1 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 142 | 0 |
| B | 0 | 142 | 4 |
| C | 0 | 142 | 0 |
| D | 0 | 142 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6994 | 97 | 1.386903% |
| B | 6988 | 189 | 2.704637% |
| C | 6994 | 27 | 0.386045% |
| D | 6990 | 90 | 1.287554% |

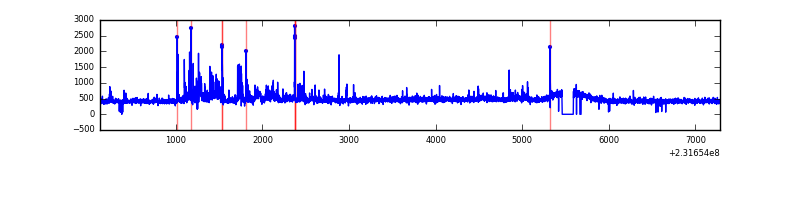

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7161 | 7016 | 9 | 9 | 0.13% | 0.13% |  |
| B | 7161 | 7014 | 63 | 63 | 0.88% | 0.90% |  |
| C | 7161 | 7017 | 1 | 1 | 0.01% | 0.01% |  |
| D | 7161 | 7016 | 38 | 38 | 0.53% | 0.54% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 5 | 329875 | 2044.78 | 779 | 759 | 161.0 |
| A | 13 | 251 | 46810 | 286.11 | 779 | 759 | 161.0 |
| A | 15 | 174 | 20086 | 120.08 | 779 | 759 | 161.0 |
| B | 4 | 48 | 465823 | 3116.12 | 787 | 767 | 149.2 |
| B | 10 | 16 | 103687 | 689.62 | 787 | 767 | 149.2 |
| B | 4 | 80 | 53686 | 354.59 | 787 | 767 | 149.2 |
| C | 1 | 16 | 49448 | 277.2 | 760 | 763 | 175.6 |
| C | 13 | 61 | 5862 | 29.03 | 760 | 763 | 175.6 |
| C | 8 | 222 | 2989 | 12.67 | 760 | 763 | 175.6 |
| D | 13 | 137 | 1327165 | 7163.31 | 756 | 731 | 185.2 |
| D | 7 | 71 | 68411 | 365.5 | 756 | 731 | 185.2 |
| D | 10 | 253 | 60711 | 323.92 | 756 | 731 | 185.2 |

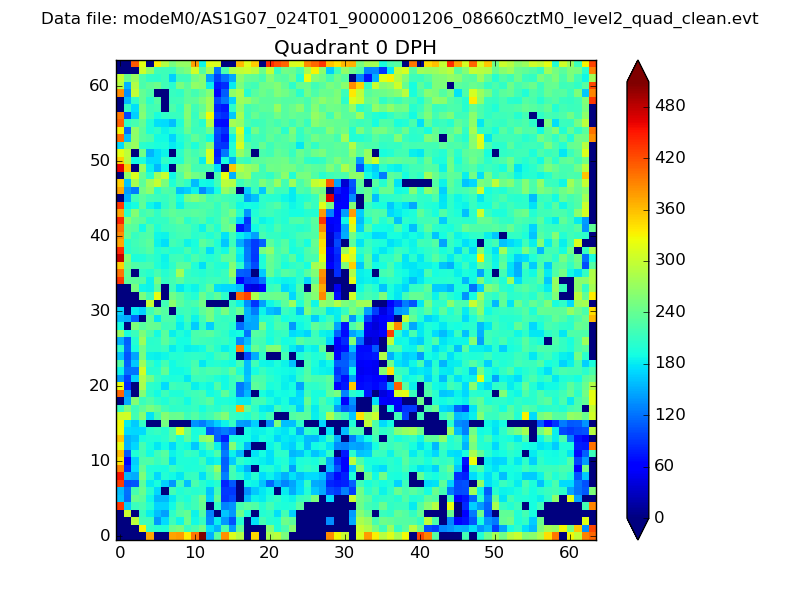

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

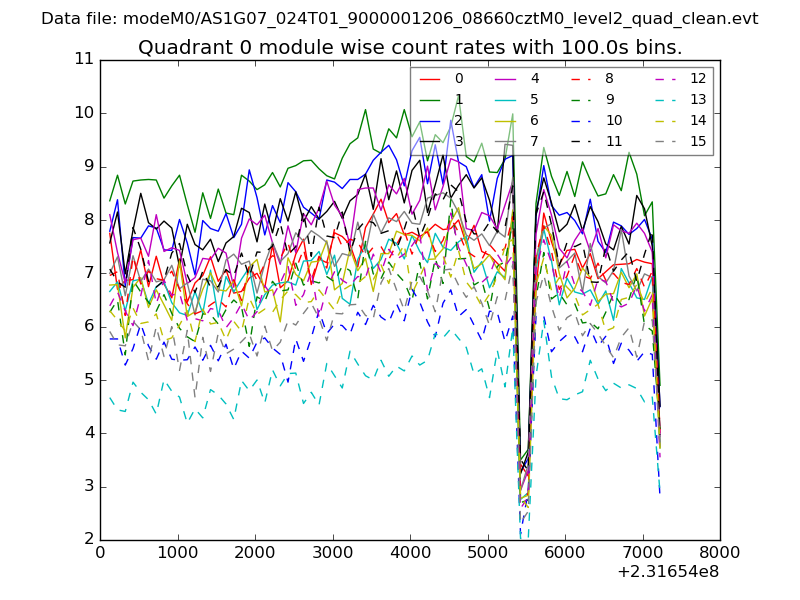

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

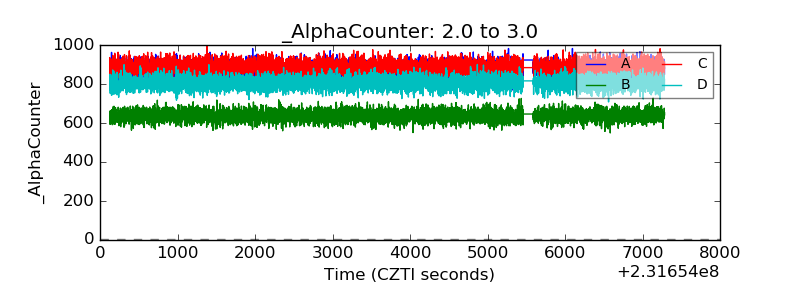

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

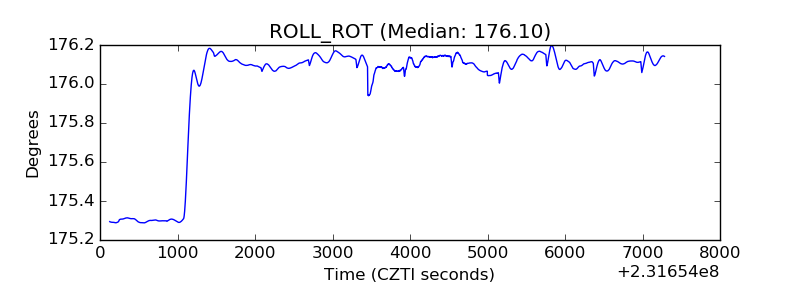

| _ROLL_ROT |  |

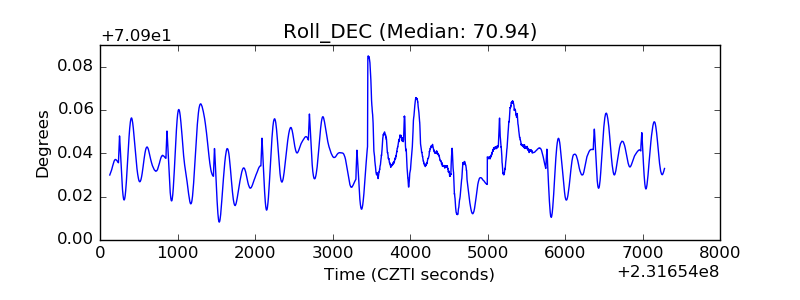

| _Roll_DEC |  |

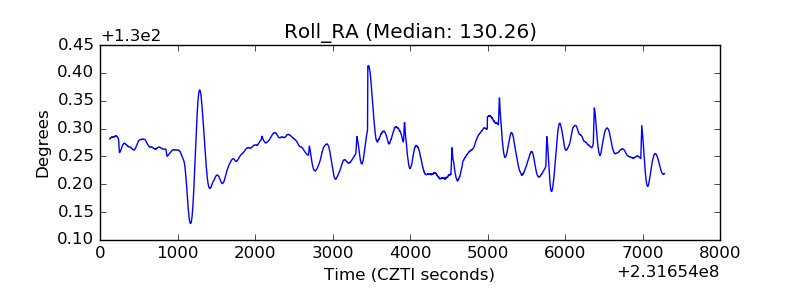

| _Roll_RA |  |
| Veto Counter |  |
