| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G07_024T01_9000001206_08670cztM0_level2.evt | modeM0/AS1G07_024T01_9000001206_08670cztM0_level2_quad_clean.evt |
| Size (bytes) | 416,079,360 | 120,672,000 |
| Size | 396.8 MB | 115.1 MB |
| Events in quadrant A | 2,908,771 | 795,673 |
| Events in quadrant B | 3,318,889 | 830,370 |
| Events in quadrant C | 2,845,748 | 826,590 |
| Events in quadrant D | 3,110,446 | 774,043 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12803 | 3 |
| B | 0 | 13904 | 2 |
| C | 0 | 12650 | 2 |
| D | 0 | 13601 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 14 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 0 |
| C | 0 | 126 | 0 |
| D | 0 | 126 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6129 | 31 | 0.505792% |
| B | 6129 | 72 | 1.174743% |
| C | 6129 | 30 | 0.489476% |
| D | 6129 | 95 | 1.550008% |

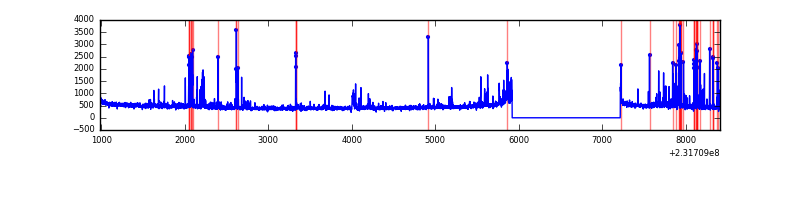

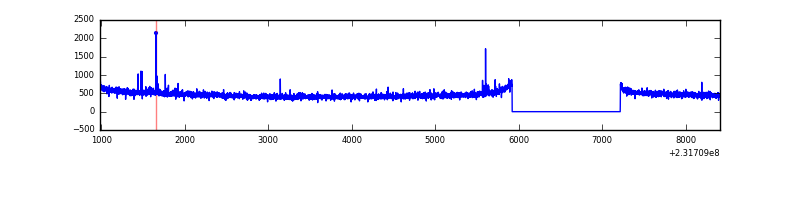

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7424 | 6130 | 2 | 2 | 0.03% | 0.03% |  |
| B | 7424 | 6130 | 40 | 40 | 0.54% | 0.65% |  |
| C | 7424 | 6130 | 1 | 1 | 0.01% | 0.02% |  |
| D | 7424 | 6129 | 44 | 44 | 0.59% | 0.72% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 251 | 91275 | 626.36 | 715 | 699 | 144.6 |
| A | 15 | 174 | 26420 | 177.87 | 715 | 699 | 144.6 |
| A | 13 | 248 | 24199 | 162.51 | 715 | 699 | 144.6 |
| B | 10 | 252 | 104901 | 775.89 | 732 | 717 | 134.3 |
| B | 10 | 16 | 90176 | 666.23 | 732 | 717 | 134.3 |
| B | 0 | 231 | 81367 | 600.62 | 732 | 717 | 134.3 |
| C | 1 | 16 | 24438 | 143.96 | 718 | 721 | 164.8 |
| C | 8 | 128 | 9483 | 53.18 | 718 | 721 | 164.8 |
| C | 8 | 112 | 5735 | 30.43 | 718 | 721 | 164.8 |
| D | 2 | 152 | 163130 | 951.73 | 704 | 683 | 170.7 |
| D | 12 | 233 | 124893 | 727.71 | 704 | 683 | 170.7 |
| D | 7 | 71 | 58709 | 339.96 | 704 | 683 | 170.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

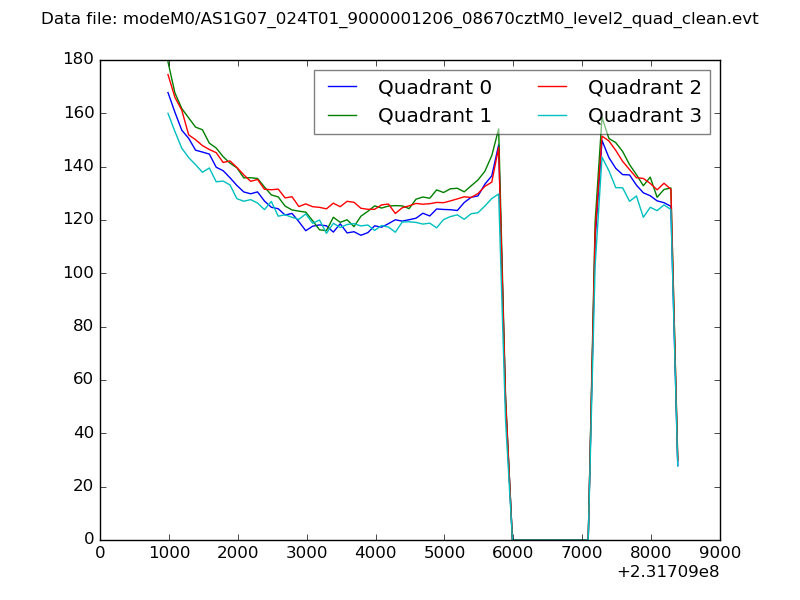

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

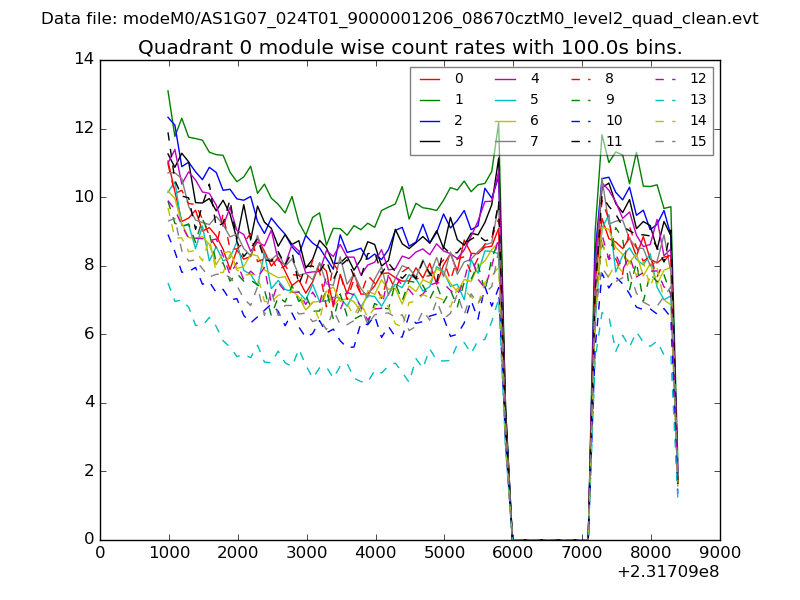

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

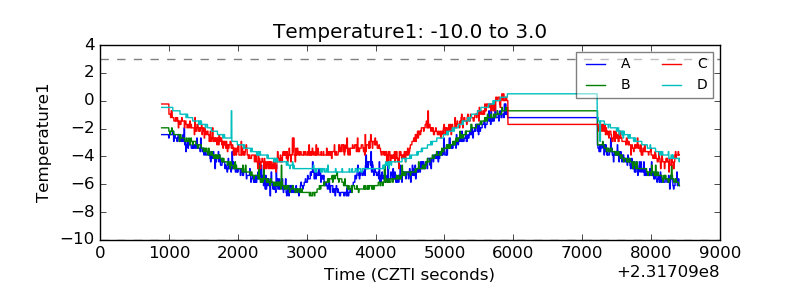

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

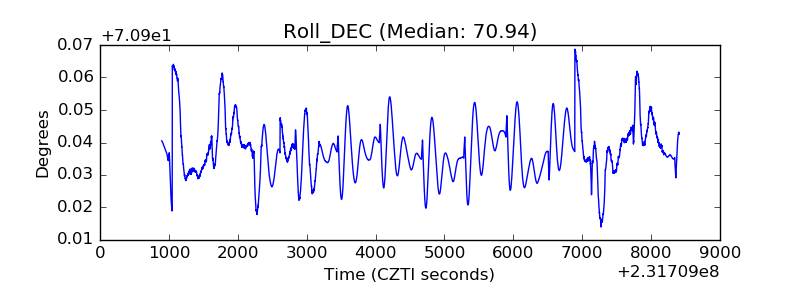

| _Roll_DEC |  |

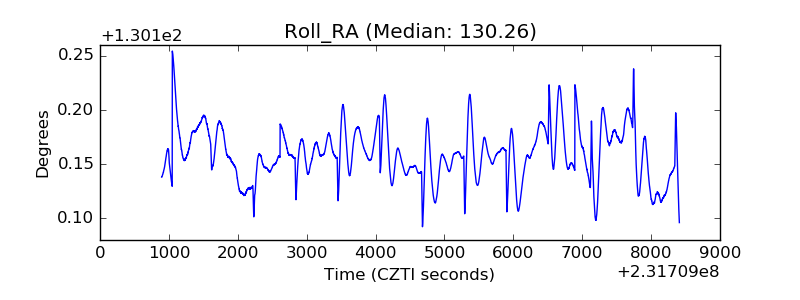

| _Roll_RA |  |

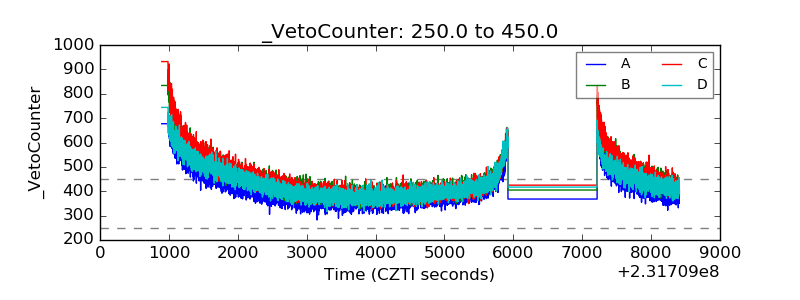

| Veto Counter |  |
