| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G07_024T01_9000001206_08689cztM0_level2.evt | modeM0/AS1G07_024T01_9000001206_08689cztM0_level2_quad_clean.evt |
| Size (bytes) | 472,579,200 | 125,400,960 |
| Size | 450.7 MB | 119.6 MB |
| Events in quadrant A | 3,144,089 | 821,732 |
| Events in quadrant B | 3,748,732 | 842,225 |
| Events in quadrant C | 3,456,123 | 837,479 |
| Events in quadrant D | 3,478,748 | 800,547 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14618 | 3 |
| B | 0 | 15970 | 2 |
| C | 0 | 15475 | 2 |
| D | 0 | 15777 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 1 | 0 |
| B | 0 | 1 | 0 |
| C | 0 | 1 | 0 |
| D | 0 | 1 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 144 | 0 |
| B | 0 | 144 | 0 |
| C | 0 | 144 | 0 |
| D | 0 | 144 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7125 | 123 | 1.726316% |
| B | 7125 | 224 | 3.143860% |
| C | 7125 | 84 | 1.178947% |
| D | 7125 | 151 | 2.119298% |

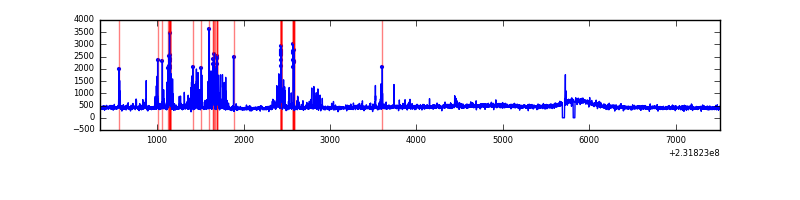

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7170 | 7127 | 3 | 3 | 0.04% | 0.04% |  |
| B | 7170 | 7126 | 76 | 76 | 1.06% | 1.07% |  |
| C | 7170 | 7127 | 44 | 44 | 0.61% | 0.62% |  |
| D | 7170 | 7127 | 59 | 59 | 0.82% | 0.83% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 174 | 18888 | 110.09 | 800 | 783 | 164.4 |
| A | 15 | 236 | 16004 | 92.56 | 800 | 783 | 164.4 |
| A | 13 | 251 | 14238 | 81.82 | 800 | 783 | 164.4 |
| B | 10 | 16 | 382911 | 2486.63 | 810 | 788 | 153.7 |
| B | 0 | 219 | 70383 | 452.88 | 810 | 788 | 153.7 |
| B | 4 | 48 | 52955 | 339.47 | 810 | 788 | 153.7 |
| C | 4 | 254 | 387125 | 2122.92 | 784 | 787 | 182.0 |
| C | 13 | 61 | 6014 | 28.72 | 784 | 787 | 182.0 |
| C | 14 | 234 | 5226 | 24.39 | 784 | 787 | 182.0 |
| D | 12 | 233 | 264097 | 1382.66 | 775 | 750 | 190.5 |
| D | 7 | 71 | 177767 | 929.4 | 775 | 750 | 190.5 |
| D | 2 | 14 | 42051 | 216.84 | 775 | 750 | 190.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

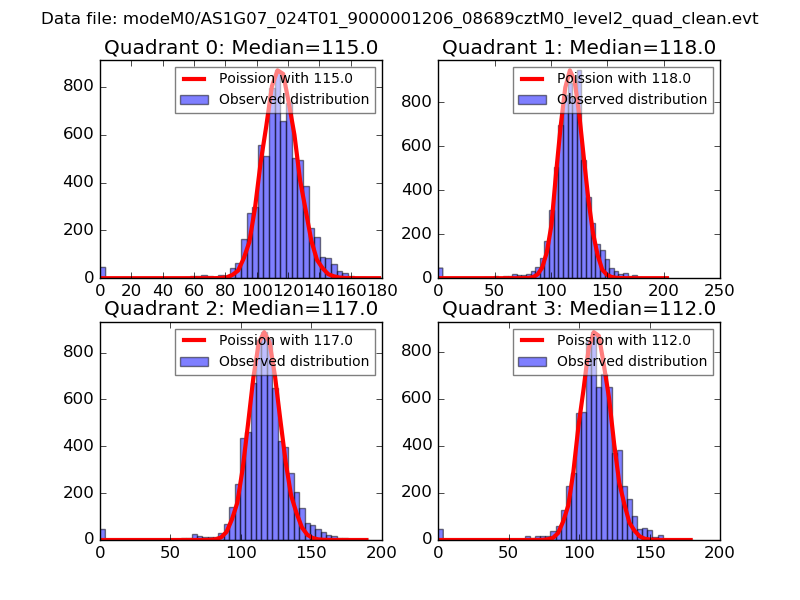

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

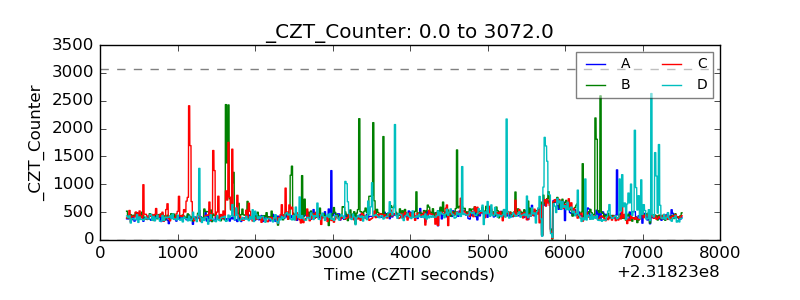

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

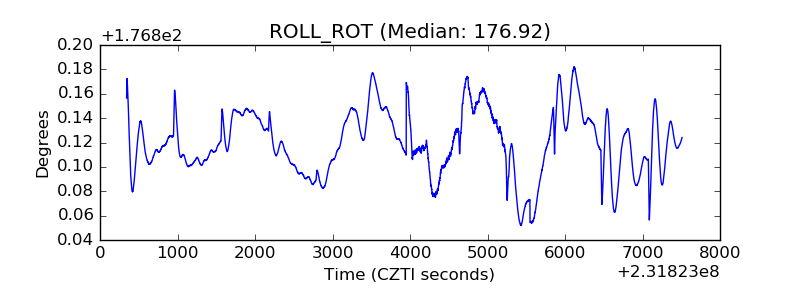

| _ROLL_ROT |  |

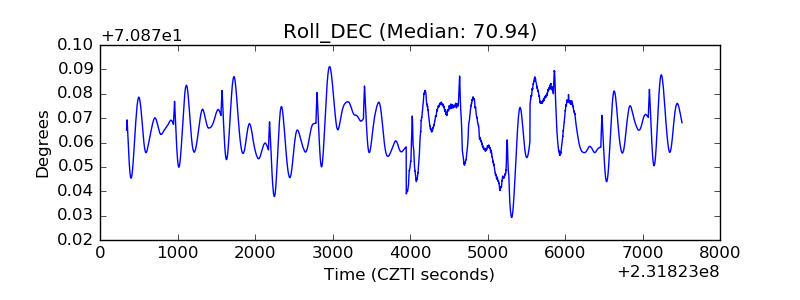

| _Roll_DEC |  |

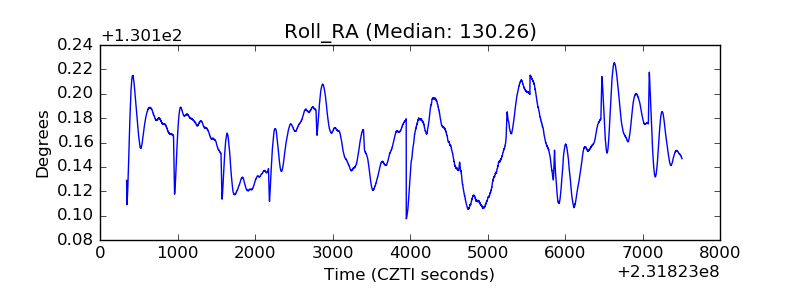

| _Roll_RA |  |

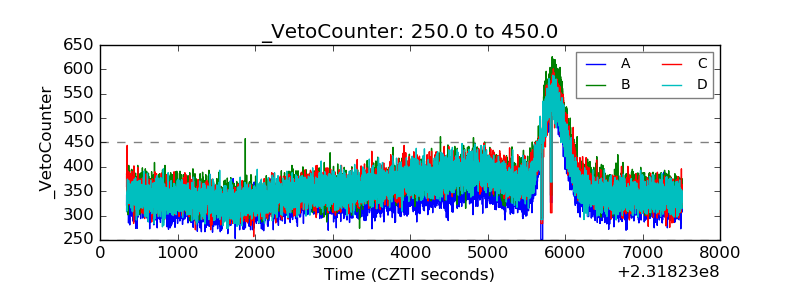

| Veto Counter |  |
