| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A03_052T01_9000001208_08694cztM0_level2.evt | modeM0/AS1A03_052T01_9000001208_08694cztM0_level2_quad_clean.evt |
| Size (bytes) | 171,357,120 | 19,494,720 |
| Size | 163.4 MB | 18.6 MB |
| Events in quadrant A | 1,271,994 | 104,869 |
| Events in quadrant B | 1,360,232 | 109,995 |
| Events in quadrant C | 1,134,480 | 107,800 |
| Events in quadrant D | 1,264,052 | 101,234 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 2 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 52 | 8 |
| B | 0 | 52 | 2 |
| C | 0 | 52 | 6 |
| D | 0 | 52 | 4 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 5885 | 635 |
| B | 0 | 6171 | 650 |
| C | 0 | 5368 | 557 |
| D | 0 | 5889 | 677 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 2277 | 28 | 1.229688% |
| B | 2316 | 77 | 3.324698% |
| C | 2306 | 9 | 0.390286% |
| D | 2288 | 54 | 2.360140% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 3614 | 2463 | 0 | 0 | 0.00% | 0.00% |  |
| B | 3614 | 2471 | 53 | 53 | 1.47% | 2.14% |  |
| C | 3614 | 2481 | 3 | 3 | 0.08% | 0.12% |  |
| D | 3611 | 2463 | 34 | 34 | 0.94% | 1.38% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 254 | 133816 | 2217.27 | 291 | 286 | 60.2 |
| A | 13 | 251 | 14270 | 232.2 | 291 | 286 | 60.2 |
| A | 15 | 174 | 2683 | 39.8 | 291 | 286 | 60.2 |
| B | 10 | 16 | 184617 | 3221.98 | 291 | 285 | 57.2 |
| B | 15 | 85 | 16620 | 285.52 | 291 | 285 | 57.2 |
| B | 0 | 214 | 10981 | 186.96 | 291 | 285 | 57.2 |
| C | 14 | 234 | 15982 | 231.0 | 286 | 287 | 67.9 |
| C | 13 | 61 | 2142 | 27.3 | 286 | 287 | 67.9 |
| C | 1 | 16 | 902 | 9.04 | 286 | 287 | 67.9 |
| D | 12 | 233 | 67572 | 961.6 | 282 | 273 | 70.0 |
| D | 9 | 64 | 37631 | 533.79 | 282 | 273 | 70.0 |
| D | 2 | 152 | 34367 | 487.15 | 282 | 273 | 70.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

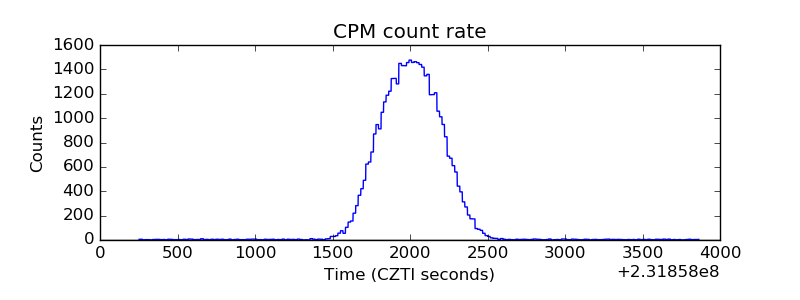

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

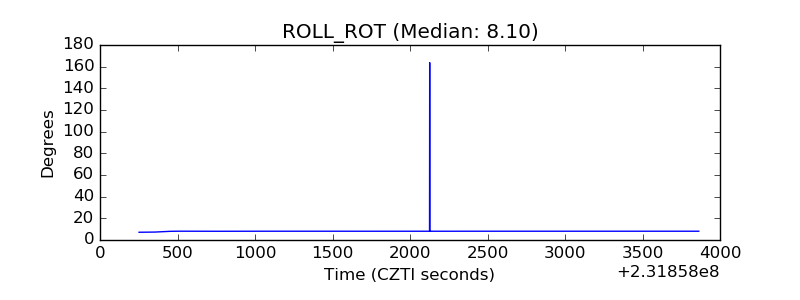

| _ROLL_ROT |  |
| _Roll_DEC |  |

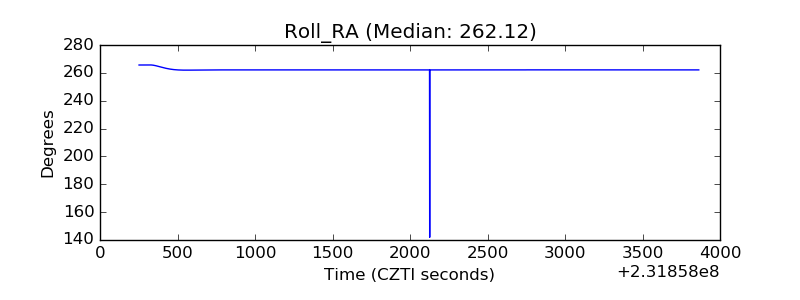

| _Roll_RA |  |
| Veto Counter |  |
