| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A02_132T01_9000001212_08713cztM0_level2.evt | modeM0/AS1A02_132T01_9000001212_08713cztM0_level2_quad_clean.evt |
| Size (bytes) | 474,995,520 | 103,507,200 |
| Size | 453.0 MB | 98.7 MB |
| Events in quadrant A | 3,413,324 | 661,158 |
| Events in quadrant B | 3,639,303 | 686,289 |
| Events in quadrant C | 3,365,160 | 678,840 |
| Events in quadrant D | 3,515,507 | 644,515 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14350 | 3 |
| B | 0 | 15034 | 2 |
| C | 0 | 14123 | 2 |
| D | 0 | 14773 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 26 | 0 |
| B | 0 | 26 | 0 |
| C | 0 | 26 | 0 |
| D | 0 | 26 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 138 | 0 |
| B | 0 | 138 | 0 |
| C | 0 | 138 | 0 |
| D | 0 | 138 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6652 | 82 | 1.232712% |
| B | 6652 | 101 | 1.518340% |
| C | 6652 | 39 | 0.586290% |
| D | 6652 | 64 | 0.962117% |

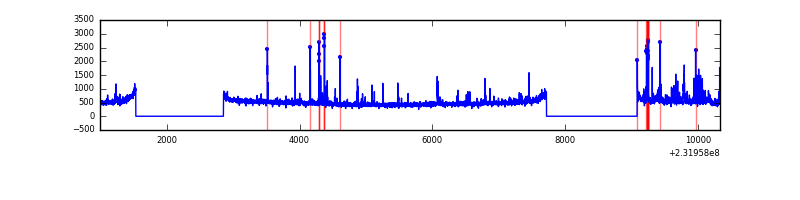

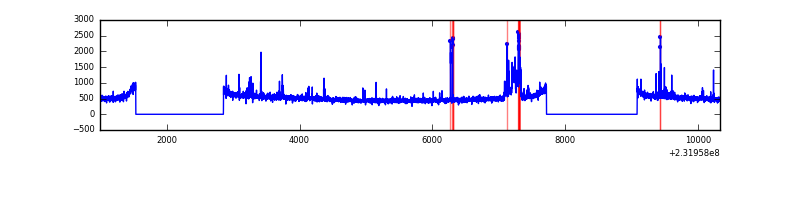

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 9337 | 6653 | 10 | 10 | 0.11% | 0.15% |  |
| B | 9337 | 6653 | 19 | 19 | 0.20% | 0.29% |  |
| C | 9337 | 6654 | 3 | 3 | 0.03% | 0.05% |  |
| D | 9337 | 6654 | 23 | 23 | 0.25% | 0.35% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 251 | 49776 | 283.28 | 860 | 843 | 172.7 |
| A | 15 | 174 | 46809 | 266.11 | 860 | 843 | 172.7 |
| A | 0 | 226 | 7919 | 40.96 | 860 | 843 | 172.7 |
| B | 5 | 255 | 181687 | 1106.33 | 873 | 855 | 163.5 |
| B | 4 | 173 | 30202 | 179.54 | 873 | 855 | 163.5 |
| B | 10 | 246 | 21319 | 125.2 | 873 | 855 | 163.5 |
| C | 14 | 234 | 29142 | 143.16 | 854 | 860 | 197.6 |
| C | 12 | 4 | 7887 | 35.57 | 854 | 860 | 197.6 |
| C | 13 | 61 | 6426 | 28.17 | 854 | 860 | 197.6 |
| D | 2 | 152 | 87272 | 424.65 | 841 | 822 | 203.6 |
| D | 1 | 52 | 80585 | 391.8 | 841 | 822 | 203.6 |
| D | 9 | 64 | 54234 | 262.36 | 841 | 822 | 203.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

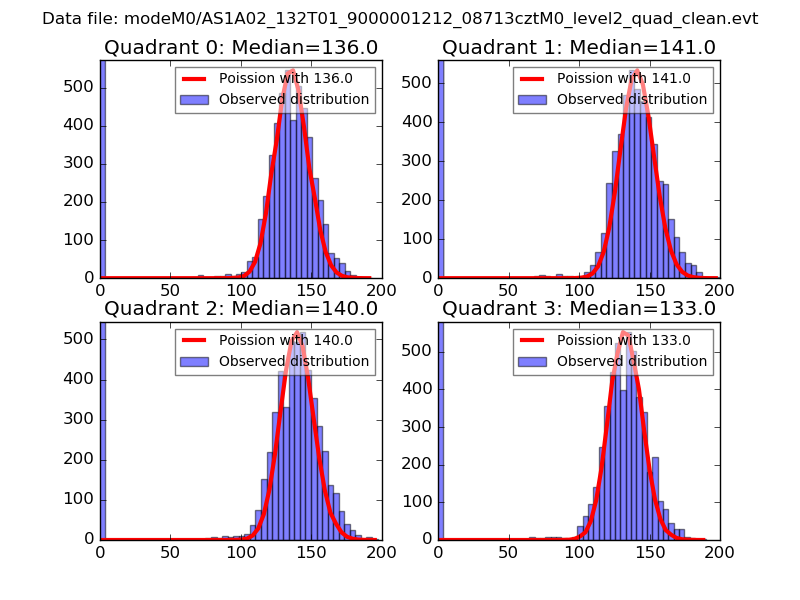

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

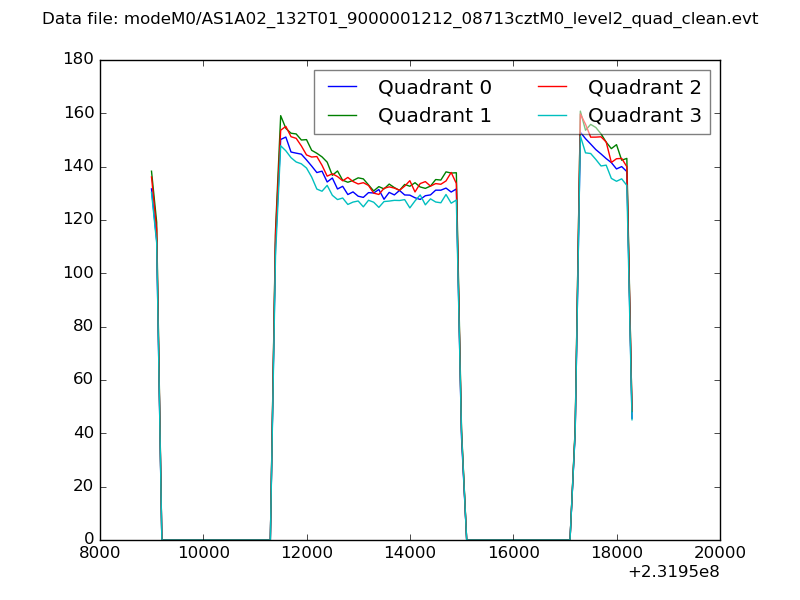

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

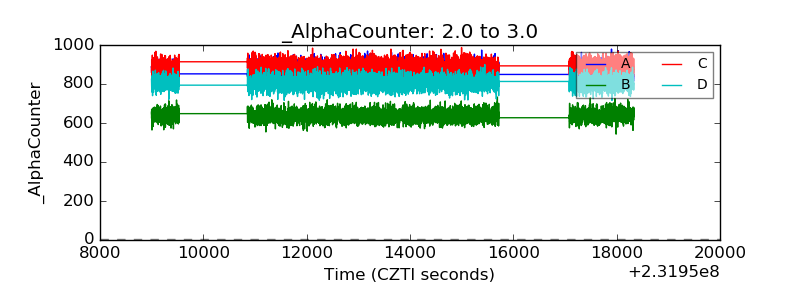

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

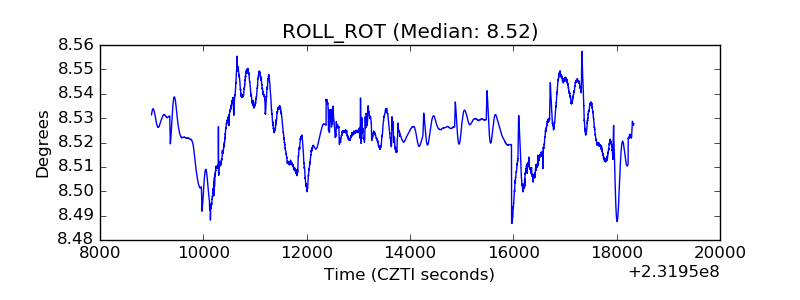

| _ROLL_ROT |  |

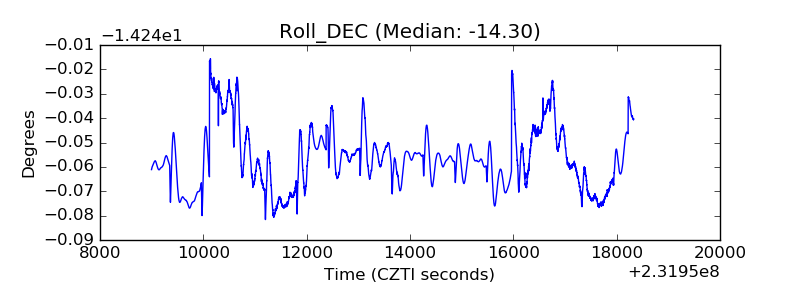

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
