| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A02_132T01_9000001212_08722cztM0_level2.evt | modeM0/AS1A02_132T01_9000001212_08722cztM0_level2_quad_clean.evt |
| Size (bytes) | 2,555,936,640 | 420,022,080 |
| Size | 2.4 GB | 400.6 MB |
| Events in quadrant A | 17,404,796 | 2,558,571 |
| Events in quadrant B | 16,901,331 | 2,642,977 |
| Events in quadrant C | 16,444,612 | 2,625,650 |
| Events in quadrant D | 24,224,702 | 2,421,035 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 76278 | 462 |
| B | 0 | 74644 | 365 |
| C | 0 | 74479 | 463 |
| D | 0 | 97344 | 501 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 25 | 0 |
| B | 0 | 25 | 0 |
| C | 0 | 25 | 0 |
| D | 0 | 25 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 730 | 6 |
| B | 0 | 730 | 6 |
| C | 0 | 730 | 6 |
| D | 0 | 730 | 6 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 35992 | 838 | 2.328295% |
| B | 36027 | 714 | 1.981847% |
| C | 35980 | 483 | 1.342412% |
| D | 36006 | 3038 | 8.437483% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

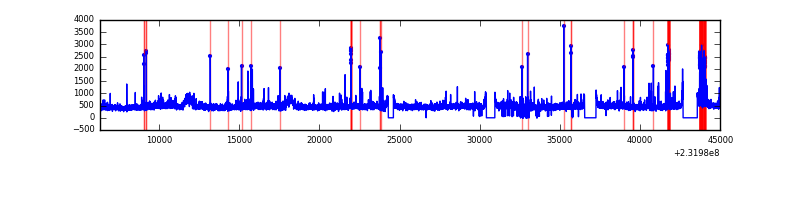

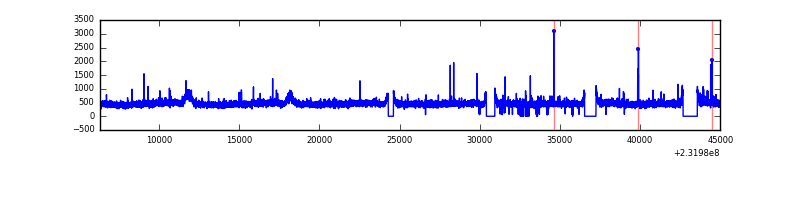

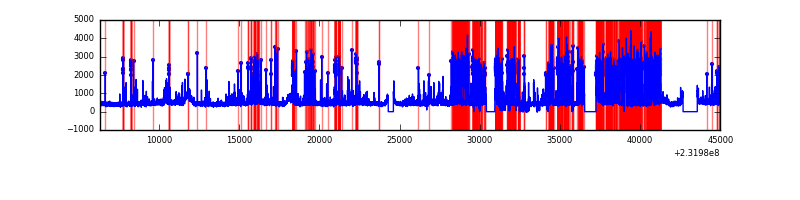

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 38661 | 36127 | 99 | 99 | 0.26% | 0.27% |  |
| B | 38661 | 36137 | 3 | 3 | 0.01% | 0.01% |  |
| C | 38661 | 36115 | 14 | 14 | 0.04% | 0.04% |  |
| D | 38661 | 36133 | 2358 | 2358 | 6.10% | 6.53% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 251 | 952257 | 1095.75 | 4244 | 4135 | 865.3 |
| A | 15 | 174 | 112317 | 125.03 | 4244 | 4135 | 865.3 |
| A | 0 | 226 | 39181 | 40.5 | 4244 | 4135 | 865.3 |
| B | 12 | 111 | 90227 | 104.78 | 4284 | 4173 | 821.3 |
| B | 11 | 111 | 73401 | 84.29 | 4284 | 4173 | 821.3 |
| B | 4 | 173 | 71057 | 81.44 | 4284 | 4173 | 821.3 |
| C | 14 | 234 | 113836 | 113.32 | 4179 | 4196 | 967.5 |
| C | 13 | 61 | 31461 | 28.18 | 4179 | 4196 | 967.5 |
| C | 8 | 222 | 20306 | 16.65 | 4179 | 4196 | 967.5 |
| D | 1 | 52 | 7853140 | 8134.84 | 4025 | 3926 | 964.9 |
| D | 7 | 71 | 299917 | 306.76 | 4025 | 3926 | 964.9 |
| D | 2 | 14 | 243244 | 248.03 | 4025 | 3926 | 964.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|

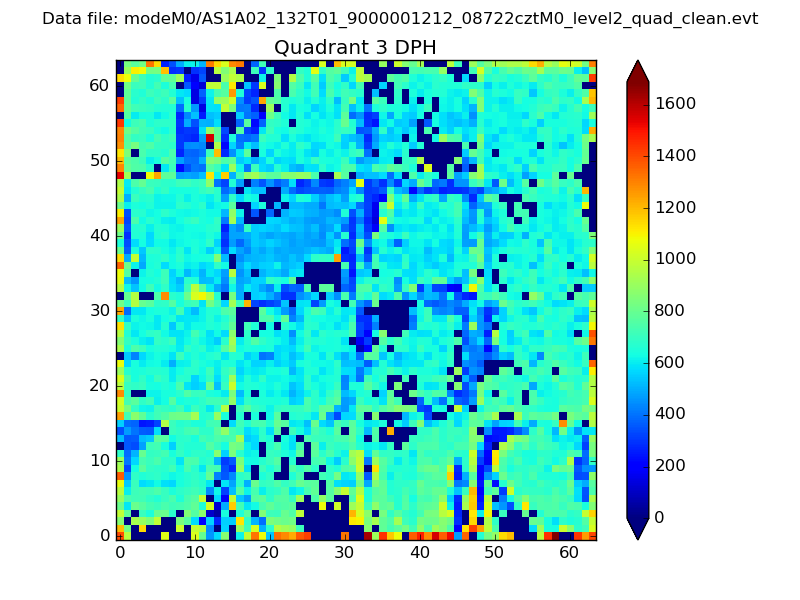

| Quadrant D |  |
 |
Quadrant C |

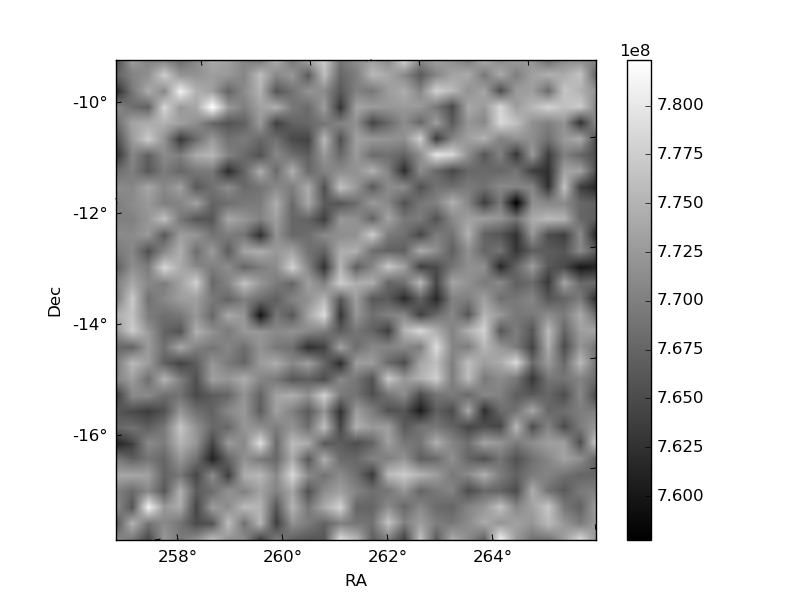

| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

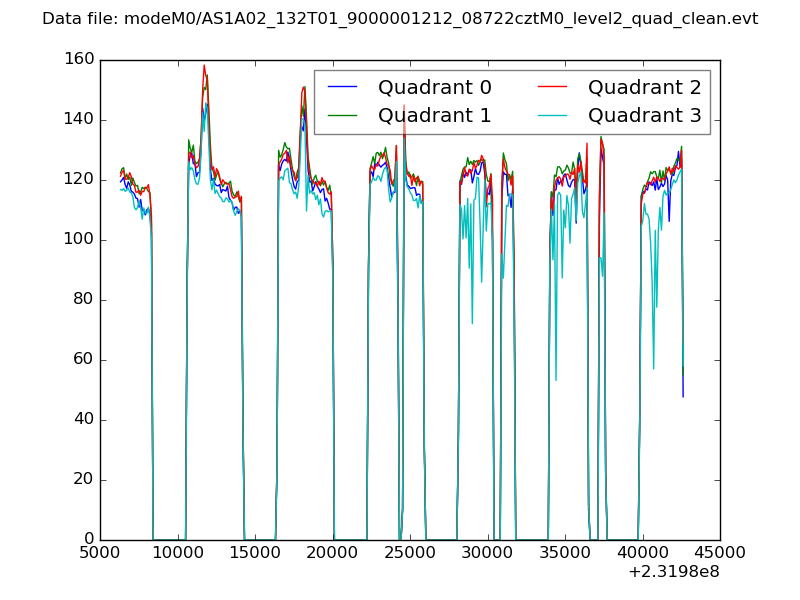

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

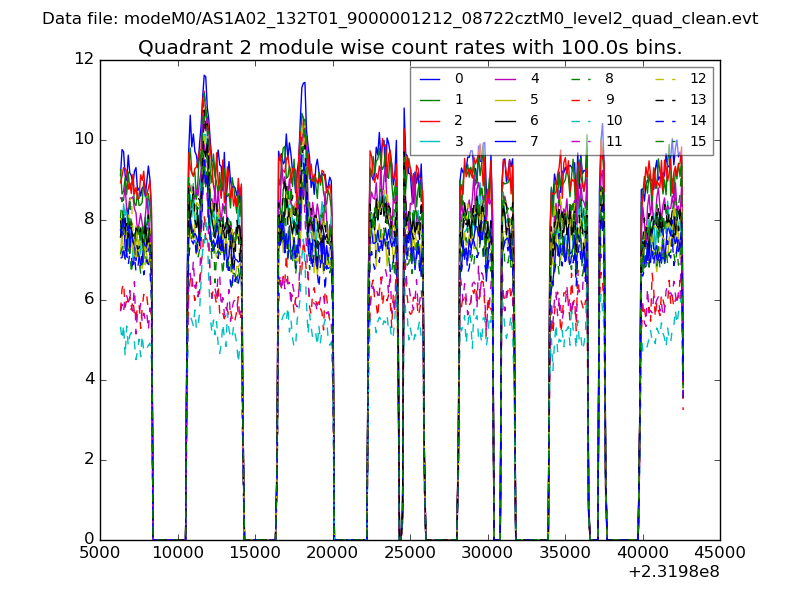

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

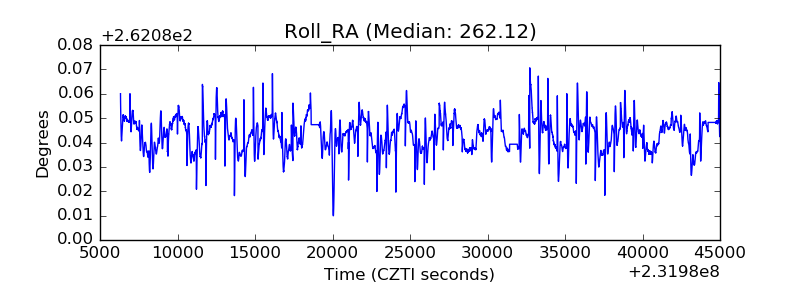

| _Roll_RA |  |
| Veto Counter |  |
