| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A02_132T01_9000001212_08726cztM0_level2.evt | modeM0/AS1A02_132T01_9000001212_08726cztM0_level2_quad_clean.evt |
| Size (bytes) | 450,624,960 | 86,276,160 |
| Size | 429.7 MB | 82.3 MB |
| Events in quadrant A | 3,269,055 | 540,522 |
| Events in quadrant B | 3,276,150 | 556,344 |
| Events in quadrant C | 3,199,327 | 547,870 |
| Events in quadrant D | 3,470,511 | 524,188 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13855 | 3 |
| B | 0 | 13789 | 2 |
| C | 0 | 13528 | 2 |
| D | 0 | 14541 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 25 | 0 |
| B | 0 | 25 | 0 |
| C | 0 | 25 | 0 |
| D | 0 | 25 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6357 | 105 | 1.651723% |
| B | 6357 | 118 | 1.856221% |
| C | 6357 | 85 | 1.337109% |
| D | 6357 | 113 | 1.777568% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8832 | 6357 | 2 | 2 | 0.02% | 0.03% |  |
| B | 8832 | 6357 | 1 | 1 | 0.01% | 0.02% |  |
| C | 8832 | 6357 | 2 | 2 | 0.02% | 0.03% |  |
| D | 8832 | 6357 | 29 | 29 | 0.33% | 0.46% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 251 | 82420 | 489.34 | 827 | 811 | 166.8 |
| A | 0 | 226 | 7877 | 42.37 | 827 | 811 | 166.8 |
| A | 12 | 194 | 6866 | 36.3 | 827 | 811 | 166.8 |
| B | 4 | 173 | 18710 | 112.52 | 836 | 816 | 159.0 |
| B | 12 | 111 | 16207 | 96.78 | 836 | 816 | 159.0 |
| B | 11 | 111 | 13108 | 77.29 | 836 | 816 | 159.0 |
| C | 14 | 234 | 17036 | 85.98 | 815 | 821 | 188.6 |
| C | 13 | 61 | 6034 | 27.64 | 815 | 821 | 188.6 |
| C | 12 | 4 | 3711 | 15.32 | 815 | 821 | 188.6 |
| D | 1 | 52 | 207658 | 1042.57 | 803 | 785 | 198.4 |
| D | 2 | 152 | 92528 | 462.35 | 803 | 785 | 198.4 |
| D | 7 | 71 | 49856 | 247.3 | 803 | 785 | 198.4 |

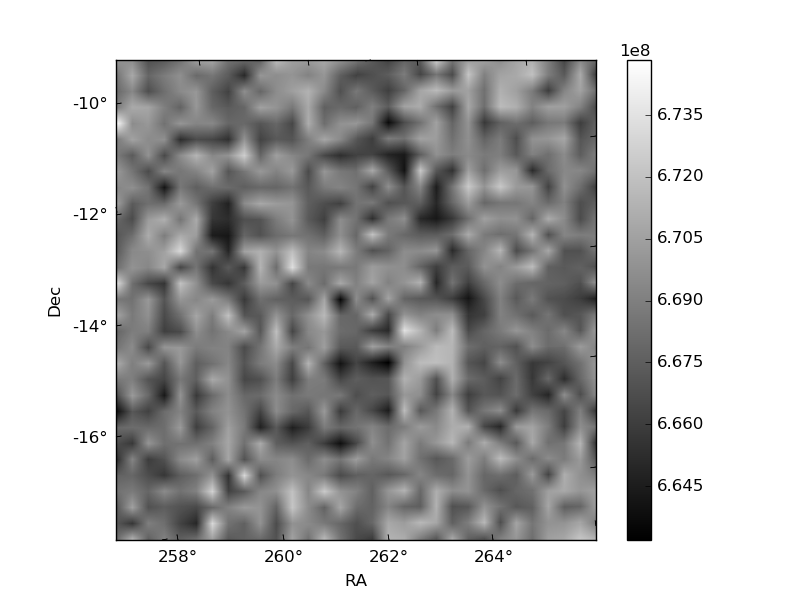

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

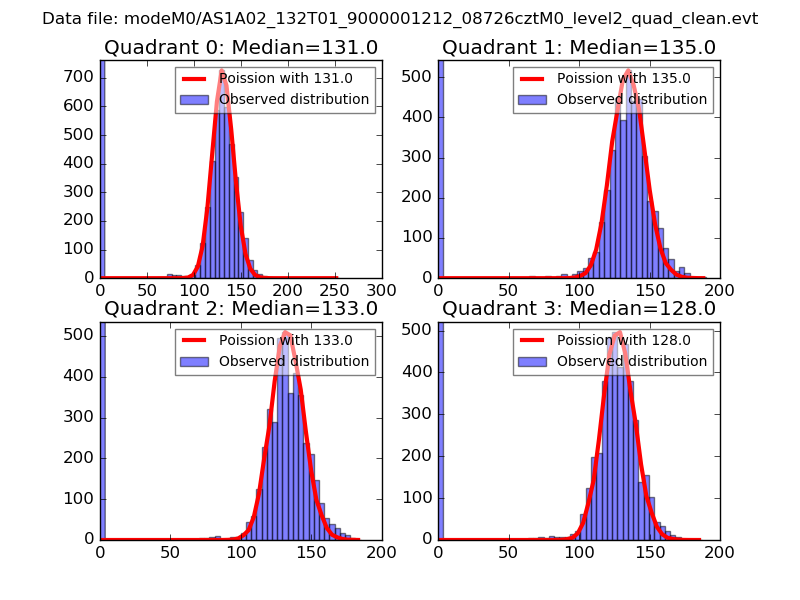

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

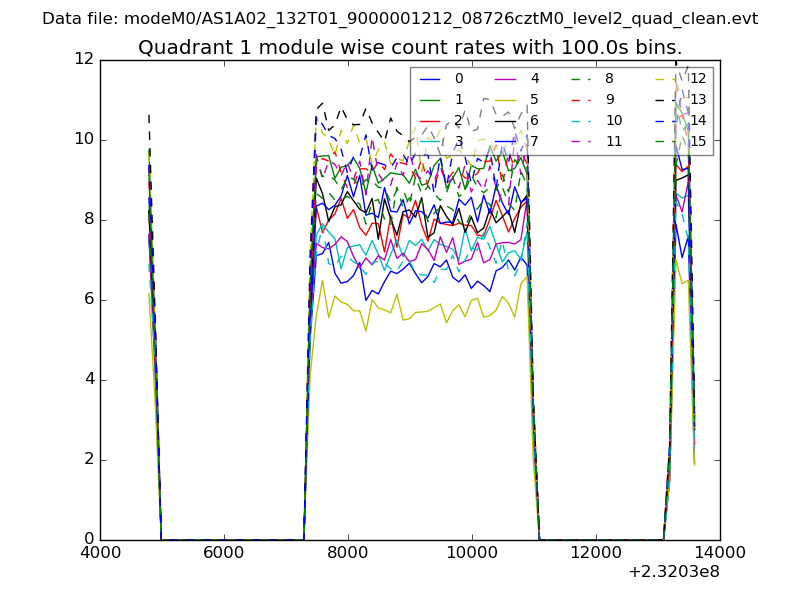

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

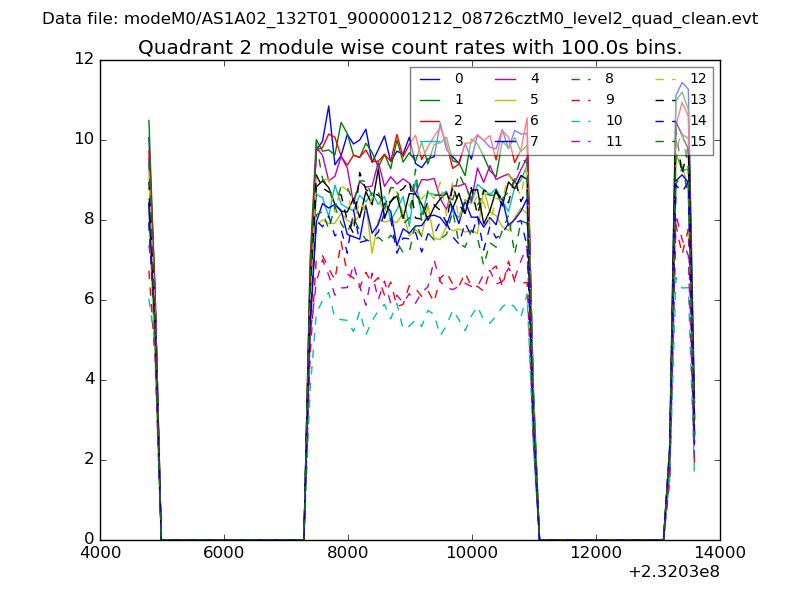

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

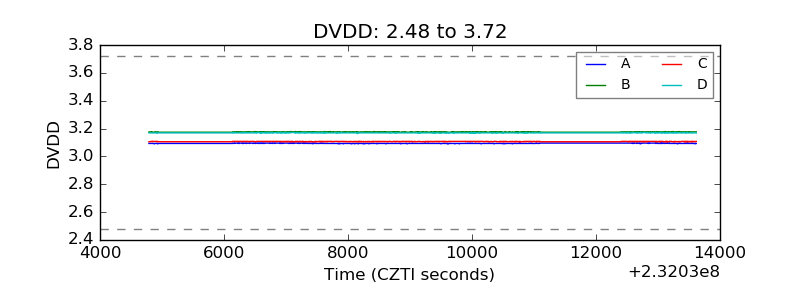

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

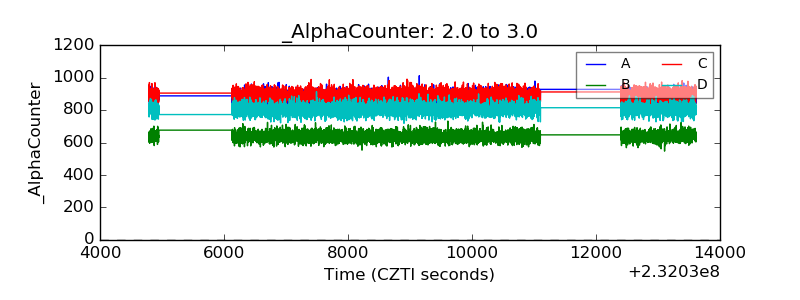

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

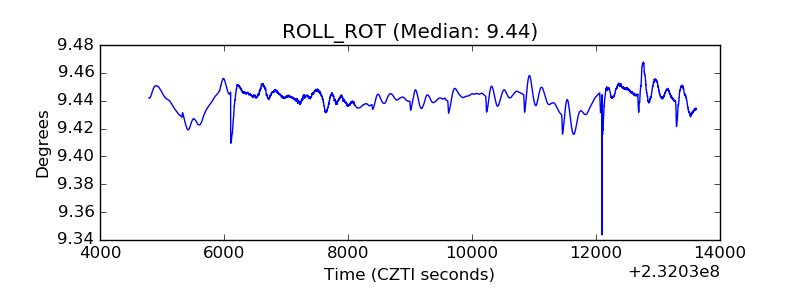

| _ROLL_ROT |  |

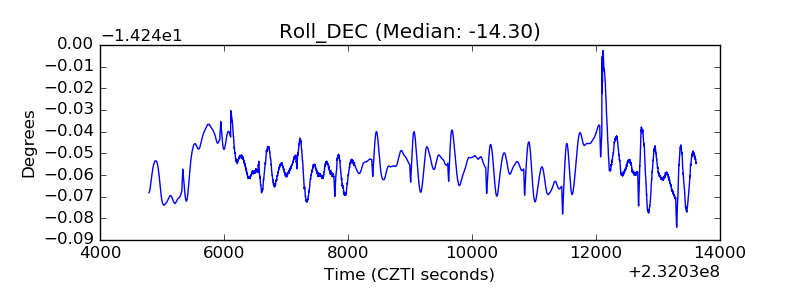

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
