| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G07_027T01_9000001210_08708cztM0_level2.evt | modeM0/AS1G07_027T01_9000001210_08708cztM0_level2_quad_clean.evt |
| Size (bytes) | 570,479,040 | 108,797,760 |
| Size | 544.1 MB | 103.8 MB |
| Events in quadrant A | 4,164,837 | 677,812 |
| Events in quadrant B | 4,131,439 | 683,332 |
| Events in quadrant C | 4,029,064 | 682,890 |
| Events in quadrant D | 4,368,133 | 654,033 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 174 | 0 |
| B | 0 | 174 | 0 |
| C | 0 | 174 | 0 |
| D | 0 | 174 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 18 | 0 |
| B | 0 | 18 | 0 |
| C | 0 | 18 | 0 |
| D | 0 | 18 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17899 | 3 |
| B | 0 | 17686 | 2 |
| C | 0 | 17650 | 2 |
| D | 0 | 18560 | 6 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 8601 | 149 | 1.732357% |
| B | 8601 | 134 | 1.557958% |
| C | 8601 | 108 | 1.255668% |
| D | 8599 | 134 | 1.558321% |

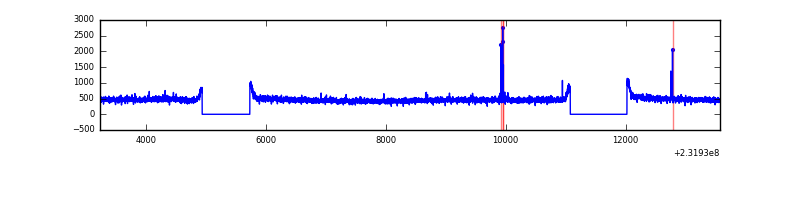

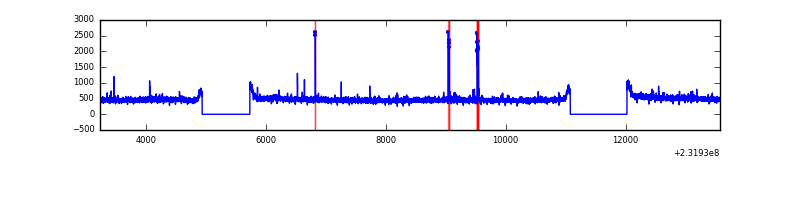

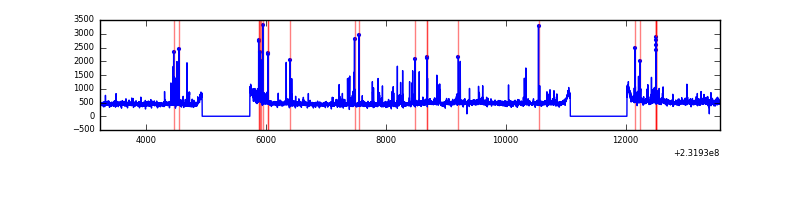

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 10341 | 8601 | 16 | 16 | 0.15% | 0.19% |  |
| B | 10341 | 8601 | 3 | 3 | 0.03% | 0.03% |  |
| C | 10341 | 8601 | 4 | 4 | 0.04% | 0.05% |  |
| D | 10341 | 8601 | 23 | 23 | 0.22% | 0.27% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 174 | 66998 | 305.82 | 1049 | 1026 | 215.7 |
| A | 13 | 251 | 54848 | 249.5 | 1049 | 1026 | 215.7 |
| A | 5 | 16 | 10316 | 43.07 | 1049 | 1026 | 215.7 |
| B | 12 | 111 | 21360 | 100.57 | 1053 | 1028 | 202.2 |
| B | 11 | 111 | 17294 | 80.46 | 1053 | 1028 | 202.2 |
| B | 4 | 173 | 13062 | 59.53 | 1053 | 1028 | 202.2 |
| C | 14 | 234 | 28647 | 115.62 | 1023 | 1028 | 238.9 |
| C | 13 | 61 | 7744 | 28.12 | 1023 | 1028 | 238.9 |
| C | 14 | 67 | 6190 | 21.61 | 1023 | 1028 | 238.9 |
| D | 2 | 152 | 174170 | 703.24 | 1013 | 990 | 246.3 |
| D | 8 | 195 | 158906 | 641.25 | 1013 | 990 | 246.3 |
| D | 7 | 71 | 50757 | 202.09 | 1013 | 990 | 246.3 |

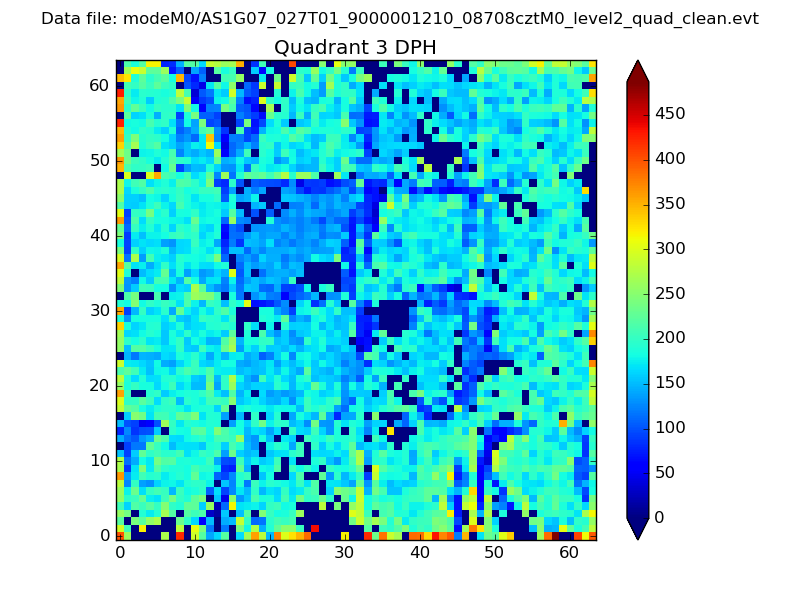

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

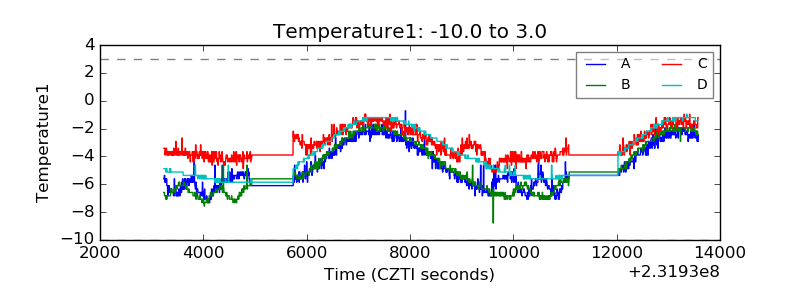

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
