| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G07_005T02_9000001214_08733cztM0_level2.evt | modeM0/AS1G07_005T02_9000001214_08733cztM0_level2_quad_clean.evt |
| Size (bytes) | 452,047,680 | 93,481,920 |
| Size | 431.1 MB | 89.2 MB |
| Events in quadrant A | 3,100,261 | 589,783 |
| Events in quadrant B | 3,136,791 | 599,879 |
| Events in quadrant C | 3,024,249 | 594,535 |
| Events in quadrant D | 3,959,064 | 565,429 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 140 | 0 |
| B | 0 | 140 | 0 |
| C | 0 | 140 | 0 |
| D | 0 | 140 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 2 | 0 |
| B | 0 | 2 | 0 |
| C | 0 | 2 | 0 |
| D | 0 | 2 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14167 | 4 |
| B | 0 | 14184 | 1 |
| C | 0 | 14102 | 1 |
| D | 0 | 16744 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6909 | 112 | 1.621074% |
| B | 6910 | 125 | 1.808973% |
| C | 6910 | 71 | 1.027496% |
| D | 6910 | 198 | 2.865412% |

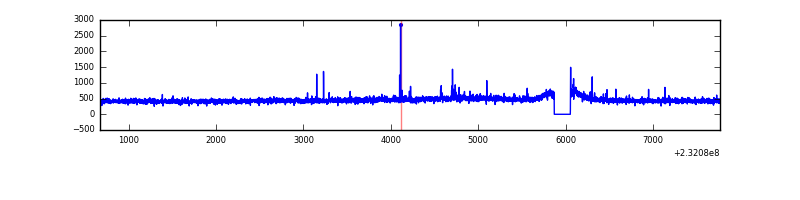

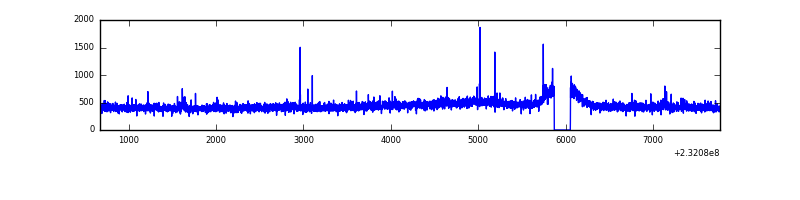

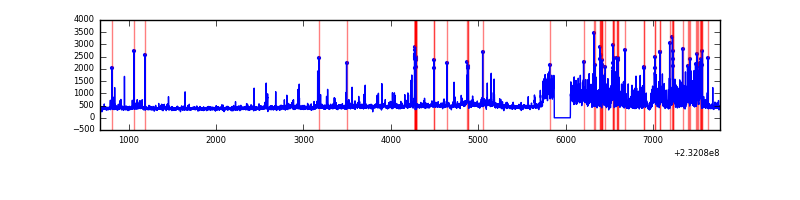

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7095 | 6910 | 1 | 1 | 0.01% | 0.01% |  |
| B | 7095 | 6910 | 1 | 1 | 0.01% | 0.01% |  |
| C | 7095 | 6911 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7095 | 6910 | 70 | 70 | 0.99% | 1.01% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 251 | 72550 | 447.86 | 779 | 759 | 160.3 |
| A | 13 | 248 | 13717 | 80.84 | 779 | 759 | 160.3 |
| A | 5 | 16 | 11771 | 68.7 | 779 | 759 | 160.3 |
| B | 0 | 168 | 16938 | 107.47 | 789 | 768 | 150.5 |
| B | 12 | 111 | 15785 | 99.8 | 789 | 768 | 150.5 |
| B | 4 | 48 | 13672 | 85.76 | 789 | 768 | 150.5 |
| C | 1 | 16 | 19603 | 106.5 | 762 | 765 | 176.9 |
| C | 8 | 128 | 9617 | 50.04 | 762 | 765 | 176.9 |
| C | 8 | 112 | 5637 | 27.54 | 762 | 765 | 176.9 |
| D | 1 | 52 | 819482 | 4016.07 | 748 | 728 | 203.9 |
| D | 7 | 71 | 84749 | 412.13 | 748 | 728 | 203.9 |
| D | 2 | 152 | 78292 | 380.46 | 748 | 728 | 203.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

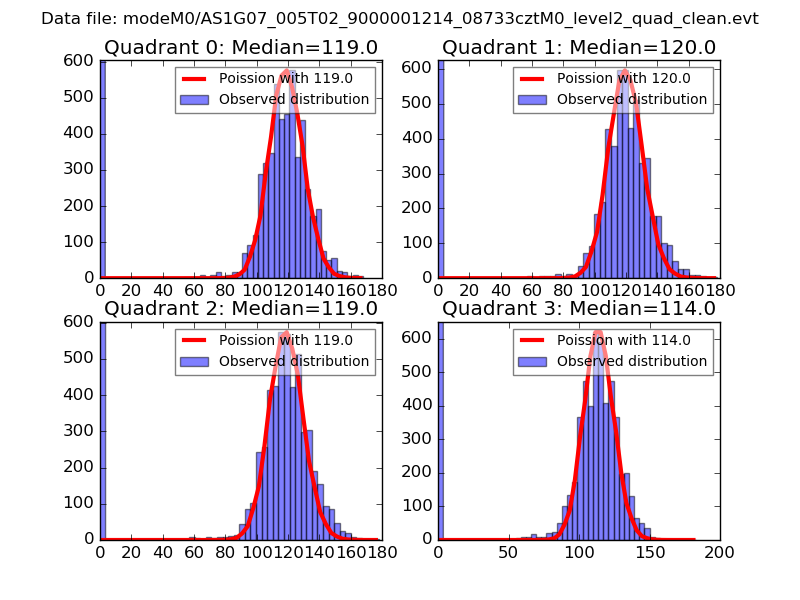

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

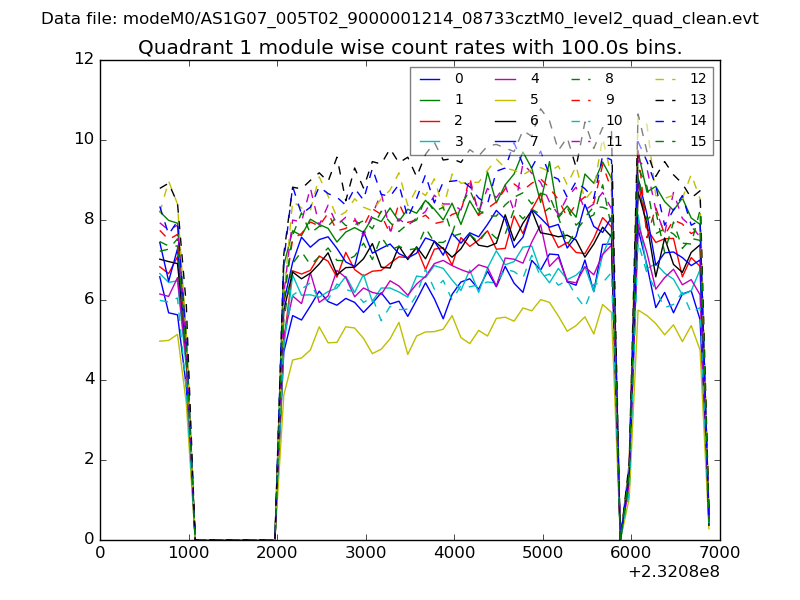

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

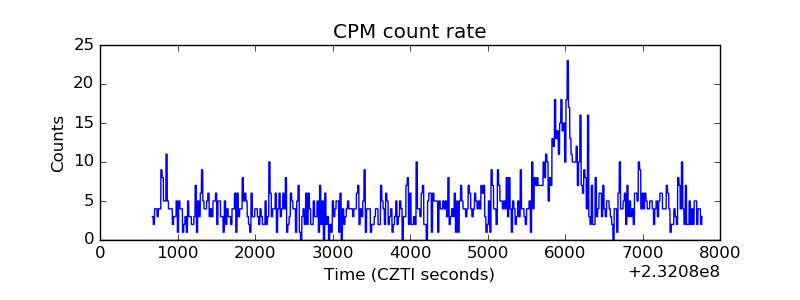

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

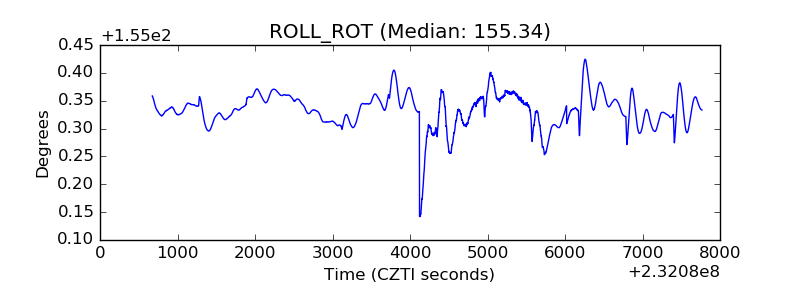

| _ROLL_ROT |  |

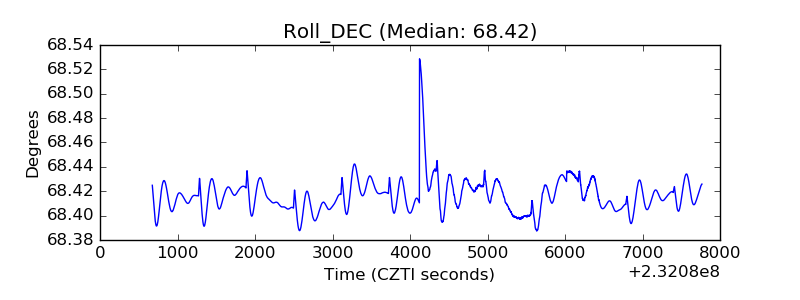

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
