| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G07_013T02_9000001216_08740cztM0_level2.evt | modeM0/AS1G07_013T02_9000001216_08740cztM0_level2_quad_clean.evt |
| Size (bytes) | 403,678,080 | 98,003,520 |
| Size | 385.0 MB | 93.5 MB |
| Events in quadrant A | 2,978,021 | 644,708 |
| Events in quadrant B | 2,884,932 | 652,522 |
| Events in quadrant C | 3,025,562 | 638,934 |
| Events in quadrant D | 2,931,863 | 615,976 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 122 | 0 |
| B | 0 | 122 | 0 |
| C | 0 | 122 | 0 |
| D | 0 | 122 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12833 | 2 |
| B | 0 | 12499 | 1 |
| C | 0 | 13000 | 1 |
| D | 0 | 12800 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5950 | 54 | 0.907563% |
| B | 5950 | 38 | 0.638655% |
| C | 5950 | 79 | 1.327731% |
| D | 5950 | 65 | 1.092437% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7180 | 5950 | 4 | 4 | 0.06% | 0.07% |  |
| B | 7180 | 5950 | 3 | 3 | 0.04% | 0.05% |  |
| C | 7180 | 5950 | 36 | 36 | 0.50% | 0.61% |  |
| D | 7180 | 5950 | 14 | 14 | 0.19% | 0.24% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 251 | 209383 | 1465.16 | 709 | 693 | 142.4 |
| A | 15 | 174 | 20570 | 139.55 | 709 | 693 | 142.4 |
| A | 5 | 16 | 11005 | 72.39 | 709 | 693 | 142.4 |
| B | 4 | 48 | 37320 | 279.13 | 711 | 694 | 131.2 |
| B | 0 | 214 | 27236 | 202.28 | 711 | 694 | 131.2 |
| B | 0 | 219 | 18757 | 137.66 | 711 | 694 | 131.2 |
| C | 4 | 254 | 233495 | 1469.55 | 694 | 697 | 158.4 |
| C | 1 | 16 | 74522 | 466.02 | 694 | 697 | 158.4 |
| C | 14 | 234 | 7253 | 41.39 | 694 | 697 | 158.4 |
| D | 7 | 71 | 105992 | 595.89 | 694 | 674 | 176.7 |
| D | 2 | 152 | 43828 | 244.17 | 694 | 674 | 176.7 |
| D | 2 | 14 | 36579 | 203.15 | 694 | 674 | 176.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

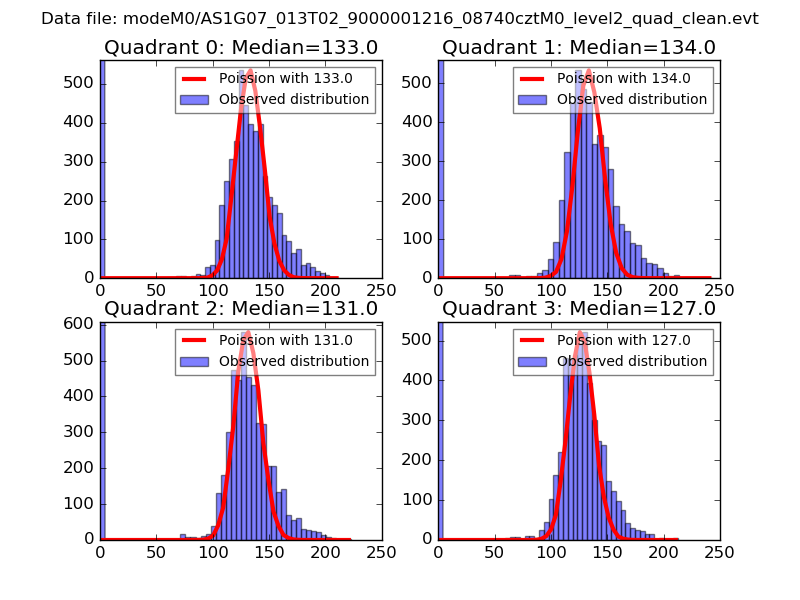

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

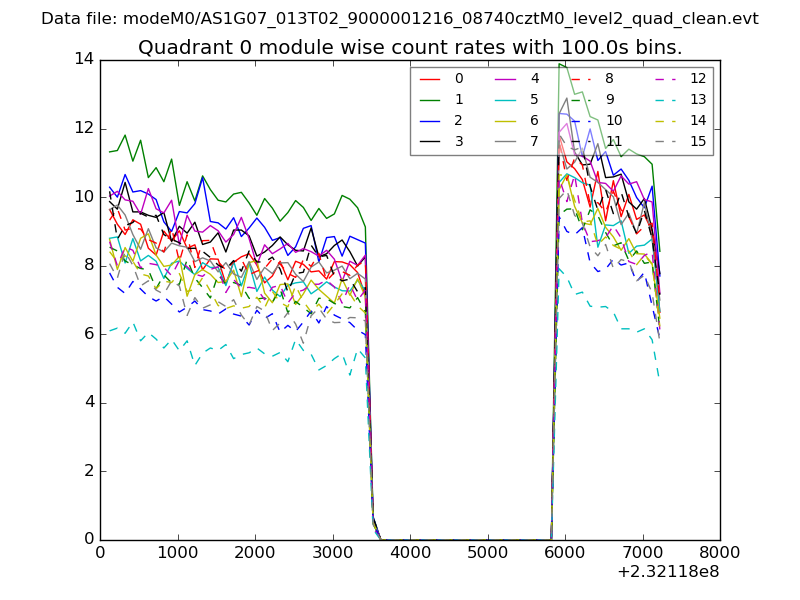

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

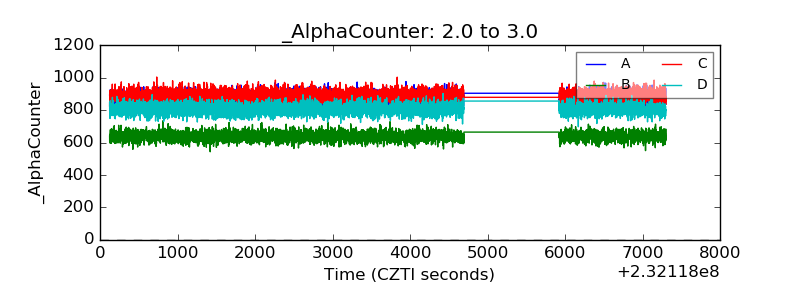

| Alpha Counter |  |

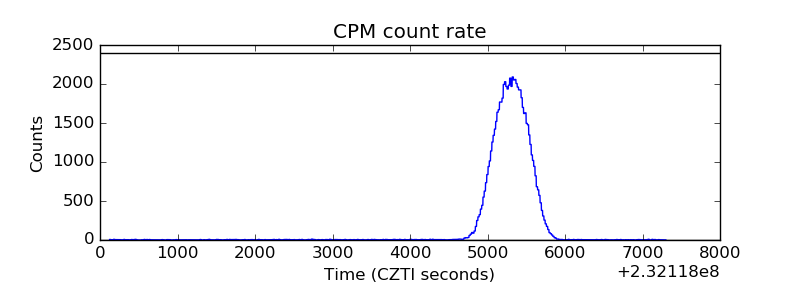

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
