| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G07_013T02_9000001216_08742cztM0_level2.evt | modeM0/AS1G07_013T02_9000001216_08742cztM0_level2_quad_clean.evt |
| Size (bytes) | 432,169,920 | 104,607,360 |
| Size | 412.1 MB | 99.8 MB |
| Events in quadrant A | 3,209,031 | 680,867 |
| Events in quadrant B | 3,188,943 | 700,447 |
| Events in quadrant C | 3,145,424 | 695,023 |
| Events in quadrant D | 3,126,905 | 662,633 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 124 | 0 |
| B | 0 | 124 | 0 |
| C | 0 | 124 | 0 |
| D | 0 | 124 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13661 | 3 |
| B | 0 | 13448 | 2 |
| C | 0 | 13395 | 2 |
| D | 0 | 13384 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 18 | 0 |
| B | 0 | 18 | 0 |
| C | 0 | 18 | 0 |
| D | 0 | 19 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6153 | 63 | 1.023891% |
| B | 6153 | 103 | 1.673980% |
| C | 6153 | 91 | 1.478953% |
| D | 6153 | 79 | 1.283927% |

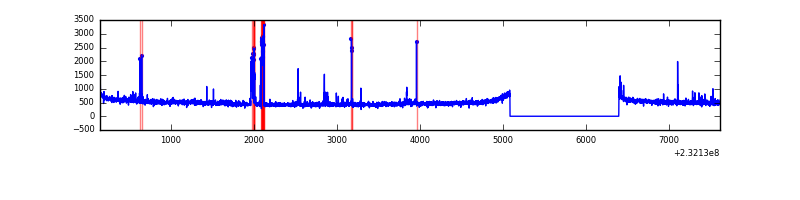

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7463 | 6153 | 6 | 6 | 0.08% | 0.10% |  |
| B | 7463 | 6153 | 37 | 37 | 0.50% | 0.60% |  |
| C | 7463 | 6153 | 24 | 24 | 0.32% | 0.39% |  |
| D | 7463 | 6153 | 12 | 12 | 0.16% | 0.20% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 251 | 234395 | 1548.34 | 754 | 738 | 150.9 |
| A | 14 | 254 | 45088 | 293.89 | 754 | 738 | 150.9 |
| A | 13 | 14 | 16170 | 102.26 | 754 | 738 | 150.9 |
| B | 5 | 255 | 131585 | 930.17 | 763 | 747 | 140.7 |
| B | 4 | 48 | 33733 | 234.51 | 763 | 747 | 140.7 |
| B | 0 | 219 | 29834 | 206.79 | 763 | 747 | 140.7 |
| C | 4 | 254 | 160134 | 925.25 | 753 | 756 | 172.3 |
| C | 14 | 234 | 32387 | 183.63 | 753 | 756 | 172.3 |
| C | 1 | 16 | 8979 | 47.74 | 753 | 756 | 172.3 |
| D | 2 | 152 | 121304 | 667.5 | 748 | 724 | 180.6 |
| D | 1 | 52 | 94558 | 519.44 | 748 | 724 | 180.6 |
| D | 2 | 234 | 28963 | 156.32 | 748 | 724 | 180.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

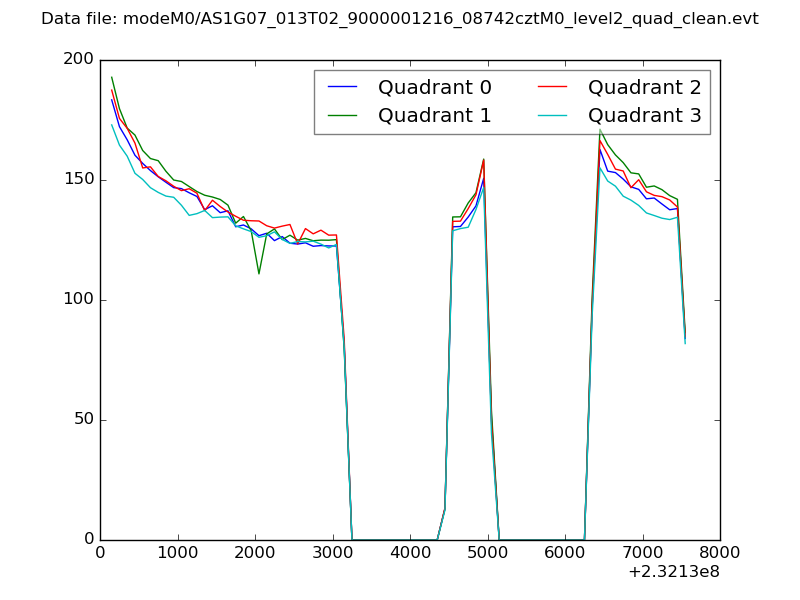

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

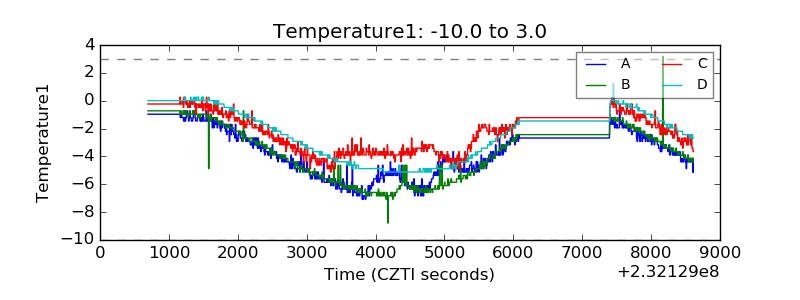

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

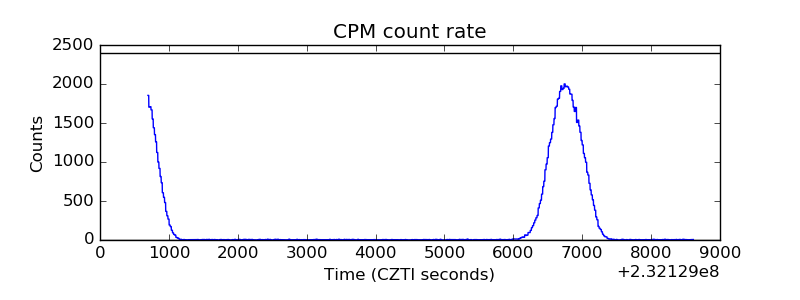

| _CPM_Rate |  |

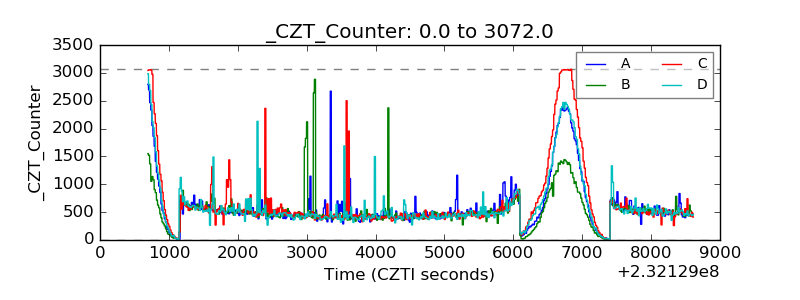

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

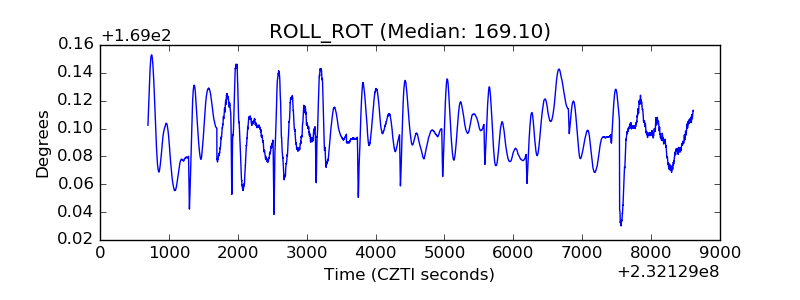

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

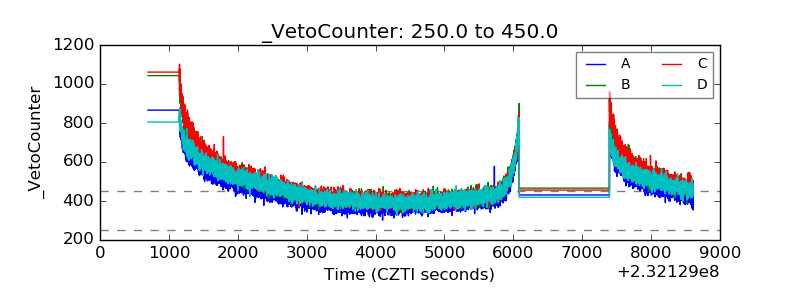

| Veto Counter |  |
