| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G07_013T02_9000001216_08743cztM0_level2.evt | modeM0/AS1G07_013T02_9000001216_08743cztM0_level2_quad_clean.evt |
| Size (bytes) | 404,254,080 | 100,952,640 |
| Size | 385.5 MB | 96.3 MB |
| Events in quadrant A | 2,947,591 | 651,961 |
| Events in quadrant B | 2,967,343 | 674,370 |
| Events in quadrant C | 2,980,564 | 665,679 |
| Events in quadrant D | 2,927,289 | 634,360 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 124 | 0 |
| B | 0 | 124 | 0 |
| C | 0 | 124 | 0 |
| D | 0 | 124 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13013 | 3 |
| B | 0 | 12877 | 2 |
| C | 0 | 13007 | 2 |
| D | 0 | 13015 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 14 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6180 | 24 | 0.388350% |
| B | 6180 | 26 | 0.420712% |
| C | 6180 | 38 | 0.614887% |
| D | 6180 | 18 | 0.291262% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7495 | 6181 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7495 | 6181 | 0 | 0 | 0.00% | 0.00% |  |
| C | 7495 | 6181 | 22 | 22 | 0.29% | 0.36% |  |
| D | 7495 | 6181 | 4 | 4 | 0.05% | 0.06% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 251 | 73761 | 499.89 | 728 | 713 | 146.1 |
| A | 14 | 254 | 51935 | 350.53 | 728 | 713 | 146.1 |
| A | 15 | 174 | 16245 | 106.29 | 728 | 713 | 146.1 |
| B | 4 | 48 | 44841 | 323.7 | 741 | 725 | 136.3 |
| B | 0 | 219 | 15969 | 111.85 | 741 | 725 | 136.3 |
| B | 12 | 111 | 12875 | 89.15 | 741 | 725 | 136.3 |
| C | 1 | 16 | 115938 | 690.03 | 728 | 731 | 167.0 |
| C | 14 | 234 | 11043 | 61.76 | 728 | 731 | 167.0 |
| C | 14 | 67 | 6202 | 32.77 | 728 | 731 | 167.0 |
| D | 2 | 152 | 63659 | 361.0 | 720 | 698 | 174.4 |
| D | 7 | 71 | 51063 | 288.78 | 720 | 698 | 174.4 |
| D | 2 | 14 | 27617 | 154.35 | 720 | 698 | 174.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

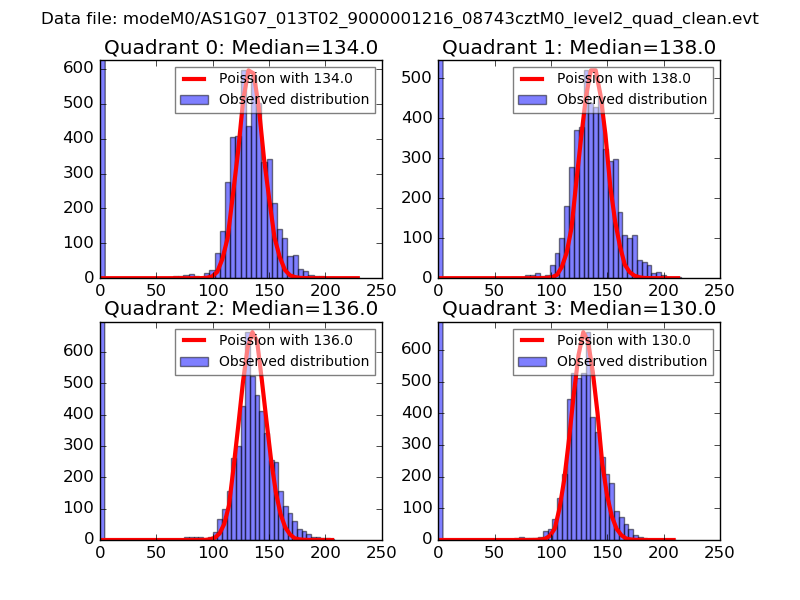

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

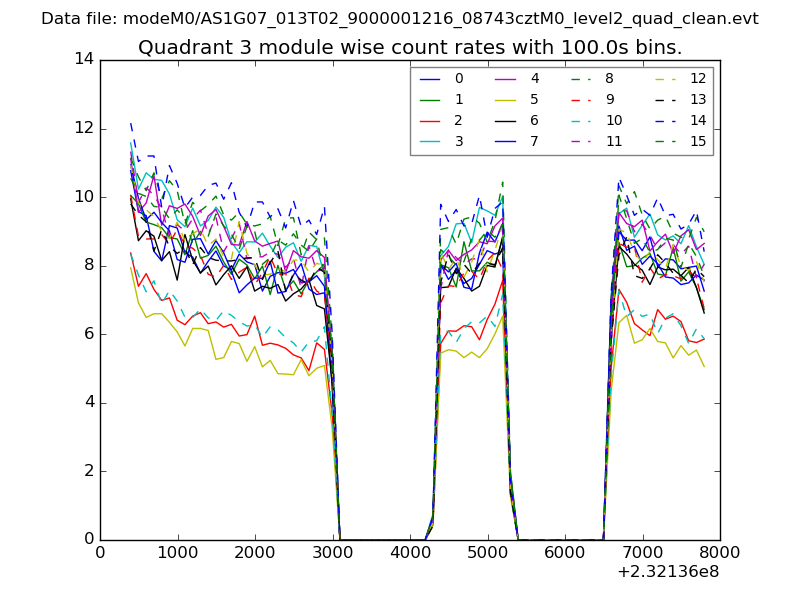

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

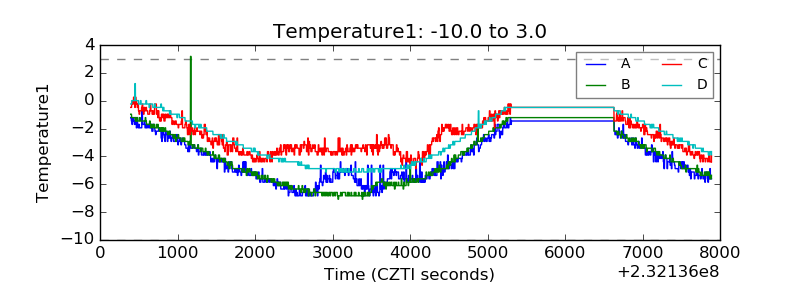

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

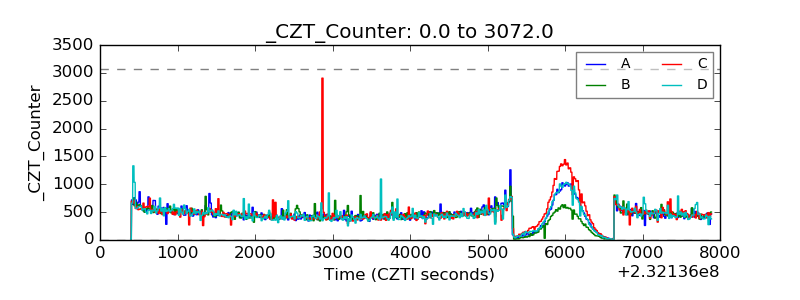

| CZT Counter |  |

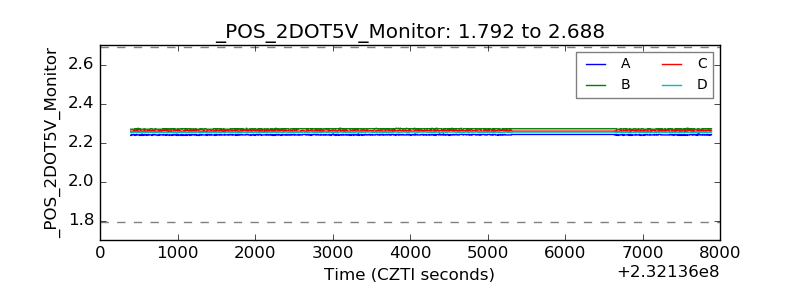

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
