| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G07_013T02_9000001216_08748cztM0_level2.evt | modeM0/AS1G07_013T02_9000001216_08748cztM0_level2_quad_clean.evt |
| Size (bytes) | 619,732,800 | 114,969,600 |
| Size | 591.0 MB | 109.6 MB |
| Events in quadrant A | 4,114,488 | 722,721 |
| Events in quadrant B | 4,456,519 | 732,135 |
| Events in quadrant C | 3,964,364 | 731,696 |
| Events in quadrant D | 5,638,103 | 686,162 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 180 | 0 |
| B | 0 | 180 | 0 |
| C | 0 | 180 | 0 |
| D | 0 | 180 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 18487 | 3 |
| B | 0 | 19094 | 2 |
| C | 0 | 18085 | 2 |
| D | 0 | 22716 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 4 | 0 |
| B | 0 | 4 | 0 |
| C | 0 | 4 | 0 |
| D | 0 | 4 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 8764 | 250 | 2.852579% |
| B | 8764 | 391 | 4.461433% |
| C | 8764 | 146 | 1.665906% |
| D | 8764 | 502 | 5.727978% |

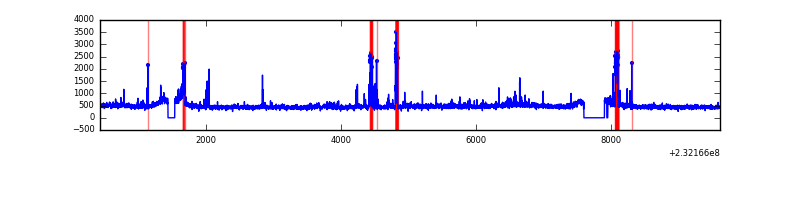

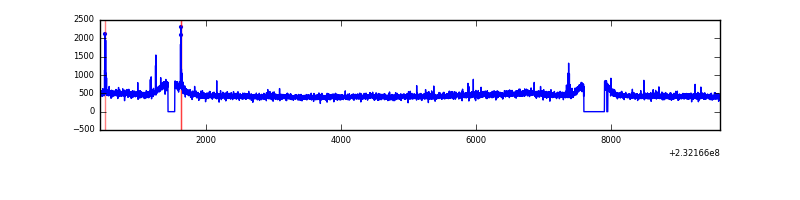

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 9184 | 8766 | 33 | 33 | 0.36% | 0.38% |  |
| B | 9184 | 8765 | 84 | 84 | 0.91% | 0.96% |  |
| C | 9184 | 8765 | 3 | 3 | 0.03% | 0.03% |  |
| D | 9184 | 8766 | 304 | 304 | 3.31% | 3.47% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 5 | 16 | 110983 | 532.53 | 1010 | 984 | 206.6 |
| A | 13 | 251 | 38691 | 182.55 | 1010 | 984 | 206.6 |
| A | 4 | 2 | 33956 | 159.63 | 1010 | 984 | 206.6 |
| B | 10 | 16 | 336274 | 1728.23 | 1021 | 994 | 194.0 |
| B | 0 | 214 | 79401 | 404.16 | 1021 | 994 | 194.0 |
| B | 5 | 255 | 44871 | 226.17 | 1021 | 994 | 194.0 |
| C | 1 | 16 | 20519 | 84.32 | 999 | 1001 | 231.5 |
| C | 14 | 234 | 20152 | 82.73 | 999 | 1001 | 231.5 |
| C | 8 | 128 | 10964 | 43.04 | 999 | 1001 | 231.5 |
| D | 1 | 52 | 1392969 | 5862.73 | 975 | 945 | 237.4 |
| D | 12 | 233 | 110230 | 460.27 | 975 | 945 | 237.4 |
| D | 2 | 152 | 90205 | 375.93 | 975 | 945 | 237.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

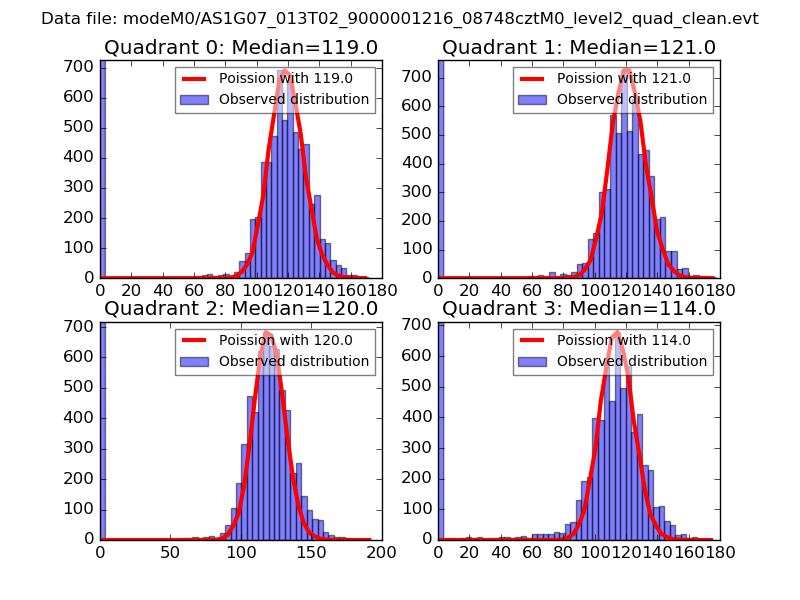

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

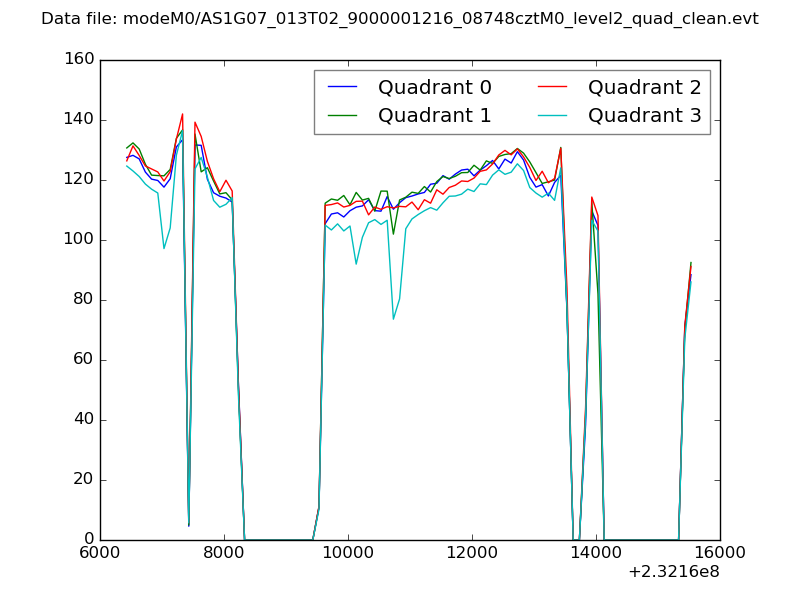

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

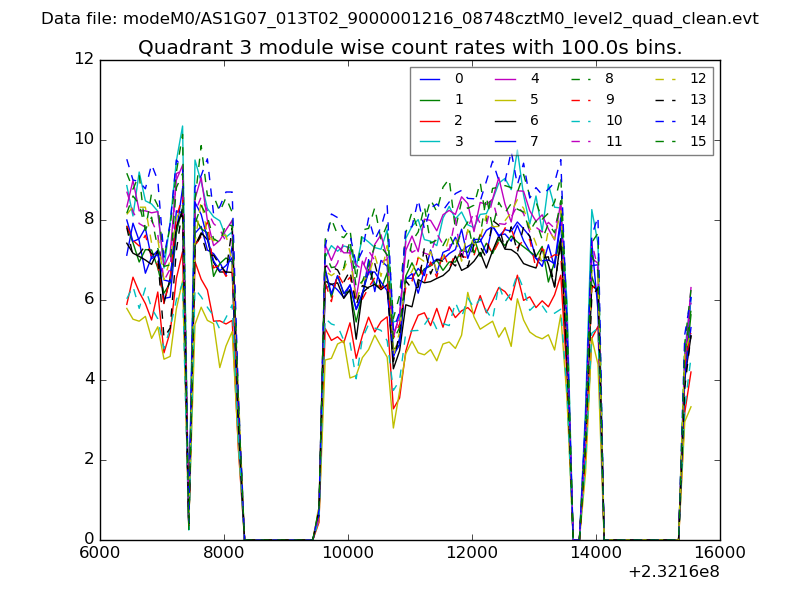

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

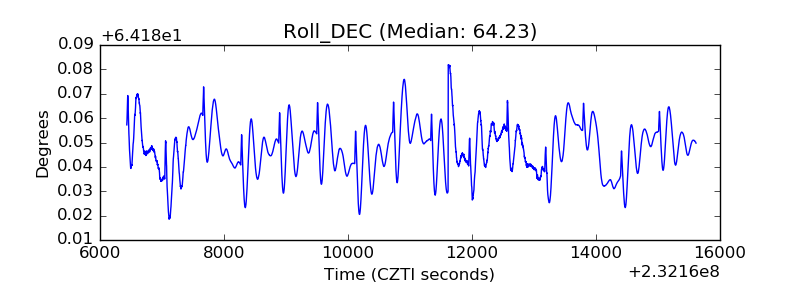

| _Roll_DEC |  |
| _Roll_RA |  |

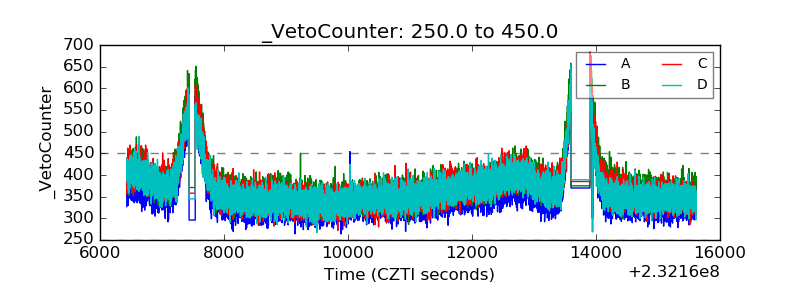

| Veto Counter |  |
