| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A03_038T01_9000001218_08752cztM0_level2.evt | modeM0/AS1A03_038T01_9000001218_08752cztM0_level2_quad_clean.evt |
| Size (bytes) | 483,975,360 | 86,613,120 |
| Size | 461.6 MB | 82.6 MB |
| Events in quadrant A | 3,419,603 | 537,100 |
| Events in quadrant B | 3,450,969 | 543,976 |
| Events in quadrant C | 3,314,285 | 536,092 |
| Events in quadrant D | 3,992,507 | 513,946 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 19 | 0 |
| B | 0 | 19 | 0 |
| C | 0 | 19 | 0 |
| D | 0 | 19 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14746 | 3 |
| B | 0 | 14754 | 2 |
| C | 0 | 14517 | 4 |
| D | 0 | 16556 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 146 | 0 |
| B | 0 | 146 | 0 |
| C | 0 | 146 | 0 |
| D | 0 | 146 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7058 | 135 | 1.912723% |
| B | 7058 | 133 | 1.884387% |
| C | 7057 | 98 | 1.388692% |
| D | 7058 | 223 | 3.159535% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8973 | 7058 | 2 | 2 | 0.02% | 0.03% |  |
| B | 8973 | 7058 | 8 | 8 | 0.09% | 0.11% |  |
| C | 8973 | 7058 | 0 | 0 | 0.00% | 0.00% |  |
| D | 8973 | 7058 | 116 | 116 | 1.29% | 1.64% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 5 | 16 | 22553 | 121.43 | 876 | 856 | 178.7 |
| A | 13 | 248 | 19610 | 104.96 | 876 | 856 | 178.7 |
| A | 13 | 251 | 10154 | 52.04 | 876 | 856 | 178.7 |
| B | 10 | 16 | 48911 | 284.22 | 873 | 851 | 169.1 |
| B | 12 | 111 | 18755 | 105.88 | 873 | 851 | 169.1 |
| B | 11 | 111 | 15175 | 84.71 | 873 | 851 | 169.1 |
| C | 13 | 61 | 6480 | 28.57 | 847 | 848 | 197.1 |
| C | 14 | 67 | 4506 | 18.55 | 847 | 848 | 197.1 |
| C | 12 | 4 | 3047 | 11.15 | 847 | 848 | 197.1 |
| D | 10 | 253 | 238545 | 1156.29 | 837 | 817 | 205.6 |
| D | 1 | 52 | 157644 | 762.79 | 837 | 817 | 205.6 |
| D | 13 | 122 | 115274 | 556.71 | 837 | 817 | 205.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

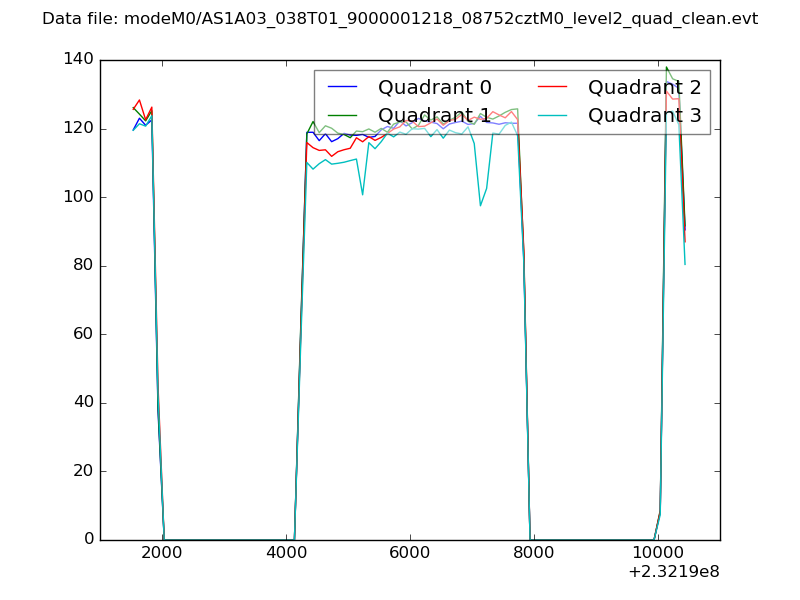

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

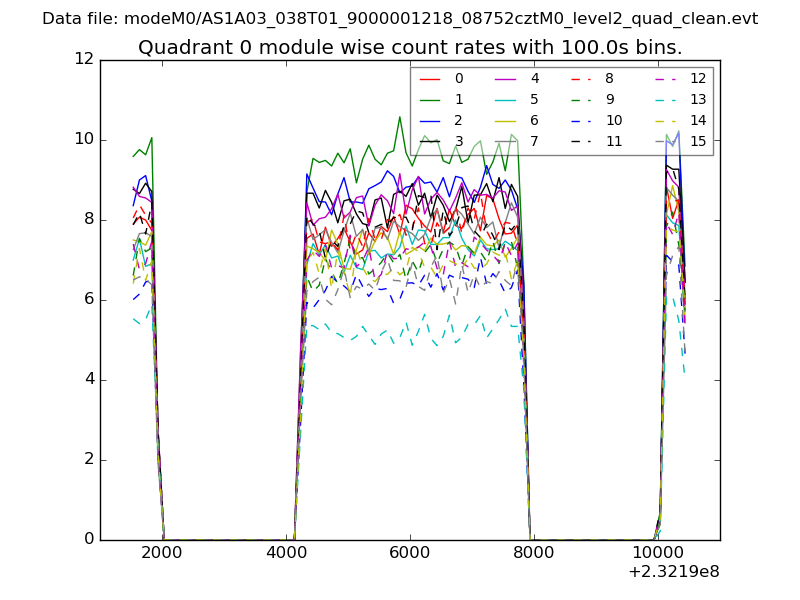

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

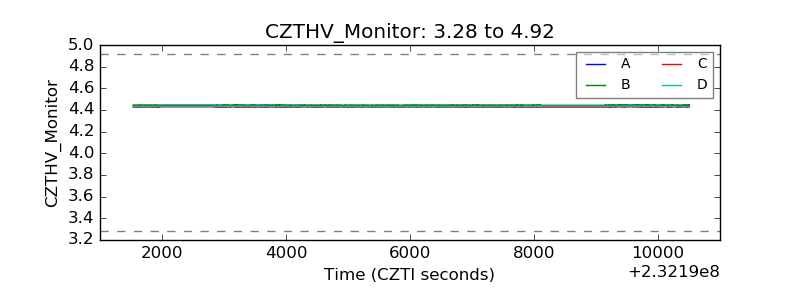

| CZT HV Monitor |  |

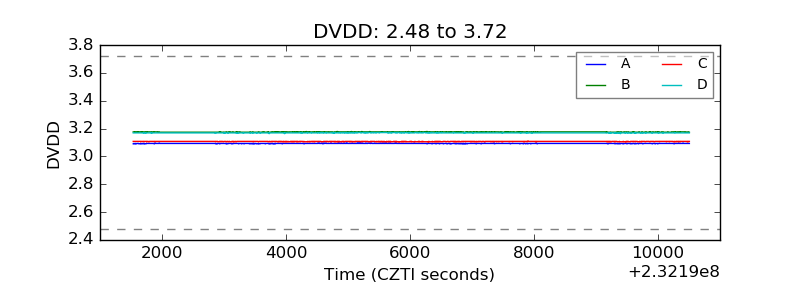

| D_VDD |  |

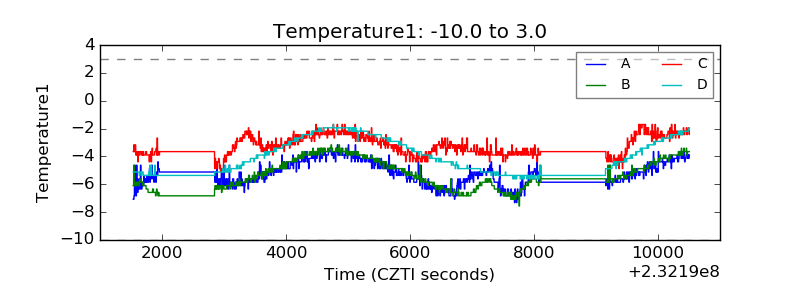

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

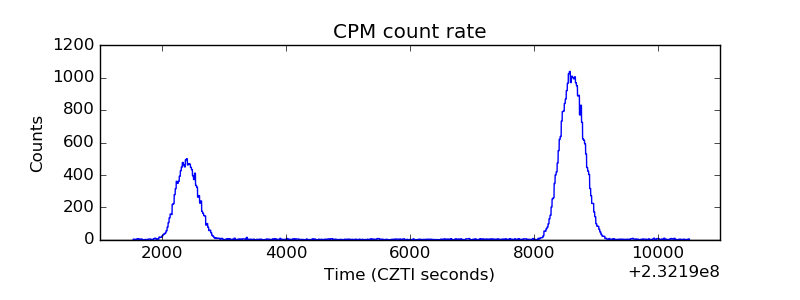

| _CPM_Rate |  |

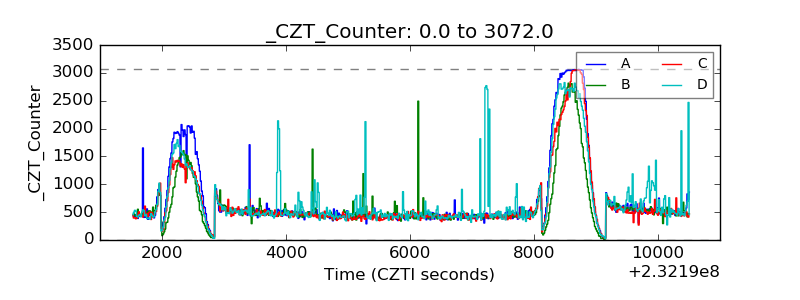

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

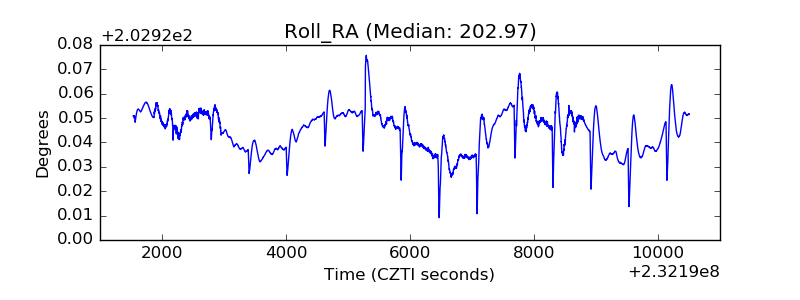

| _Roll_RA |  |
| Veto Counter |  |
