| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A03_038T01_9000001218_08756cztM0_level2.evt | modeM0/AS1A03_038T01_9000001218_08756cztM0_level2_quad_clean.evt |
| Size (bytes) | 417,461,760 | 104,676,480 |
| Size | 398.1 MB | 99.8 MB |
| Events in quadrant A | 3,071,200 | 689,298 |
| Events in quadrant B | 2,985,157 | 702,600 |
| Events in quadrant C | 2,946,928 | 695,421 |
| Events in quadrant D | 3,234,814 | 666,986 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12901 | 2 |
| B | 0 | 12635 | 1 |
| C | 0 | 12481 | 1 |
| D | 0 | 13517 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 122 | 0 |
| B | 0 | 122 | 0 |
| C | 0 | 122 | 0 |
| D | 0 | 122 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5951 | 90 | 1.512351% |
| B | 5951 | 74 | 1.243488% |
| C | 5951 | 60 | 1.008234% |
| D | 5951 | 81 | 1.361116% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7281 | 5951 | 16 | 16 | 0.22% | 0.27% |  |
| B | 7281 | 5951 | 0 | 0 | 0.00% | 0.00% |  |
| C | 7281 | 5951 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7281 | 5951 | 28 | 28 | 0.38% | 0.47% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 5 | 16 | 58529 | 378.61 | 762 | 746 | 152.6 |
| A | 13 | 251 | 30588 | 195.53 | 762 | 746 | 152.6 |
| A | 13 | 248 | 26403 | 168.11 | 762 | 746 | 152.6 |
| B | 4 | 80 | 20017 | 135.8 | 761 | 746 | 141.9 |
| B | 12 | 111 | 15018 | 100.57 | 761 | 746 | 141.9 |
| B | 11 | 111 | 12432 | 82.35 | 761 | 746 | 141.9 |
| C | 13 | 61 | 5589 | 27.96 | 754 | 760 | 172.7 |
| C | 12 | 4 | 2722 | 11.36 | 754 | 760 | 172.7 |
| C | 8 | 222 | 2240 | 8.57 | 754 | 760 | 172.7 |
| D | 1 | 52 | 161171 | 859.8 | 747 | 729 | 186.6 |
| D | 2 | 152 | 144434 | 770.11 | 747 | 729 | 186.6 |
| D | 10 | 253 | 43813 | 230.89 | 747 | 729 | 186.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

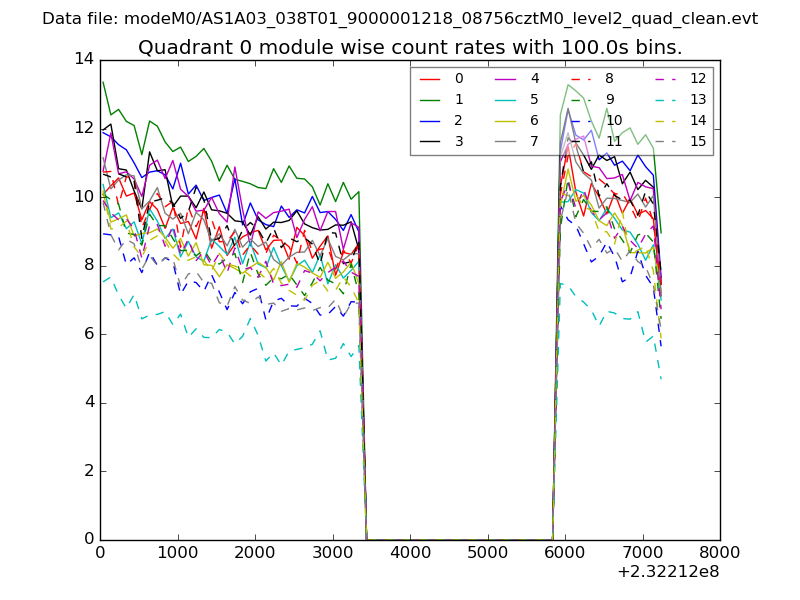

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

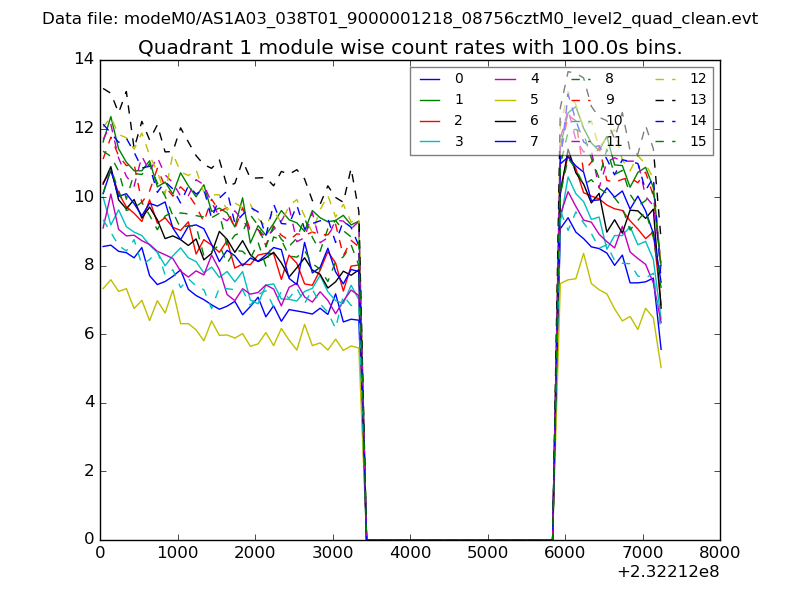

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

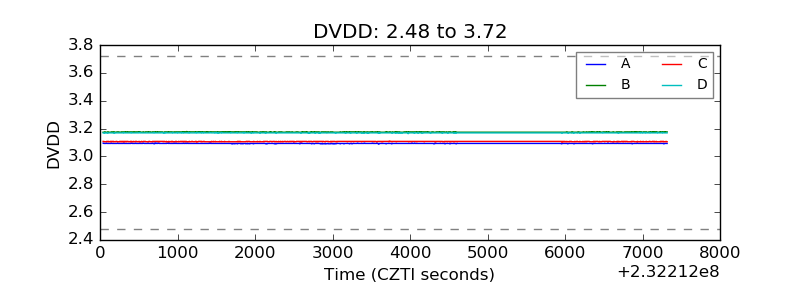

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

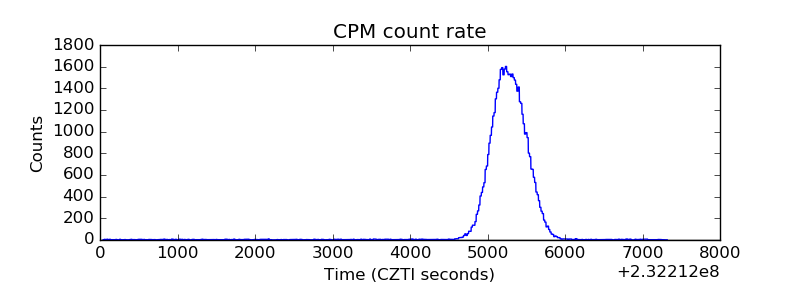

| _CPM_Rate |  |

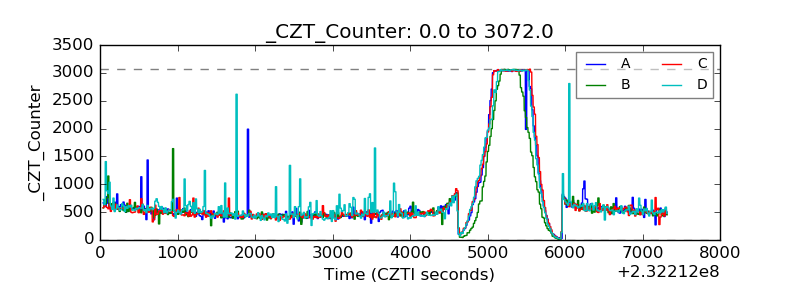

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
