| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A03_038T01_9000001218_08761cztM0_level2.evt | modeM0/AS1A03_038T01_9000001218_08761cztM0_level2_quad_clean.evt |
| Size (bytes) | 545,025,600 | 113,135,040 |
| Size | 519.8 MB | 107.9 MB |
| Events in quadrant A | 3,915,299 | 718,901 |
| Events in quadrant B | 3,809,020 | 728,225 |
| Events in quadrant C | 3,833,880 | 720,450 |
| Events in quadrant D | 4,391,705 | 689,431 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 7 | 0 |
| B | 0 | 7 | 0 |
| C | 0 | 7 | 0 |
| D | 0 | 7 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17164 | 3 |
| B | 0 | 17023 | 6 |
| C | 0 | 17222 | 4 |
| D | 0 | 18940 | 7 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 166 | 0 |
| B | 0 | 166 | 0 |
| C | 0 | 166 | 0 |
| D | 0 | 166 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 8200 | 72 | 0.878049% |
| B | 8198 | 93 | 1.134423% |
| C | 8199 | 47 | 0.573241% |
| D | 8198 | 137 | 1.671139% |

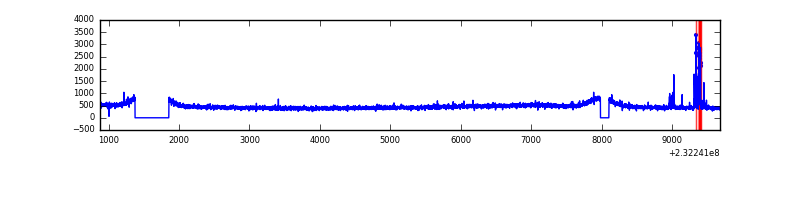

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8800 | 8202 | 8 | 8 | 0.09% | 0.10% |  |
| B | 8800 | 8201 | 0 | 0 | 0.00% | 0.00% |  |
| C | 8800 | 8202 | 20 | 20 | 0.23% | 0.24% |  |
| D | 8800 | 8202 | 110 | 110 | 1.25% | 1.34% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 251 | 117380 | 585.09 | 969 | 947 | 199.0 |
| A | 13 | 248 | 38922 | 190.83 | 969 | 947 | 199.0 |
| A | 13 | 14 | 12972 | 60.43 | 969 | 947 | 199.0 |
| B | 12 | 111 | 21408 | 108.89 | 973 | 948 | 187.9 |
| B | 11 | 111 | 17117 | 86.06 | 973 | 948 | 187.9 |
| B | 4 | 80 | 15138 | 75.52 | 973 | 948 | 187.9 |
| C | 9 | 54 | 108750 | 483.75 | 951 | 954 | 222.8 |
| C | 13 | 61 | 7132 | 27.72 | 951 | 954 | 222.8 |
| C | 8 | 128 | 5337 | 19.67 | 951 | 954 | 222.8 |
| D | 2 | 152 | 426213 | 1783.74 | 933 | 909 | 238.4 |
| D | 1 | 52 | 329991 | 1380.18 | 933 | 909 | 238.4 |
| D | 2 | 14 | 38752 | 158.71 | 933 | 909 | 238.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

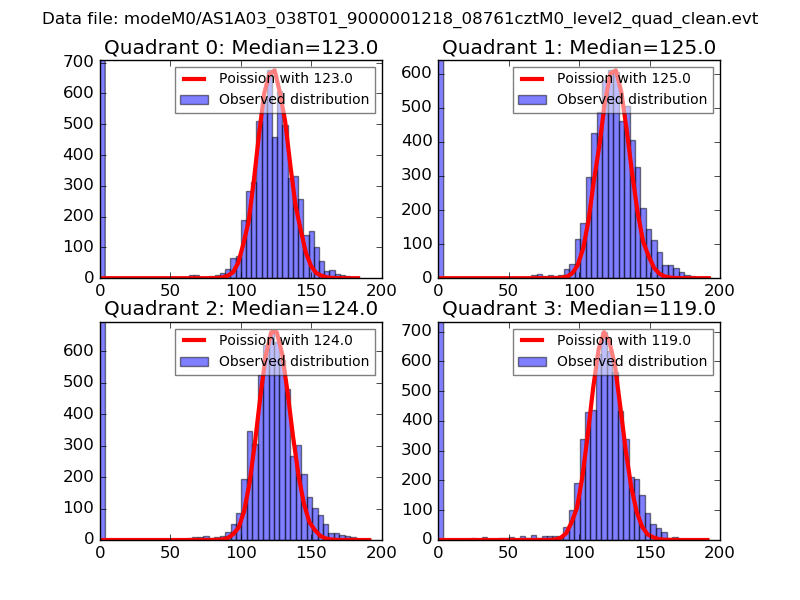

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

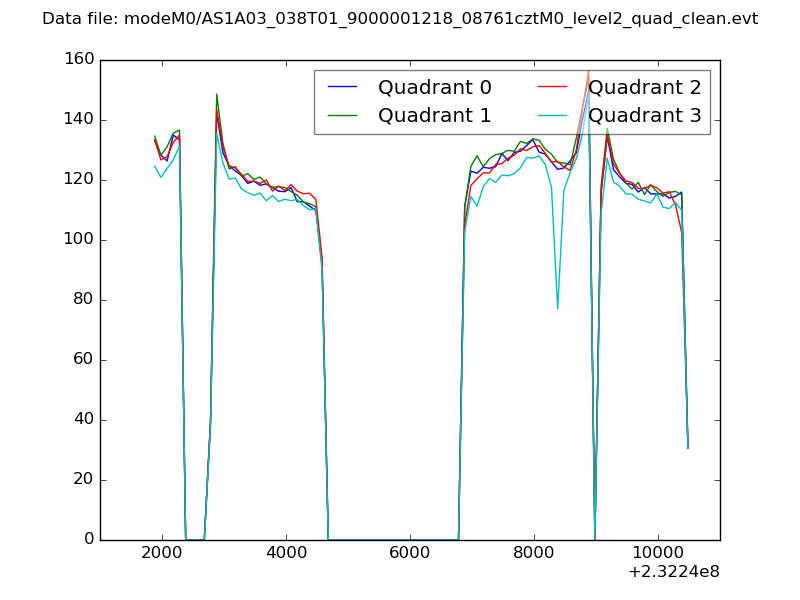

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

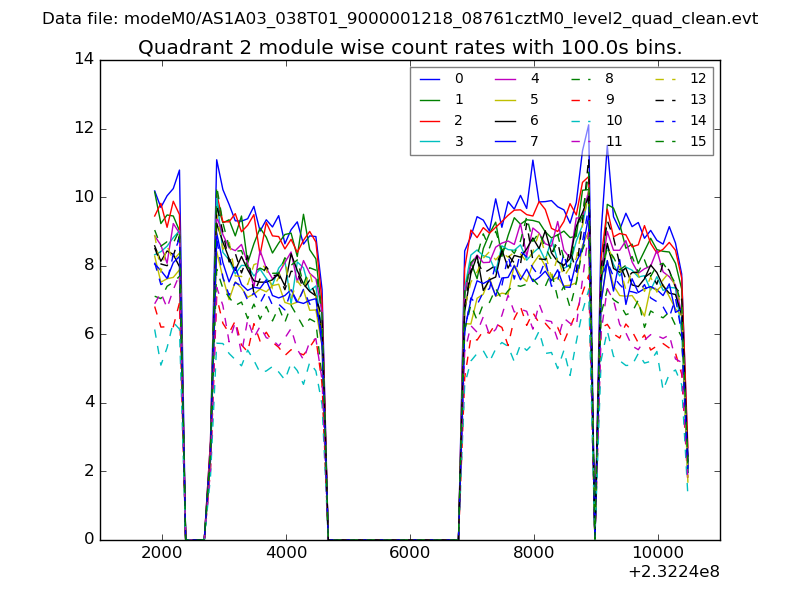

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

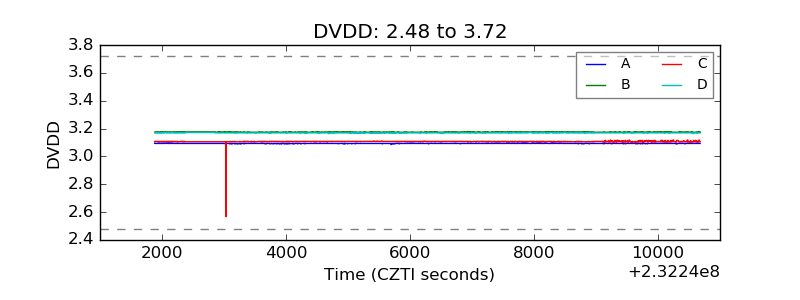

| D_VDD |  |

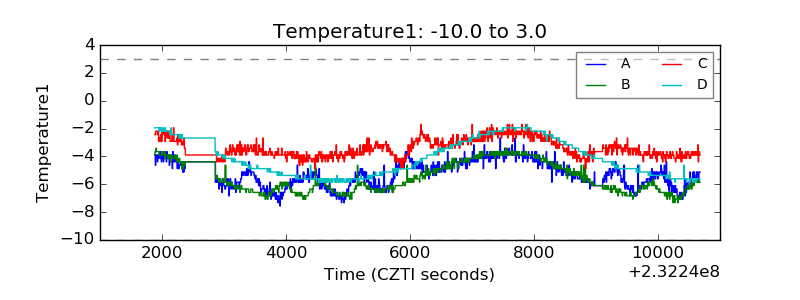

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

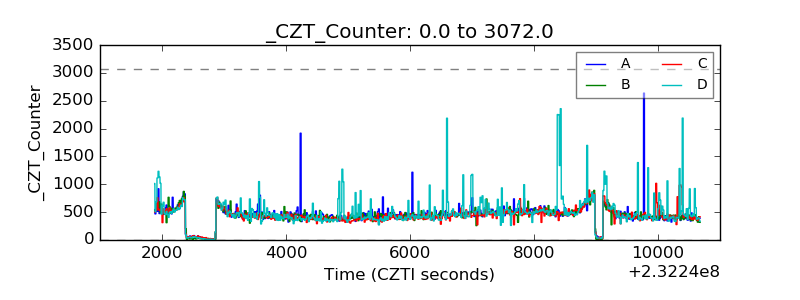

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

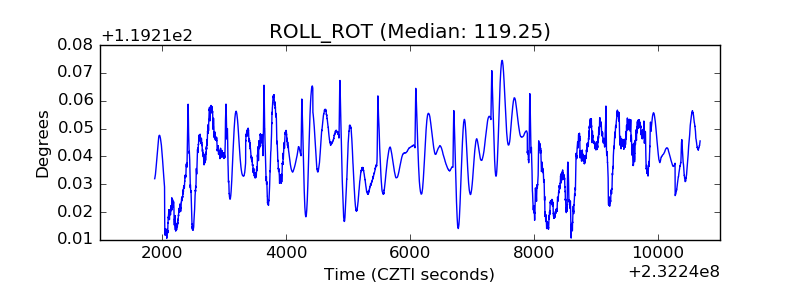

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
