| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A03_038T01_9000001218_08769cztM0_level2.evt | modeM0/AS1A03_038T01_9000001218_08769cztM0_level2_quad_clean.evt |
| Size (bytes) | 244,033,920 | 28,581,120 |
| Size | 232.7 MB | 27.3 MB |
| Events in quadrant A | 1,416,556 | 187,537 |
| Events in quadrant B | 1,171,329 | 190,771 |
| Events in quadrant C | 1,200,861 | 184,505 |
| Events in quadrant D | 3,445,432 | 137,559 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 8 | 0 |
| B | 0 | 8 | 0 |
| C | 0 | 8 | 0 |
| D | 0 | 9 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 5758 | 1 |
| B | 0 | 4877 | 1 |
| C | 0 | 4979 | 1 |
| D | 0 | 11847 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 46 | 0 |
| B | 0 | 46 | 0 |
| C | 0 | 46 | 0 |
| D | 0 | 46 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 2277 | 29 | 1.273606% |
| B | 2277 | 13 | 0.570927% |
| C | 2277 | 15 | 0.658762% |
| D | 2277 | 828 | 36.363636% |

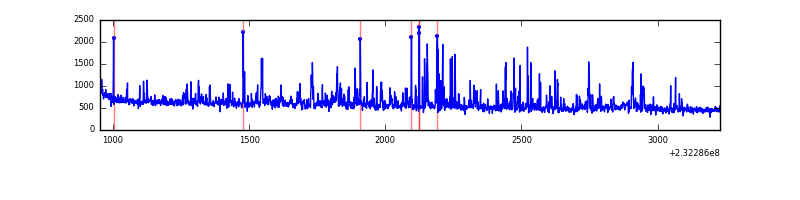

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 2277 | 2277 | 7 | 7 | 0.31% | 0.31% |  |
| B | 2277 | 2277 | 0 | 0 | 0.00% | 0.00% |  |
| C | 2277 | 2277 | 4 | 4 | 0.18% | 0.18% |  |
| D | 2276 | 2276 | 757 | 757 | 33.26% | 33.26% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 5 | 199602 | 3127.2 | 305 | 298 | 63.7 |
| A | 13 | 251 | 25487 | 395.23 | 305 | 298 | 63.7 |
| A | 3 | 1 | 16142 | 248.6 | 305 | 298 | 63.7 |
| B | 5 | 255 | 6670 | 110.1 | 299 | 292 | 57.9 |
| B | 12 | 111 | 6304 | 103.78 | 299 | 292 | 57.9 |
| B | 11 | 111 | 5154 | 83.93 | 299 | 292 | 57.9 |
| C | 9 | 68 | 61227 | 890.02 | 291 | 293 | 68.5 |
| C | 13 | 61 | 2134 | 26.89 | 291 | 293 | 68.5 |
| C | 8 | 222 | 1249 | 13.96 | 291 | 293 | 68.5 |
| D | 2 | 16 | 2407598 | 39238.06 | 242 | 237 | 61.4 |
| D | 15 | 217 | 43866 | 711.12 | 242 | 237 | 61.4 |
| D | 5 | 233 | 19258 | 310.03 | 242 | 237 | 61.4 |

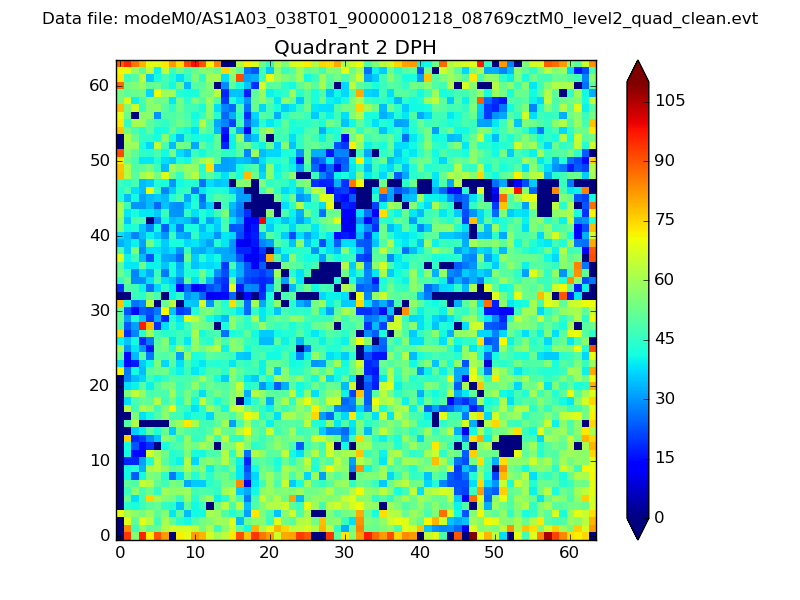

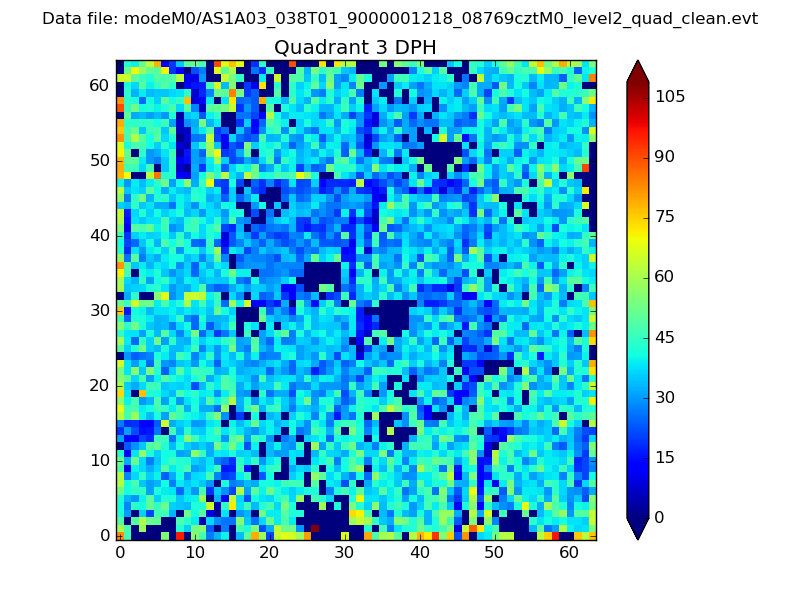

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

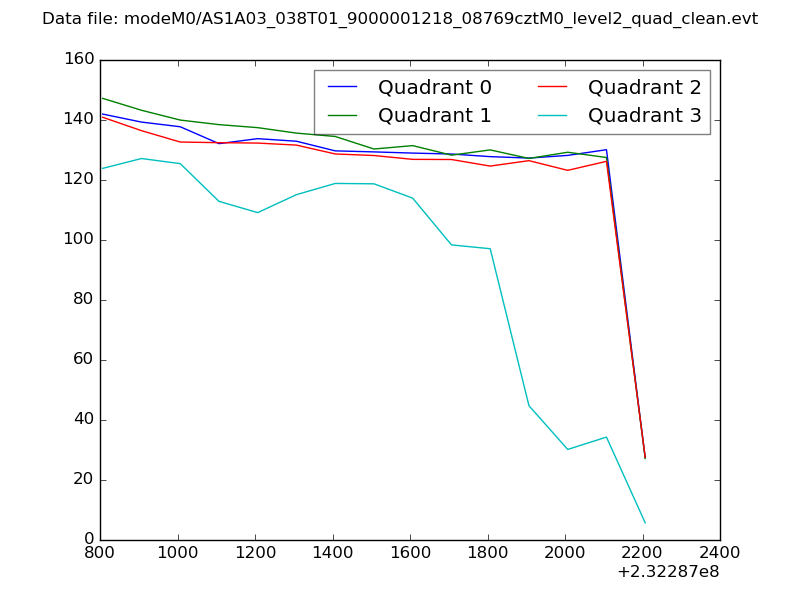

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

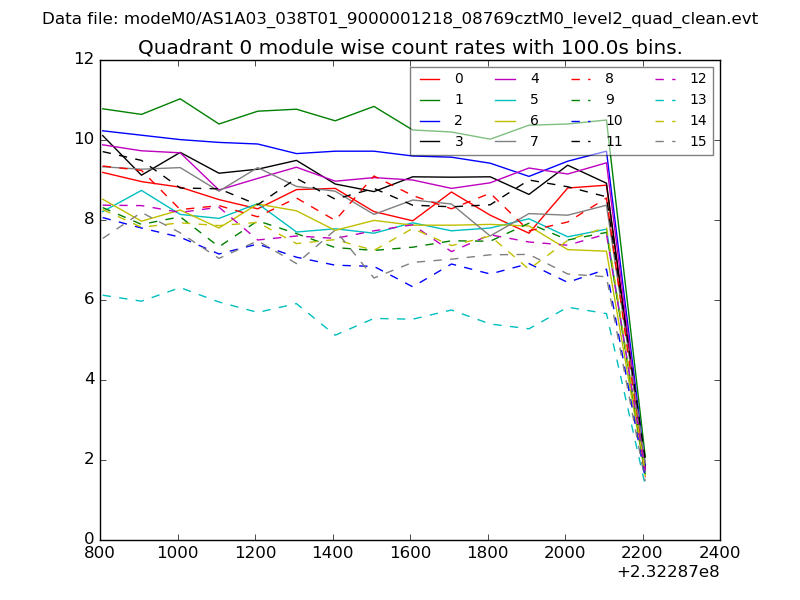

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

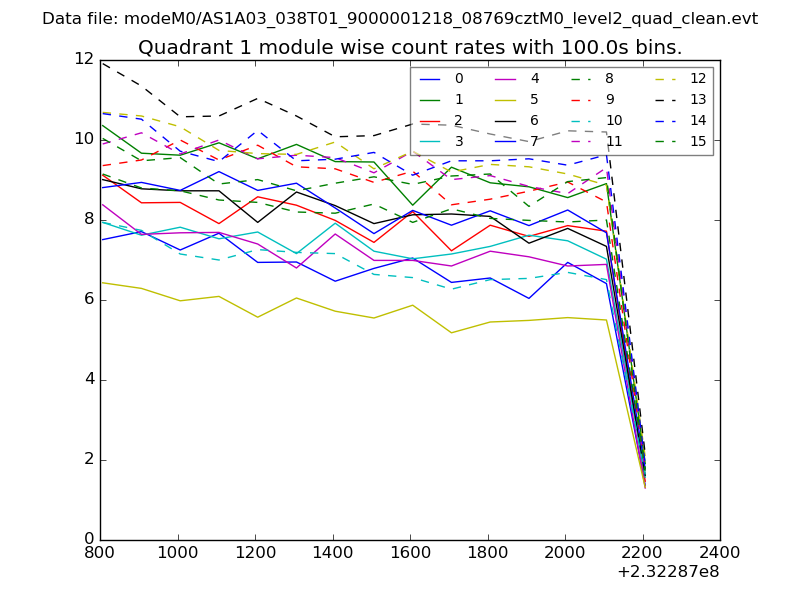

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

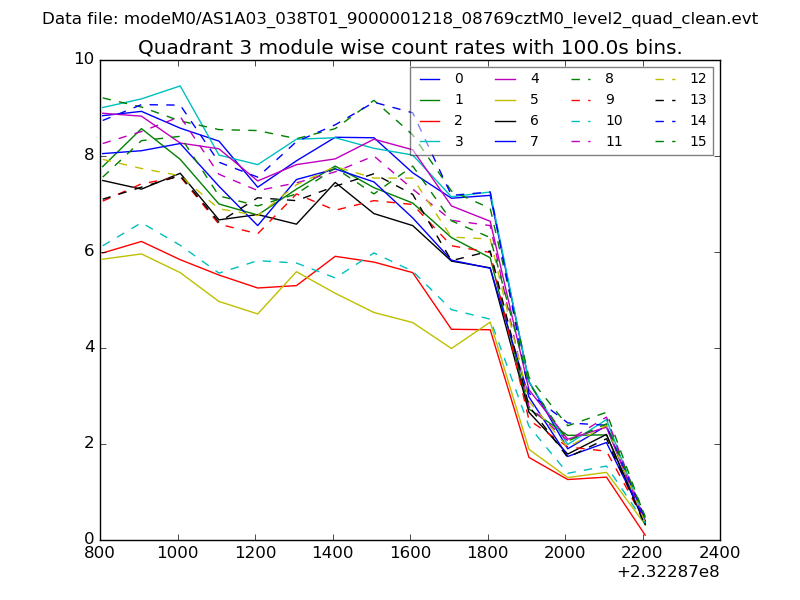

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

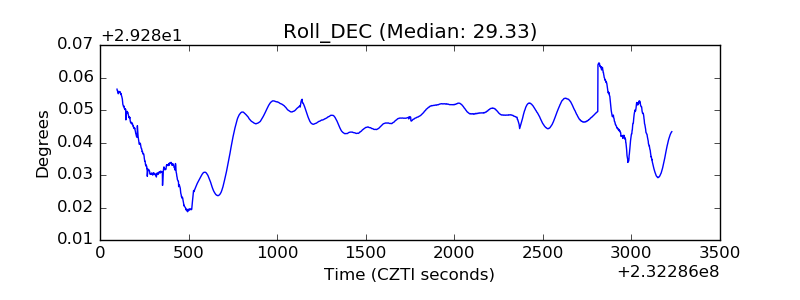

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
