| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G07_010T02_9000001222_08780cztM0_level2.evt | modeM0/AS1G07_010T02_9000001222_08780cztM0_level2_quad_clean.evt |
| Size (bytes) | 545,230,080 | 69,600,960 |
| Size | 520.0 MB | 66.4 MB |
| Events in quadrant A | 4,095,178 | 408,689 |
| Events in quadrant B | 3,335,430 | 417,627 |
| Events in quadrant C | 3,134,571 | 413,513 |
| Events in quadrant D | 5,480,689 | 388,130 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16518 | 3 |
| B | 0 | 14325 | 2 |
| C | 0 | 14039 | 2 |
| D | 0 | 20948 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 138 | 0 |
| B | 0 | 138 | 0 |
| C | 0 | 138 | 0 |
| D | 0 | 138 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10 | 0 |
| B | 0 | 10 | 0 |
| C | 0 | 10 | 0 |
| D | 0 | 11 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6883 | 143 | 2.077582% |
| B | 6883 | 97 | 1.409269% |
| C | 6883 | 47 | 0.682842% |
| D | 6883 | 579 | 8.412030% |

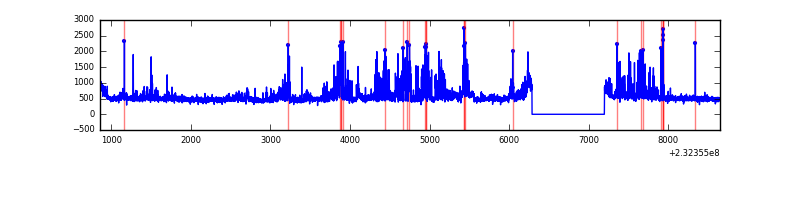

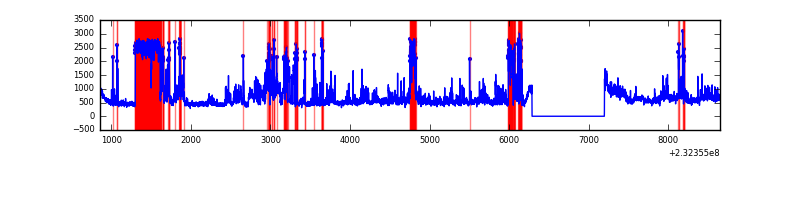

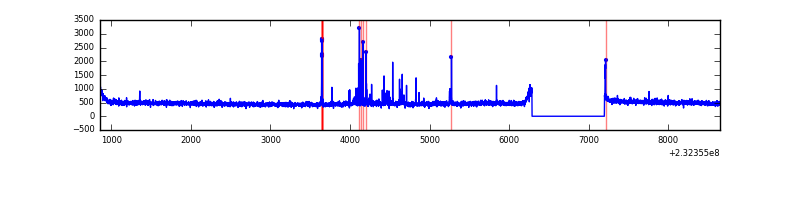

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7793 | 6883 | 25 | 25 | 0.32% | 0.36% |  |
| B | 7793 | 6883 | 13 | 13 | 0.17% | 0.19% |  |
| C | 7793 | 6883 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7793 | 6883 | 532 | 532 | 6.83% | 7.73% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 5 | 829598 | 4887.5 | 824 | 803 | 169.6 |
| A | 15 | 223 | 41367 | 239.21 | 824 | 803 | 169.6 |
| A | 13 | 251 | 20919 | 118.63 | 824 | 803 | 169.6 |
| B | 10 | 16 | 93594 | 576.95 | 828 | 807 | 160.8 |
| B | 12 | 111 | 18313 | 108.85 | 828 | 807 | 160.8 |
| B | 11 | 111 | 14903 | 87.65 | 828 | 807 | 160.8 |
| C | 14 | 234 | 6531 | 30.57 | 800 | 803 | 187.4 |
| C | 13 | 61 | 6023 | 27.86 | 800 | 803 | 187.4 |
| C | 9 | 68 | 5893 | 27.17 | 800 | 803 | 187.4 |
| D | 2 | 16 | 1934139 | 10008.64 | 761 | 742 | 193.2 |
| D | 9 | 64 | 243883 | 1258.67 | 761 | 742 | 193.2 |
| D | 2 | 152 | 211765 | 1092.4 | 761 | 742 | 193.2 |

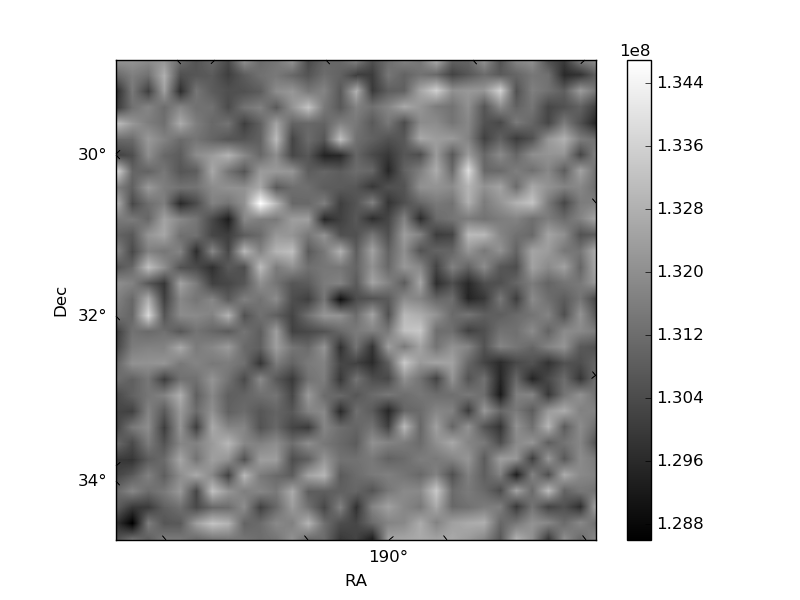

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

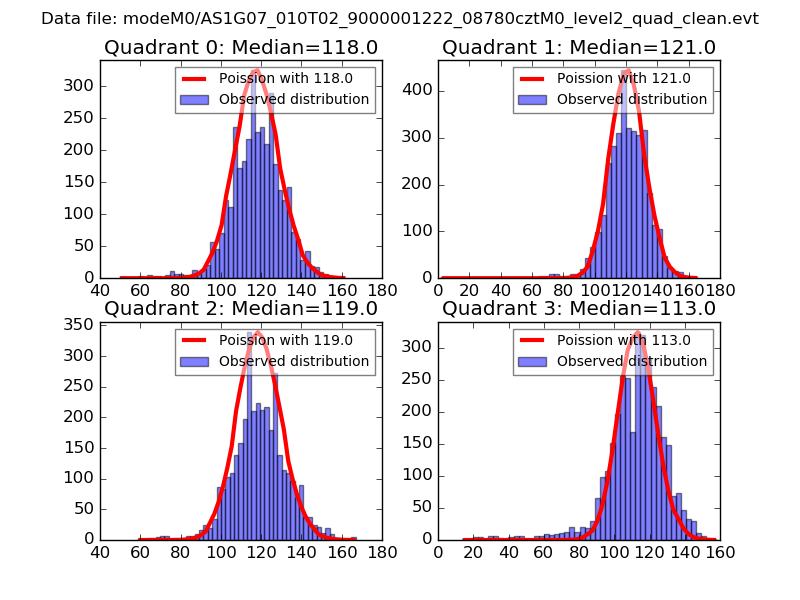

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

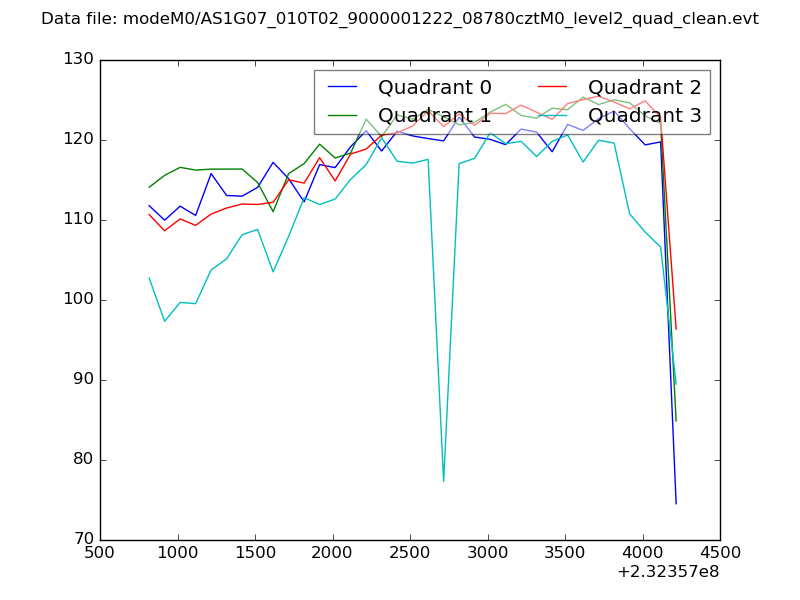

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

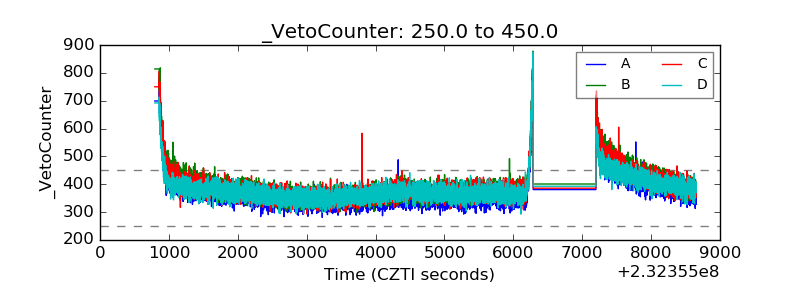

| Veto Counter |  |
